Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, see here |
||
|
SP Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
API-based Provisioning supported (account management available in TrustLogin) |
|
|
SAML JIT Provisioning supported (account management available in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
ー |
IdP-Initiated SSO |
|
|
Device Compatibility |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Default Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Default Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
|
SAML Authentication Scope |
ー |
Enabled for all users (SAML authentication only) |
| 〇 |
Other: Enabled for all users (both SAML authentication and password authentication are available) |
|
|
Notes |
|
|
|
Table of Contents: TrustLogin Admin Page Settings Hikari Cloud SmartStudy® Settings |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

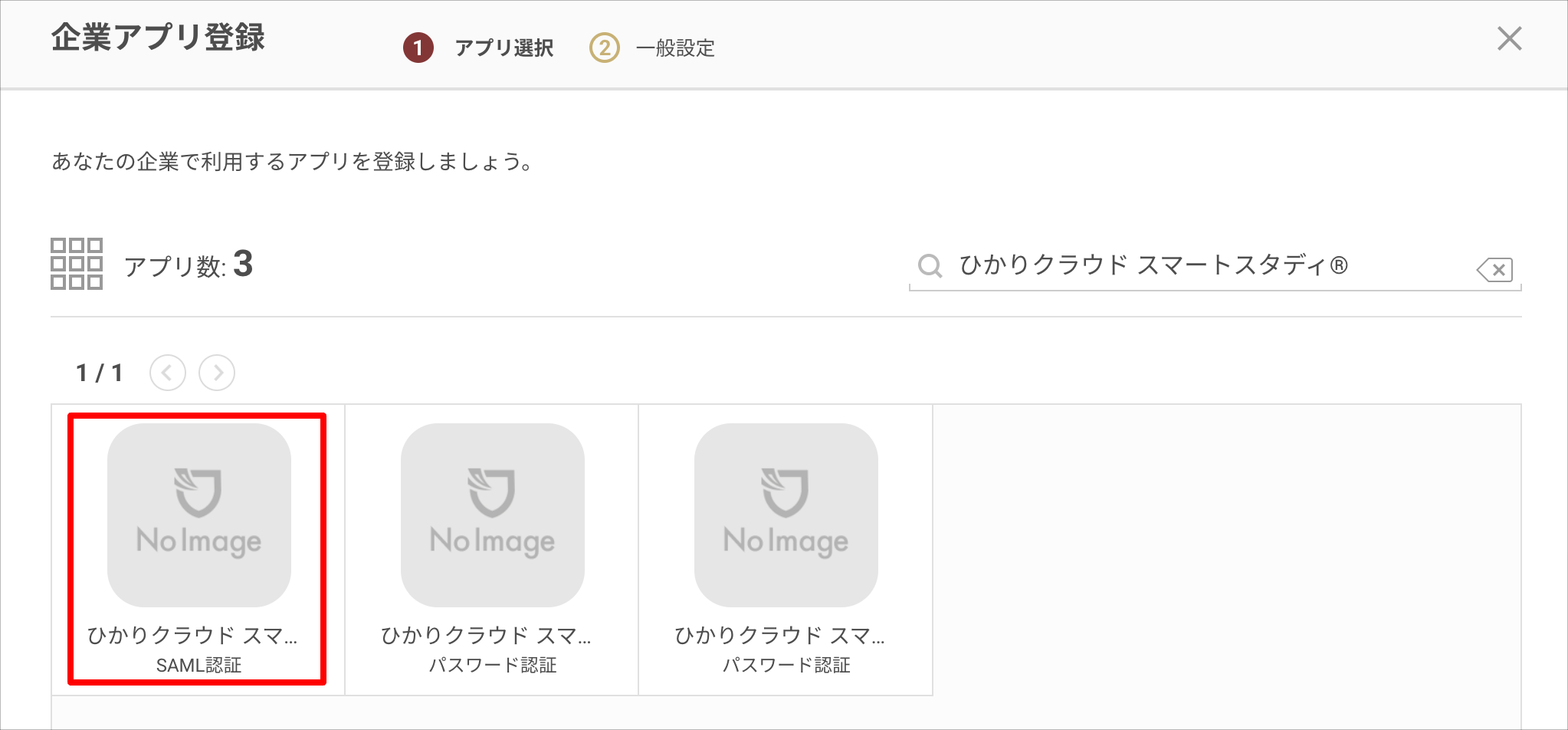

- Search on the "Register Company App" screen and select "Hikari Cloud SmartStudy® (SAML)".
- Download the metadata using the "Download Metadata" button under "Identity Provider Information".
Now, proceed to the Hikari Cloud SmartStudy® settings.
Do not click the "Register" button yet; open the Hikari Cloud SmartStudy® admin screen in a separate window.
Hikari Cloud SmartStudy® Settings

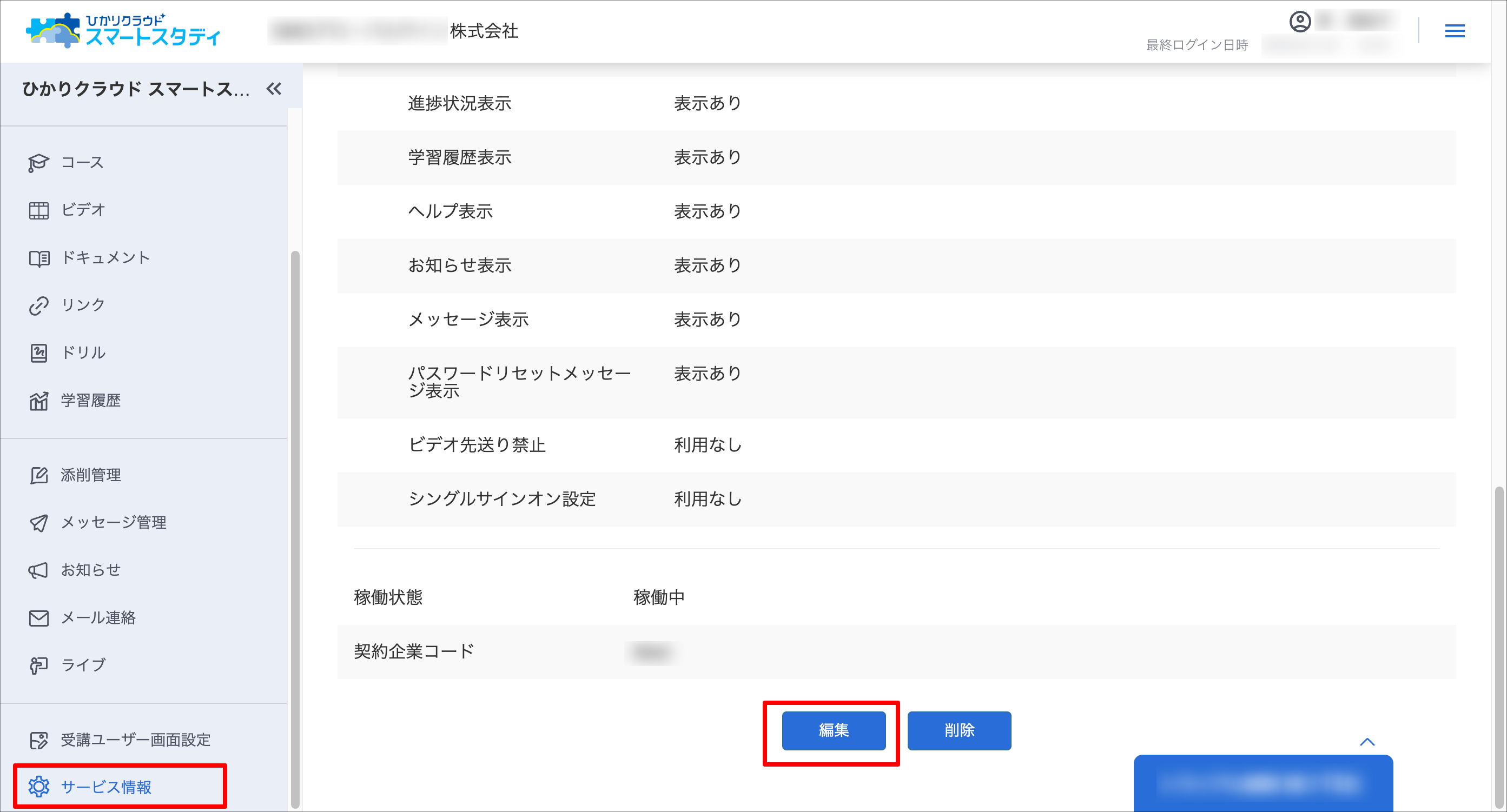

- Open "Service Information" in the left menu of the admin screen and click the "Edit" button.

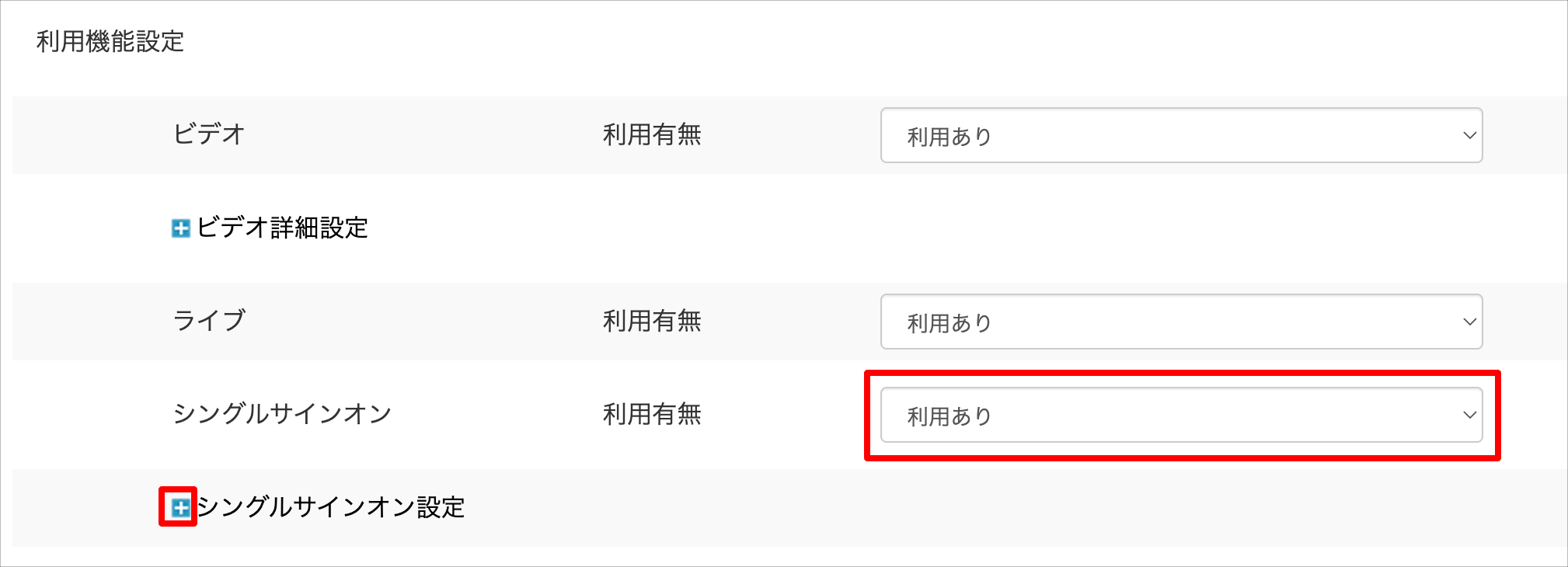

- Set "Single Sign-On" usage to "Enabled" and click the "+" to the left of "Single Sign-On Settings".

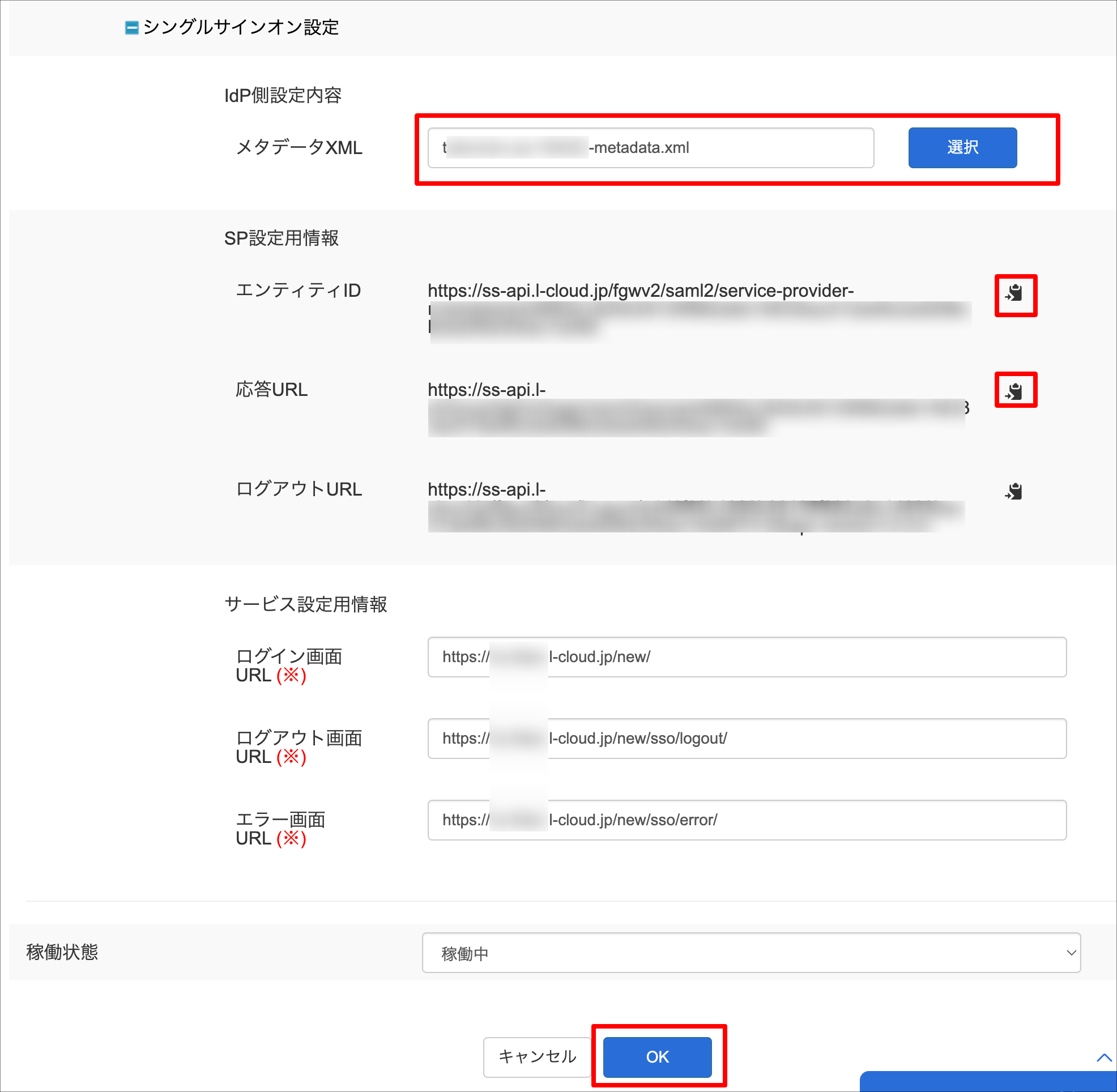

- Upload the "Metadata" obtained from TrustLogin to "Metadata XML", and use the copy buttons on the right to obtain and note down the "Entity ID" and "Response URL".
Finally, save the settings by clicking the "OK" button.
- Click "OK" on the confirmation screen.

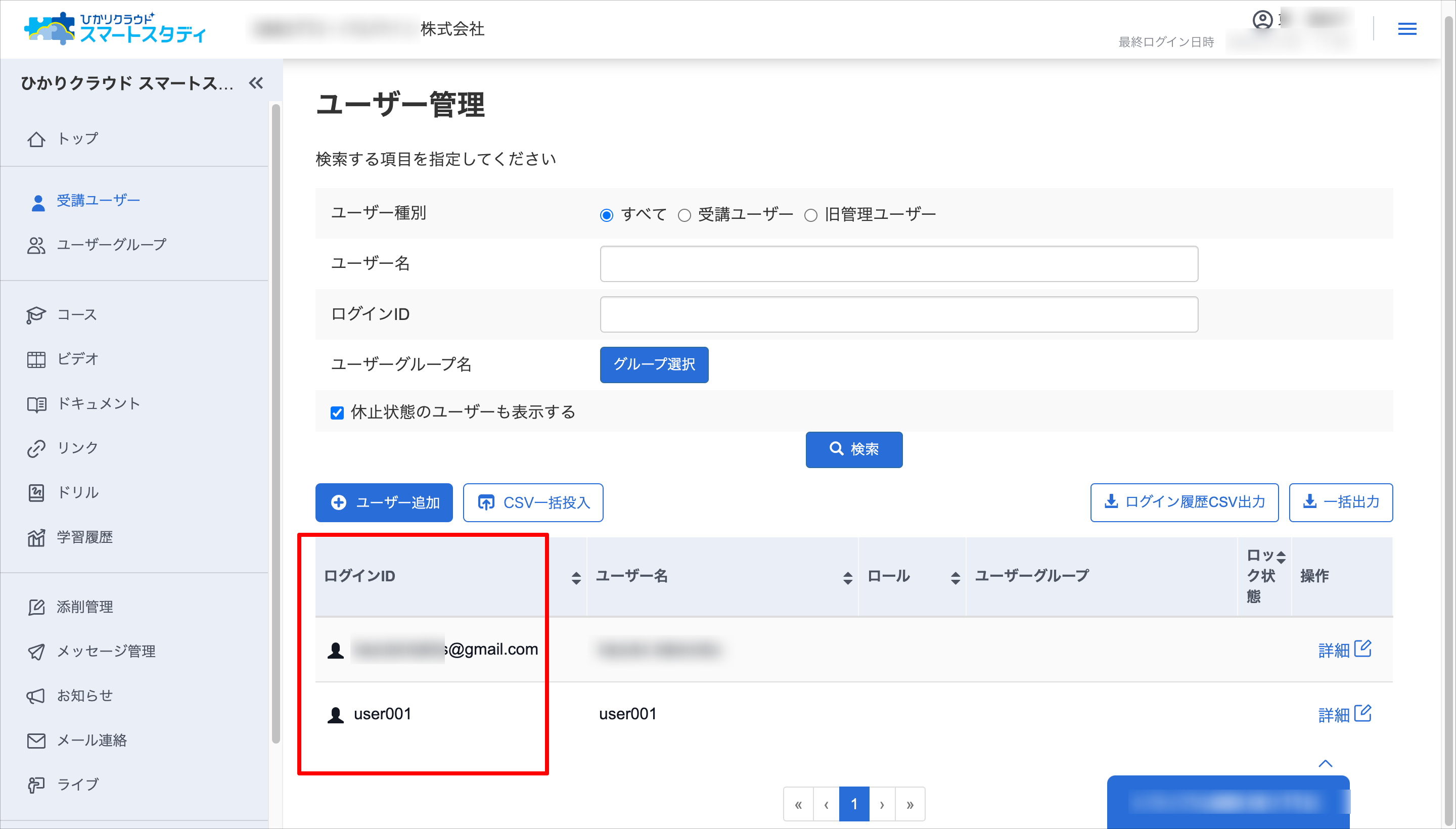

- The login ID of the enrolled user must match the TrustLogin email address. If the enrolled user's login ID is set to an ID different from the TrustLogin email address, edit the login ID from the enrolled user's user management screen.
Now, return to the TrustLogin Admin Page.
TrustLogin Admin Page Settings (Continued)

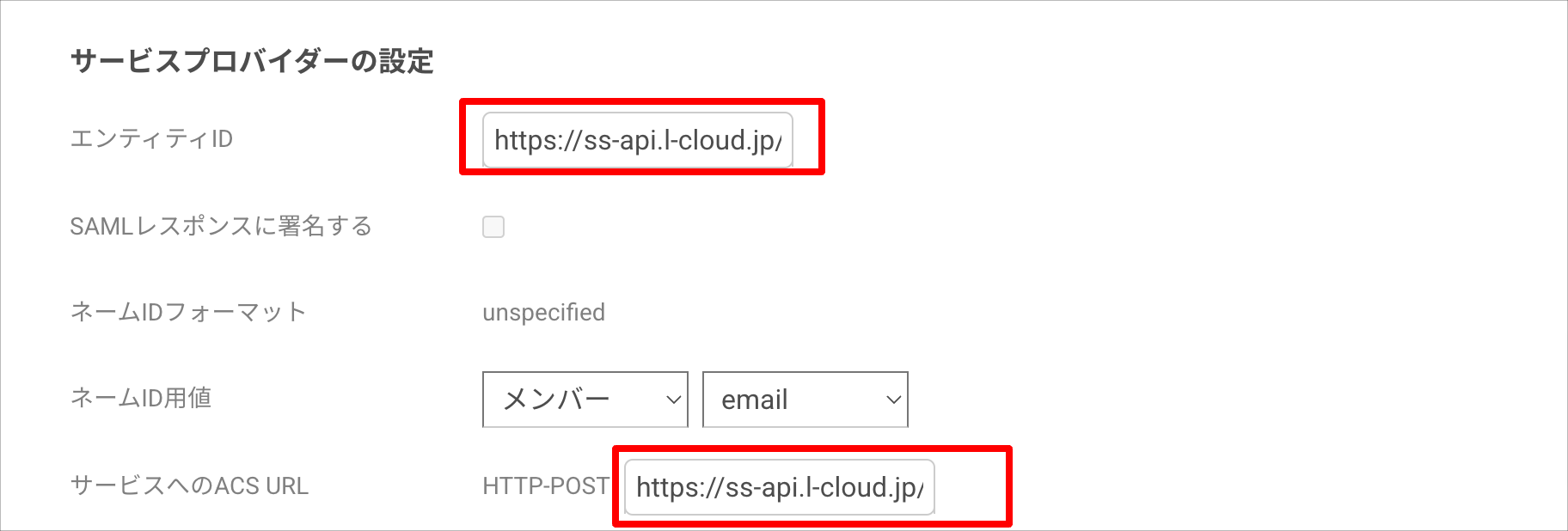

- Configure the "Service Provider Settings" as follows.
Entity ID The "Entity ID" obtained from Hikari Cloud SmartStudy® ACS URL to the Service The "Response URL" obtained from Hikari Cloud SmartStudy®
- Save by clicking the "Register" button.
TrustLogin User Settings
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "App Registration" screen, select "Hikari Cloud SmartStudy® (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
② When an Administrator Adds Members
- Search for and click the "Hikari Cloud SmartStudy® (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
Login Method

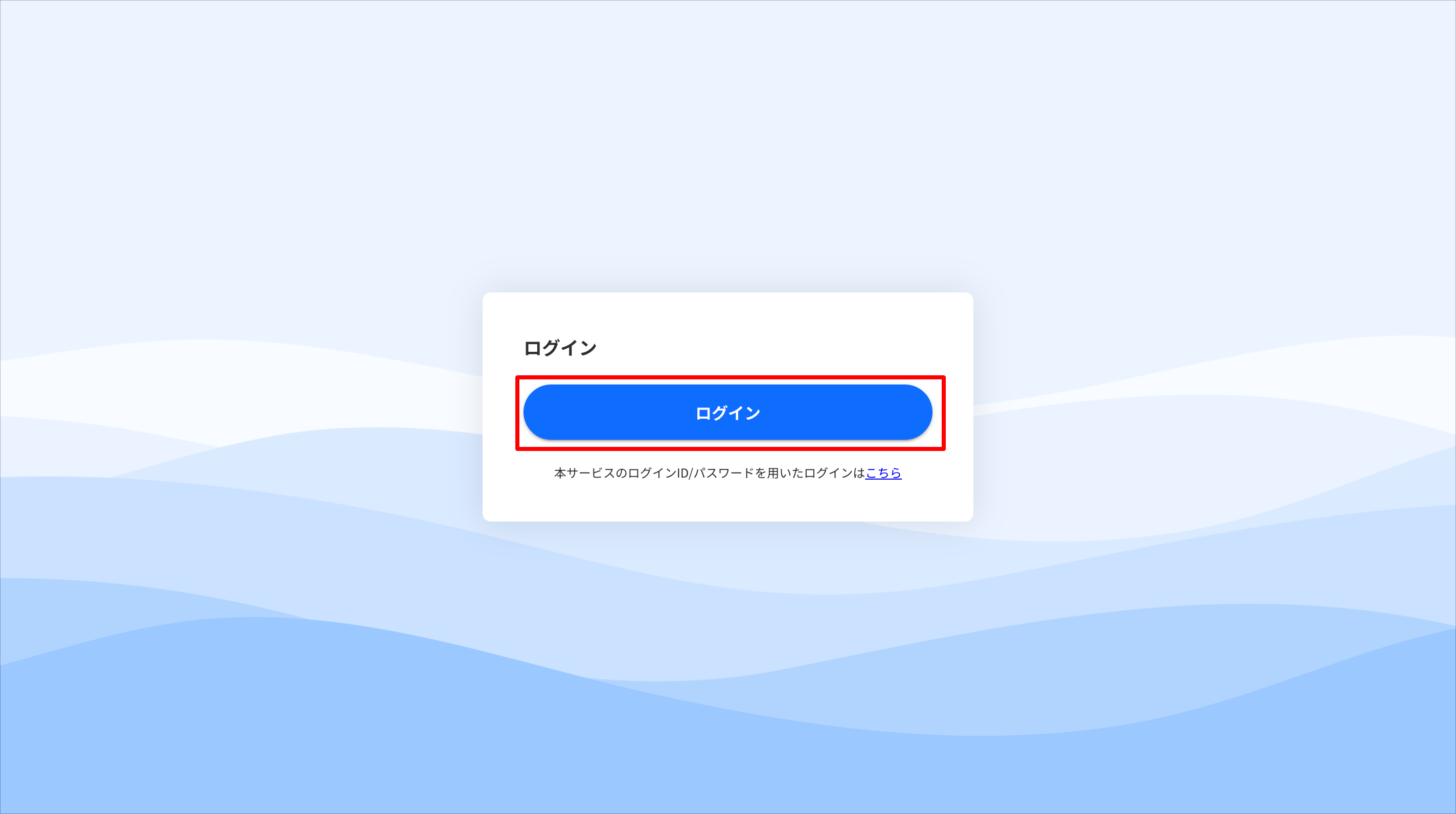

Click the TrustLogin app, then click the "Login" button on the page that appears to complete login.
