TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

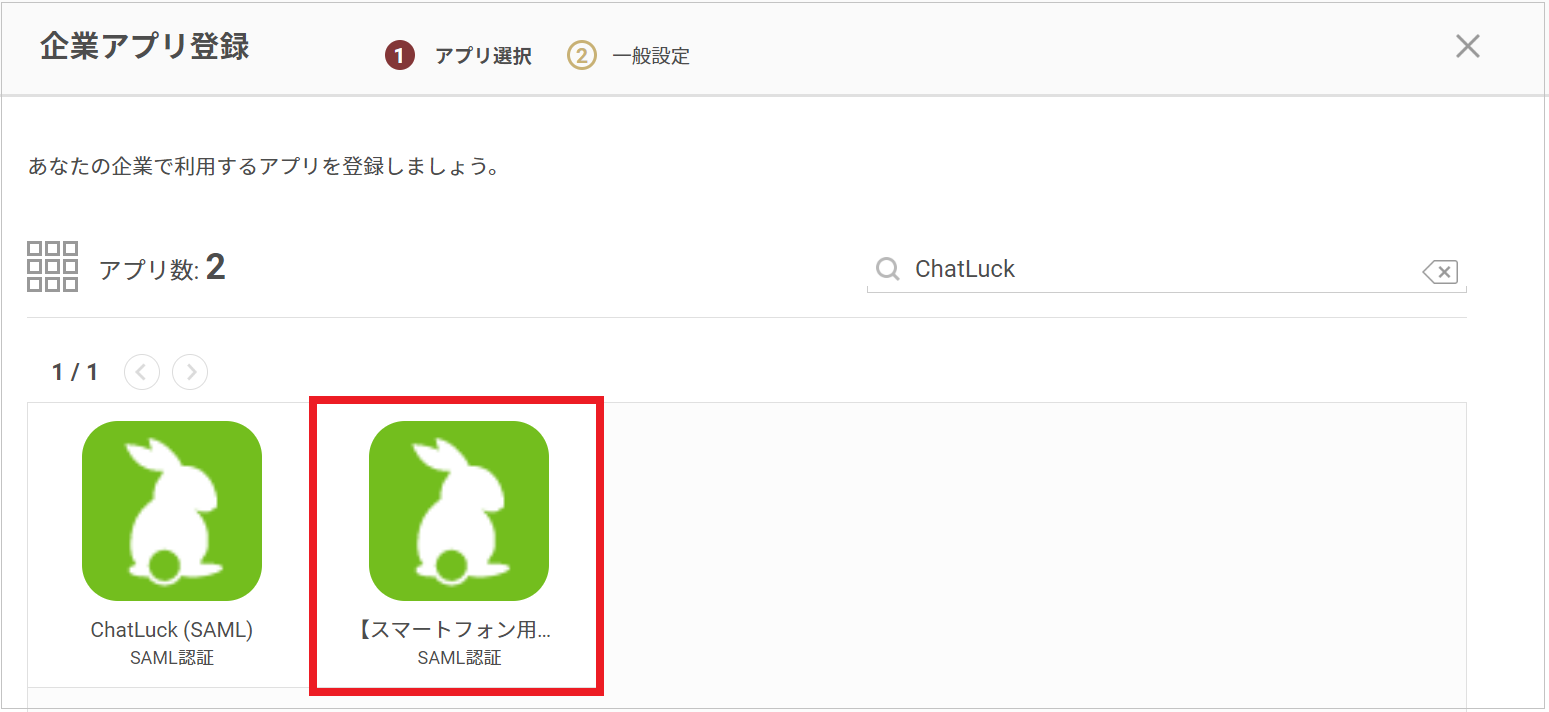

2. On the "Register Enterprise App" screen, search for and select "ChatLuck (SAML) [For Smartphone]".



3. Note down the values of "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.

Now, let's move on to the configuration on the ChatLuck side.
Do not click the "Register" button yet. Open ChatLuck in a separate window.

ChatLuck Configuration

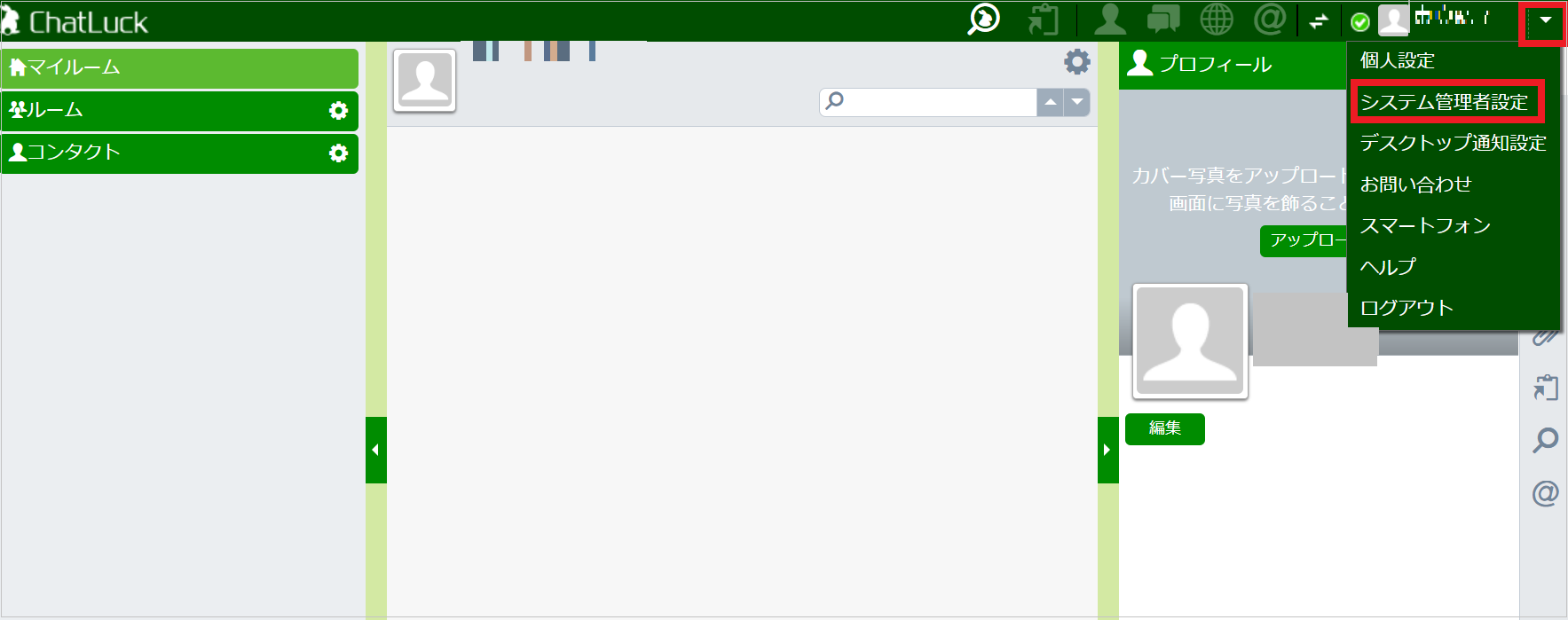

1. Log in with a system administrator account, and select "System Administrator Settings" from the "▼" button.

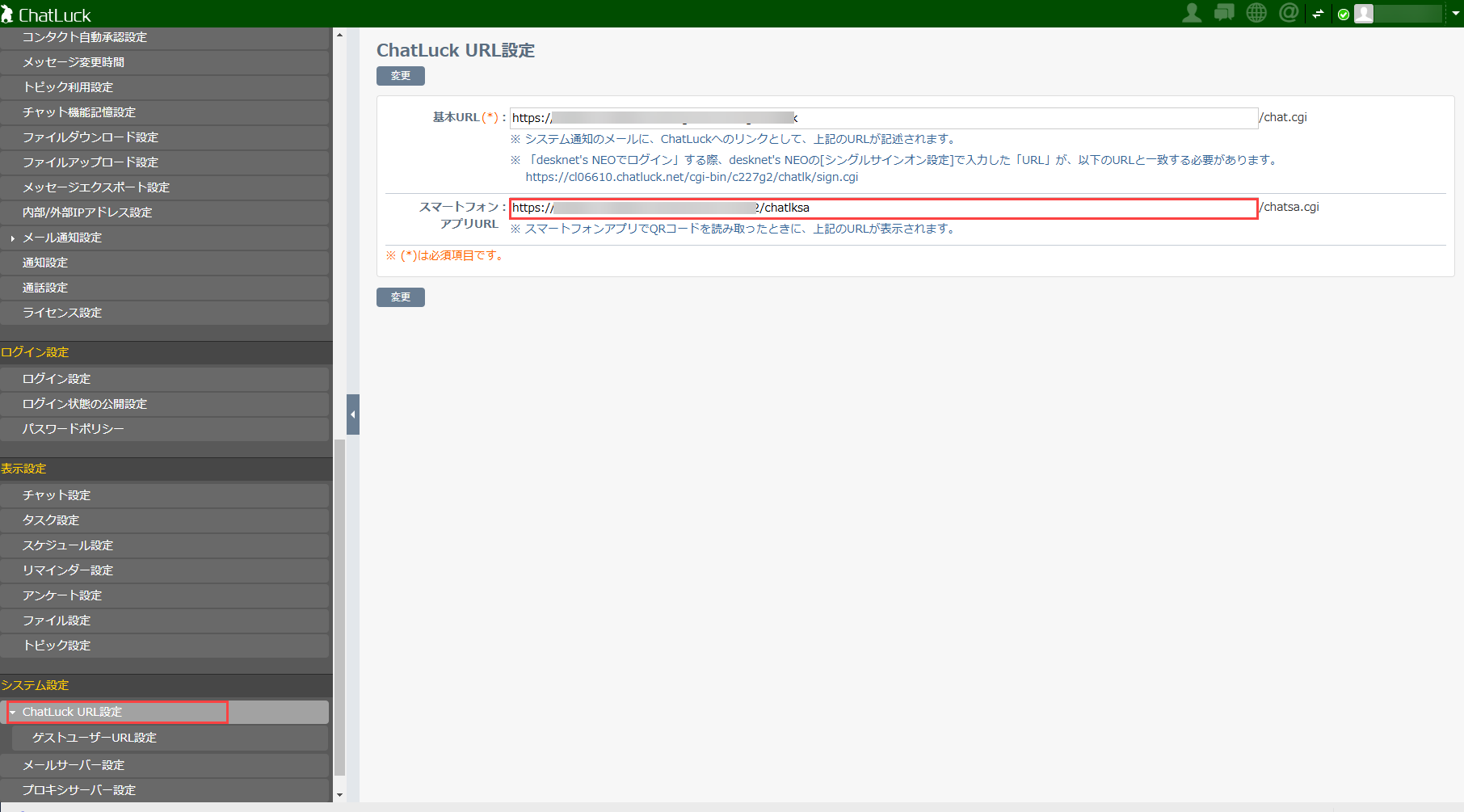

2. Under "System Settings > ChatLuck URL Settings", note down the "Smartphone App URL".

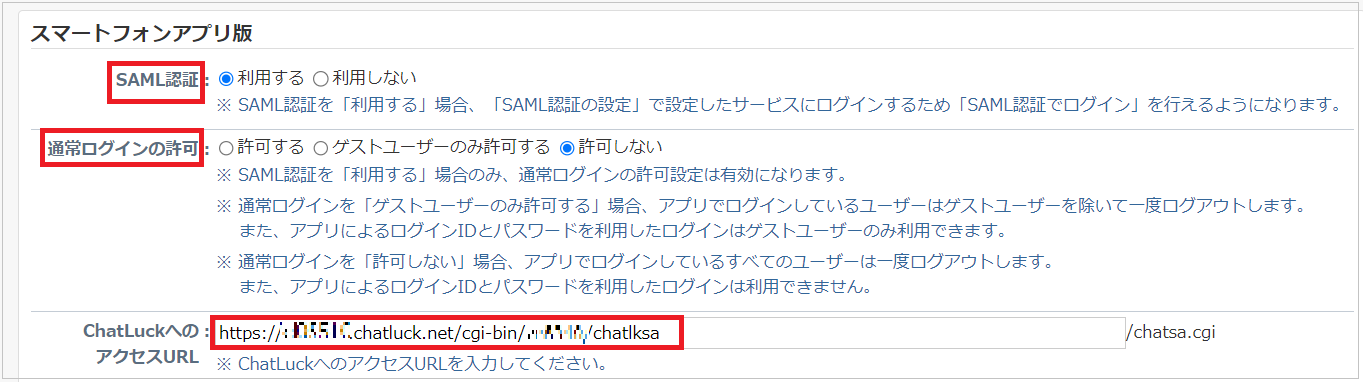

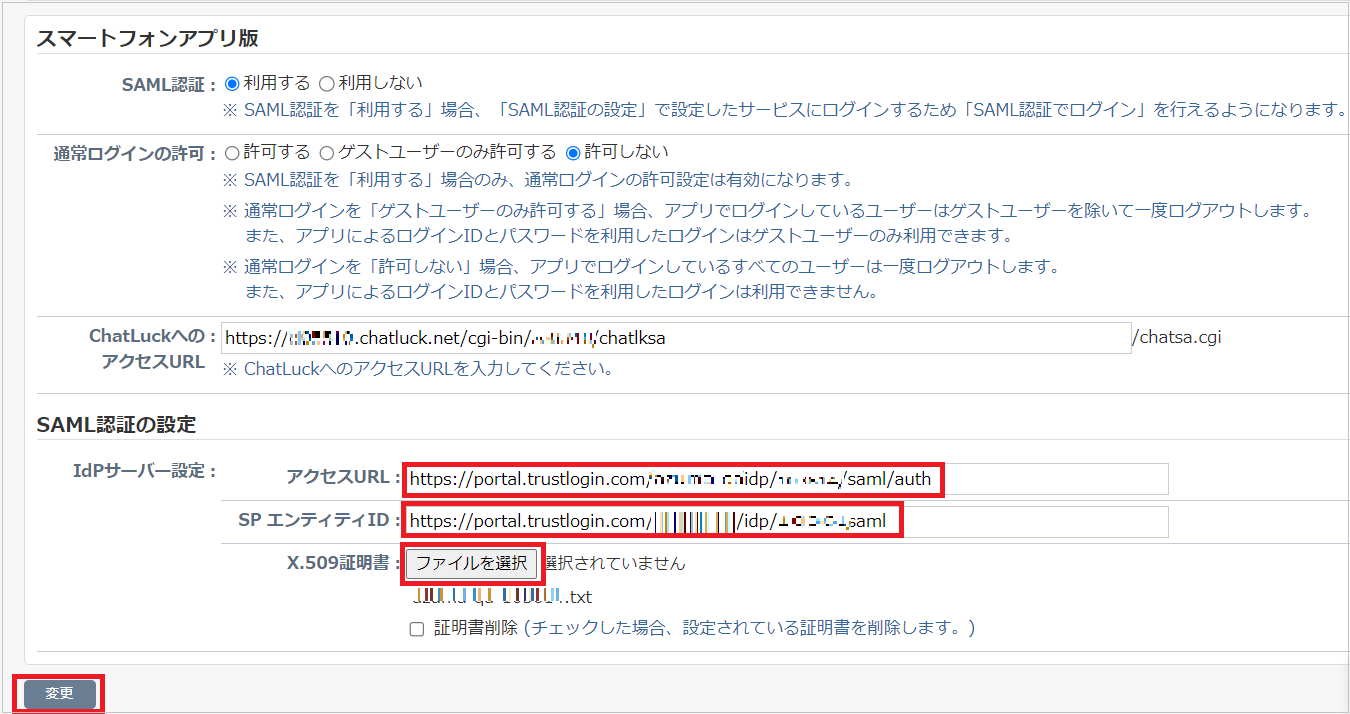

3. Open "External Service Integration Settings > SAML Authentication Settings" and enter the following values for each item under "Smartphone App Version".



   SAML Authentication Settings	Select "Use"
   Allow Normal Login	Please select according to your company's policy. Note: If you select "Do not allow", login with ID and password will no longer be possible. Please be careful.
   Access URL for ChatLuck	The "Smartphone App URL" obtained in step 2.




4. Enter the following values for each item under "SAML Authentication Settings" and click "Change".




   Access URL	The "IdP URL" obtained from TrustLogin
   SP Entity ID	The "Issuer/Entity ID" obtained from TrustLogin
   X.509 Certificate	Upload the "Certificate" obtained from TrustLogin

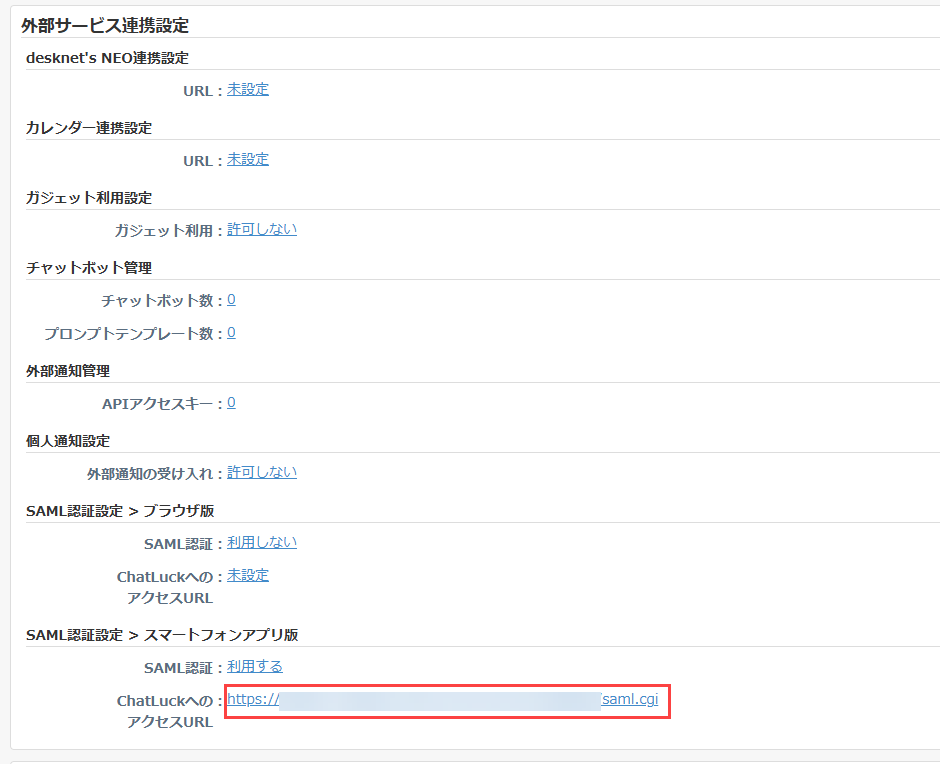

5. After clicking the Change button, the "Settings Status" screen will be displayed. Scroll down to "External Service Integration Settings > SAML Authentication Settings > Smartphone App Version" and note down the "Access URL for ChatLuck".


TrustLogin Admin Page Configuration (Continued)

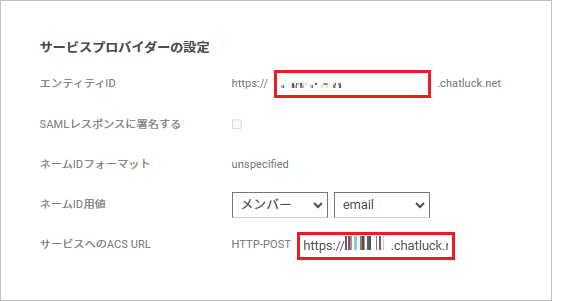

1. In the "Service Provider Settings", enter the following values into the blank fields for "Entity ID" and "ACS URL for Service".


   Entity ID	Enter the subdomain of the ChatLuck login URL Example login URL: https://[subdomain].chatluck.net/cgi-bin/chatlk/chat.cgi
   ACS URL for Service	The "Access URL for ChatLuck" noted down in step 5 of "ChatLuck Configuration"





2. Save by clicking the "Register" button.

TrustLogin User Configuration

① When a User Adds the App from My Page

1. Click the "Add App" button in "My Page".
2. On the "Register App" screen, select "ChatLuck (SAML) [For Smartphone]" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.



② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "ChatLuck (SAML) [For Smartphone]" app.
2. Click "Add Member", select the users you want to add from the member list, and click the "Register" button to add them.


3.

SSO Authentication Method for the Native App

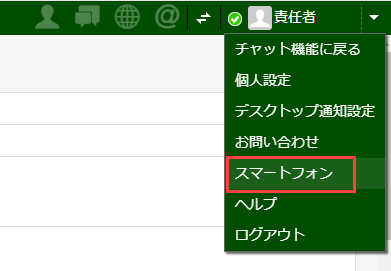

1. Open ChatLuck in a PC browser and select "Smartphone" from the "▼" button.

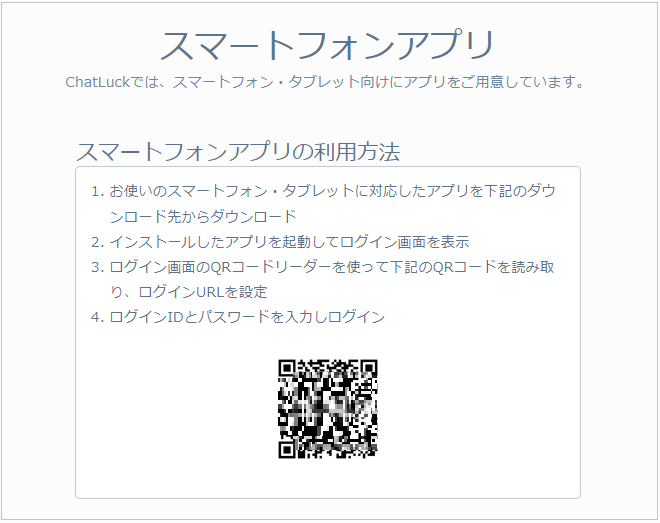

2. Display the QR code.

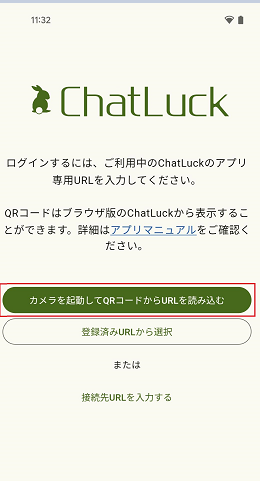

3. Open the ChatLuck native app, tap "Launch camera and scan URL from QR code", and scan the QR code displayed in step 2.

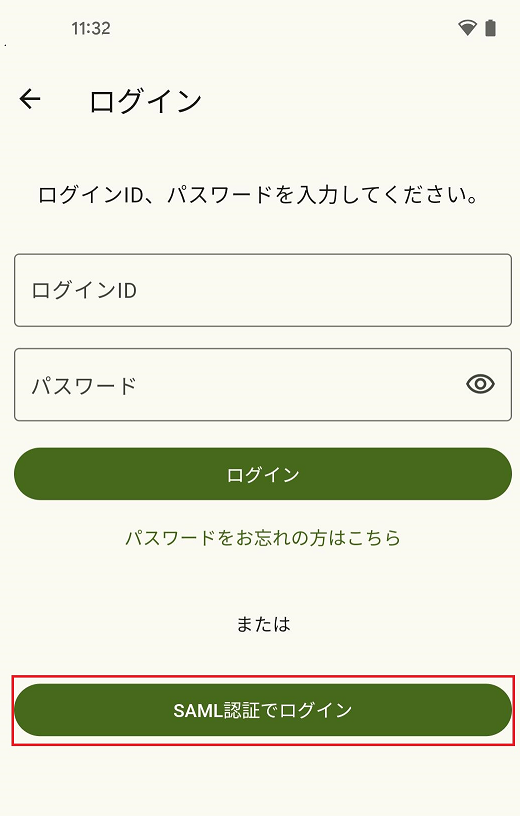

4. After scanning the QR code, tap "Log in with SAML Authentication".




5. You will be taken to the TrustLogin login screen. Log in to TrustLogin and use the app.

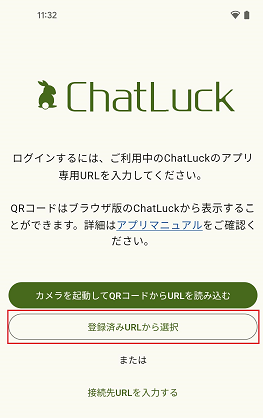

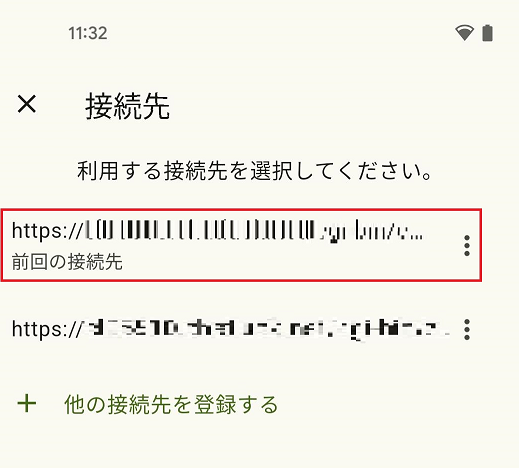

   Note: From the second login onward, tapping "Select from Registered URLs" and selecting the destination URL will take you to the screen in step 4, where you can log in using "Log in with SAML Authentication".
