TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

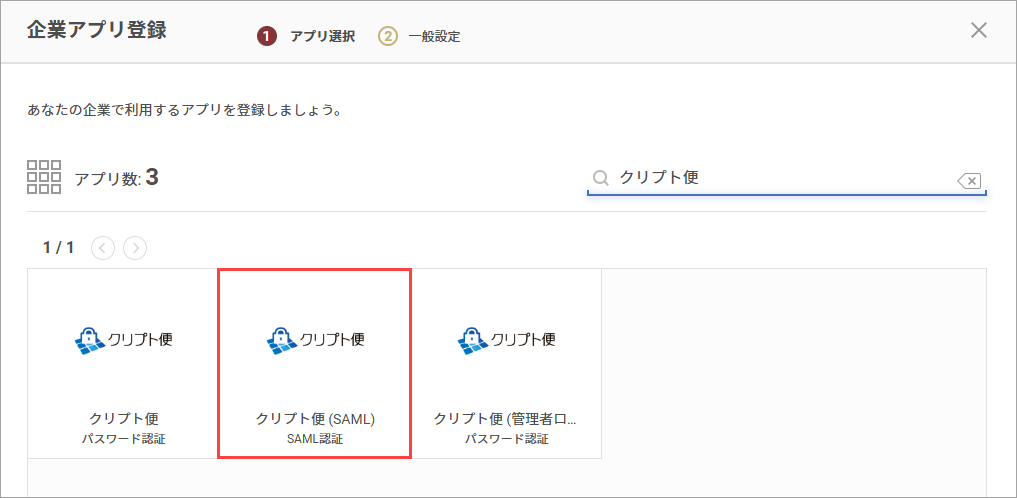

2. On the "Register Corporate App" screen, search for and select "Crypto Bin (SAML)".




3. Note down the values of "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.



At this point, switch to configuring Crypto Bin.
Do not click the "Register" button yet — open Crypto Bin in a separate window.

Crypto Bin Settings

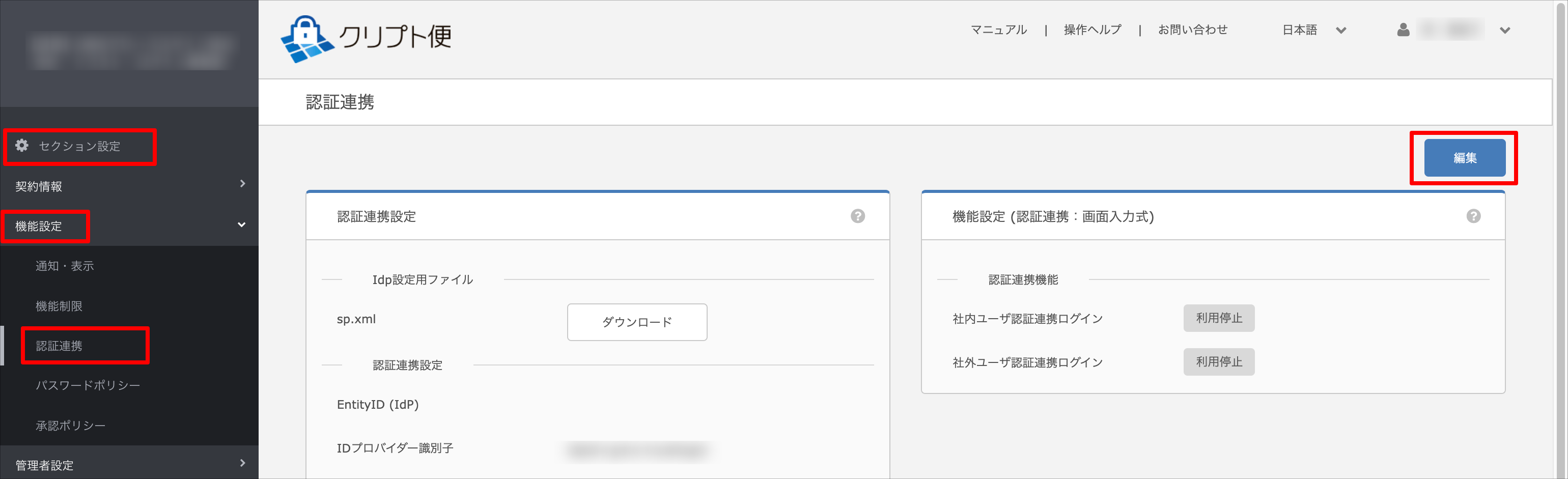

1. Log in to the administrator screen, open "Section Settings > Feature Settings > Authentication Integration", and click the "Edit" button.

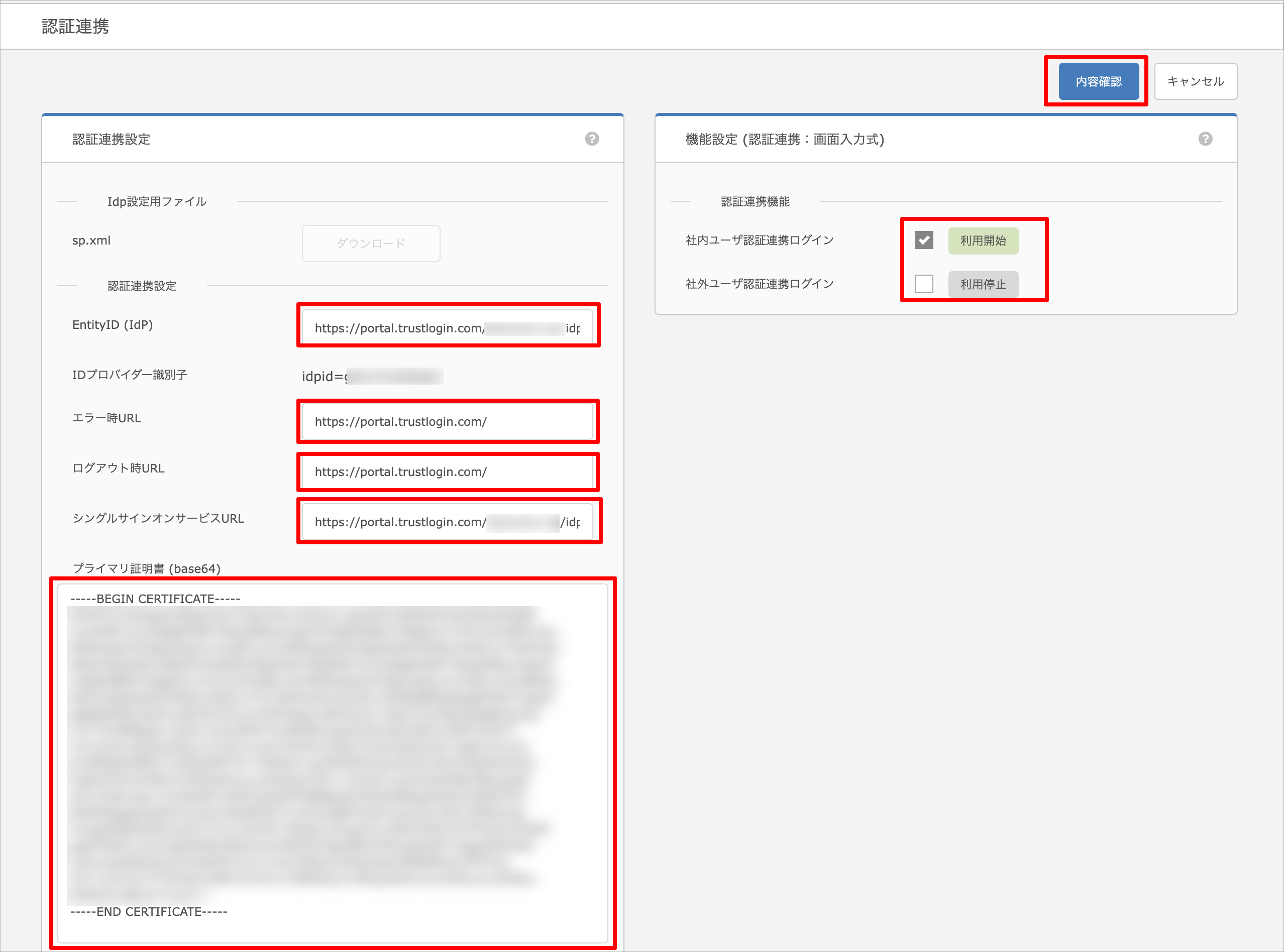

2. Configure each item as follows, then click the "Confirm Details" button.


   EntityID (IdP)	The "Issuer/Entity ID" obtained from TrustLogin
   Error URL	The URL of the page that users connected via authentication integration are redirected to when they are logged out of Crypto Bin due to an error. Specify a page such as your company's or organization's internal portal site.
   Logout URL	The URL of the page that users connected via authentication integration are returned to when they log out of Crypto Bin. This is usually set to the same value as the "Error URL".
   Single Sign-On Service URL	The "IdP URL" obtained from TrustLogin
   Primary Certificate (base64)	The contents of the "Certificate" obtained from TrustLogin
   Authentication Integration Feature	Specify the users to whom SAML SSO applies, according to your operational needs

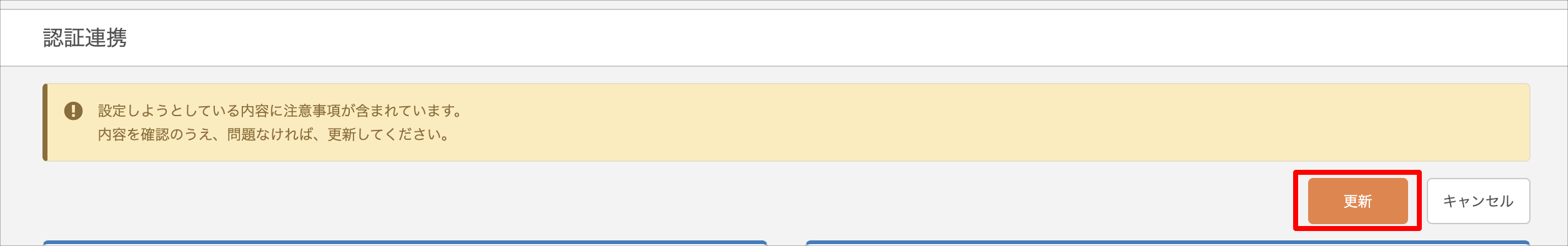

3. Review the configured settings and click the "Update" button.

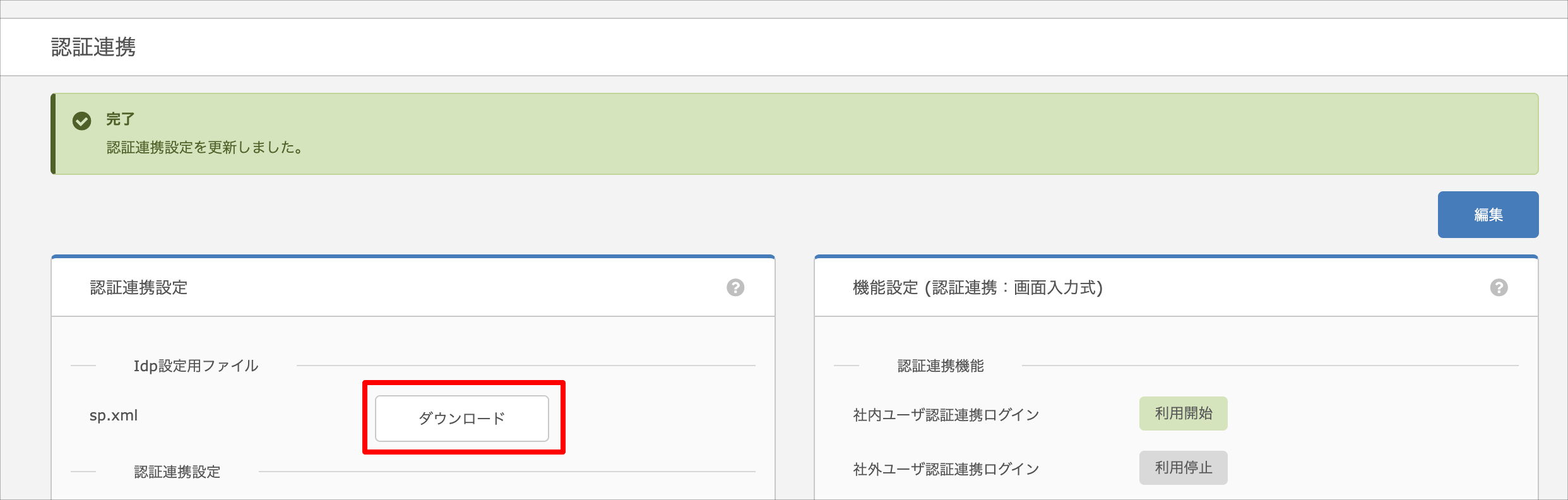

4. Click the "Download" button to download the "IdP Configuration File".

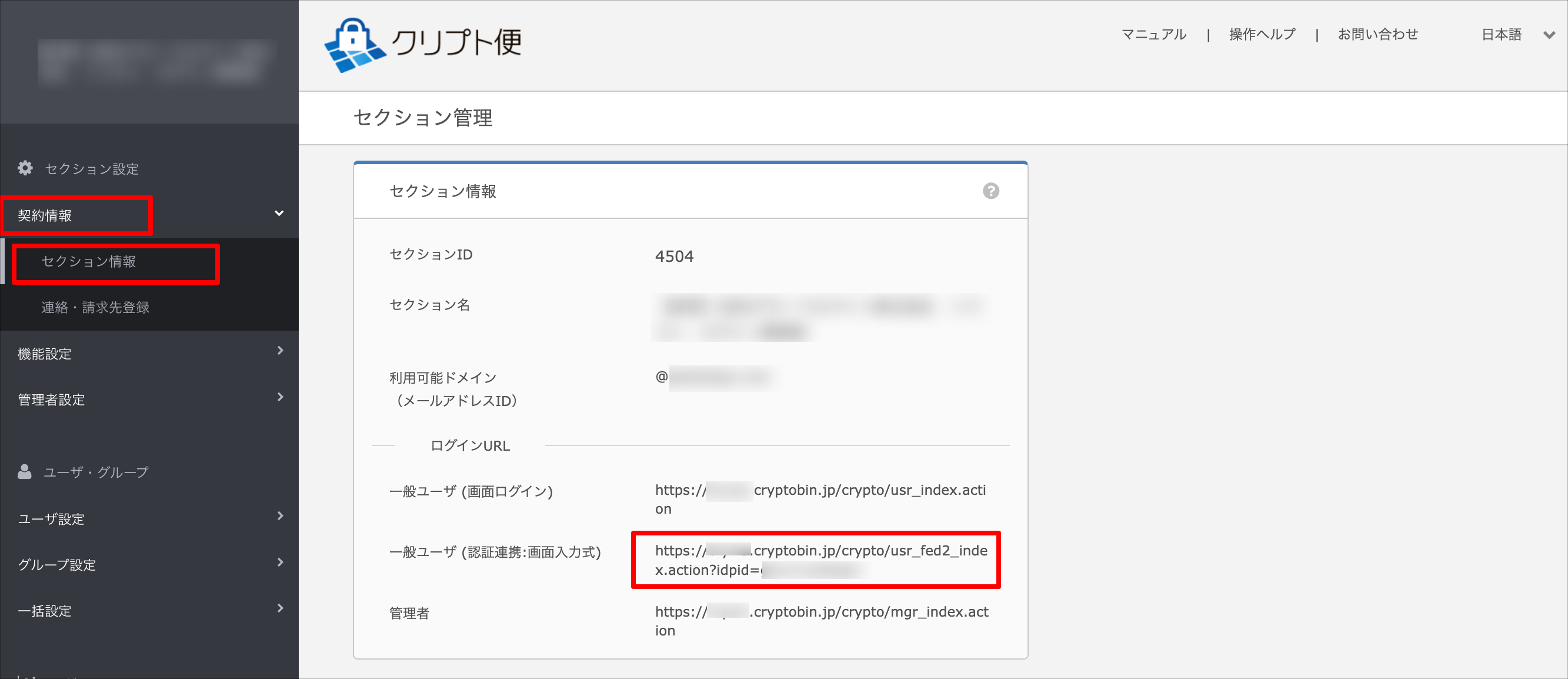

5. Go to "Contract Information > Section Information" and note down the URL for "General User (Authentication Integration: Screen Input Type)".

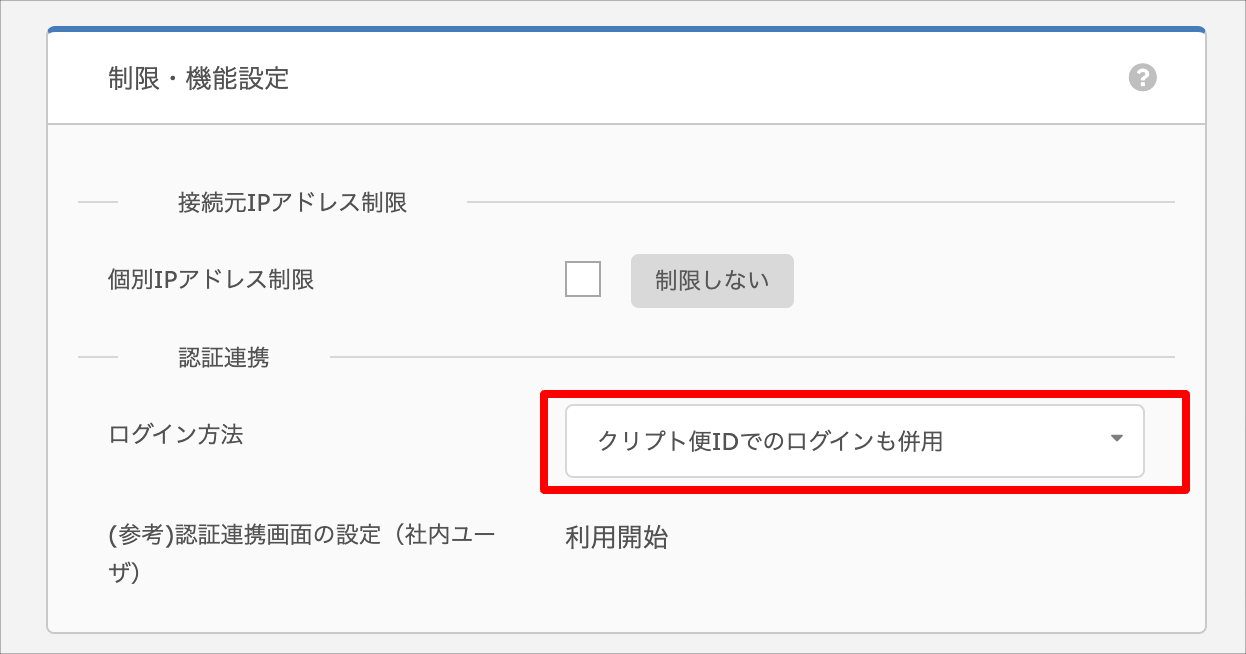

6. In the "Login Method" section of each user's user information screen, you can set whether to allow the target user to also log in using their Crypto Bin ID.


   Authentication integration only	Login is only possible via SAML SSO
   Also use login with Crypto Bin ID	Both SAML SSO and login with Crypto Bin ID are possible




Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

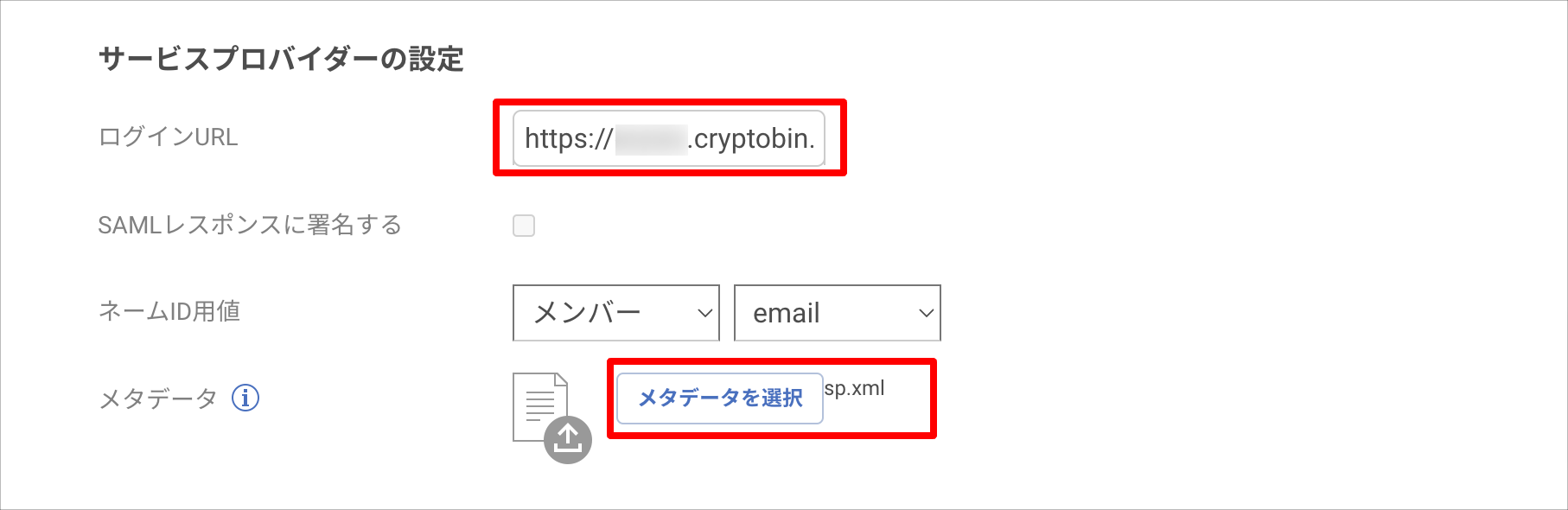

1. Configure the "Service Provider Settings" as follows.


   Login URL	The "General User (Authentication Integration: Screen Input Type)" URL obtained from Crypto Bin
   Metadata	Upload the "IdP Configuration File" (sp.xml) obtained from Crypto Bin





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Crypto Bin (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds a Member

1. In the "Admin Page > Apps" menu, search for and click the "Crypto Bin (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
