Item |
Details |
|
|---|---|---|
|
Pre-Check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure a custom attribute, click here |
||
|
SP Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
API-based Provisioning supported (account management possible in TrustLogin) |
|
|
SAML JITprovisioning supported (account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
ー |
IdP-Initiated SSO |
|
|
Device Compatibility |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
|
SAML Authentication Scope |
〇 |
Enabled for all users (SAML authentication only) |
| ー |
Other: |
|
|
Notes |
This configuration is common to "m-FILTER@Cloud" and "f-FILTER" as well. |
|
|
Table of Contents: TrustLogin Admin Page Settings |
TrustLogin Admin Page Settings
- Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

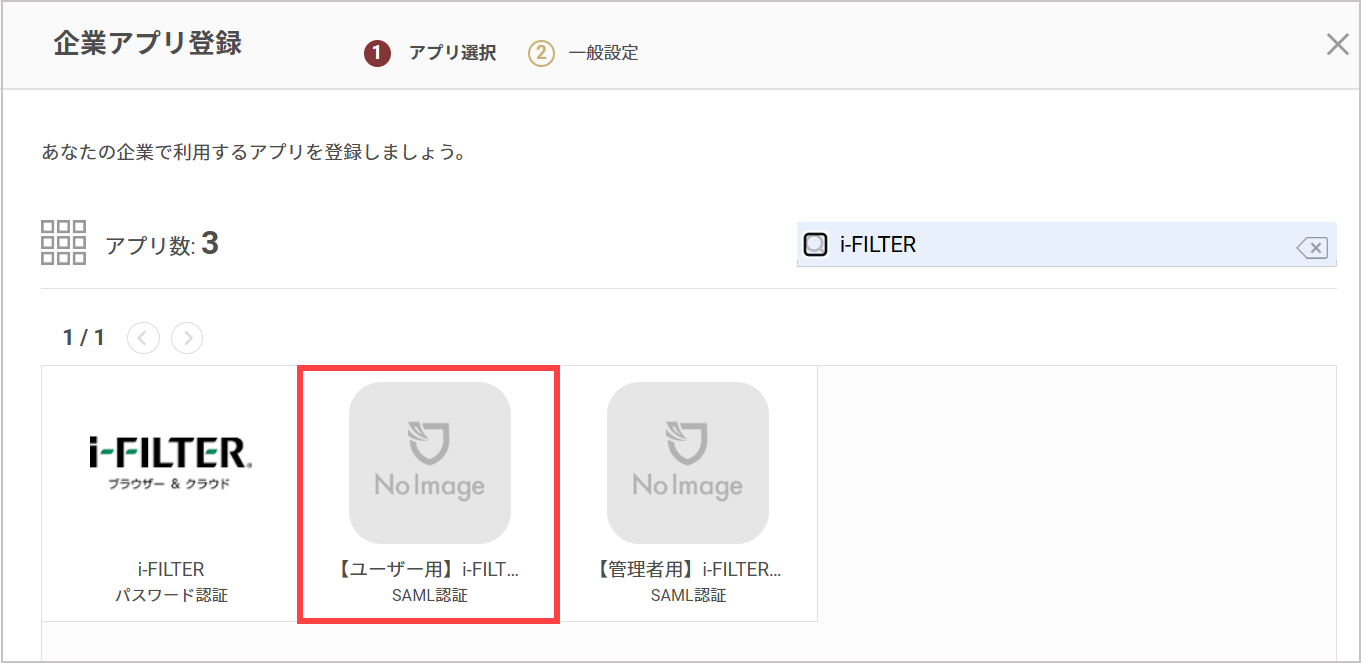

- Search on the "Register Company App" screen and select "[For Users] i-FILTER@Cloud (SAML)".
- Download the metadata from the "Download Metadata" button under "Identity Provider Information".
Now switch to the i-FILTER@Cloud settings.
Do not click the "Register" button yet — open i-FILTER@Cloud in a separate window.
i-FILTER@Cloud Settings

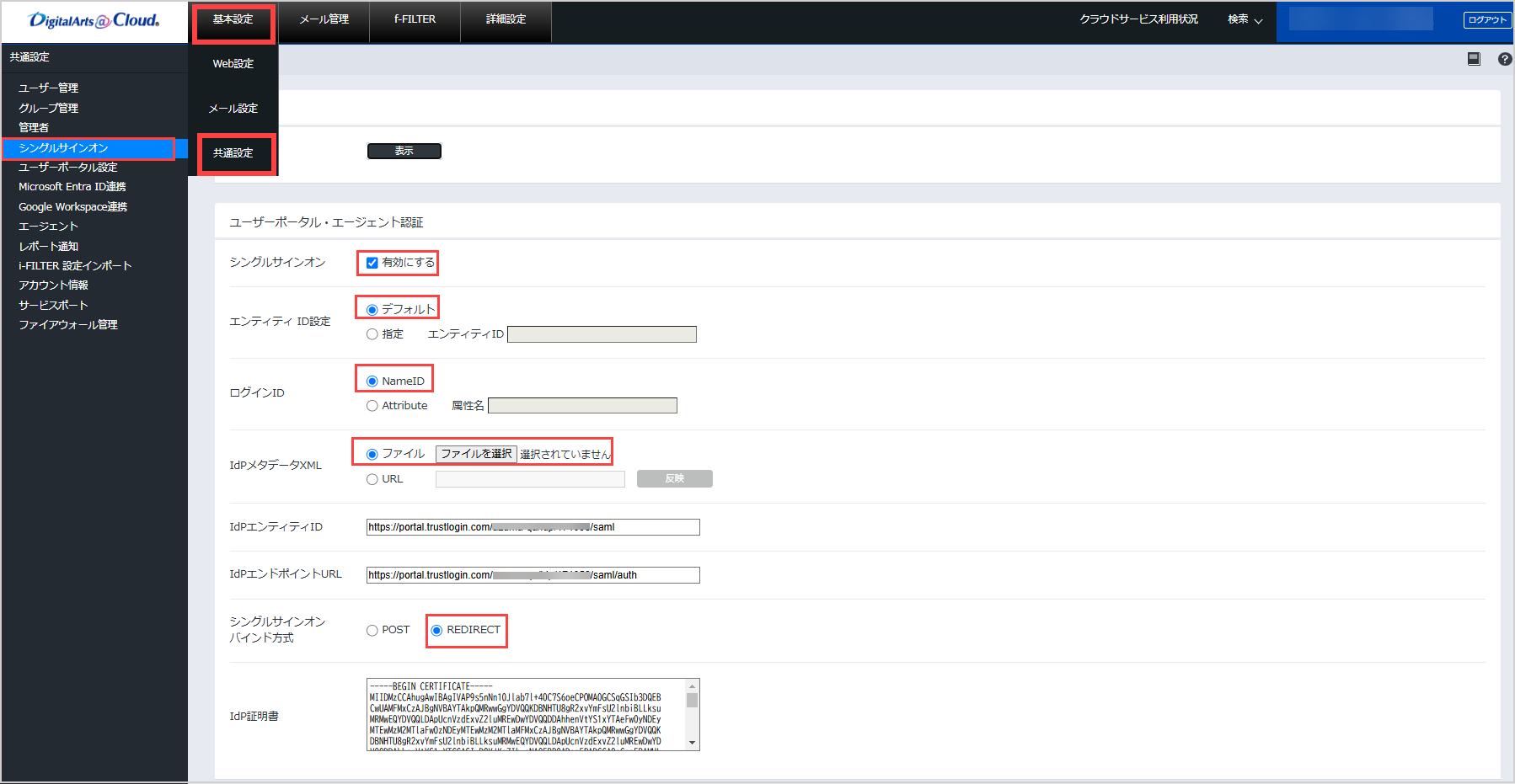

- From the administrator screen menu, open "Basic Settings > Common Settings > Single Sign-On".
On the "User Portal / Agent Authentication" screen, configure each item as follows, then scroll to the bottom of the screen and save with the "Save" button.
Single Sign-On Check "Enabled" Entity ID Configuration Default Login ID NameID IdP Metadata XML Select "File" and upload the metadata obtained from TrustLogin
Note: After uploading, the "IdP Endpoint URL", "IdP Entity ID", and "IdP Certificate" fields will be filled in automatically.
Single Sign-On Binding Method REDIRECT

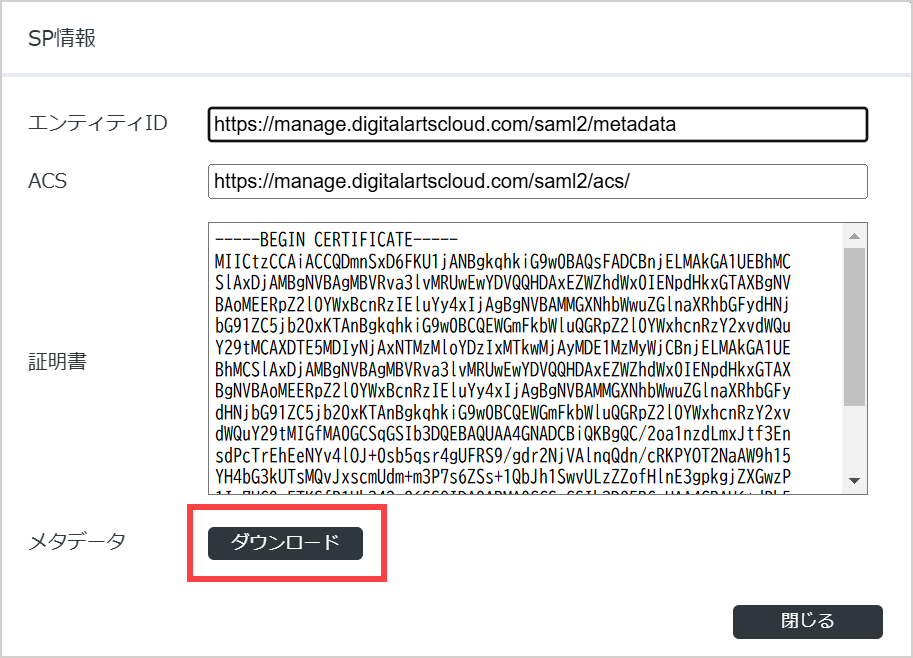

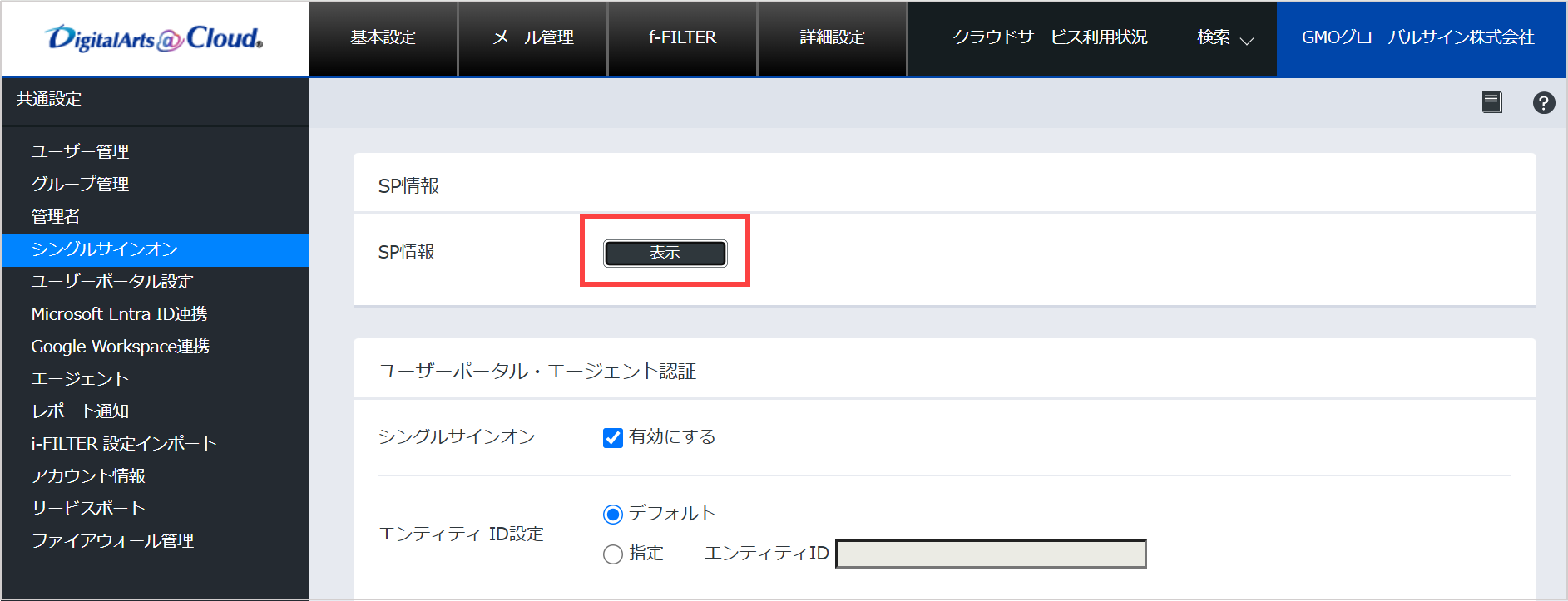

- Click "Display" under "SP Information".
- Download the metadata from the "Download" button.

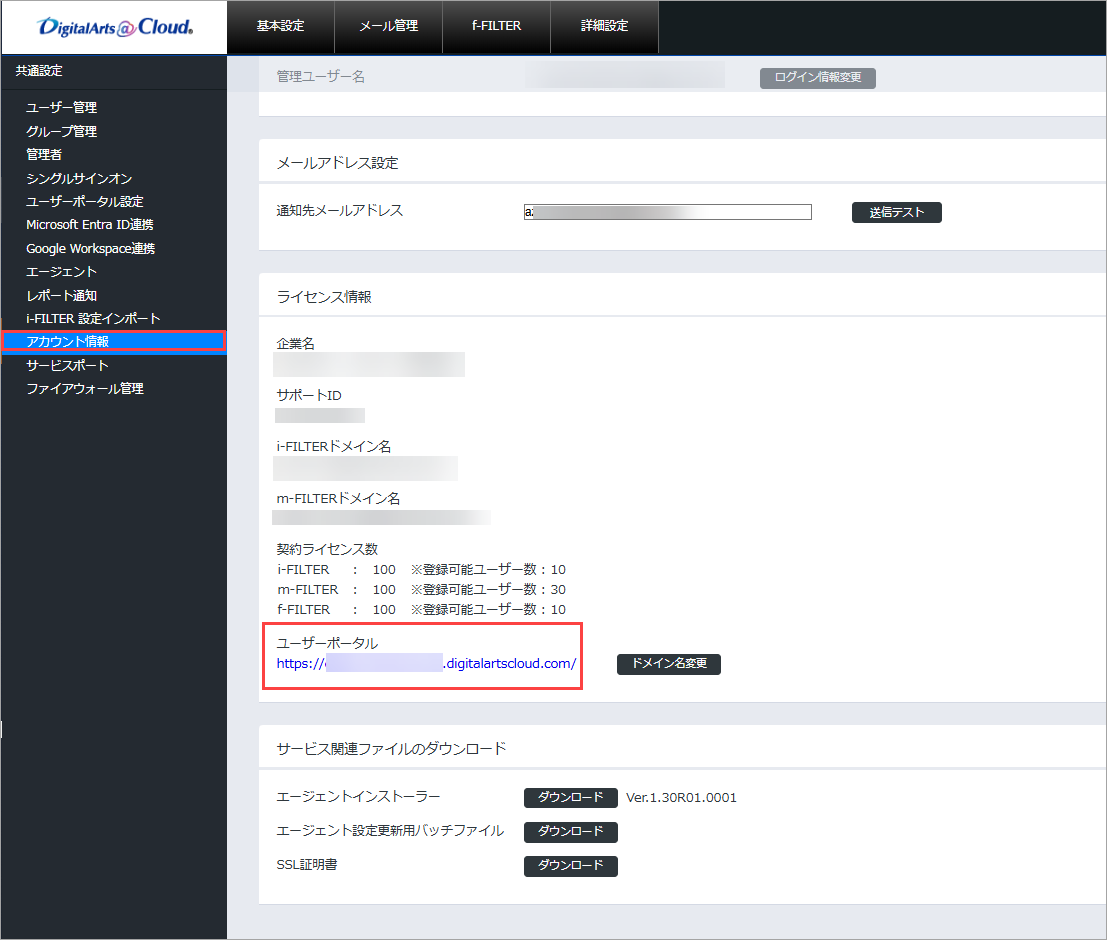

- Open "Account Information" and note down the "User Portal" URL.
Return to the TrustLogin Admin Page again.
TrustLogin Admin Page Settings (Continued)
-

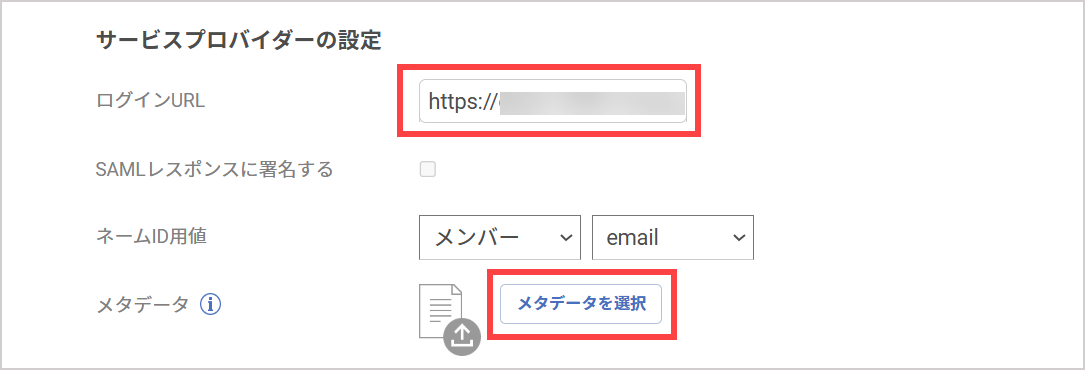

Configure the following fields under "Service Provider Settings".
Login URL The "User Portal" URL shown under "Basic Settings > Common Settings > Account Information" in the i-FILTER@Cloud administrator screen
Metadata The metadata obtained from i-FILTER@Cloud
- Click the "Register" button to save.
TrustLogin User Settings
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "[For Users] i-FILTER@Cloud (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an Administrator Adds Members
- Search for and click the "[For Users] i-FILTER@Cloud (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
