TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

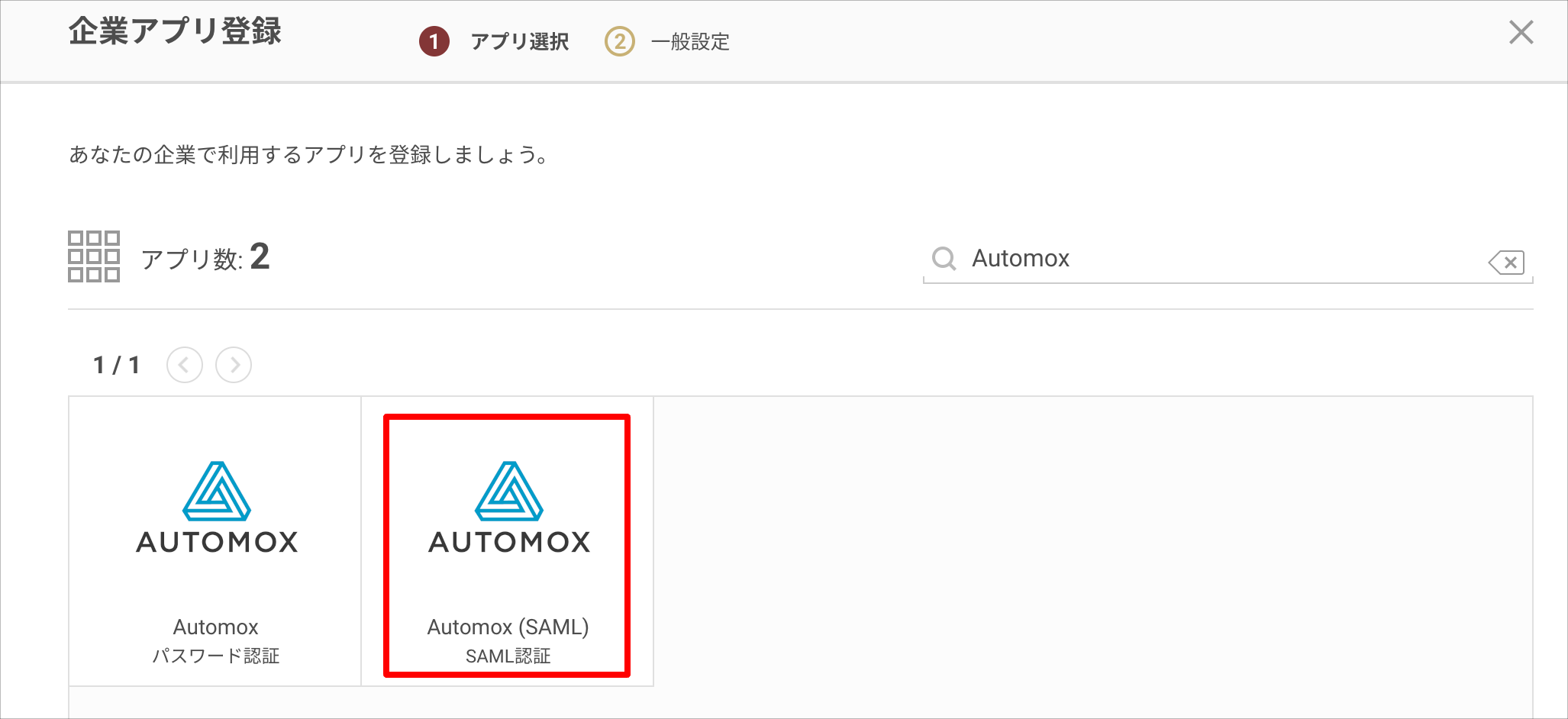

2. Search on the "Register Company App" screen and select "Automox (SAML)".



3. Note down the values of "Identity Provider URL" and "Issuer / Entity ID" under "Identity Provider Information", and download the certificate from the "Get Certificate" button.


Now switch to the Automox settings.
Do not click the "Register" button yet — open Automox in a separate window.

Automox Settings

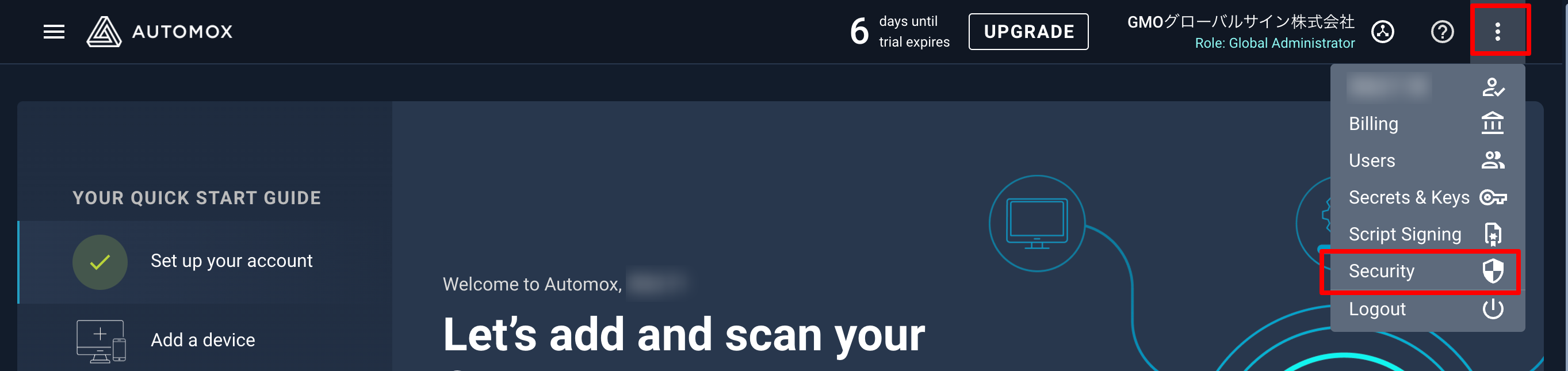

1. Log in with an administrator account and open "Security" from the menu in the upper right.

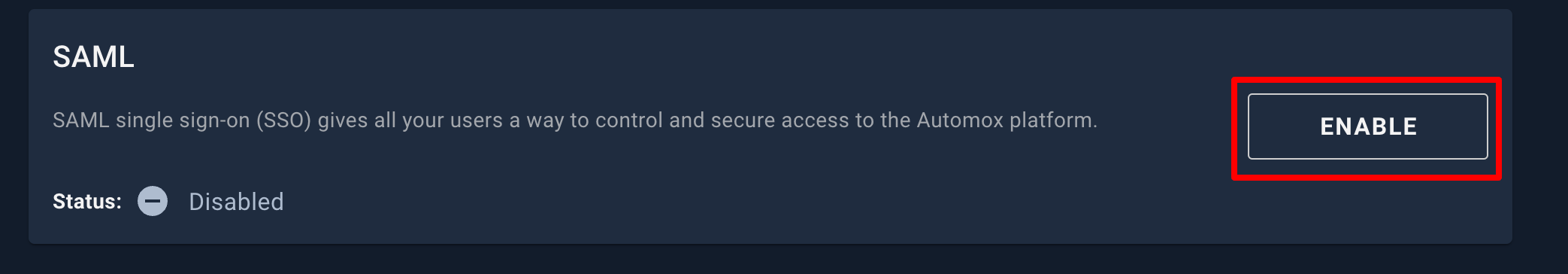

2. Click "SAML" > "ENABLE" and complete two-factor authentication.

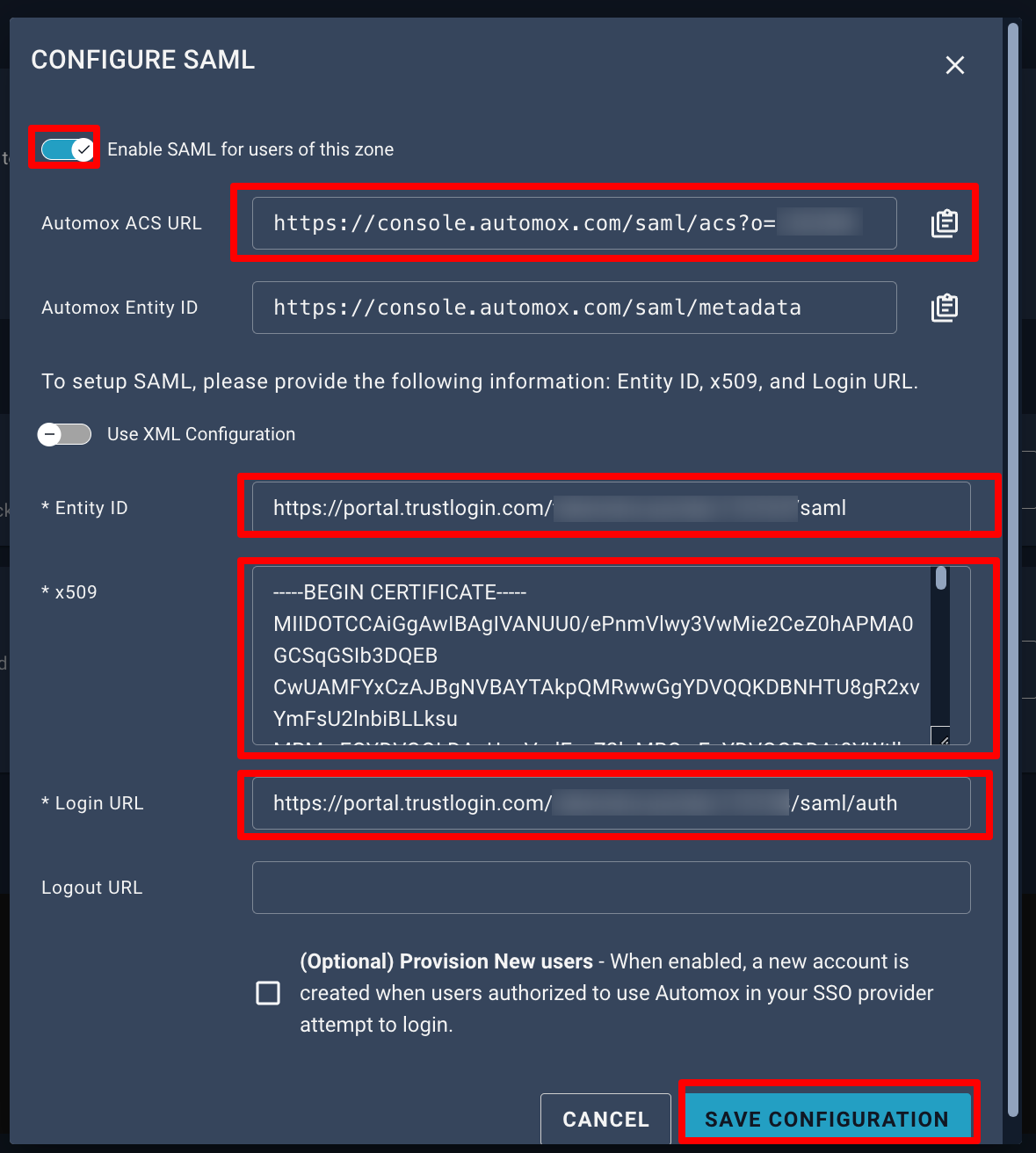

3. Configure each item as follows, then save by clicking "SAVE CONFIGURATION".


   Enable SAML for users of the zone	Turn ON
   Automox ACS URL	Note down the value using the copy button on the right
   Entity ID	The "Issuer / Entity ID" obtained from TrustLogin
   x509	The contents of the "Certificate" obtained from TrustLogin
   Login URL	The "Identity Provider URL" obtained from TrustLogin






Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

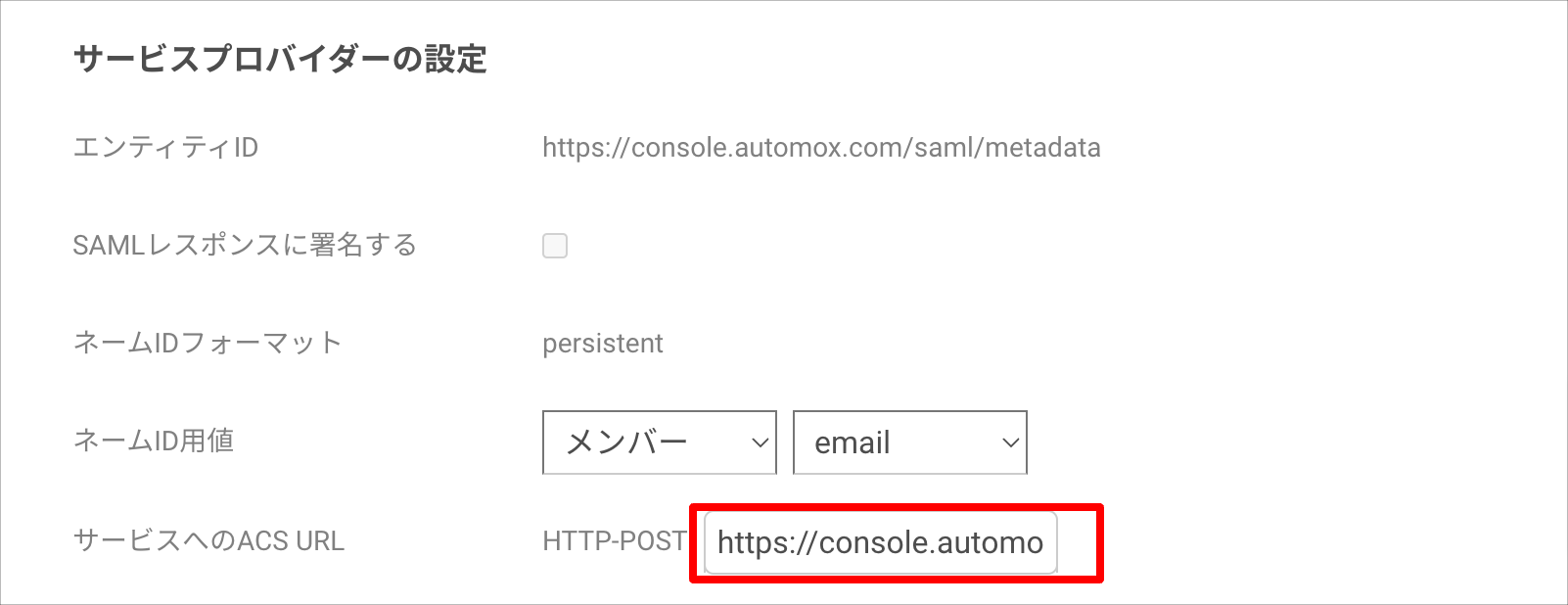

1. Under "Service Provider Settings", enter the "Automox ACS URL" obtained from Automox into the "ACS URL for the Service" field.



2. Click the "Register" button to save.

TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Automox (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds Members

1. Search for and click the "Automox (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
