Item |
Details |
|
|---|---|---|
|
Pre-Check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure a custom attribute, click here |
||
|
SP Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
API-based Provisioning supported (account management possible in TrustLogin) |
|
|
SAML JIT provisioning supported (account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
ー |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Device Compatibility |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
|
SAML Authentication Scope |
ー |
Enabled for all users (SAML authentication only) |
| 〇 |
Other: Enabled for all users (both SAML authentication and password authentication are available) |
|
|
Notes |
None |
|
|
Table of Contents: |
TrustLogin Admin Page Settings

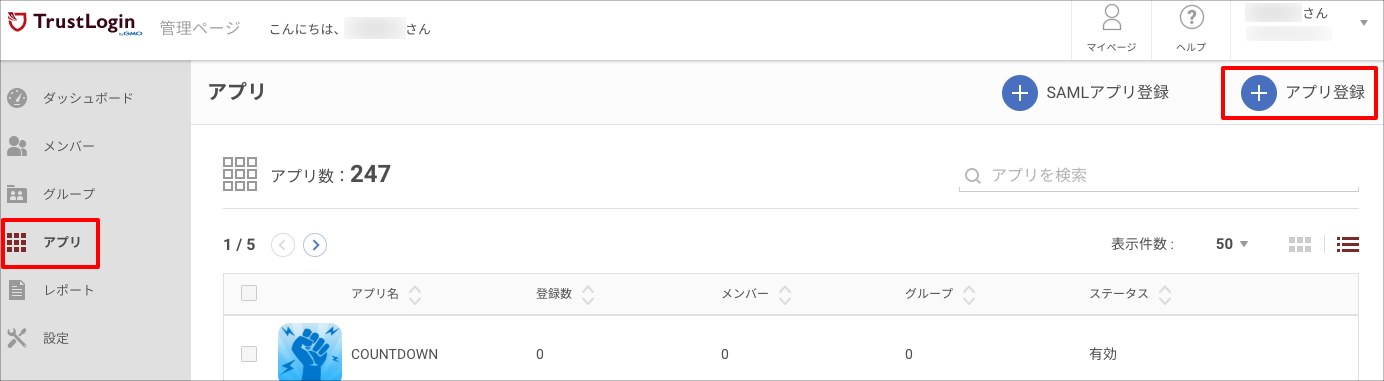

- Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

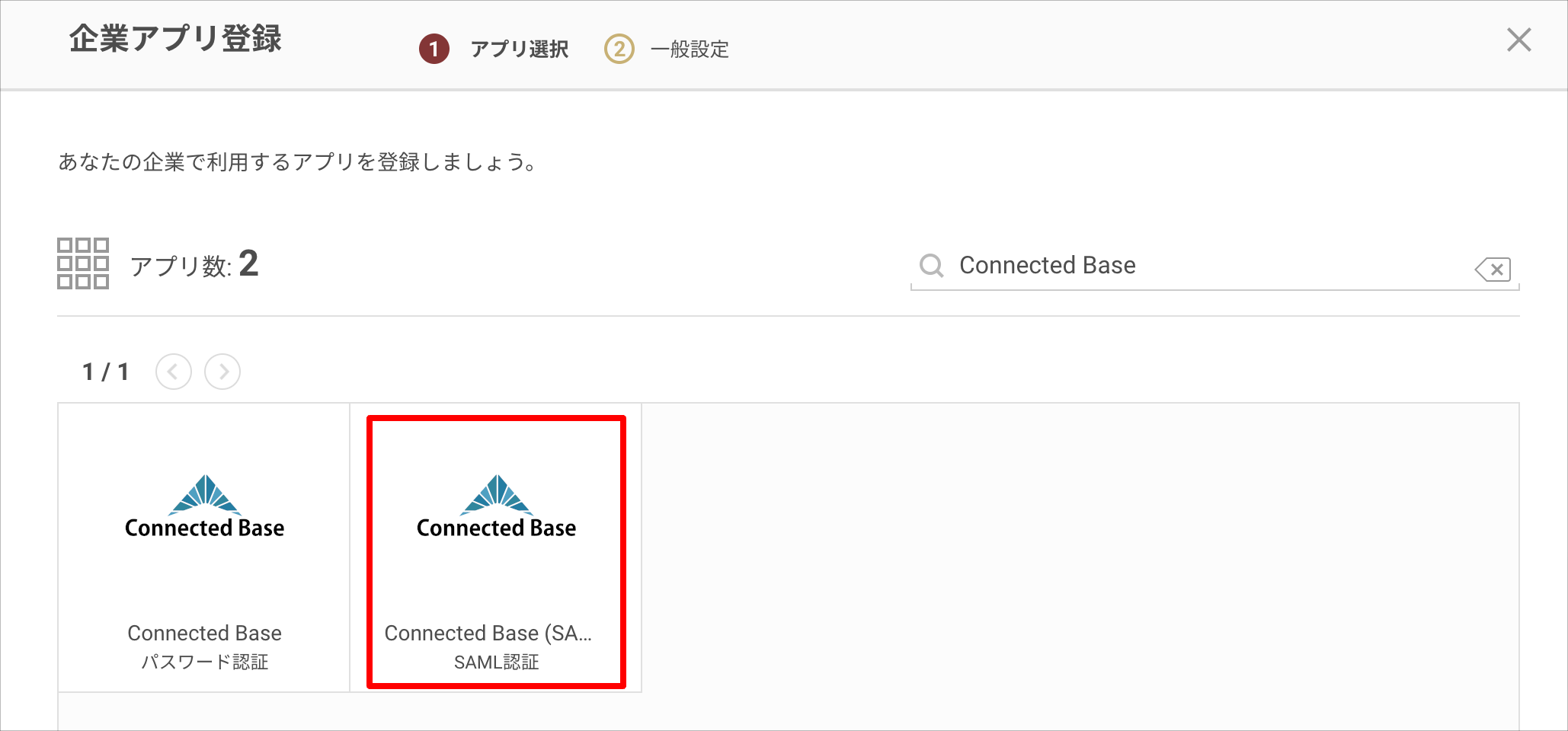

- Search on the "Register Company App" screen and select "Connected Base (SAML)".

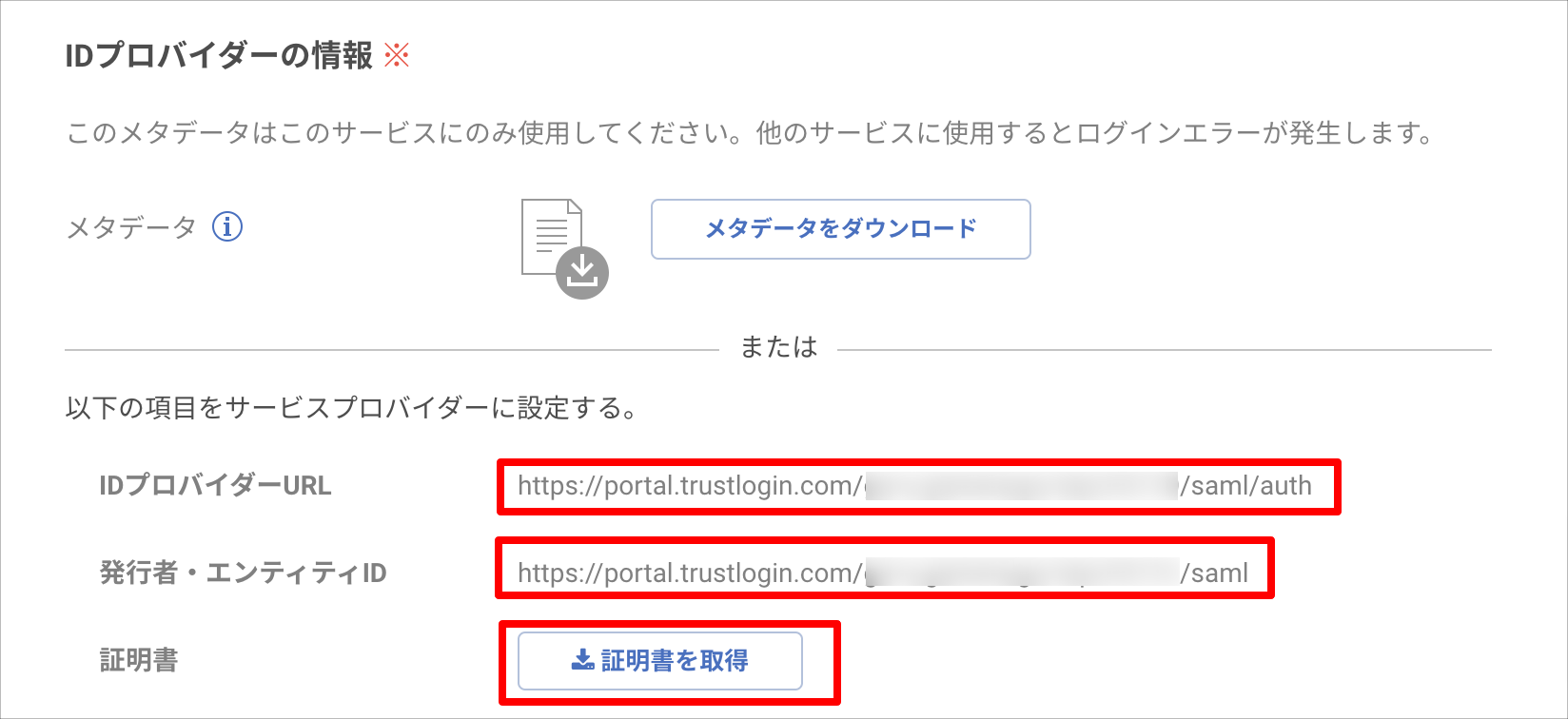

- Note down the values of "Identity Provider URL" and "Issuer / Entity ID" under "Identity Provider Information", and download the certificate from the "Get Certificate" button.
- Convert the extension of the downloaded certificate to ".cer".
- Click the "Register" button to save.
Connected Base Settings

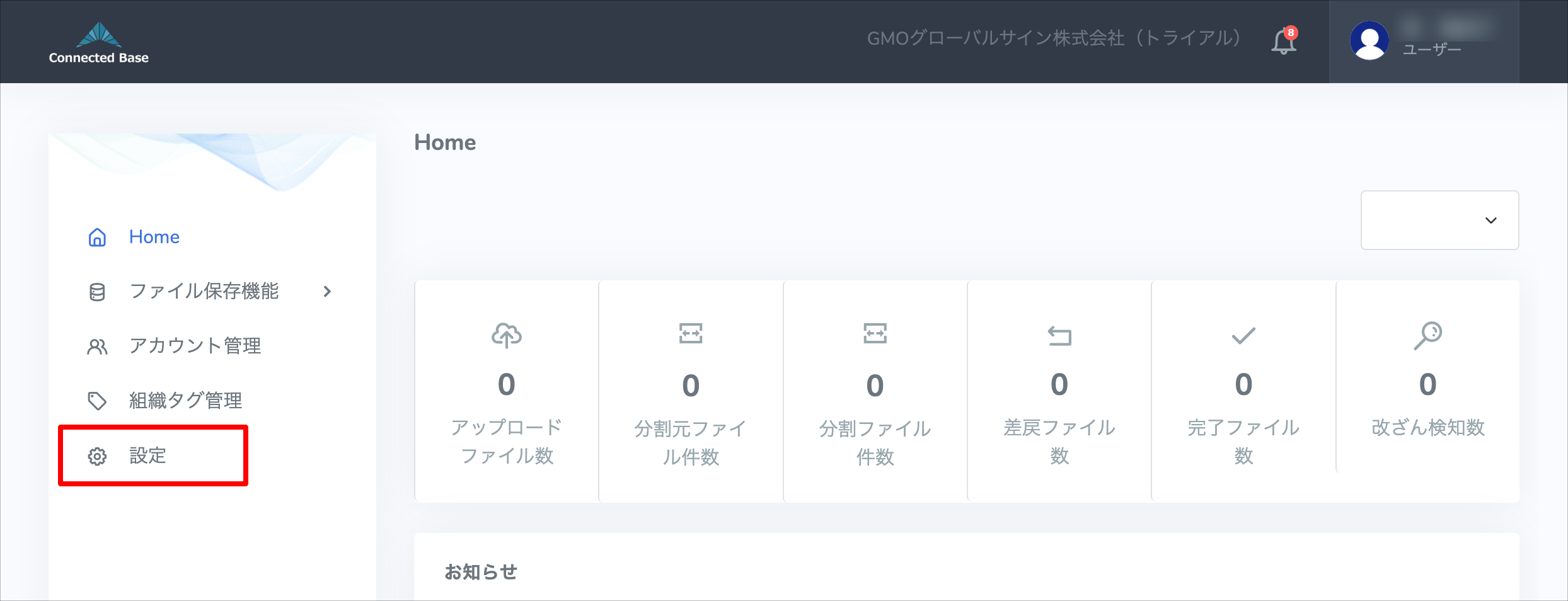

- Log in with an administrator account and open "Settings".

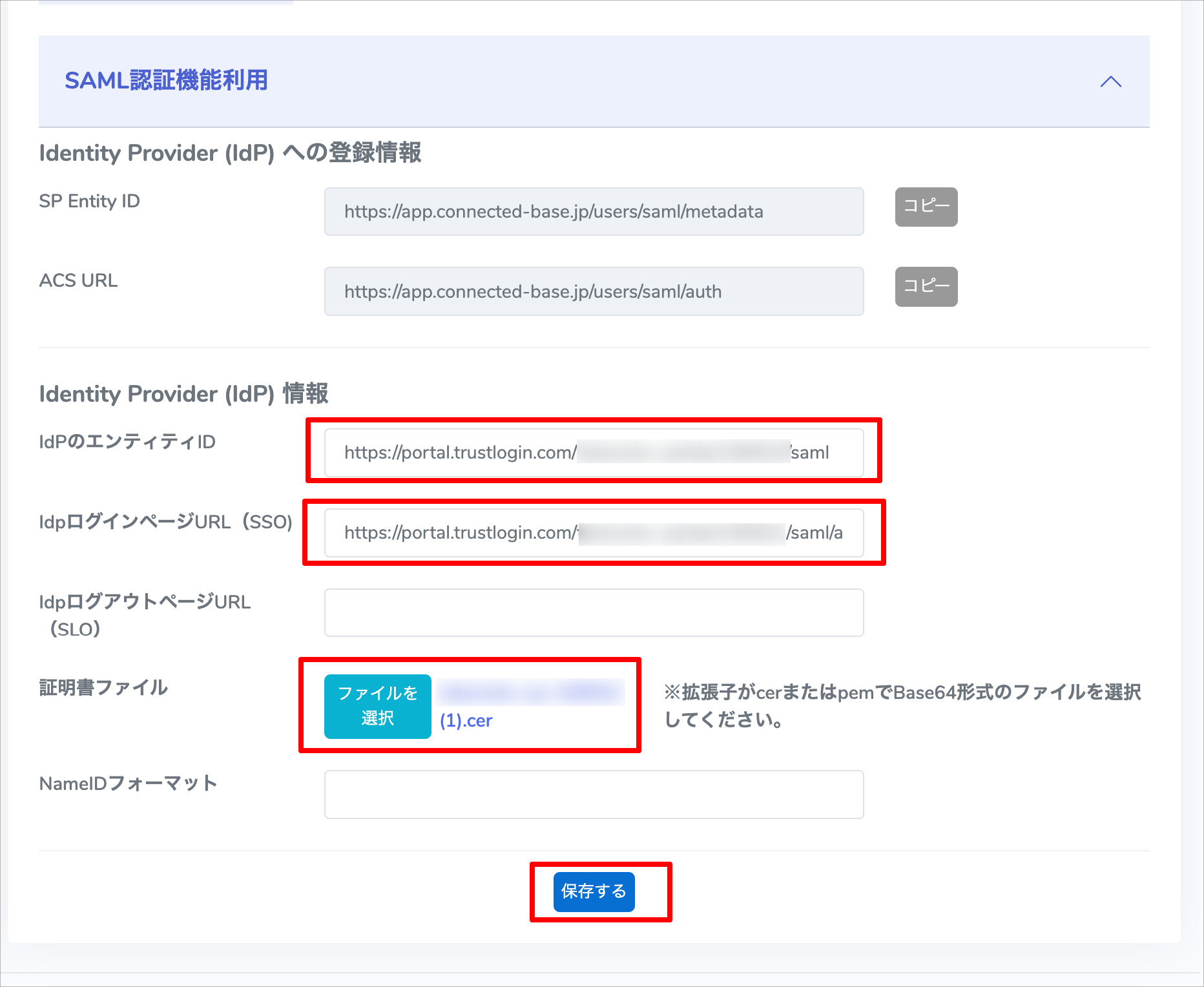

- Configure each item as follows, and save with the "Save" button.
IdP Entity ID The "Issuer / Entity ID" obtained from TrustLogin IdP Login Page URL (SSO) The "Identity Provider URL" obtained from TrustLogin Certificate File The "Certificate" obtained from TrustLogin, converted to a .cer file
TrustLogin User Settings
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "Connected Base (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an Administrator Adds Members
- Search for and click the "Connected Base (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
