Item	Description
Pre-check	Prior configuration is required in Keiwaza Web. Fuji Electric IT Solutions Co., Ltd., the provider of Keiwaza Web, does not verify SAML integration with TrustLogin. For inquiries, please contact our support desk.
Name ID	〇	Email address
		Custom attribute　Note: For how to configure custom attributes, seehere
SP Configuration	〇	Configured by the administrator
		Request the SP to configure
Provisioning		Supports API-basedprovisioning (account management possible in TrustLogin)
		SAML JITprovisioning supported (account management possible in TrustLogin; user deletion not supported)
	〇	None (accounts created in each system)
Access Method	〇	SP-Initiated SSO
	ー	IdP-Initiated SSO
Verified Operation Status by Device	〇	PC - Browser
	ー	PC - Desktop App
	ー	iOS - Standard Browser (Safari)
	ー	iOS - TrustLogin Mobile App In-App Browser
	ー	iOS - Native App
	ー	Android - Standard Browser (Chrome)
	ー	Android - TrustLogin Mobile App In-App Browser
	ー	Android - Native App
SAML Authentication Scope	〇	Enabled for all users (SAML authentication only)
	ー	Other
Notes	If SAML configuration fails and you are unable to log in, or if you are unable to log in via SAML due to a TrustLogin outage or other issue, you can bypass SAML authentication and log in using password authentication by accessing the URL below. http://[Keiwaza Web server]/[virtual directory name]/kwzLogin.aspx?Act=HDNLOGIN The Excel add-on and tablet features do not support SAML login.

Table of Contents: Preparation TrustLogin Admin Page Configuration Keiwaza Web Configuration TrustLogin User Configuration

Preparation

Note: If the "User ID" in Keiwaza Web uses the same email address as TrustLogin, this configuration is not required, so please proceed to the next step.

Add the Keiwaza Web "User ID" information to a custom attribute in the TrustLogin member information.

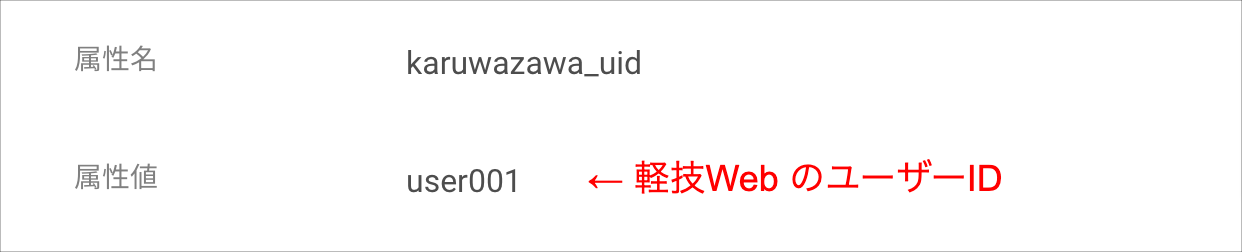

【TrustLogin Custom Attribute Configuration Example】

For how to configure custom attributes, please refer to the pages below. The attribute name of the custom attribute is arbitrary.

Custom Attribute Configuration Method (Individual Registration)

Custom Attribute Configuration Method (Bulk Registration)

TrustLogin Admin Page Configuration

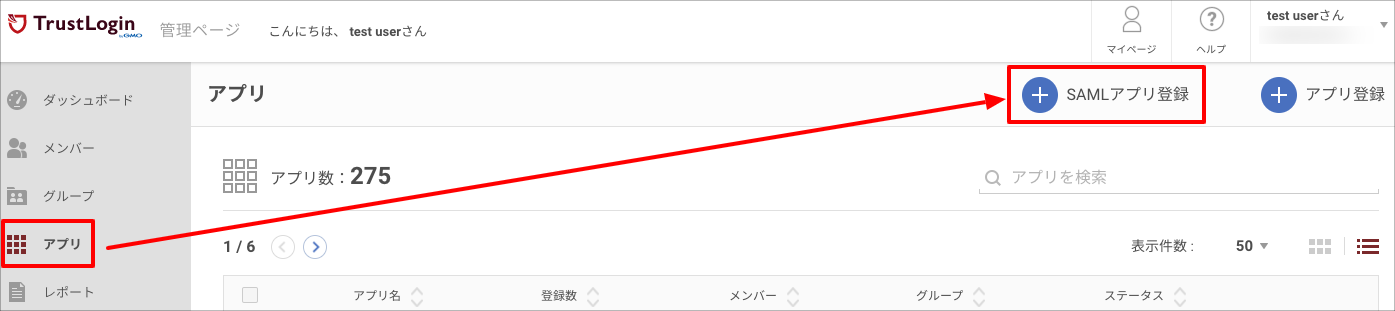

1. Log in to TrustLogin , open the "Admin Page > Apps" menu, and click the "Register SAML App" button in the upper right of the screen.

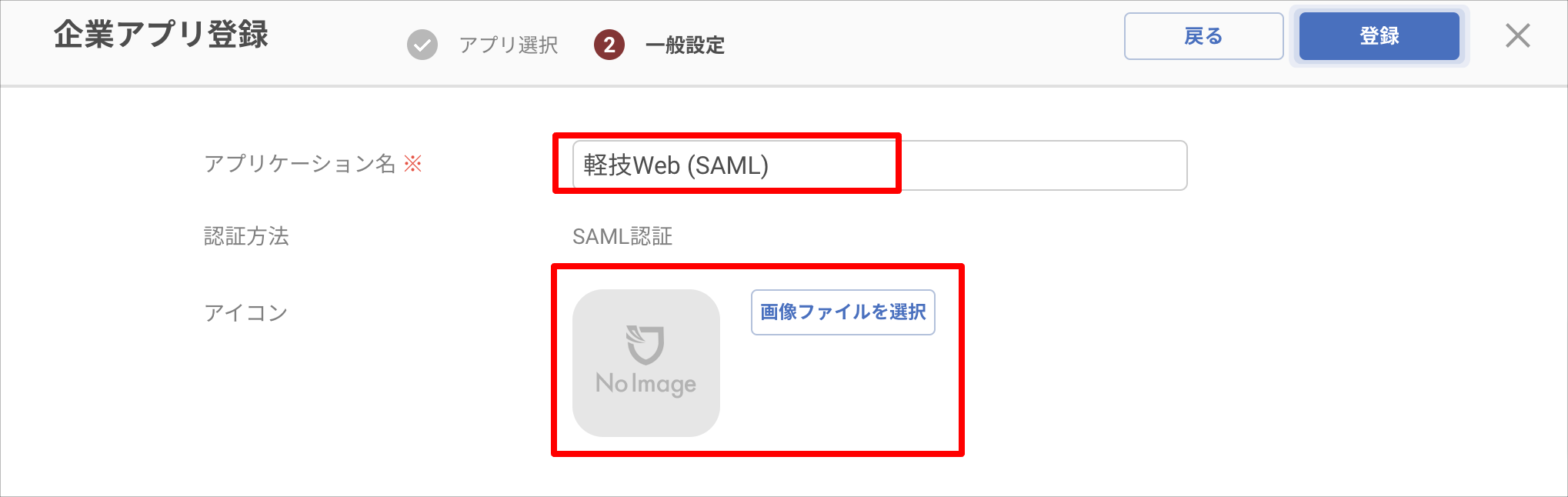

2. Set the "Application Name" and "Icon" (optional).



3. Note down the values of "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.

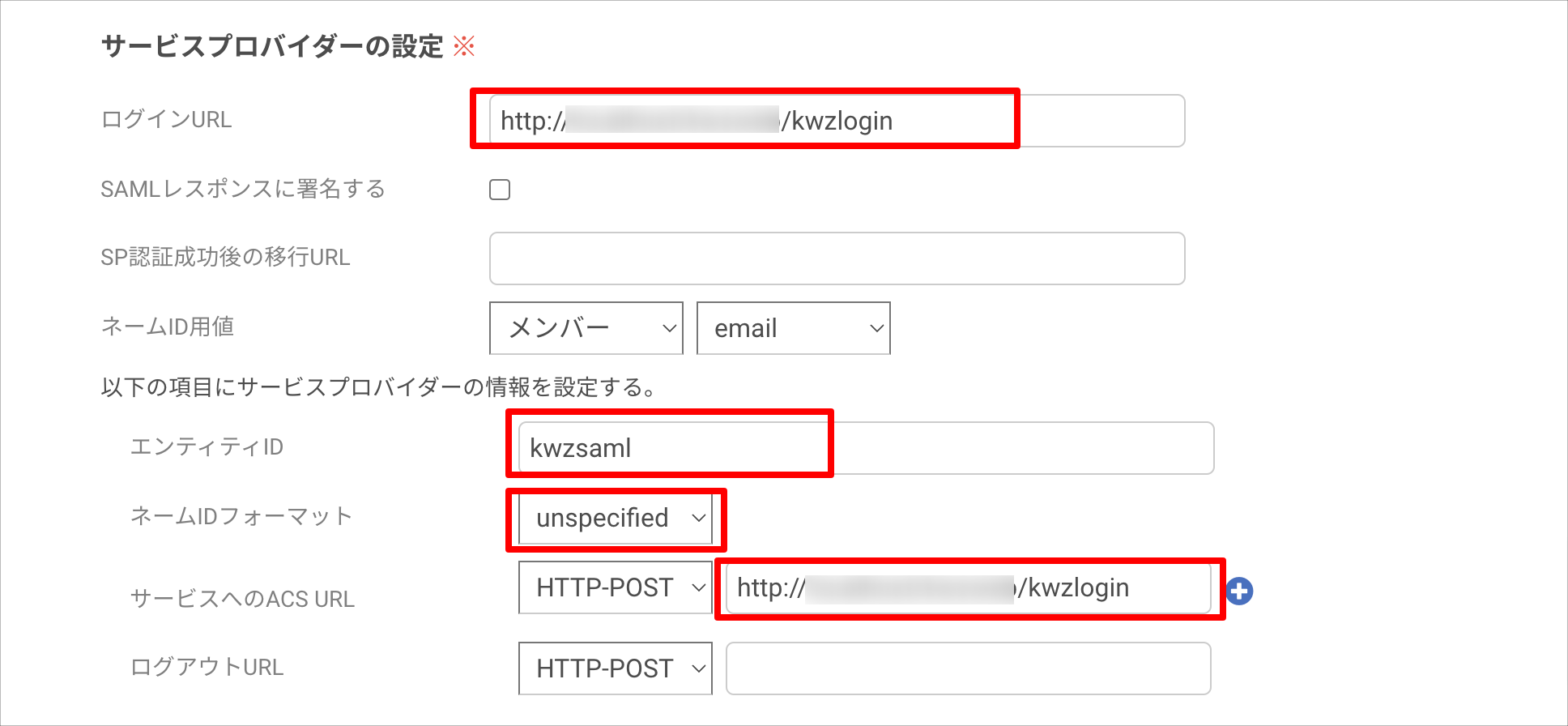

4. Configure each item under "Service Provider Settings" as follows.


   Login URL	http://[Keiwaza Web server]/[virtual directory name]/kwzlogin
   Entity ID	kwzsaml
   Name ID Format	unspecified
   ACS URL to the Service	http://[Keiwaza Web server]/[virtual directory name]/kwzlogin





5. Click the "Specify Custom Attribute" button in "SAML Attribute Settings", then click the "Add SAML Attribute" button to add a row (attribute) and configure it as follows.


   Service Provider Attribute			TrustLogin (IdP) Attribute
   Attribute Name	Attribute Type	Attribute Name		Attribute Value
   LoginId	unspecified	LoginId	Custom attribute (Note)	Select the custom attribute configured in the preparation step (Note)

   (Note) If the "User ID" in Keiwaza Web uses the same email address as TrustLogin, select "Member > Member - Email Address".

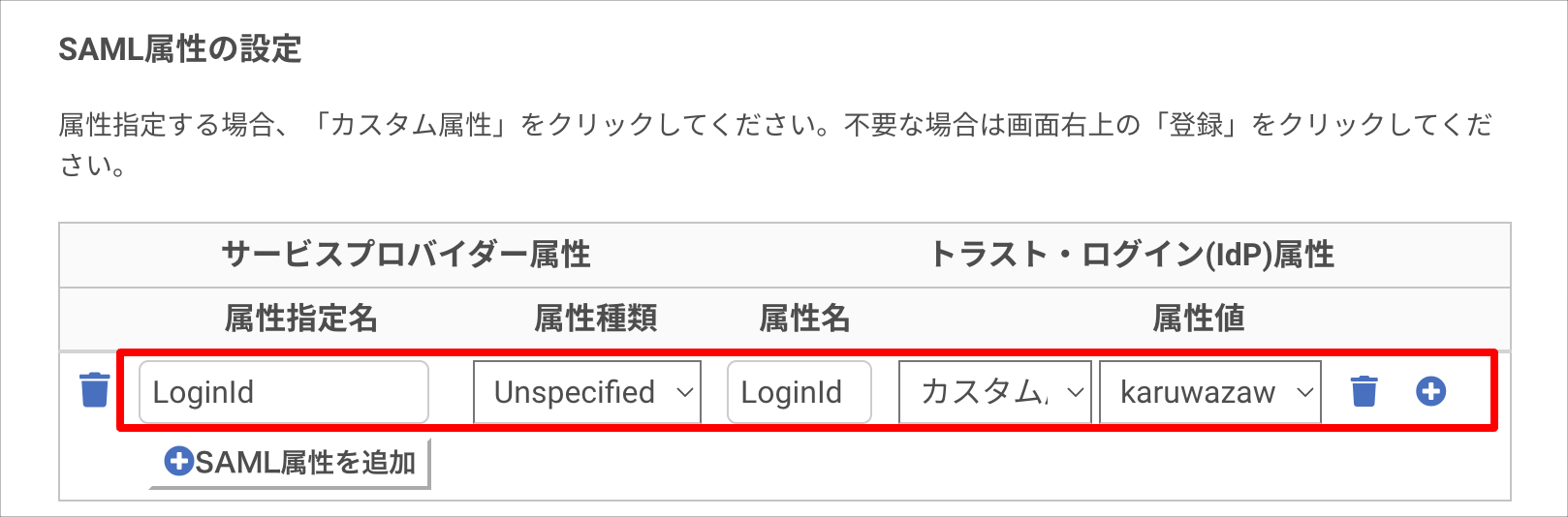

   If you added the Keiwaza Web "User ID" information to a custom attribute in the member information

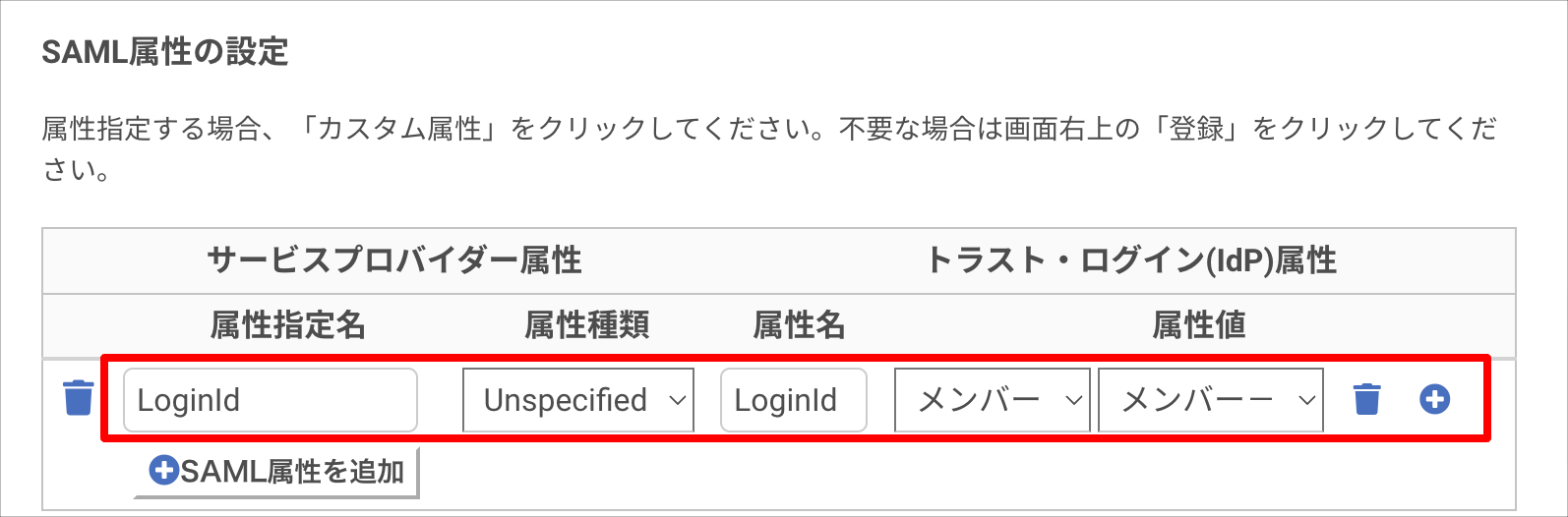

   If the "User ID" in Keiwaza Web uses the same email address as TrustLogin



6. Click the "Register" button to save.

Keiwaza Web Configuration

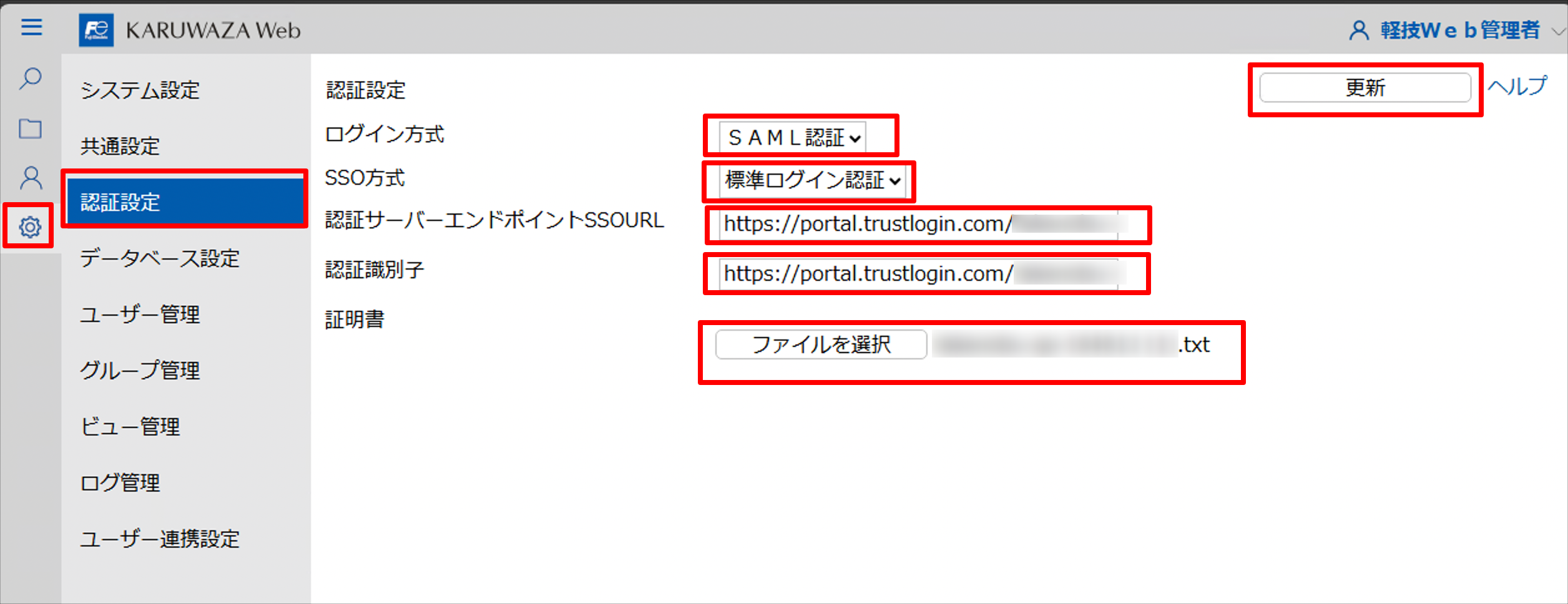

1. Log in with an administrator account, open "Administrator Settings > Authentication Settings", and configure each item as follows.


   Login Method	SAML Authentication
   SSO Method	Standard Login Authentication
   Authentication Server Endpoint SSO URL	The "Identity Provider URL" obtained from TrustLogin
   Authentication Identifier	The "Issuer/Entity ID" obtained from TrustLogin
   Certificate	Upload the "Certificate" obtained from TrustLogin





2. Click the "Update" button to save.

TrustLogin User Configuration

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "App Registration" screen, select the custom SAML app you created and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, and click the "Register" button.

② When an administrator adds members

1. Search for and click the custom SAML app you created in the "Admin Page > Apps" menu.
2. Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
