Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, see here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
API-based provisioning supported (account management available in TrustLogin) |
|
| 〇 |
SAML JIT provisioning supported (account management available in TrustLogin; user deletion not supported) |
|
|
|
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verified Operation by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
|
SAML Authentication Scope |
ー |
Enabled for all users (SAML authentication only) |
| 〇 |
Other: |
|
|
Notes |
|
|
|
Table of Contents: TrustLogin Admin Page Settings |
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

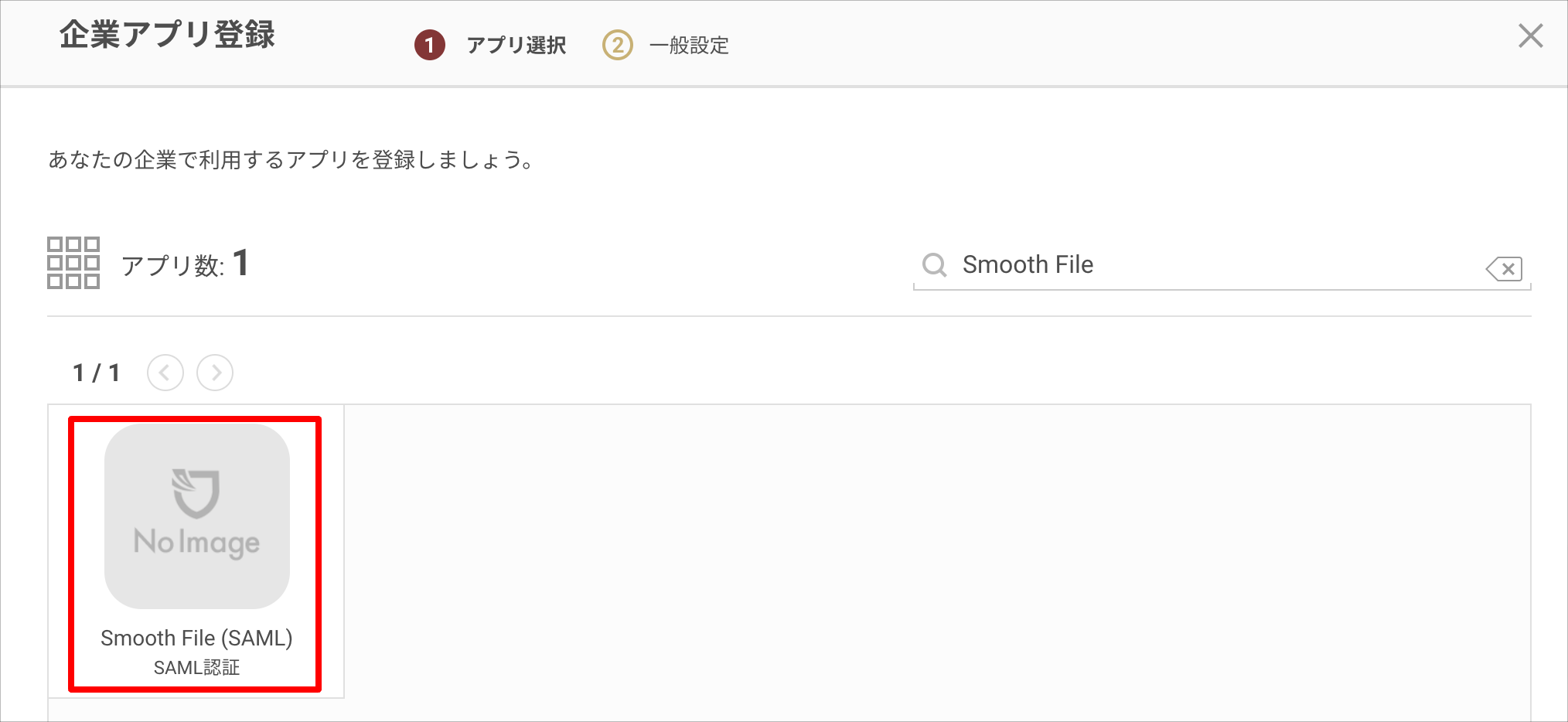

- Search on the "Register Company App" screen and select "Smooth File (SAML)".
- Make a note of the "Identity Provider URL" value under "Identity Provider Information", then download the certificate using the "Get Certificate" button.
Now, switch to configuring the Smooth File side.
Do not click the "Register" button yet — open Smooth File in a separate window.
Smooth File Settings

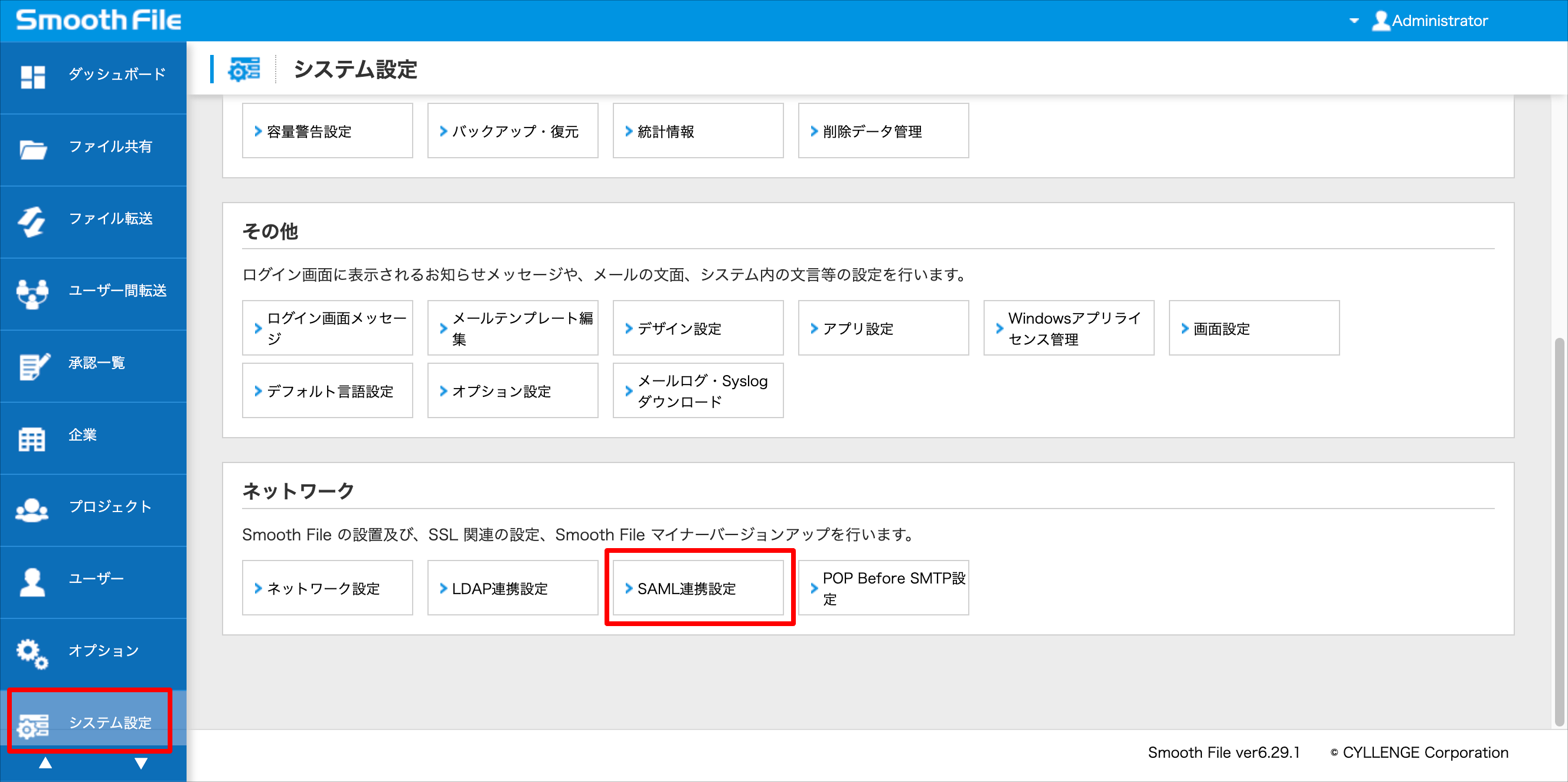

- Open "System Settings > SAML Federation Settings".

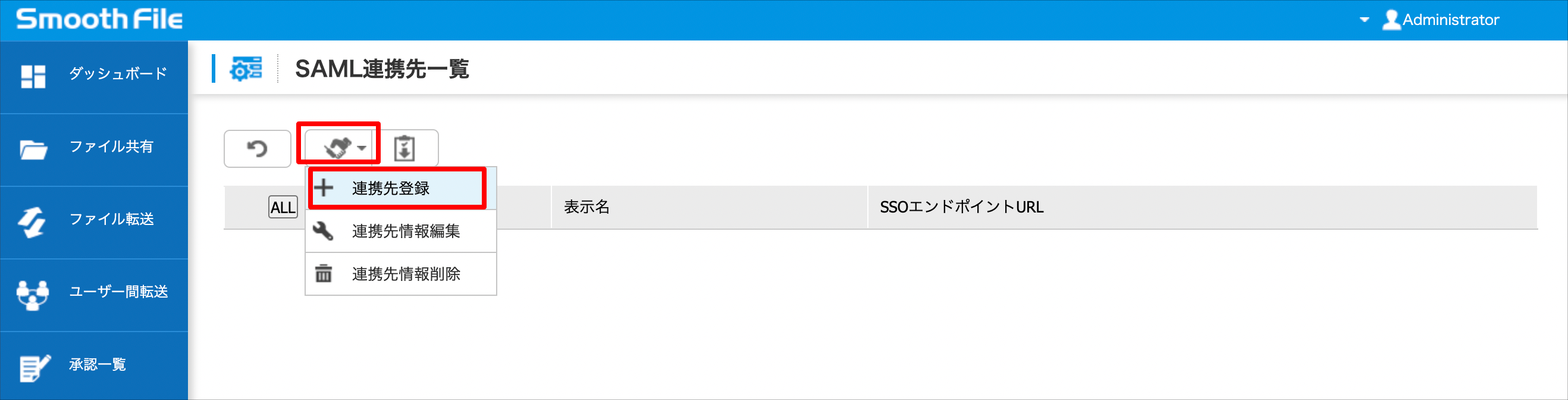

- Select "Register Federation".

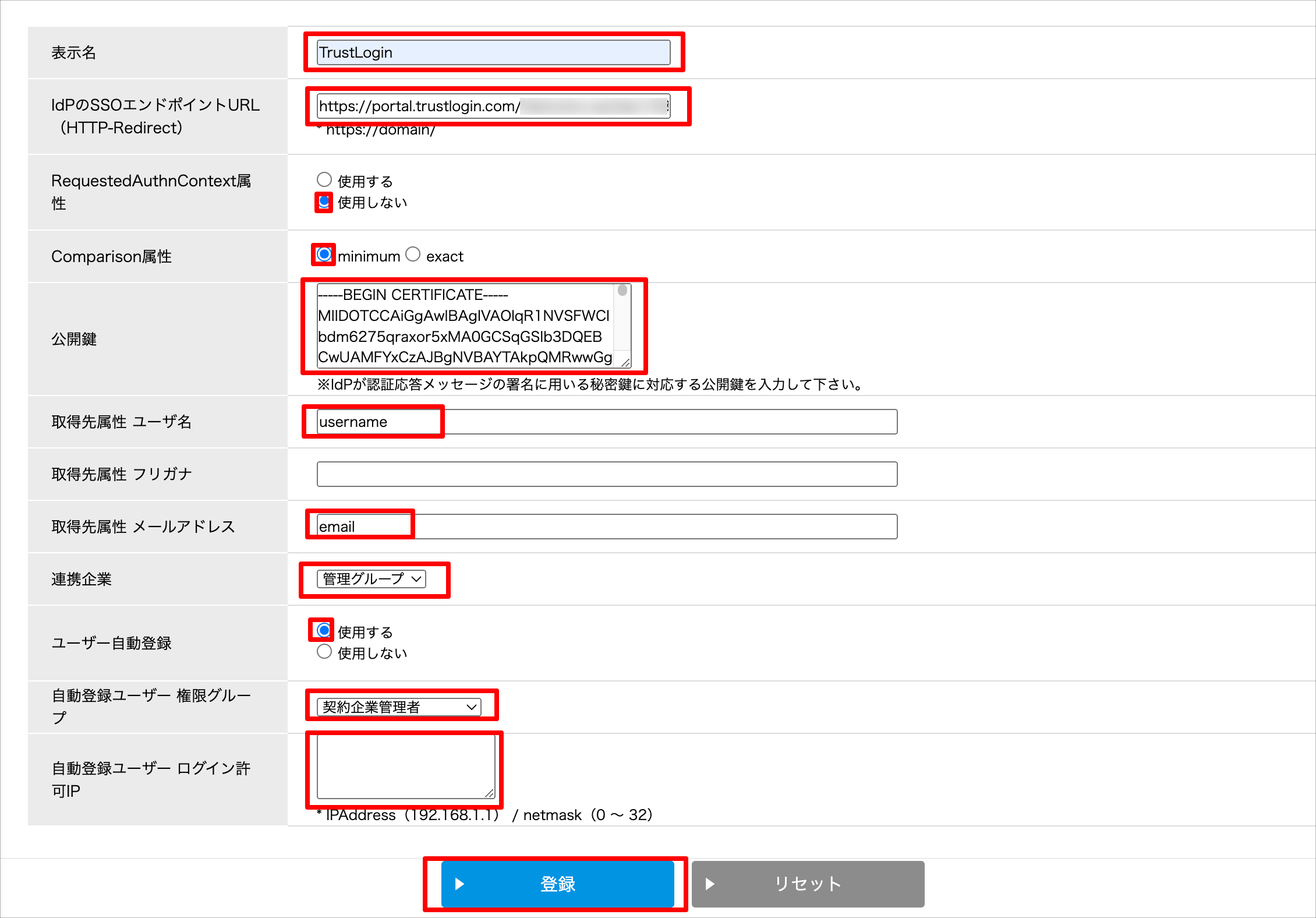

- Configure each item as follows, and finally save by clicking the "Register" button.
Display Name Any display name you like (e.g., TrustLogin) IdP's SSO Endpoint URL The "Identity Provider URL" obtained from TrustLogin RequestedAuthnContext Attribute Select "Do not use" Comparison Attribute Select "minimum" Public Key The contents of the "Certificate" obtained from TrustLogin Source Attribute: Username Enter "username" Source Attribute: Email Address Enter "email" Linked Company Select the company to link from the dropdown Automatic User Registration Select "Use" Auto-registered User: Permission Group Select the permission group to assign when a new user is registered Auto-registered User: Allowed Login IP If restricting login by IP address, enter the allowed IP address

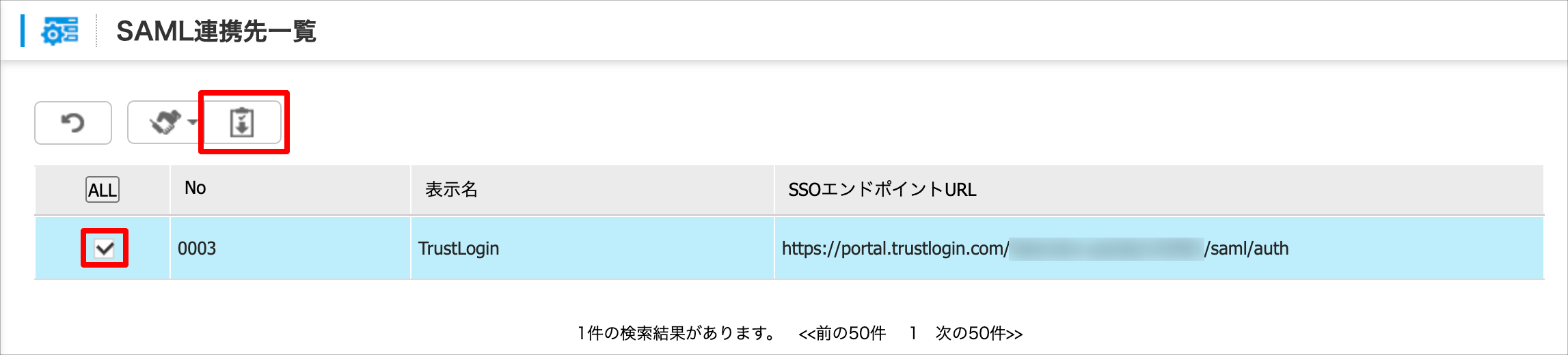

- Check the federation you configured, then click the "Download Metadata" button to obtain the metadata.
Now return to the TrustLogin admin page again.
TrustLogin Admin Page Settings (Continued)

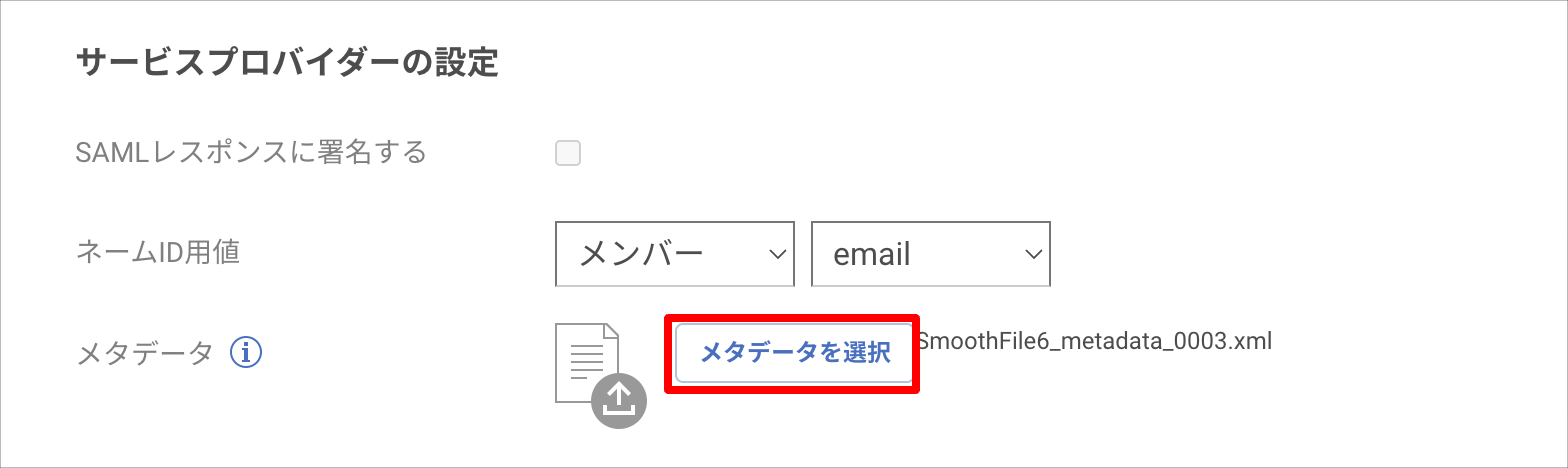

- Upload the metadata obtained from Smooth File to "Metadata" under "Service Provider Settings".
- Save by clicking the "Register" button.
TrustLogin User Settings
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "Smooth File (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
②When an administrator adds members
- Search for and click the "Smooth File (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
