Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, see here |
||
|
SP Configuration |
〇 |
Configured by the administrator |
|
Request SP to configure |
||
|
Provisioning |
API-based Provisioning supported (account management available in TrustLogin) |
|
|
SAML JIT Provisioning supported (account management available in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Device Compatibility |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Default Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Default Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

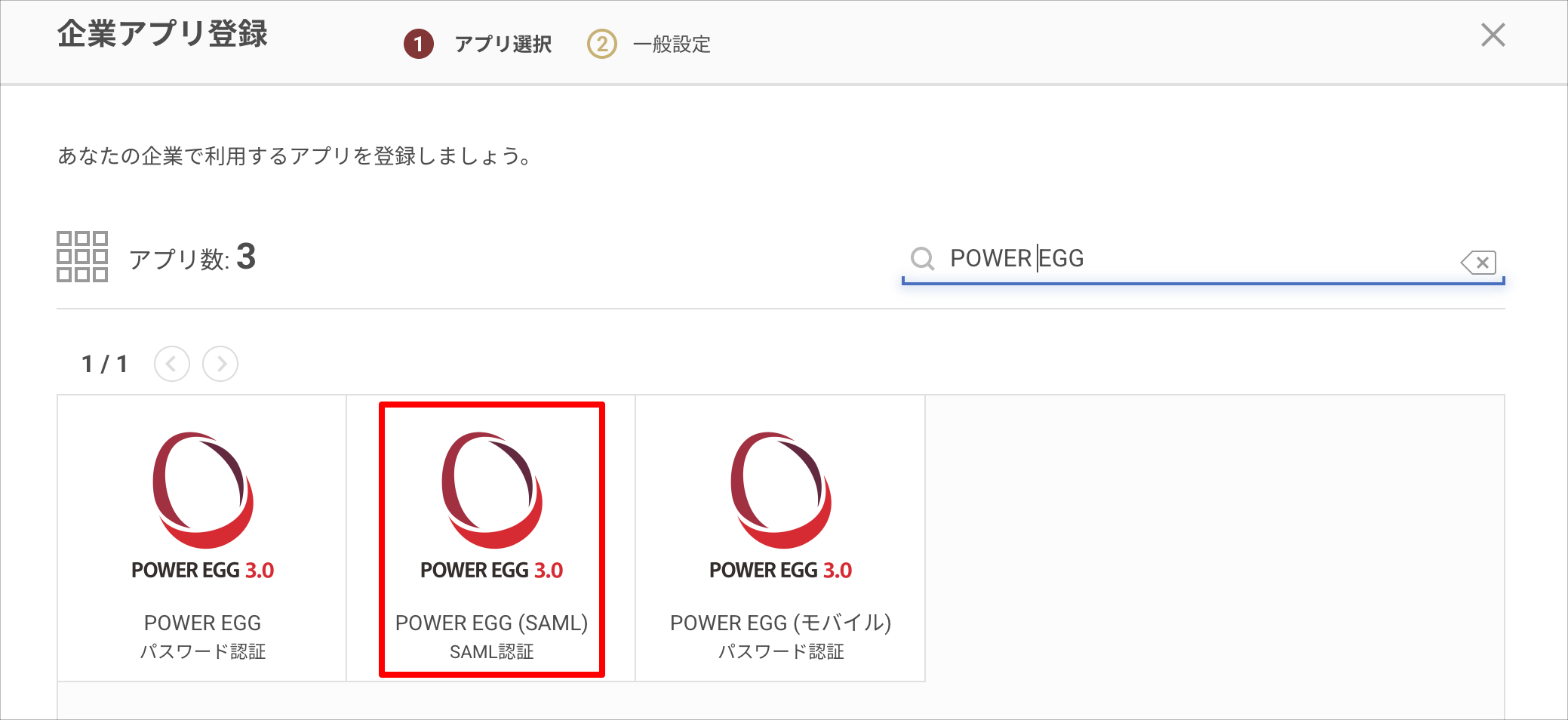

- Search on the "Register Company App" screen and select "POWER EGG (SAML)".
- Download the metadata using the "Download Metadata" button under "Identity Provider Information".

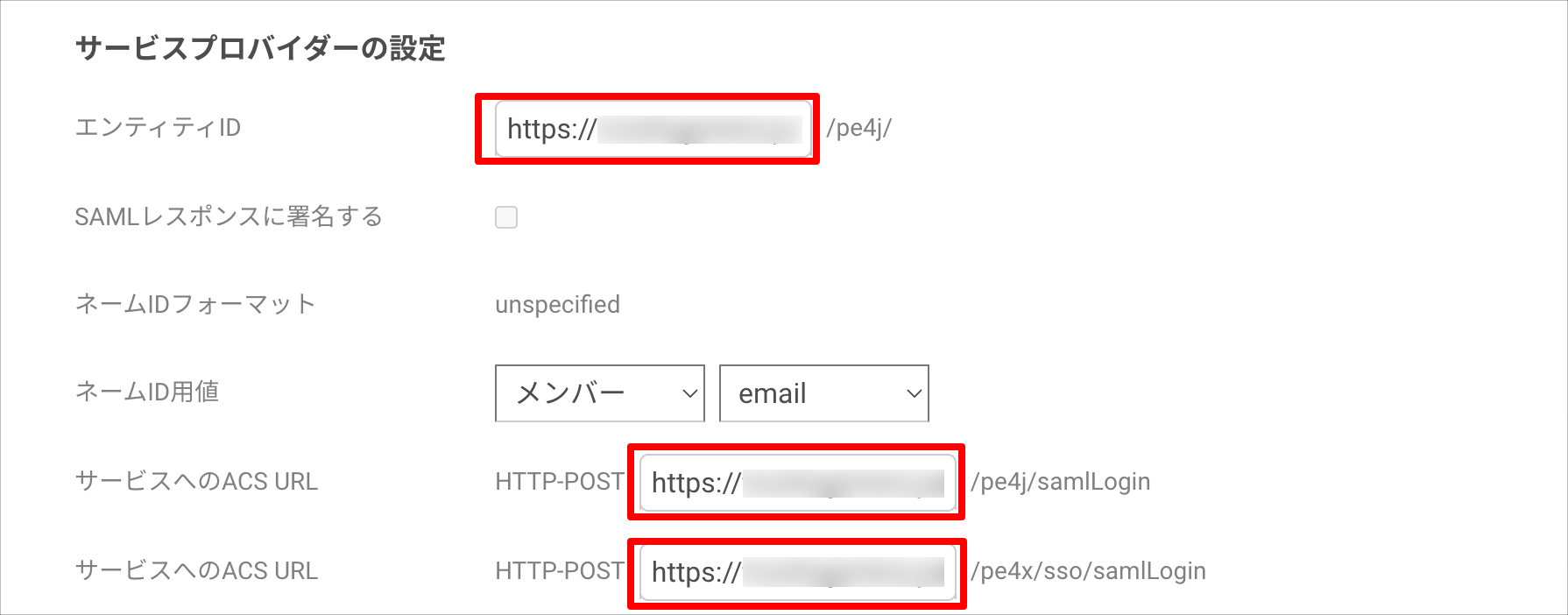

- Enter your POWER EGG connection URL starting from [http(s)://] in the three items under "Service Provider Settings".
Note: Please make sure not to include a trailing "/". - Save by clicking the "Register" button.
POWER EGG Settings

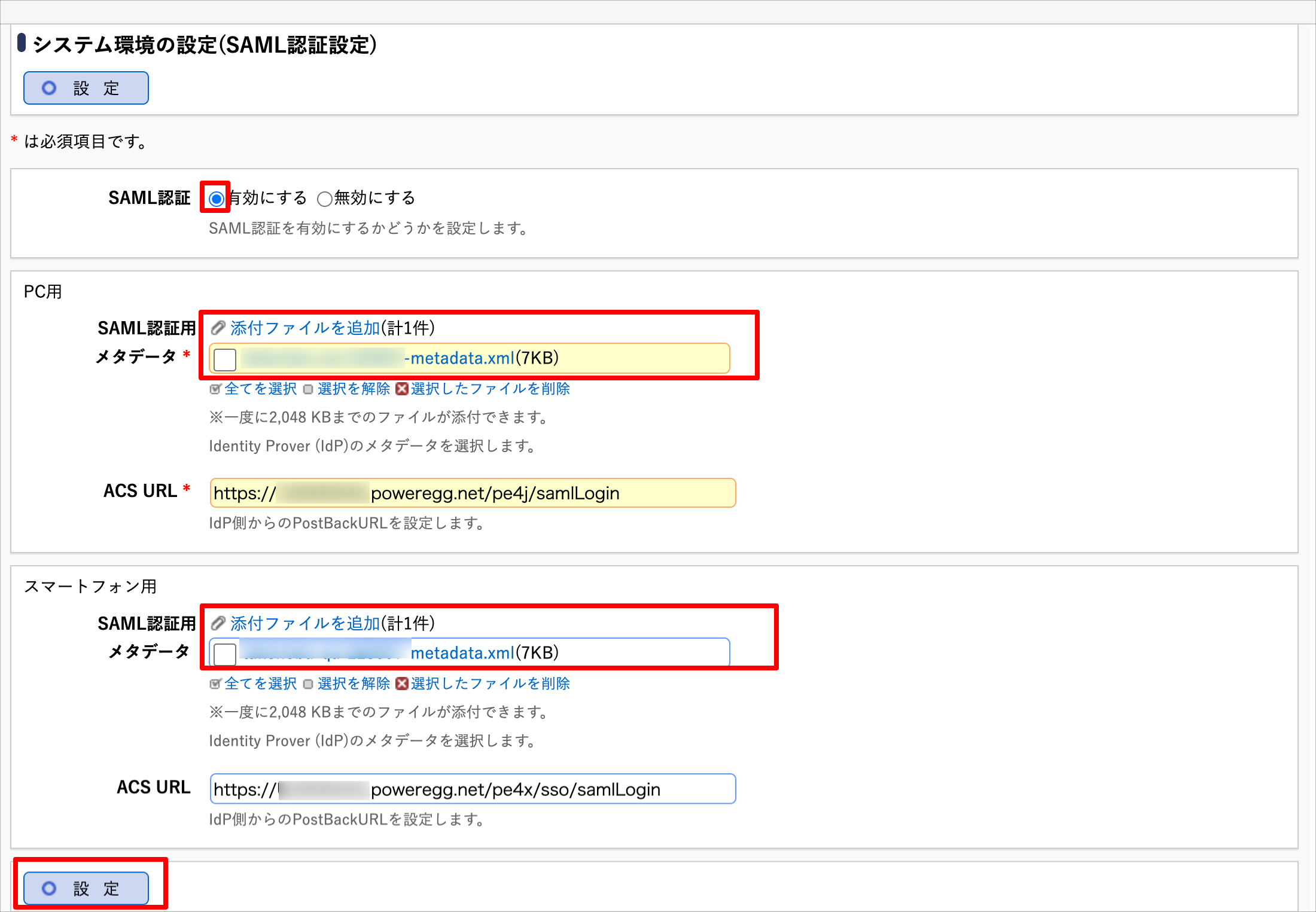

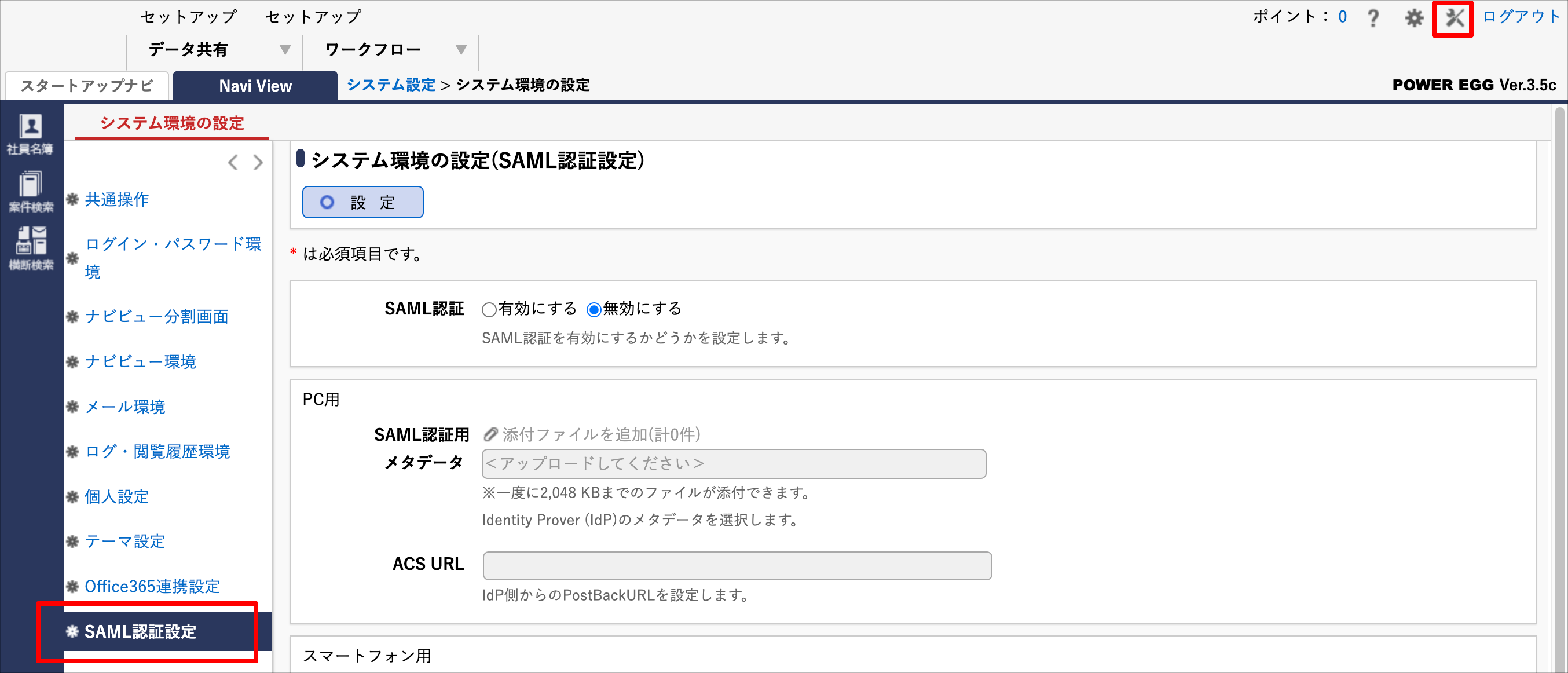

- Open "System Settings" in the upper right, then open "System Environment Settings > SAML Authentication Settings".
- Configure each item as follows, and finally save by clicking the "Settings" button.
SAML Authentication Select "Enable" SAML Authentication Metadata (for PC) Upload the "Metadata" obtained from TrustLogin ACS URL (for PC) http(s)://your connection URL/pe4j/samlLogin SAML Authentication Metadata (for Smartphone)
Upload the "Metadata" obtained from TrustLogin ACS URL (for Smartphone)
http(s)://your connection URL/pe4x/sso/samlLogin

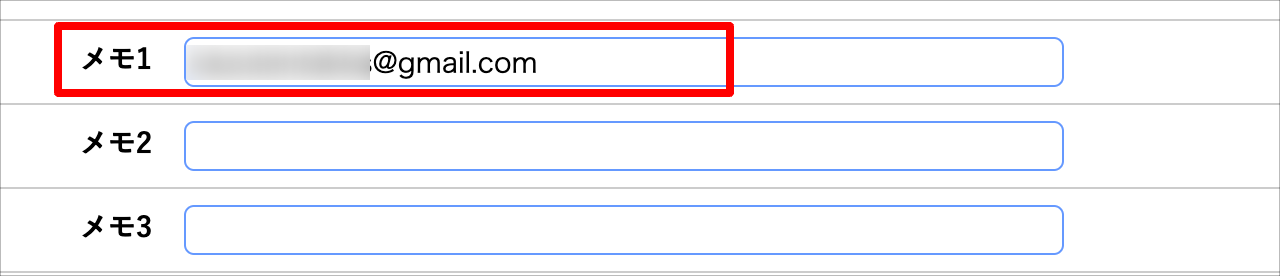

- Open "System Settings > Register Organization Information > Register Employees", open the edit screen for employee information, and set the employee's TrustLogin email address in the "Memo 1" field.
(POWER EGG uses "Memo 1" as the value for the Name ID during SAML authentication.)
TrustLogin User Settings
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "POWER EGG (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it and click the "Save" button.
②When an administrator adds members
- Search for and click the "POWER EGG (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.
Creating a Bookmark App for Smartphone Login
If you are using the smartphone version of POWER EGG, the URL for the smartphone version differs from that of the PC version, and accessing it via the registered SAML app will display the PC version. You will therefore need to use the bookmark app feature below to access the smartphone version URL.
If you are using the smartphone version with the TrustLogin mobile app, please use the registered bookmark app.
- Create a bookmark app for logging in to the smartphone version.
Open the "Admin Page > App" menu and click the "Register App" button in the upper right of the screen.

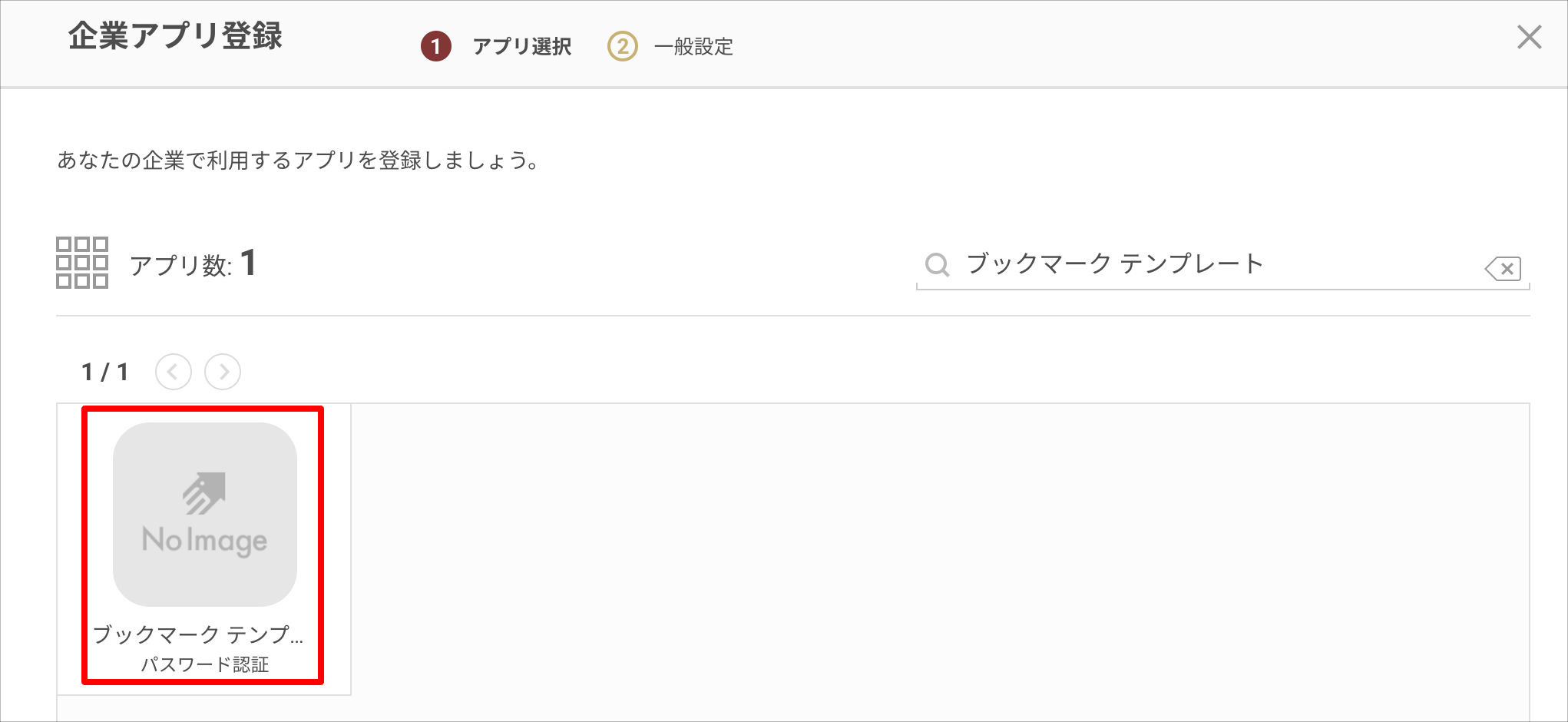

- Search for and select "Bookmark Template".

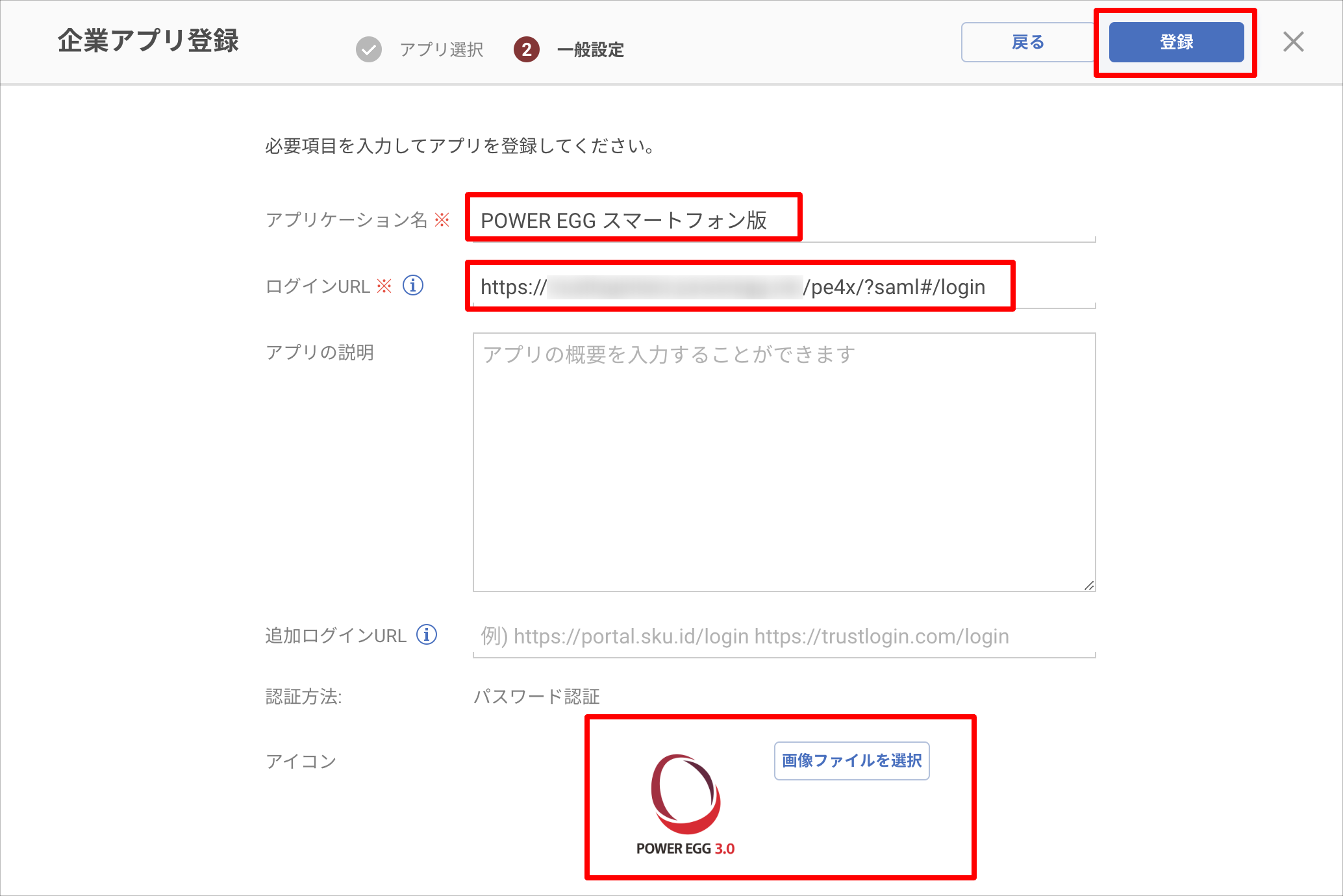

- Configure each item and save by clicking the "Register" button.
Application Name Any name (e.g., POWER EGG Smartphone Version)
Login URL http(s)://your connection URL/pe4x/?saml#/login
Icon Any
- When logging in from a smartphone, please log in using the bookmark app created on My Page.
Note: You may be required to re-authenticate with TrustLogin.
For details on how to use the bookmark template, please also see here.
