TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

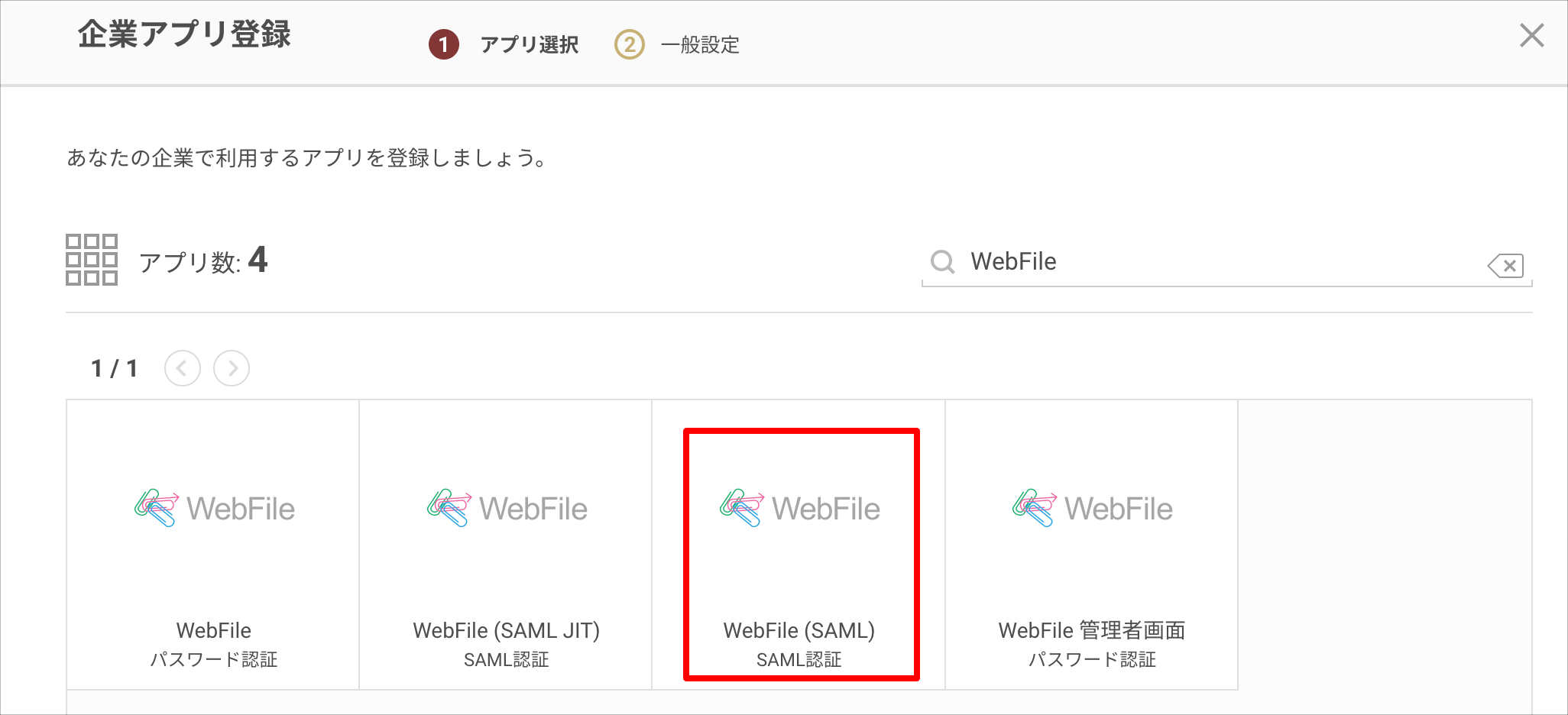

2. Search on the "Register Company App" screen and select "WebFile (SAML)".




3. Note the values of "IdP URL" and "Issuer / Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.





Now, let's move on to the settings on the WebFile side.
Do not click the "Register" button yet; open the WebFile admin screen in a separate window.

WebFile Settings

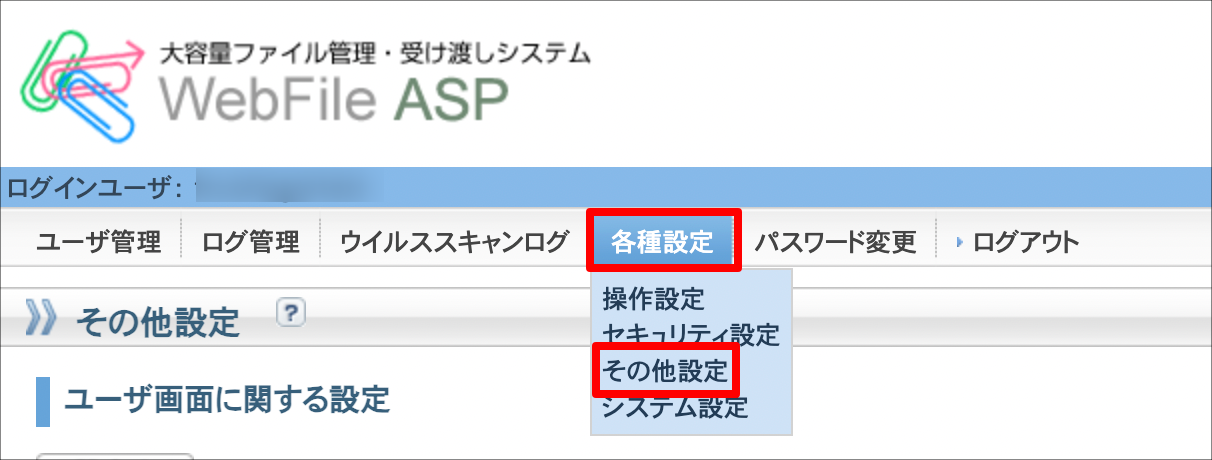

1. Open "Settings > Other Settings" from the top menu.

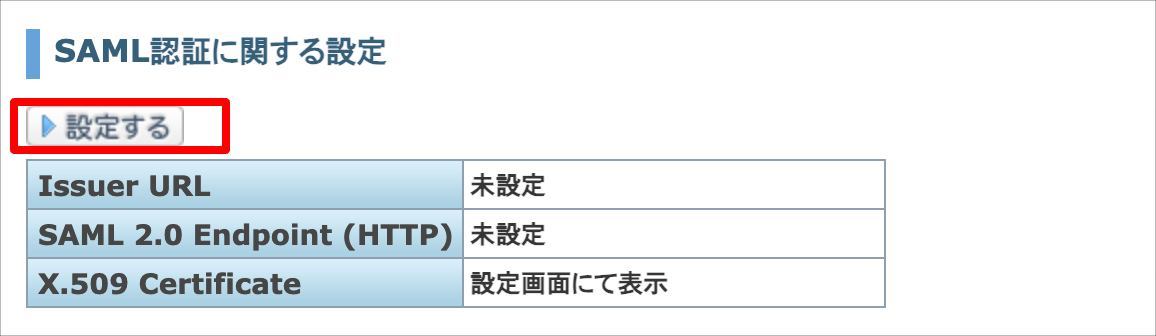

2. Click the "Configure" button for "SAML Authentication Settings".

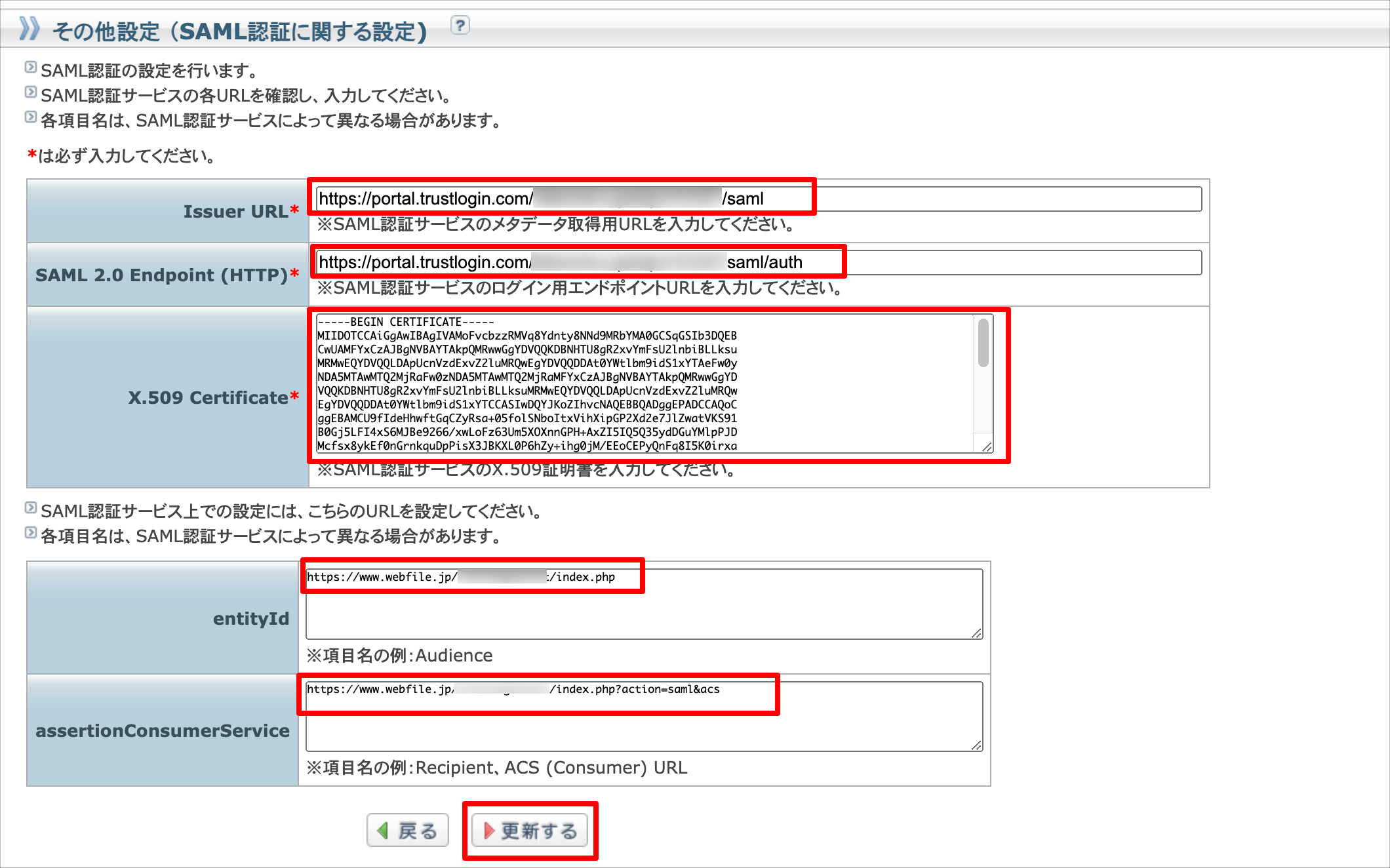

3. Configure each item as follows, and save by clicking the "Update" button.


   Issuer URL	The "Issuer / Entity ID" obtained from TrustLogin
   SAML 2.0 Endpoint (HTTP)	The "IdP URL" obtained from TrustLogin
   X.509 Certificate	The contents of the "Certificate" obtained from TrustLogin
   entityId	Copy and note down the value
   assertionConsumerService	Copy and note down the value

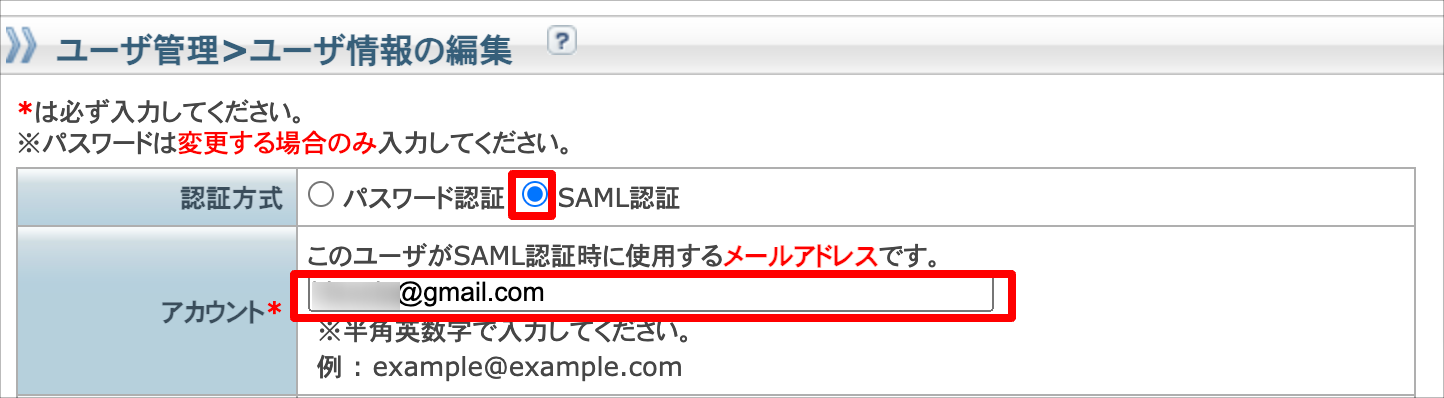

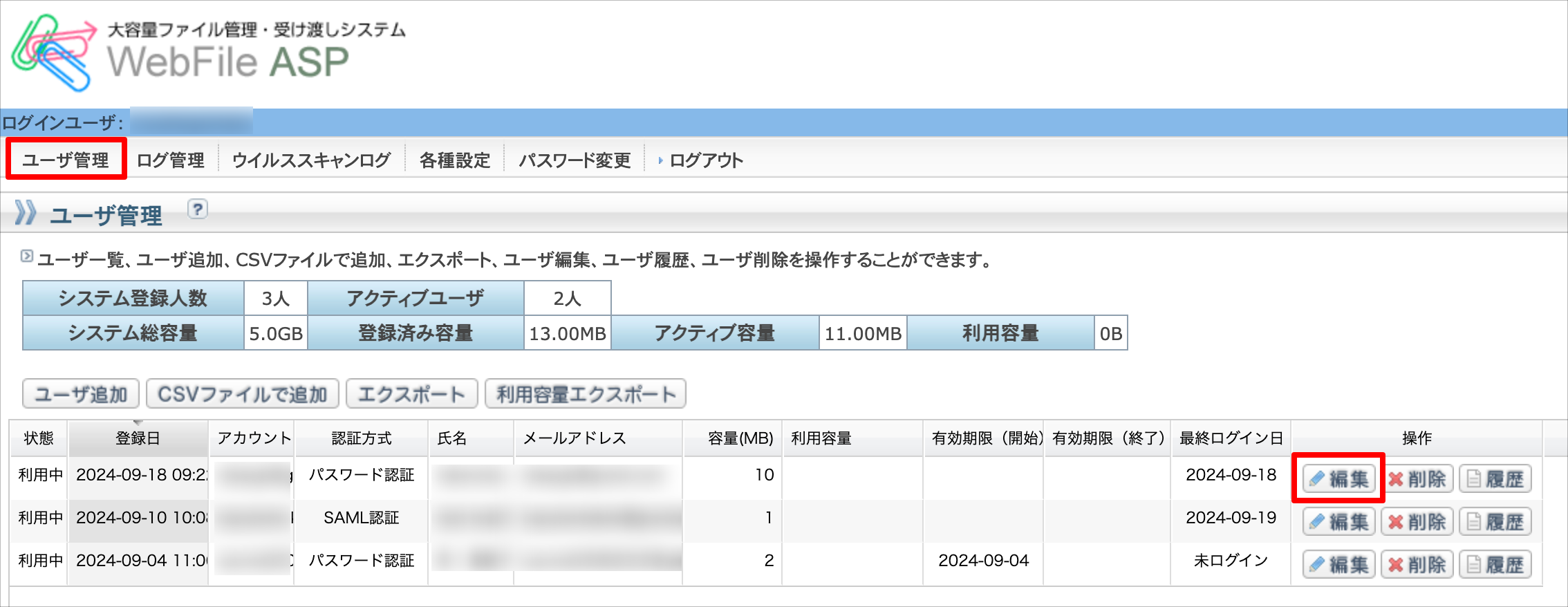

4. Open "User Management" and open the edit screen for the user to whom you want to apply SAML authentication.



5. Set "Authentication Method" to "SAML Authentication", enter the same email address as in TrustLogin in "Account", and save.

Now return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

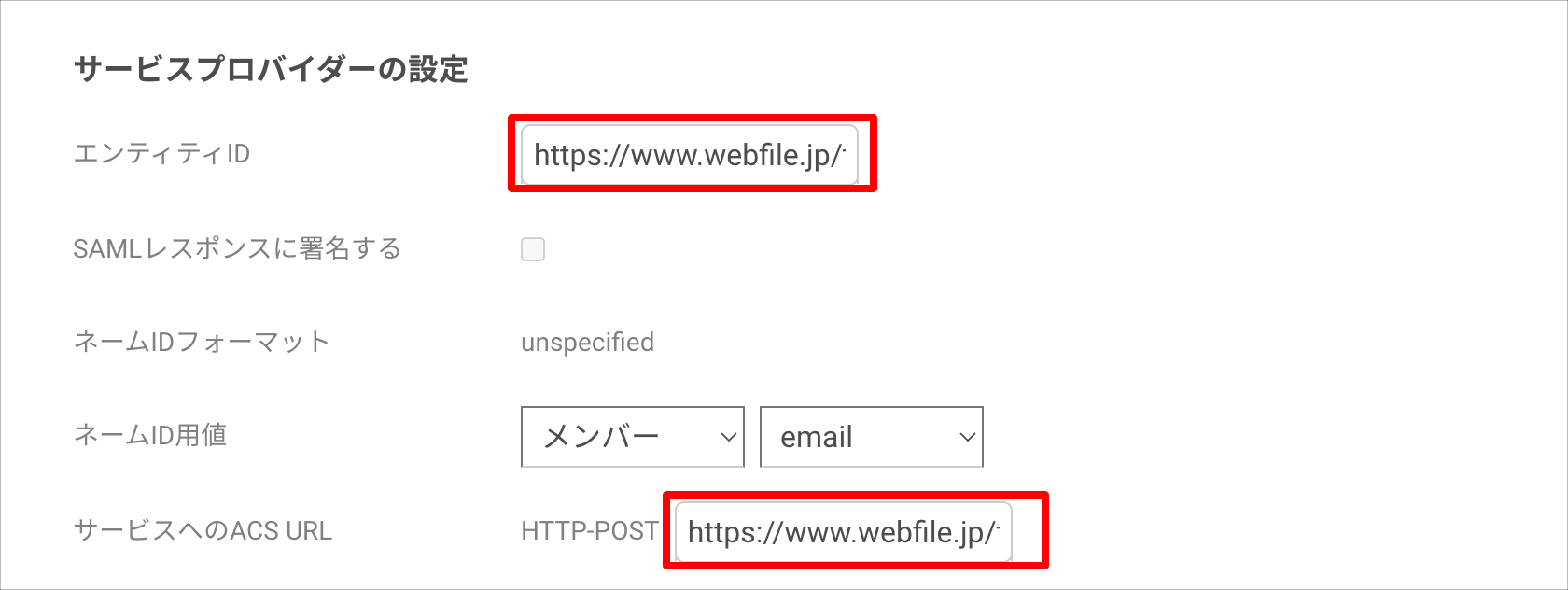

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "entityId" obtained from WebFile
   ACS URL for the Service	The "assertionConsumerService" obtained from WebFile





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "WebFile (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Save" button.

②When an administrator adds members

1. Search for and click the "WebFile (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.
