Item |
Details |
|
|---|---|---|
|
Prior Confirmation |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure a custom attribute, see here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
API-based Provisioning supported (account management possible in TrustLogin) |
|
|
SAML JIT Provisioning supported (account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verified Operation by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

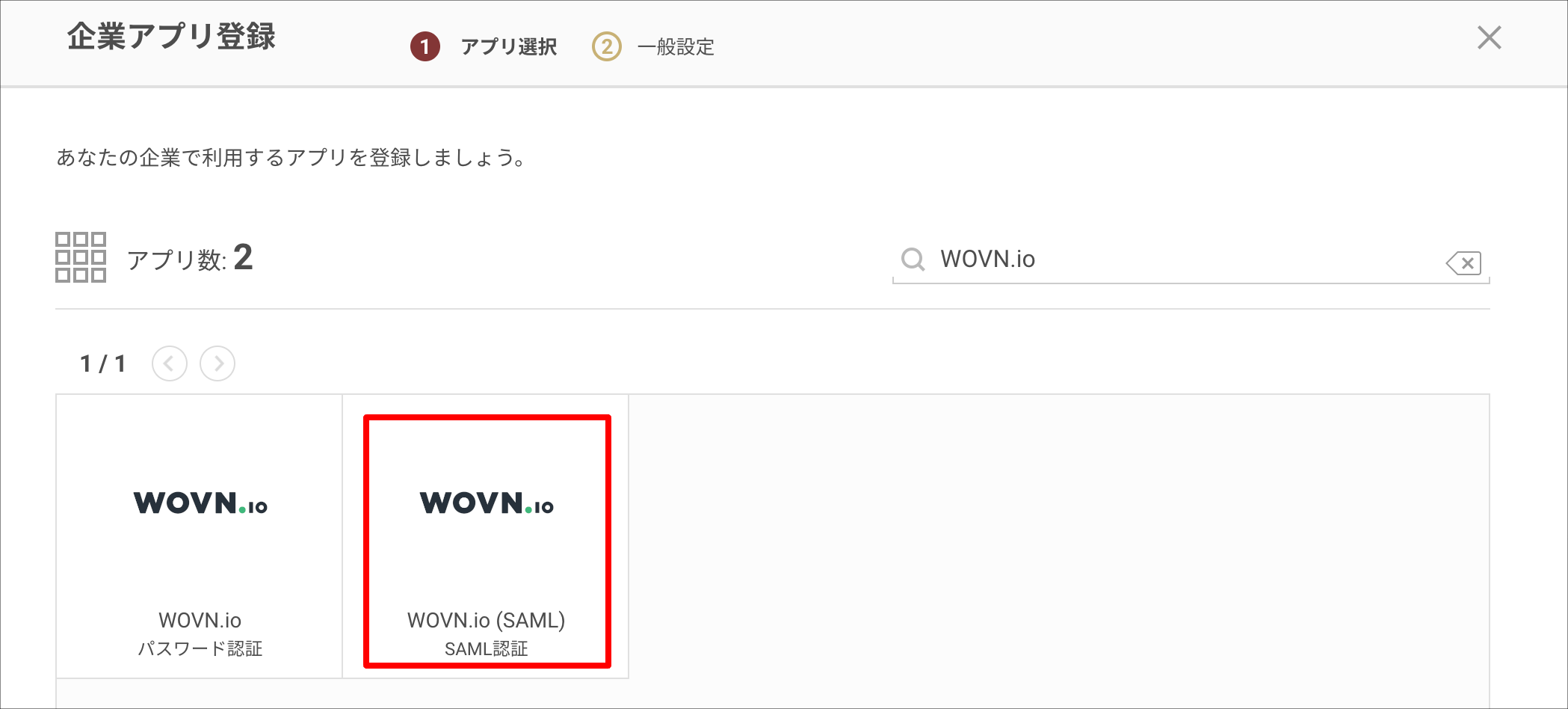

- Search on the "Register Company App" screen and select "WOVN.io (SAML)".
- Note down the values of "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate from the "Get Certificate" button.
- Click the "Register" button to save.
WOVN.io Settings

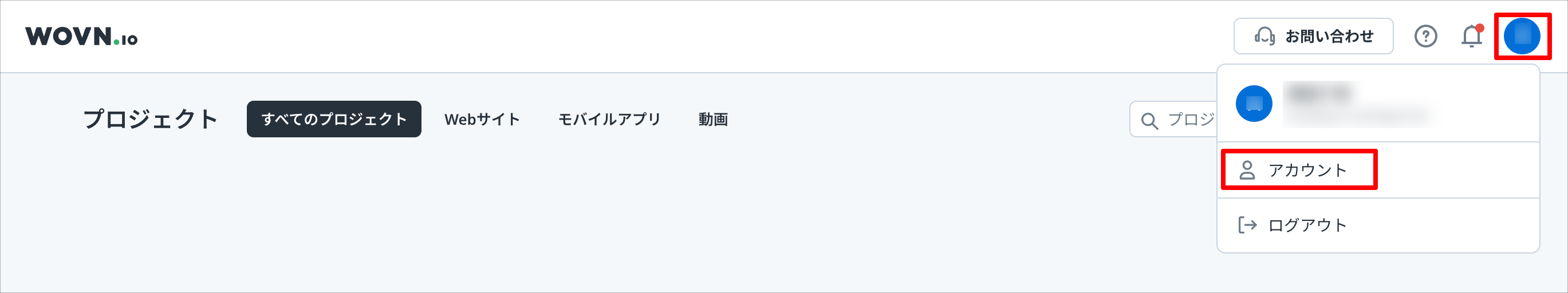

- Open "Account" from the icon in the upper right.

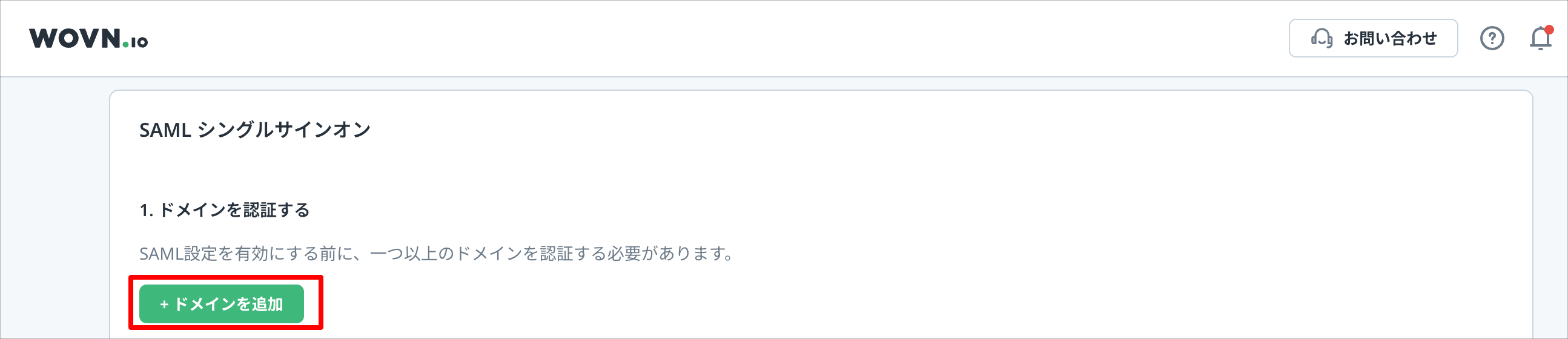

- Click "Add Domain" under "SAML Single Sign-On > 1. Verify Domain".

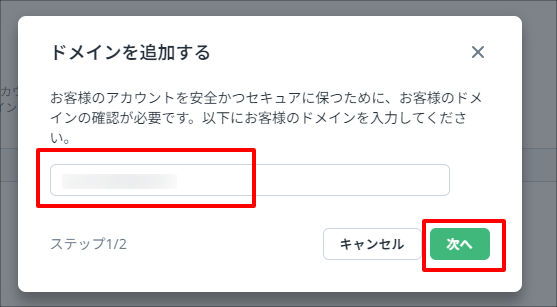

- Enter the domain to which you want to apply single sign-on, and proceed by clicking "Next".
-

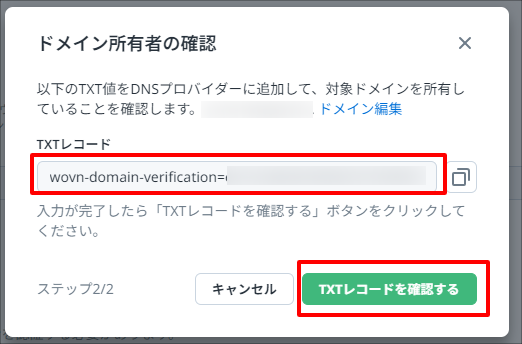

Set the displayed TXT record value in your domain's DNS records. For instructions on configuring your domain's DNS records, please refer to the help documentation provided by your domain registrar.

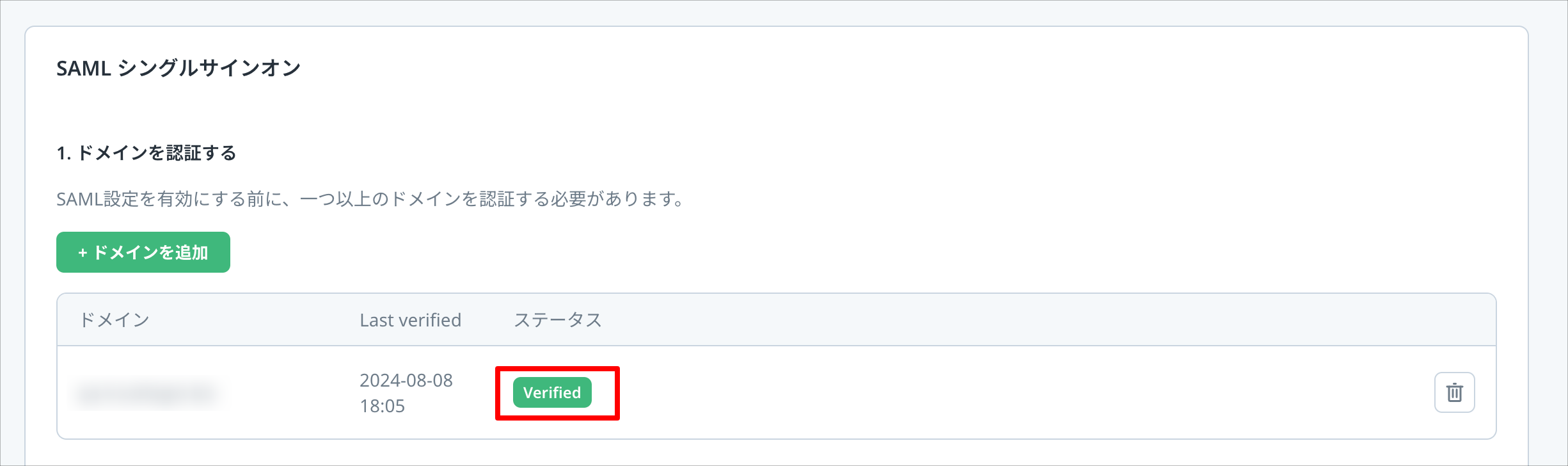

- When the domain status becomes "Verified", domain verification is complete.
DNS record updates may take up to approximately 72 hours. -

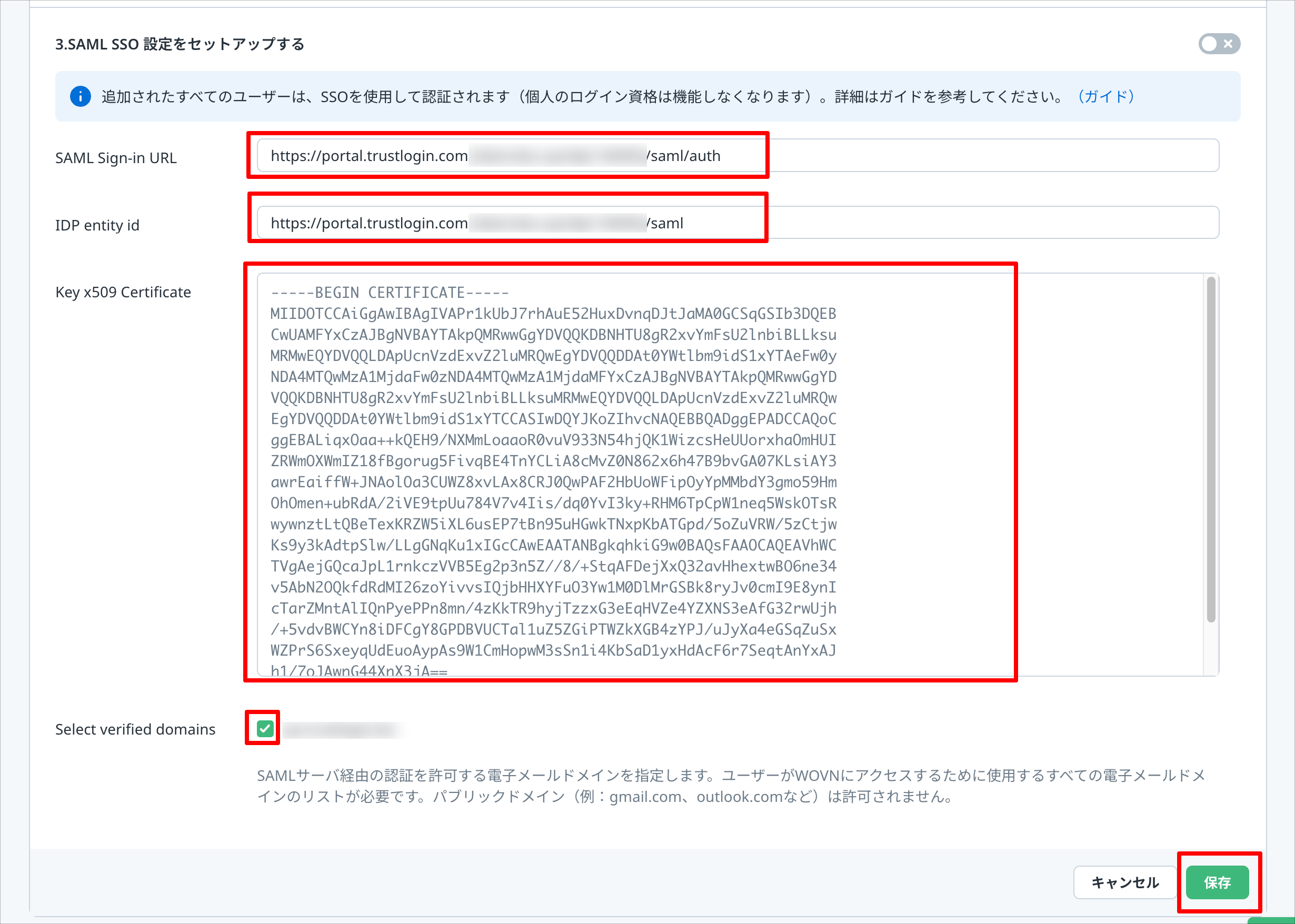

Configure each item under "3. Set Up SAML SSO Configuration" as follows, and click the "Save" button to save.
SAML Sign-in URL The "Identity Provider URL" obtained from TrustLogin IDP entity id The "Issuer/Entity ID" obtained from TrustLogin Key x509 Cerfiticate The contents of the "Certificate" obtained from TrustLogin Select verified domains Check the domain(s) to which you want to apply SAML SSO
-

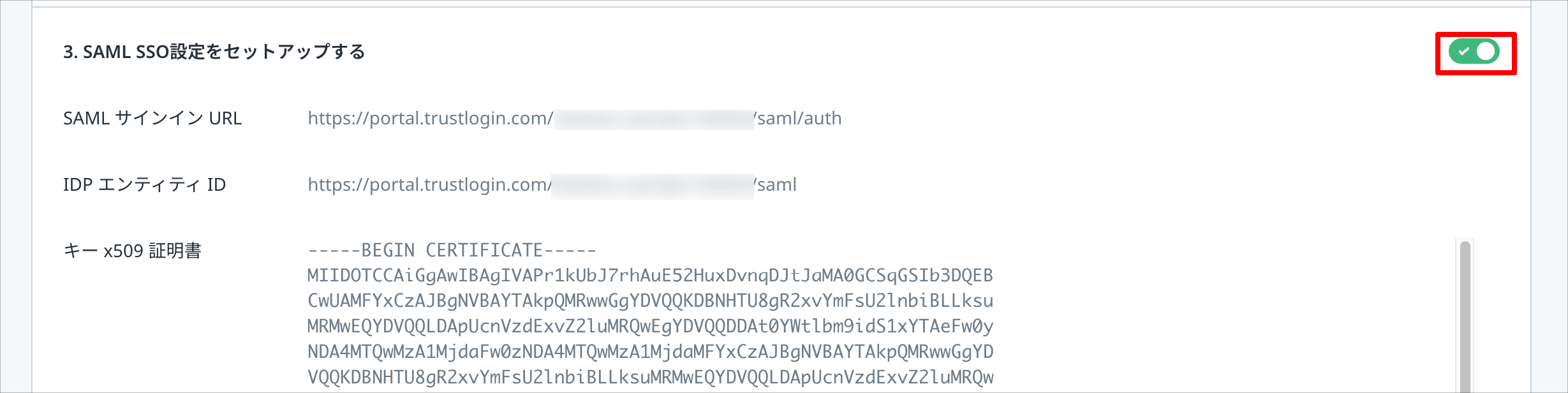

Turn ON the toggle to the right of "3. Set Up SAML SSO Configuration" to enable SAML SSO. (Note: Once SAML SSO is enabled, login via password will no longer be possible.)
TrustLogin User Settings
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "WOVN.io (SAML)", and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
②When an administrator adds members
- Search for and click the "WOVN.io (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
