TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

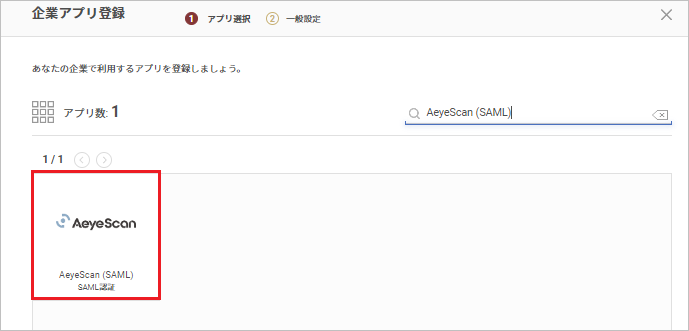

2. Search on the "Register Company App" screen and select "AeyeScan (SAML)".



3. Download the metadata using the "Download Metadata" button under "Identity Provider Information".

Now, switch to the settings on the AeyeScan side.
Do not click the "Register" button yet, and open AeyeScan in a separate window.

AeyeScan Settings

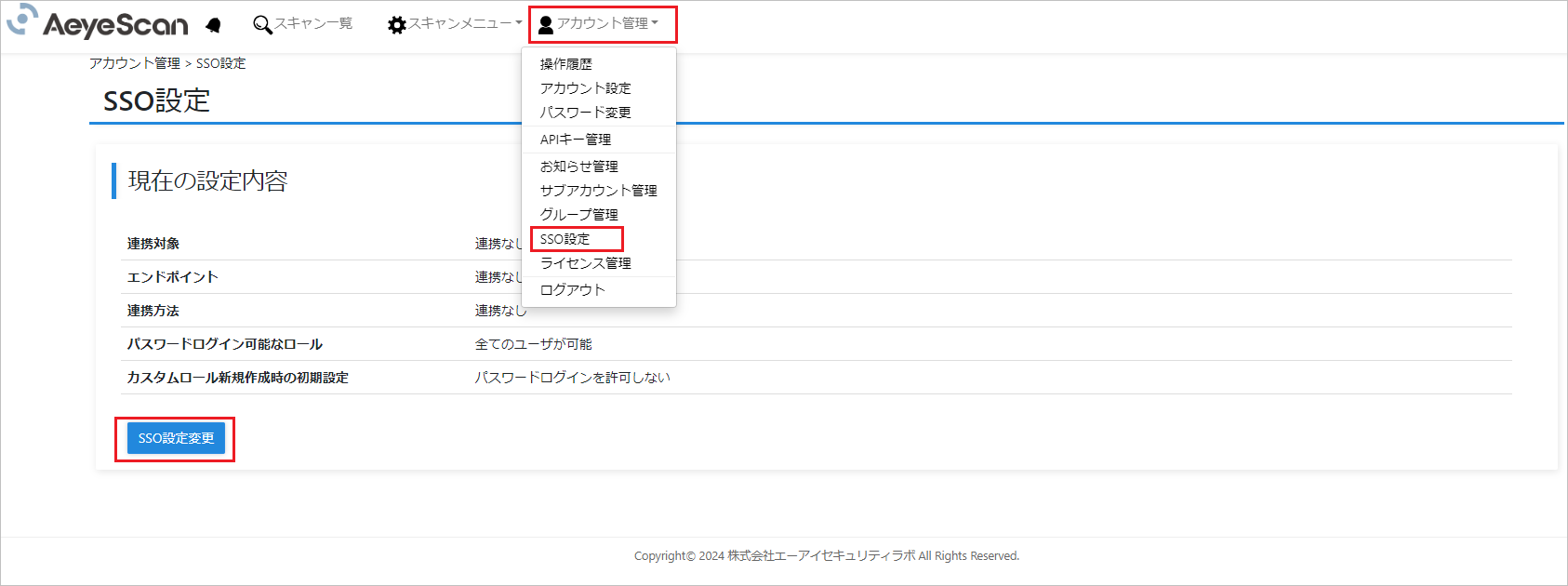

1. Log in to AeyeScan and select "Account Management > SSO Settings > Change SSO Settings".

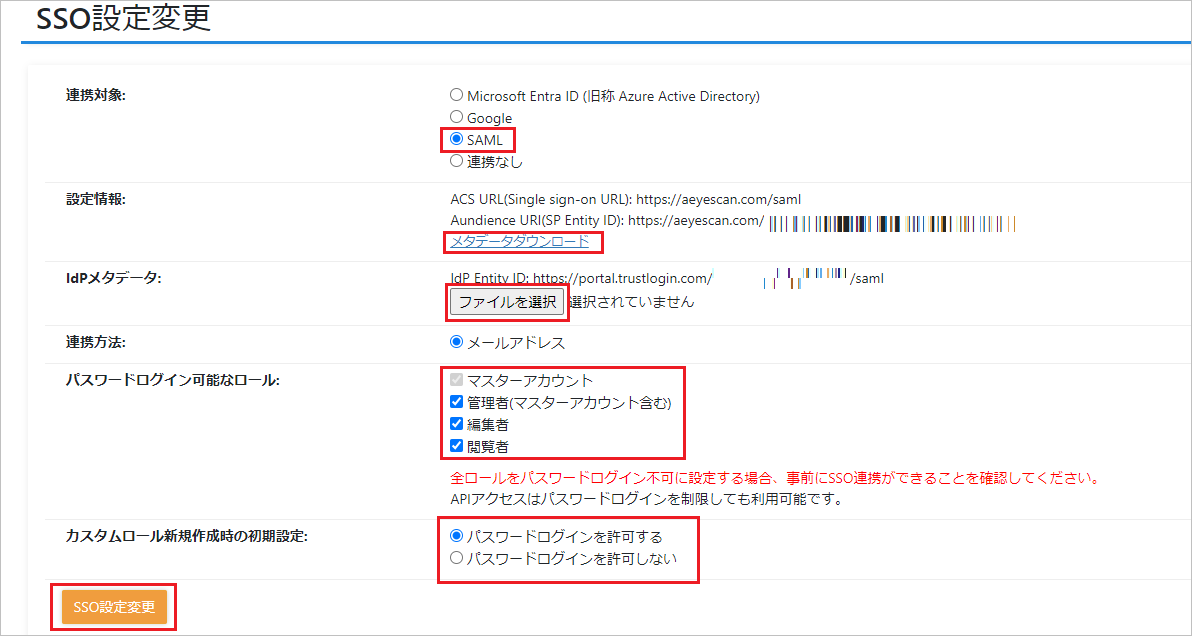

2. Configure the settings as follows and save them by clicking "Change SSO Settings".


   Integration Target	SAML
   Configuration Information	Download the AeyeScan metadata
   IdP Metadata	Upload the metadata you saved from TrustLogin
   Roles Allowed to Log In with Password	Select the roles that can log in with either SSO or password Note: If you set all roles to disallow password login, please confirm in advance that SSO integration works correctly.
   Default Setting When Creating a New Custom Role	Select whether newly created custom roles can log in with a password




Now, return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

1. Upload the metadata you saved from AeyeScan to "Metadata" under "Service Provider Settings".



2. Save by clicking the "Register" button.



TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "AeyeScan (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

1. Search for and click the "AeyeScan (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.



How to Log In

When you click the app from the TrustLogin My Page, the account selection screen shown below will appear. Check the account, then click the login button.
