TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

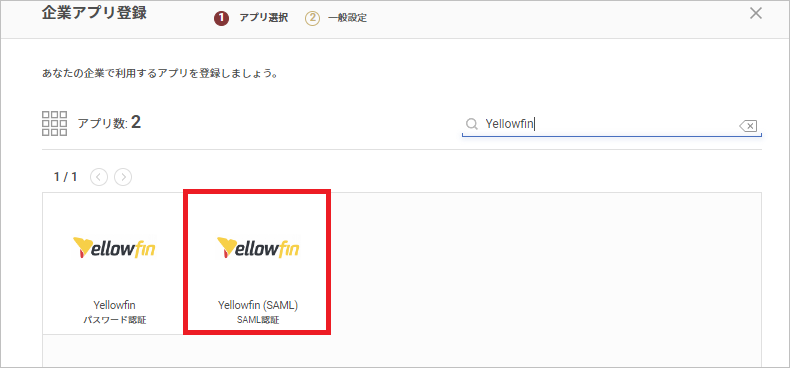

2. Search on the "Register Company App" screen and select "Yellowfin (SAML)".




3. Make a note of the "Identity Provider URL" and "Issuer/Entity ID" values under "Identity Provider Information", then download the certificate from the "Get Certificate" button.

Now, switch to configuring Yellowfin.
Do not click the "Register" button yet — open Yellowfin in a separate window.

Yellowfin Settings

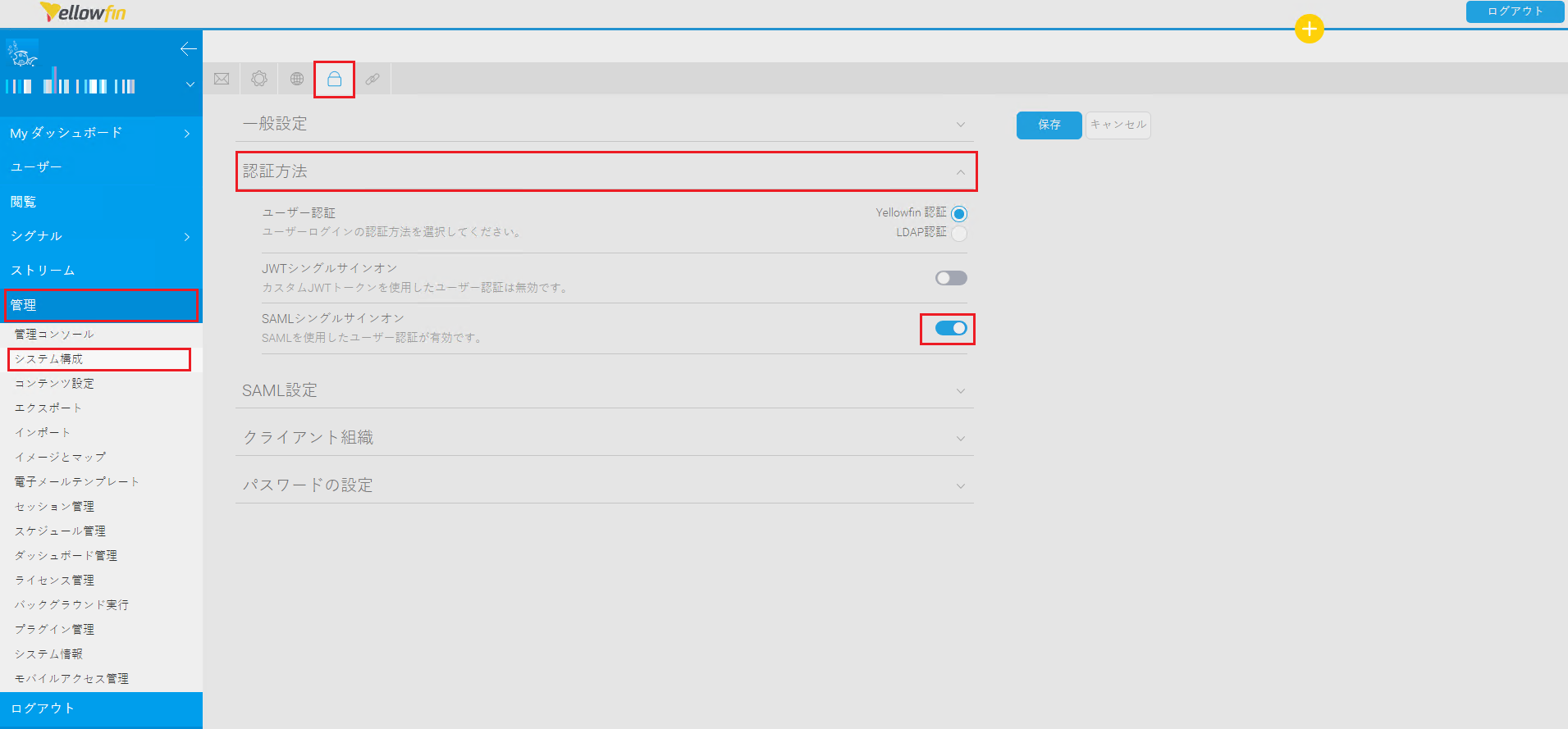

1. Log in to Yellowfin, click "Admin > System Configuration > Authentication > Authentication Method", and turn on the "SAML Single Sign-On" toggle.

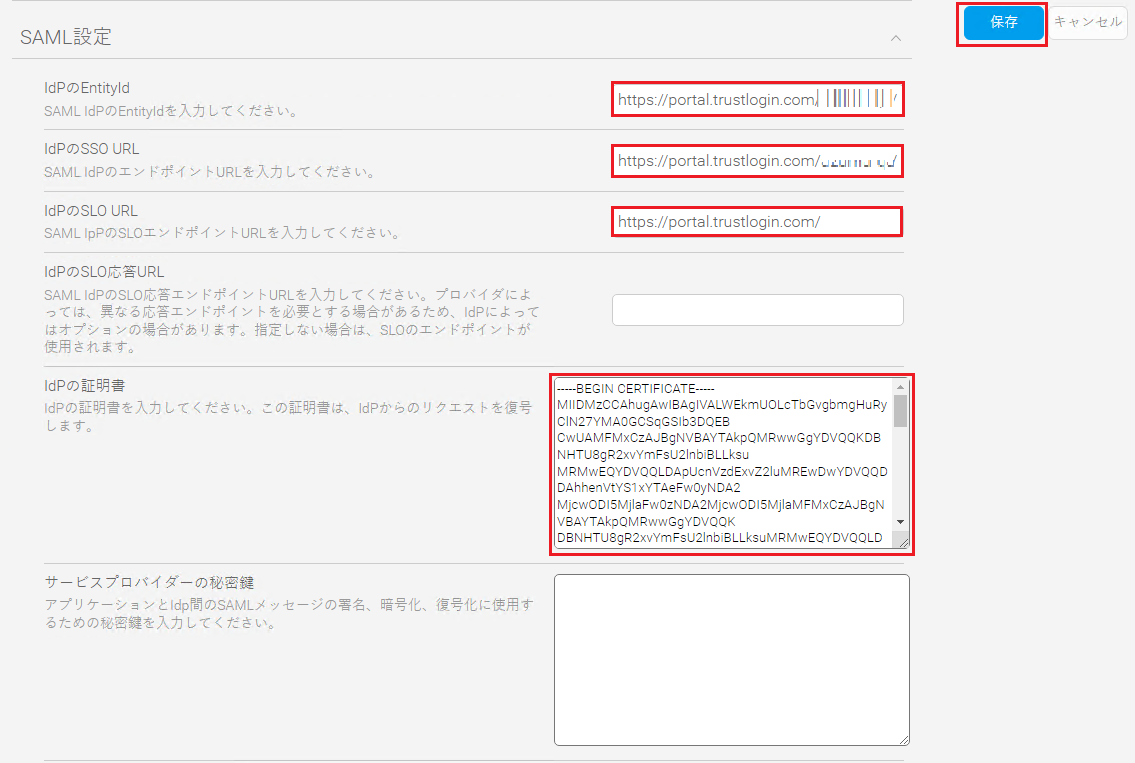

2. When you turn on the toggle, the configuration screen opens. Configure it as shown below, then save the settings by clicking "Save".


   IdP's Entity ID	The "Issuer/Entity ID" you noted down from TrustLogin
   IdP's SSO URL	The "Identity Provider URL" you noted down from TrustLogin
   IdP's SLO URL	https://portal.trustlogin.com/
   IdP's SLO Response URL	Leave blank
   IdP Certificate	The contents of the "Certificate" you noted down from TrustLogin

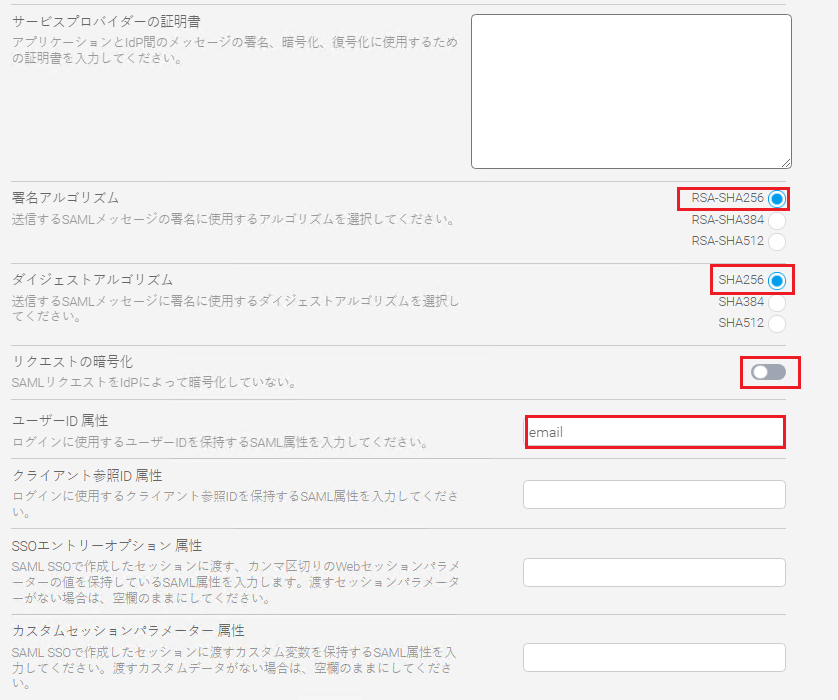

   Service Provider's Private Key	Leave blank
   Service Provider's Certificate	Leave blank
   Signature Algorithm	RSA-SHA256
   Digest Algorithm	SHA256
   Request Encryption	OFF
   User ID Attribute	email
   Client Reference ID Attribute	Leave blank
   SSO Entry Options Attribute	Leave blank
   Custom Session Parameters Attribute	Leave blank

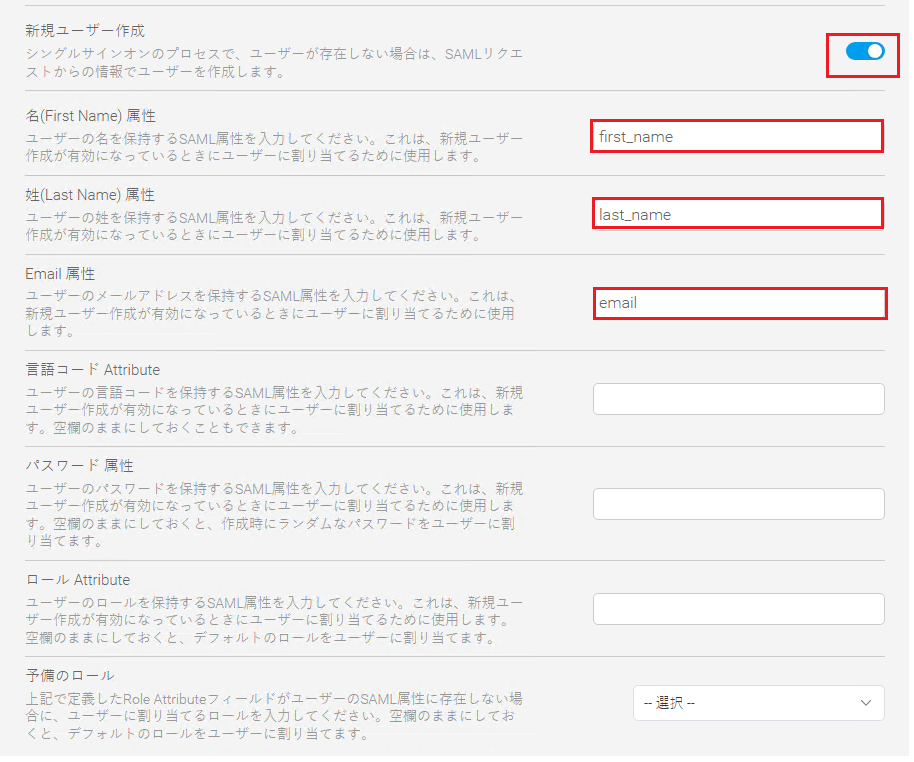

   Create New User	ON
   First Name Attribute	first_name
   Last Name Attribute	last_name
   Email Attribute	email
   Language Code Attribute	Leave blank
   Password Attribute	Leave blank
   Role Attribute	Leave blank
   Fallback Role	Leave as default






Now return to the TrustLogin admin page again.

TrustLogin Admin Page Settings (Continued)

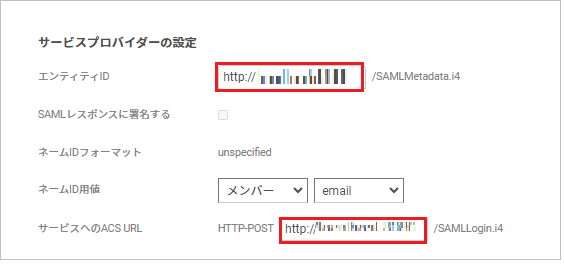

1. Configure the blank fields in "Service Provider Settings" as follows.


   Entity ID	Yellowfin's Base URL for external report access Note: If you are unsure of this value, you can check it in Yellowfin under "Admin > System Configuration > System > General Settings > Base URL for external report access".
   ACS URL to Service	Yellowfin's Base URL for external report access





2. Save by clicking the "Register" button.



TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Yellowfin (SAML)", and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

②When an administrator adds members

1. Search for and click the "Yellowfin (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
