TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

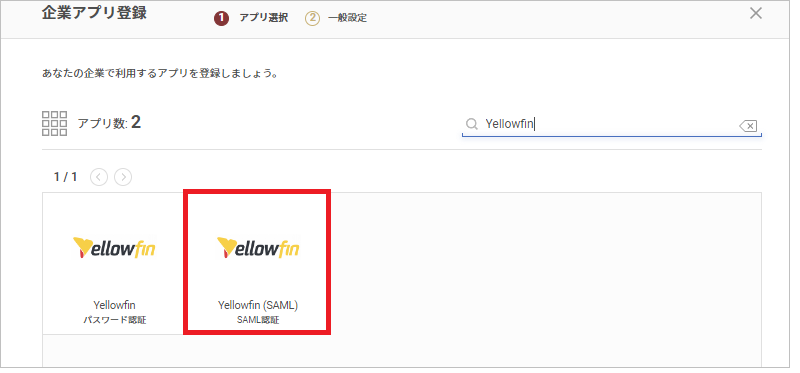

2. Search on the "Register Company App" screen and select "Yellowfin (SAML)".




3. Make a note of the "IdP URL" and "Issuer / Entity ID" values under "Identity Provider Information", and download the certificate by clicking the "Get Certificate" button.

At this point, switch to configuring the Yellowfin side.
Do not click the "Register" button yet; open Yellowfin in a separate window.

Yellowfin Settings

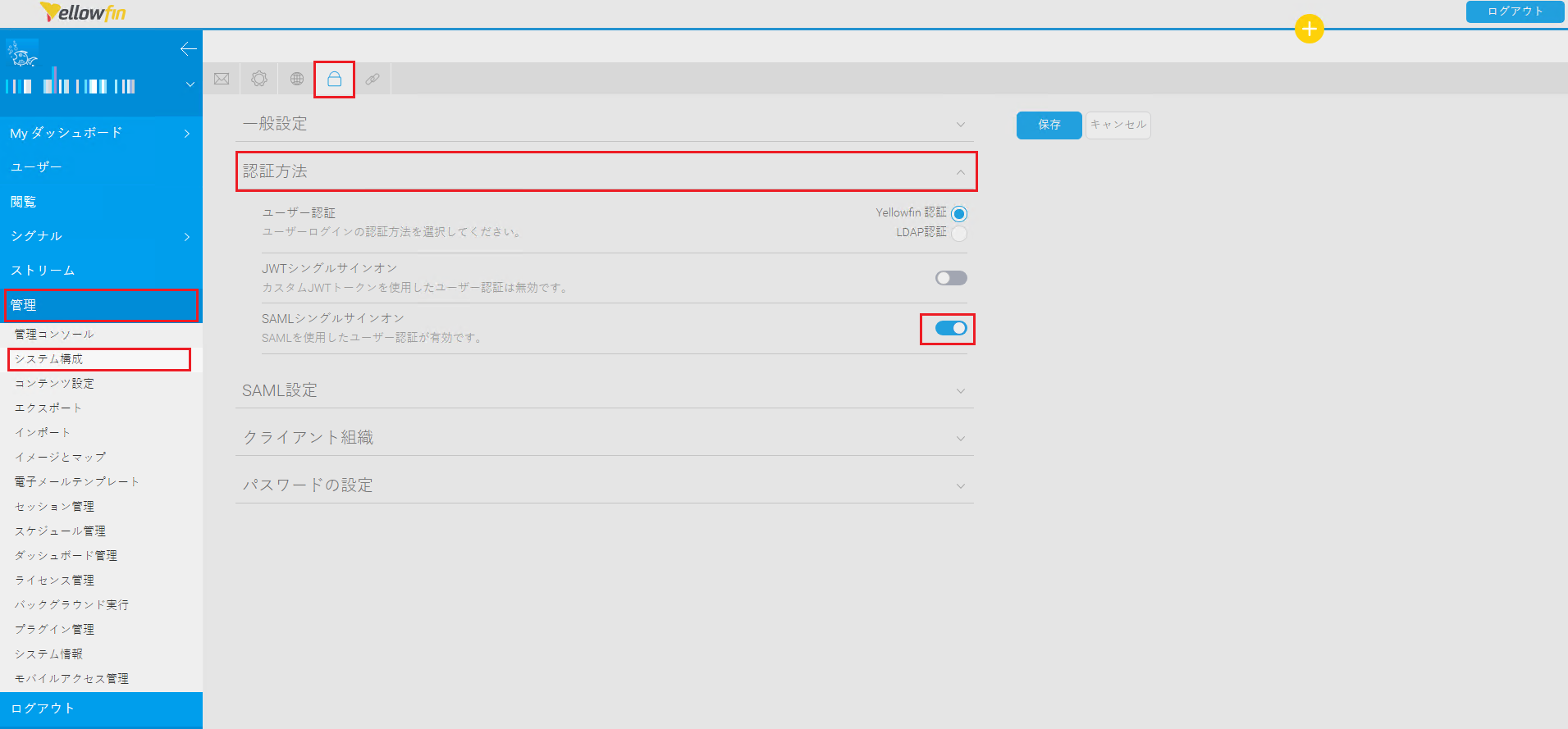

1. Log in to Yellowfin, click "Administration > System Configuration > Authentication > Authentication Method", and turn on the toggle for "SAML Single Sign-On".

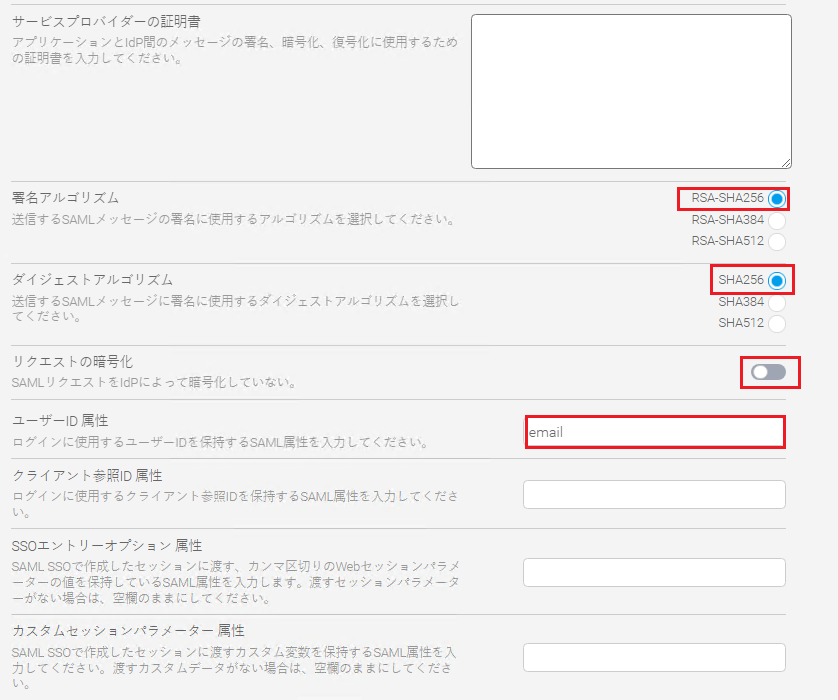

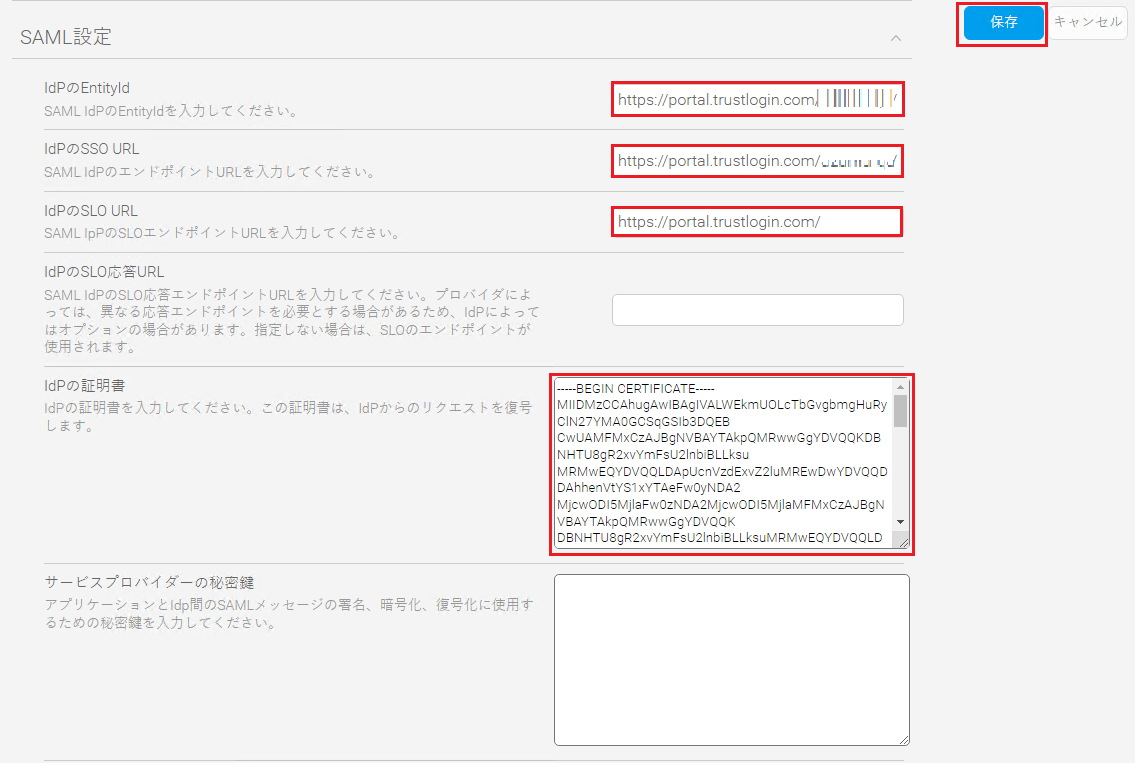

2. When you turn on the toggle, the configuration screen opens. Configure the settings as shown below, and save by clicking "Save".


   IdP Entity ID	The "Issuer / Entity ID" you noted from TrustLogin
   IdP SSO URL	The "IdP URL" you noted from TrustLogin
   IdP SLO URL	https://portal.trustlogin.com/
   IdP SLO Response URL	Blank
   IdP Certificate	The contents of the certificate downloaded from TrustLogin
   Service Provider Private Key	Blank
   Service Provider Certificate	Blank
   Signature Algorithm	RSA-SHA256
   Digest Algorithm	SHA256
   Request Encryption	OFF
   User ID Attribute	email
   Client Reference ID Attribute	Blank
   SSO Entry Option Attribute	Blank
   Custom Session Parameter Attribute	Blank
   Create New User	OFF





Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

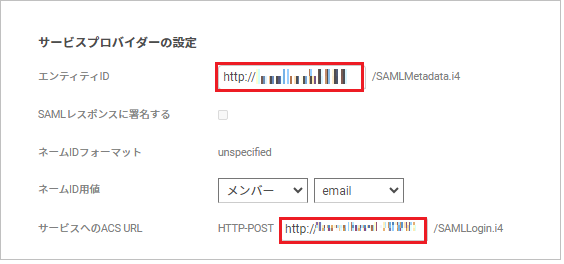

1. Enter the following values in the blank fields under "Service Provider Settings".


   Entity ID	The Base URL for external report access in Yellowfin Note: If unknown, you can check this under Yellowfin's "Administration > System Configuration > System > General Settings > Base URL for External Access to Reports".
   ACS URL for the Service	The Base URL for external report access in Yellowfin



2. Save by clicking the "Register" button.



TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Yellowfin (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Save" button.

②When an administrator adds members

1. Search for and click the "Yellowfin (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.
