Helpfeel Cosense SAML JIT Setup Guide

Item

Details

Prior Confirmation

  • Prior configuration in Helpfeel Cosense is required.

  • This manual describes the setup procedure for using Helpfeel Cosense with email authentication. For details, see here.
  • For the latest setup instructions, please check the manual provided by Helpfeel Cosense.

Name ID

Email address

Custom attribute Note: For instructions on how to configure a custom attribute, see here

SP-side Configuration

Configured by the administrator

Request configuration from the SP

Provisioning

Provisioning via API supported (account management possible in TrustLogin)

SAML JIT provisioning supported (account management possible in TrustLogin; user deletion not supported)

None (accounts are created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verified Operation by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App

Note: Login via the Android - TrustLogin Mobile App in-app browser is possible, but it is not a recommended browser.

TrustLogin Admin Page Settings

  1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

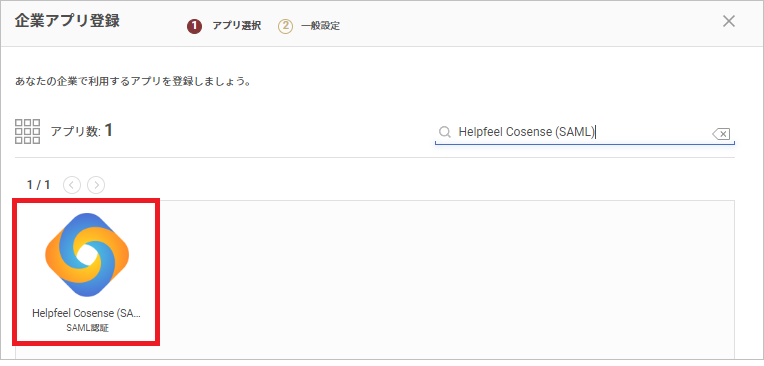

  2. Search on the "Register Company App" screen and select "Helpfeel Cosense (SAML)".

  3. Note down the "Identity Provider URL" value under "Identity Provider Information", and download the certificate by clicking the "Get Certificate" button.03.png

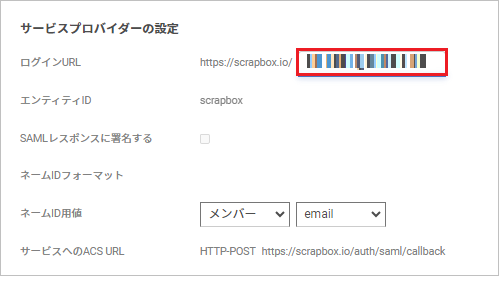

  4. In the "Login URL" field under "Service Provider Settings", enter your Helpfeel Cosense Project name.

  5. Click the "Register" button to save.

Helpfeel Cosense Settings

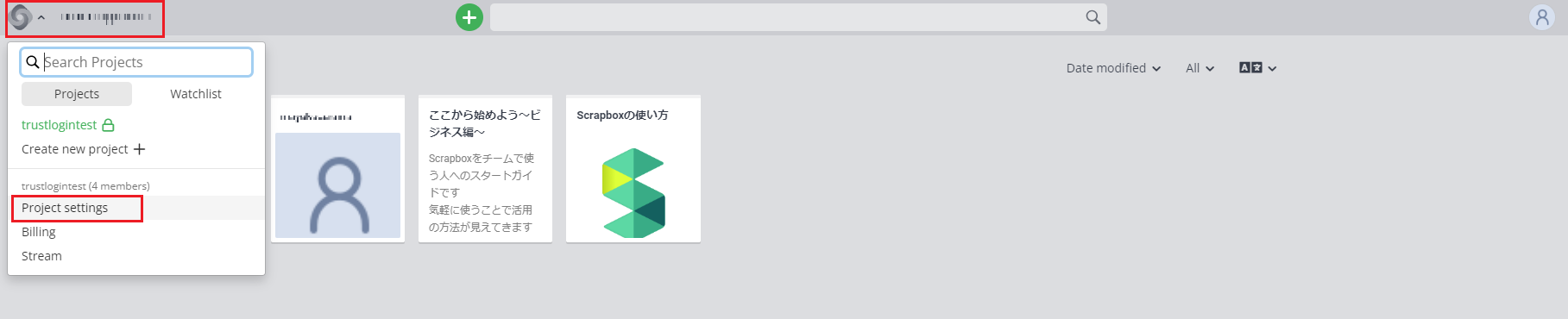

  1. From the project name in the upper left, select "Project settings".

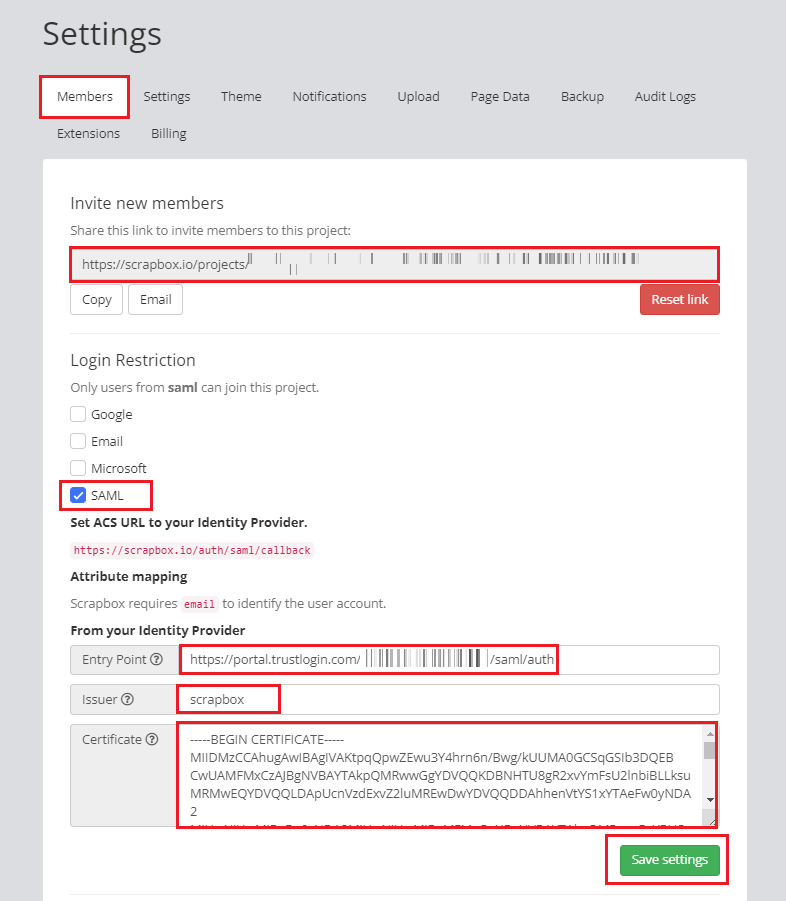

  2. Open "Members", configure the settings as shown below, and save by clicking "Save settings".
    Invite new members

    This is the link for inviting members to the project.

    Note it down, as you will share it with members later.

    Login Restriction SAML (if there are options you want to use together, select multiple.)
    Entry Point The "Identity Provider URL" you noted down from TrustLogin
    Issuer scrapbox
    Certificate The contents of the "certificate" you noted down from TrustLogin


TrustLogin User Settings

① When a user adds the app from My Page

  1. Click the "Add App" button on "My Page".
  2. On the "Register App" screen, select "Helpfeel Cosense (SAML)" and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

  1. Search for and click the "Helpfeel Cosense (SAML)" app in the "Admin Page > App" menu.
  2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.

Login Method

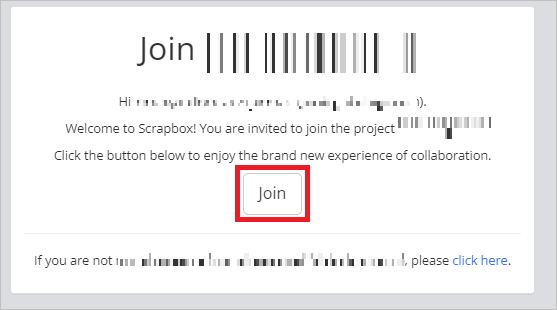

  1. To join the project, the administrator must distribute and share the Helpfeel Cosense invitation link. Send the invitation URL you noted down in "Helpfeel Cosense Settings > 2. > "Invite new members"" to the person you want to invite via email, chat, or another method.

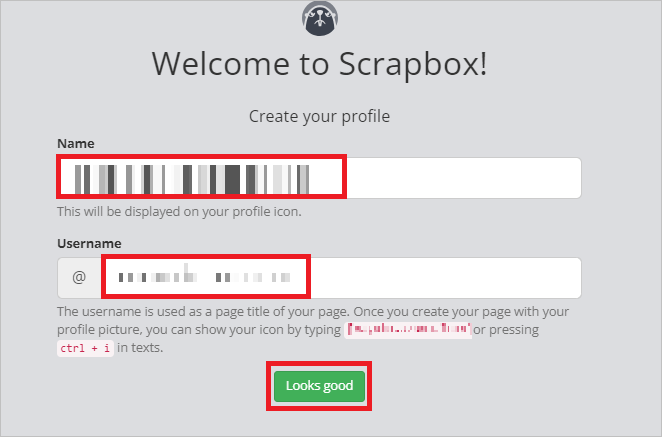

  2. After logging in to TrustLogin via the invitation link, the user creation screen will appear. Enter your "Name" and "Username", and click "Join" to join the project.
    Note: This screen is displayed and requires action only on your first login. From your second login onward, you will be able to log in via TrustLogin.
