TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

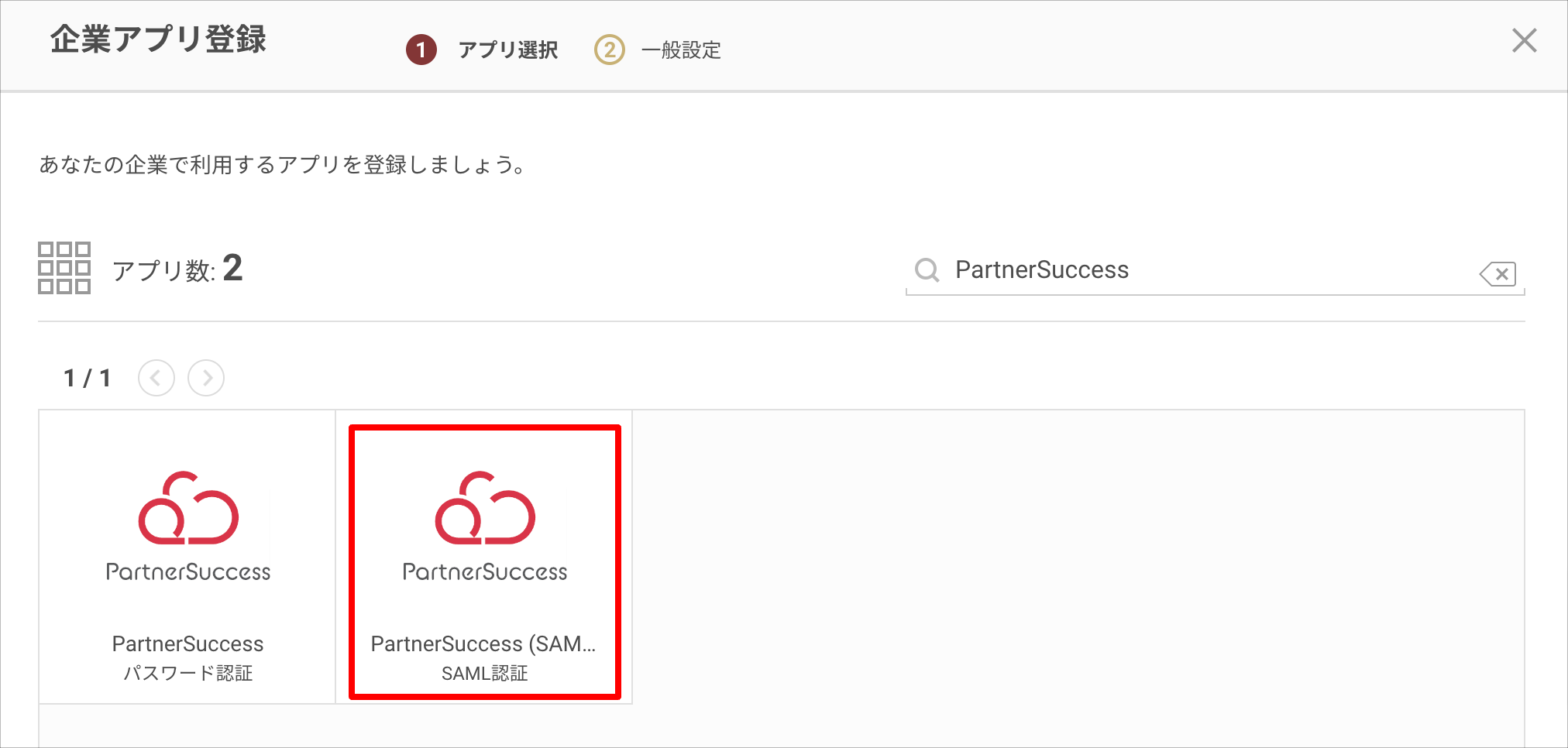

2. Search on the "Register Company App" screen and select "PartnerSuccess (SAML)".



3. Note down the values of "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.


Now, switch over to configuring PartnerSuccess.
Do not click the "Register" button yet — open PartnerSuccess in a separate window.

PartnerSuccess Configuration

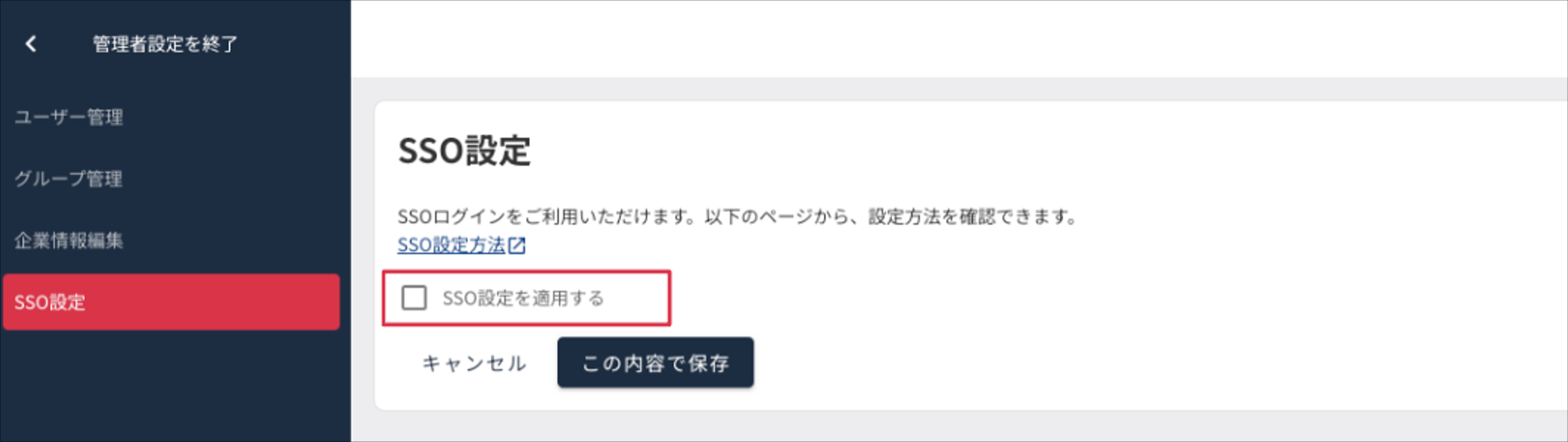

1. From the administrator settings screen, select "SSO Settings" and turn ON "Apply SSO Settings".



2. Configure each item as follows, and finally save by clicking the "Save This Content" button.


   (IdP Information) Single Sign-On URL	The "Identity Provider URL" obtained from TrustLogin
   (IdP Information) Entity ID	The "Issuer/Entity ID" obtained from TrustLogin
   (IdP Information) Certificate	The contents of the "Certificate" obtained from TrustLogin
   (SP Information) ACS URL	Copy and make a note of it
   (SP Information) Entity ID	Copy and make a note of it
   (SP Information) Single Logout URL	Copy and make a note of it
   Disable login methods other than SSO	We recommend leaving this OFF during initial setup If you want to restrict the login method to SAML SSO, switch this ON only after you have completed testing and notified your users.




Now return to the TrustLogin admin page.

TrustLogin Admin Page Configuration (Continued)

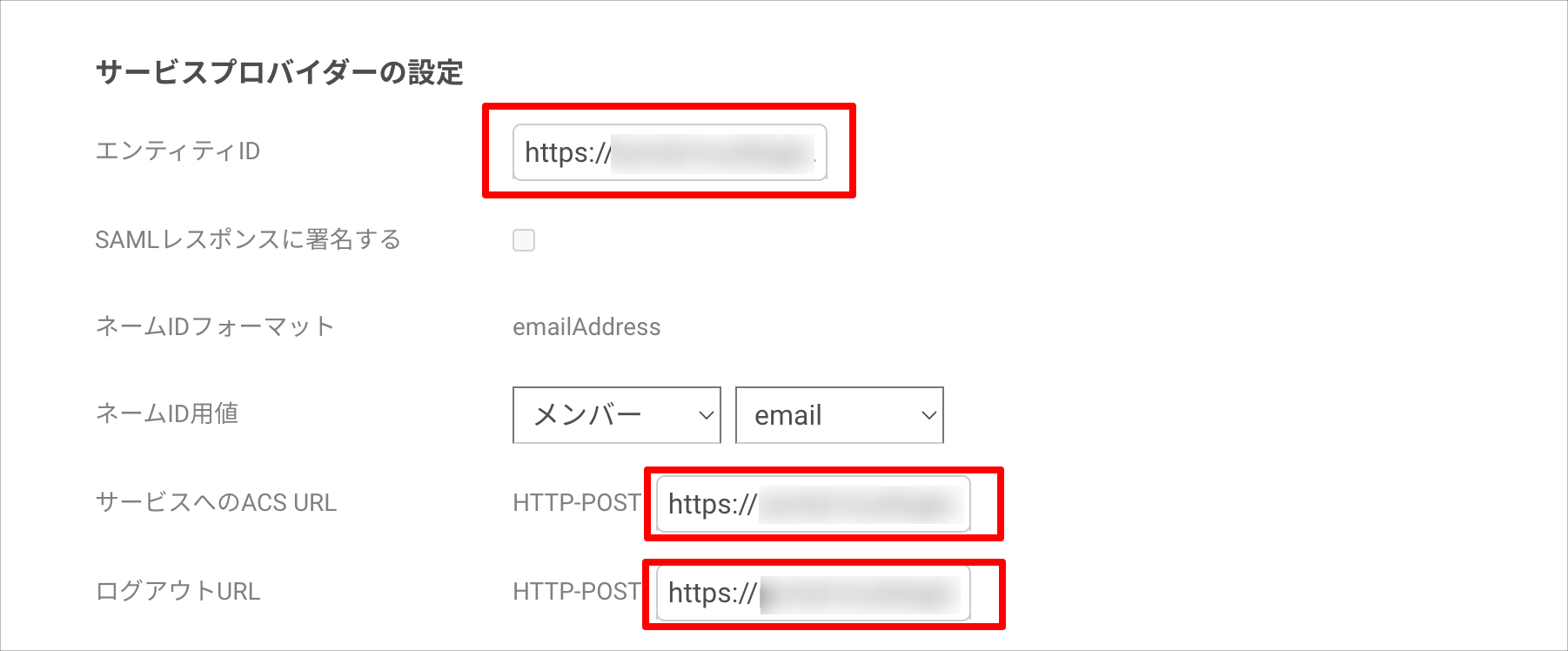

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "Entity ID" obtained from PartnerSuccess
   ACS URL to Service	The "ACS URL" obtained from PartnerSuccess
   Logout URL	The "Single Logout URL" obtained from PartnerSuccess (Note:)

   Note: Single Logout is planned to be added in the future, but is not currently implemented and does not work




2. Save by clicking the "Register" button.

TrustLogin User Configuration

① When a User Adds the App via My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "PartnerSuccess (SAML)", and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds a Member

1. Search for and click the "PartnerSuccess (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
