Item |
Details |
|
|---|---|---|
|
Prior Confirmation |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure a custom attribute, see here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
Provisioning via API supported (account management possible in TrustLogin) |
|
| 〇 |
SAML JIT provisioning supported (account management possible in TrustLogin; user deletion not supported) |
|
|
|
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verified Operation by Device |
〇 |
PC - Browser |
|
〇 |
PC - Desktop App |
|
|
ー |
iOS - Standard Browser (Safari) |
|
|
ー |
iOS - TrustLogin Mobile App In-App Browser |
|
|
〇 |
iOS - Native App |
|
|
ー |
Android - Standard Browser (Chrome) |
|
|
ー |
Android - TrustLogin Mobile App In-App Browser |
|
|
〇 |
Android - Native App |
|
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

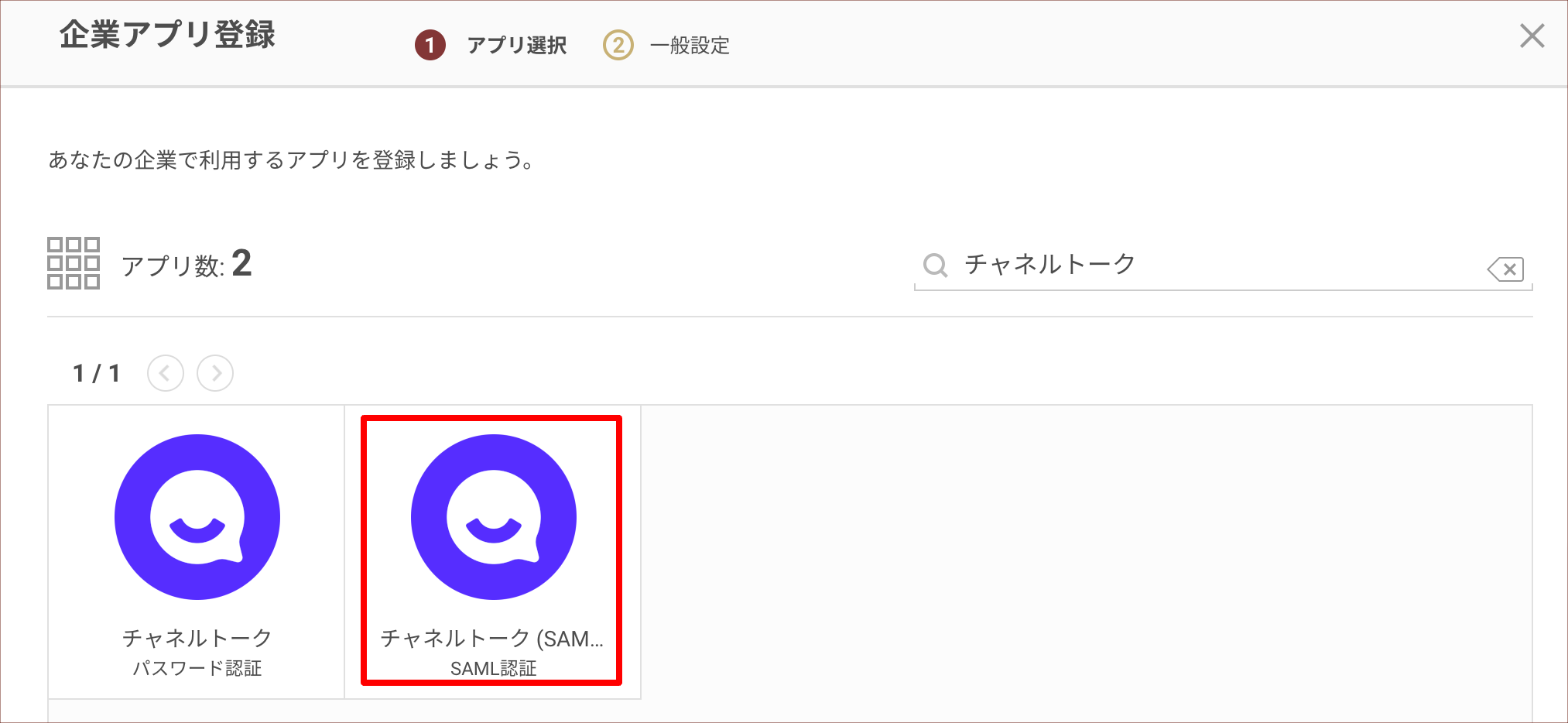

- Search on the "Register Company App" screen and select "Channel Talk (SAML)".
- Note down the "Identity Provider URL" and "Issuer/Entity ID" values under "Identity Provider Information", and download the certificate by clicking the "Get Certificate" button.
Now, switch to configuring Channel Talk.
Do not click the "Register" button yet — open Channel Talk in a separate window.
Channel Talk Settings

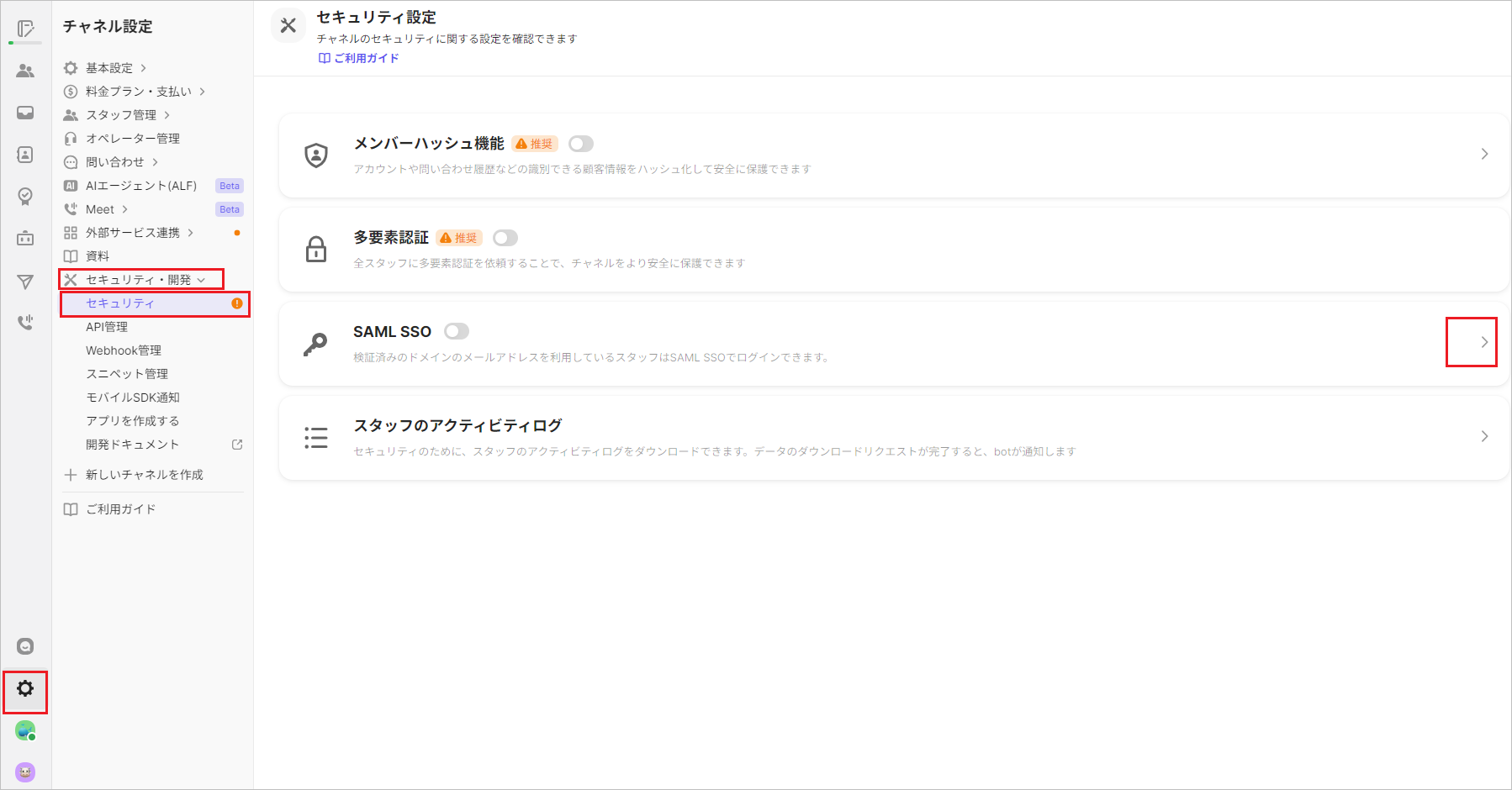

- Open "Channel Settings > Security & Development > Security" and click the ">" mark to the right of "SAML SSO".

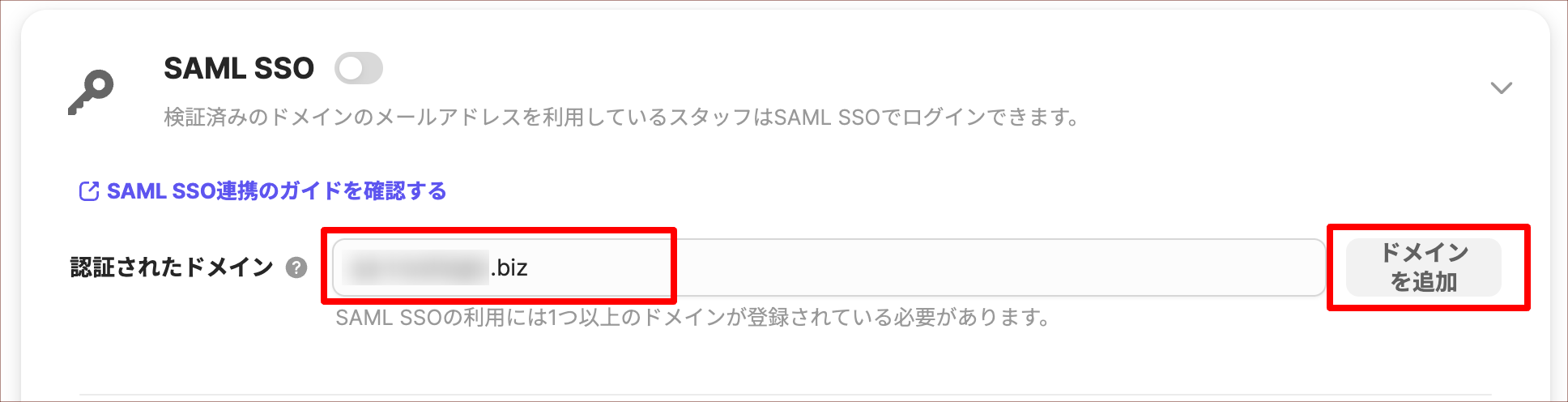

- Enter your domain and click the "Add Domain" button.

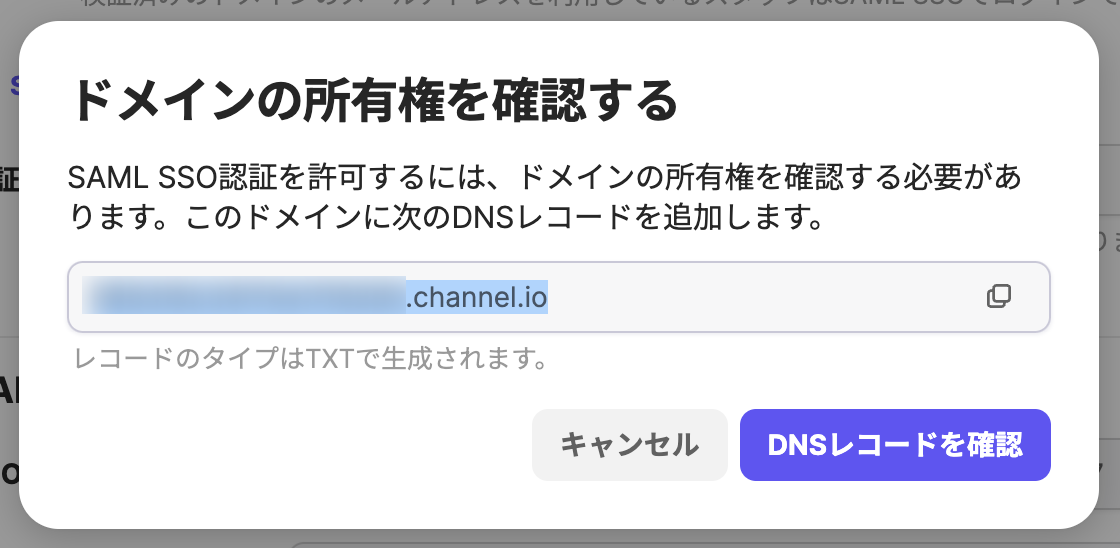

- Add the displayed value to your domain's DNS records, then click "Verify DNS Record".
For instructions on configuring your domain's DNS records, please refer to your domain registrar's help documentation.
DNS record updates can take up to approximately 72 hours to propagate, so if verification is not completed right away, please wait a while and then click "Verify DNS Record" again.

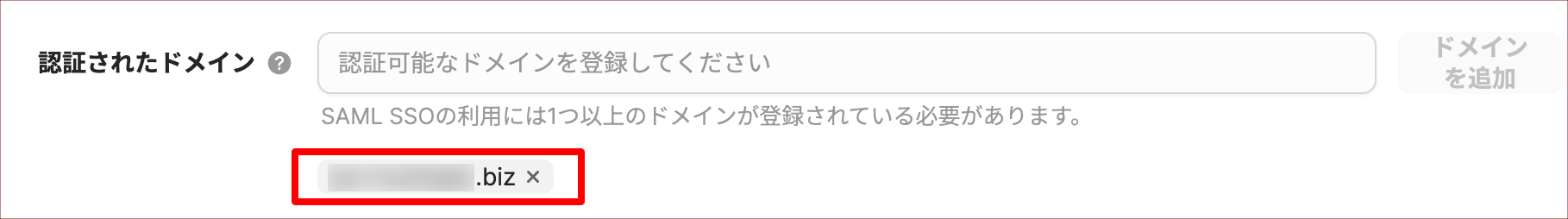

Once domain verification is complete, it will be displayed as a verified domain.

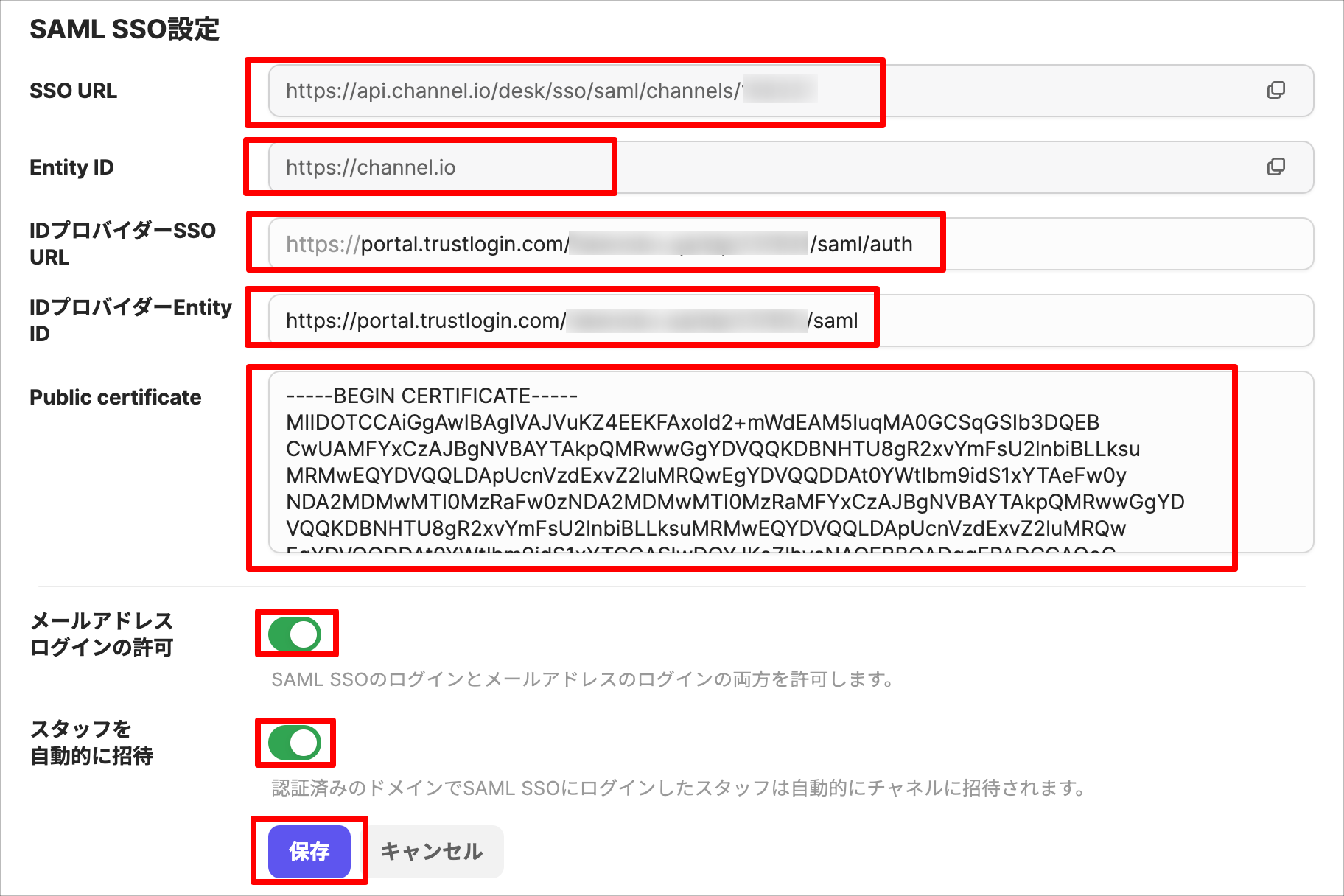

- Configure each item in "SAML SSO Settings" as follows, and save by clicking the "Save" button.
SSO URL Copy and note it down Entity ID Copy and note it down Identity Provider SSO URL The "Identity Provider URL" obtained from TrustLogin Identity Provider Entity ID The "Issuer/Entity ID" obtained from TrustLogin Public certificate
The contents of the "certificate" obtained from TrustLogin Allow email address login Configure according to your operational needs
Note: We recommend keeping this ON until SAML SSO operation has been verified and users have been notifiedAutomatically invite staff ON

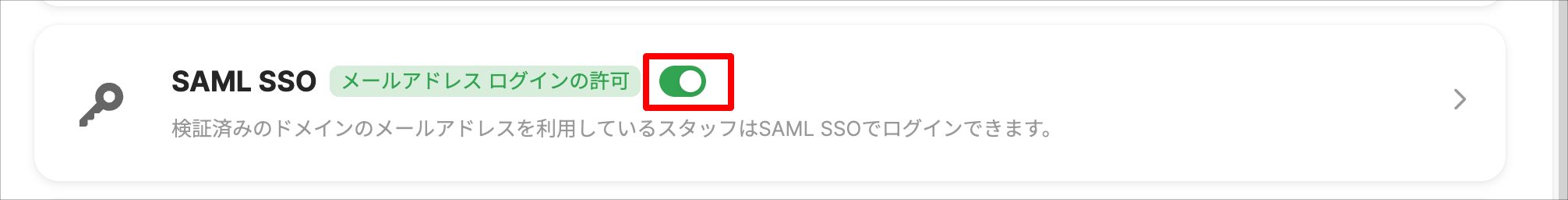

- Turn the SAML SSO toggle ON to enable it.
Return to the TrustLogin Admin Page again.
TrustLogin Admin Page Settings (Continued)

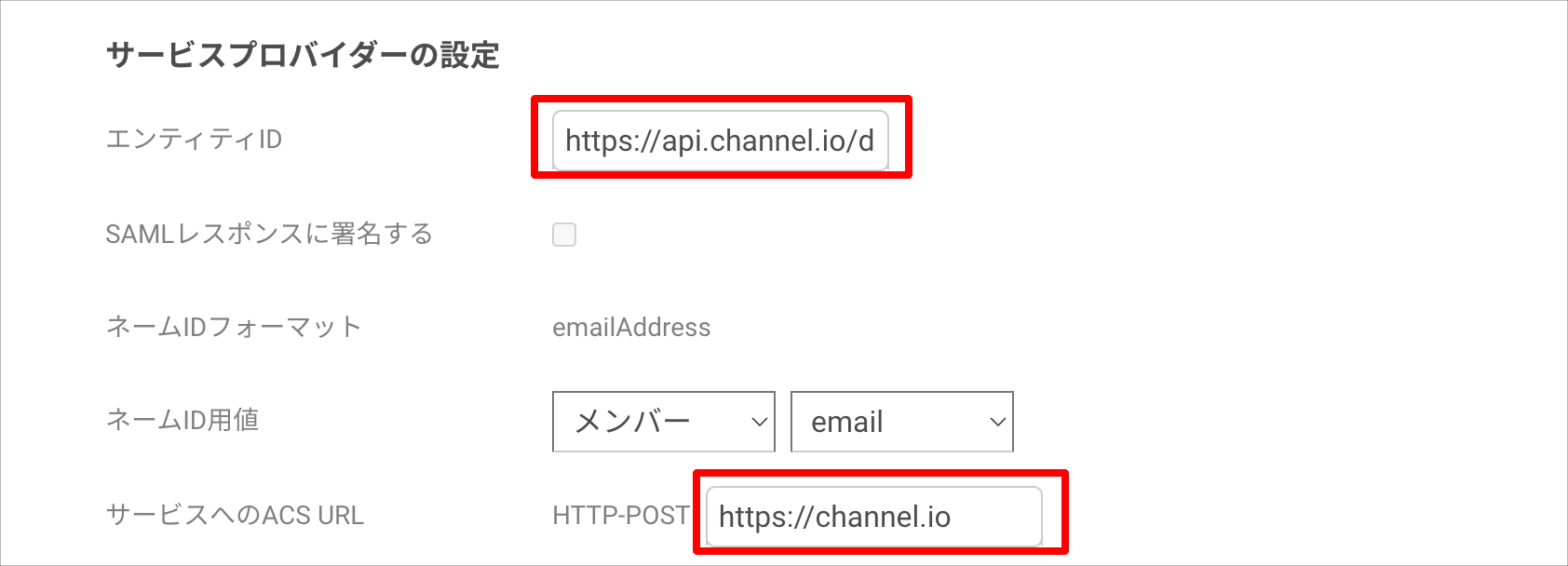

- Configure "Service Provider Settings" as follows.
Entity ID The "Entity ID" obtained from Channel Talk ACS URL to Service The "SSO URL" obtained from Channel Talk
- Click the "Register" button to save.
TrustLogin User Settings
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "Channel Talk (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
②When an administrator adds members
- Search for and click the "Channel Talk (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
