TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

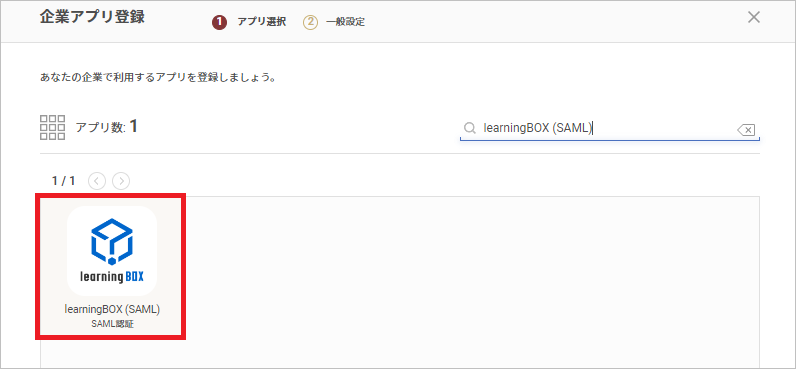

2. Search on the "Register Company App" screen and select "learningBOX (SAML)".



3. Note down the values of "Identity Provider URL" and "Issuer / Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.

Now, switch to configuring learningBOX.
Do not click the "Register" button yet — open learningBOX in a separate window.

learningBOX Settings

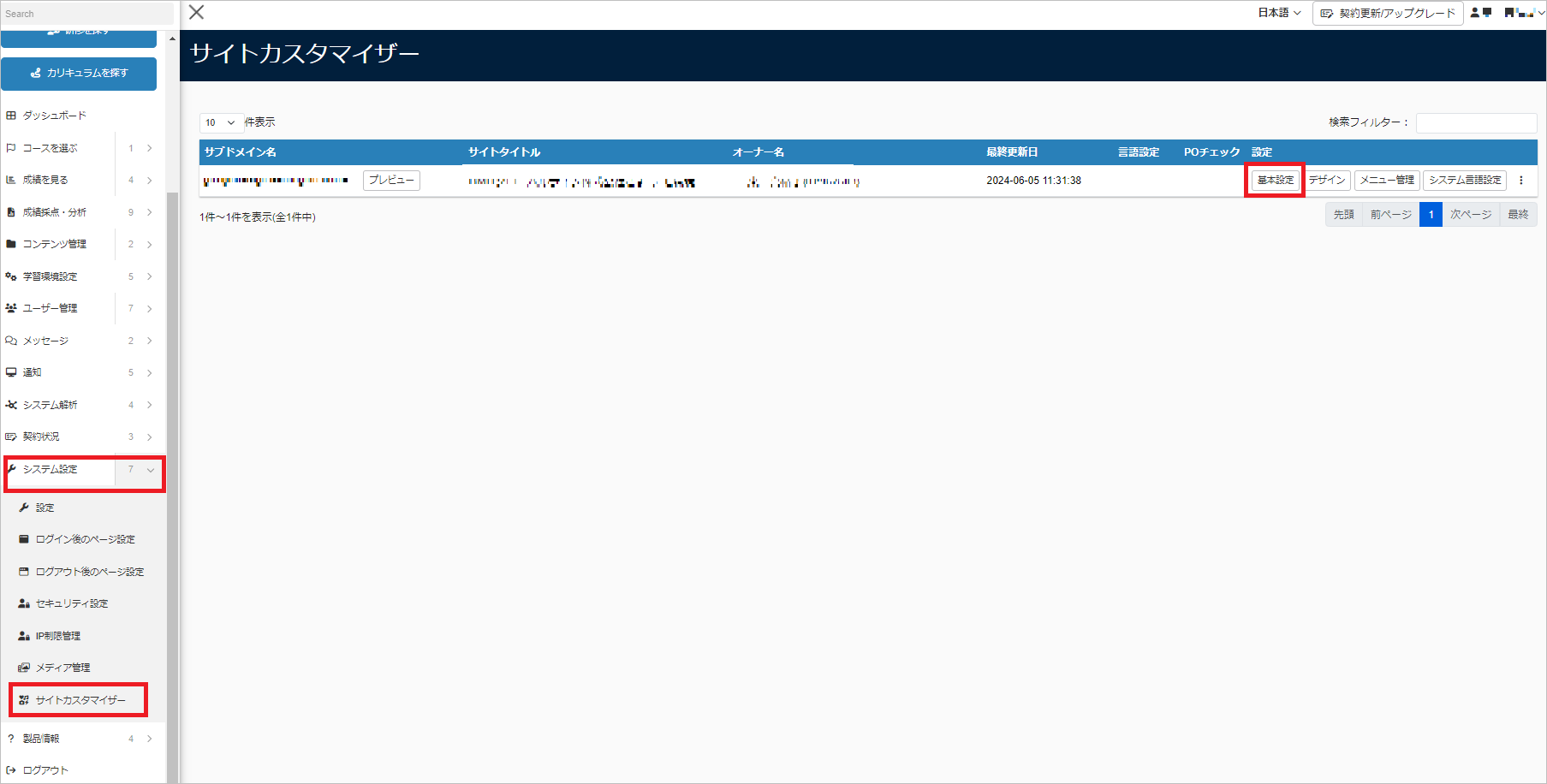

1. Log in as a user with access permissions to the settings page, and open "Side Menu > System Settings > Site Customizer > Basic Settings".

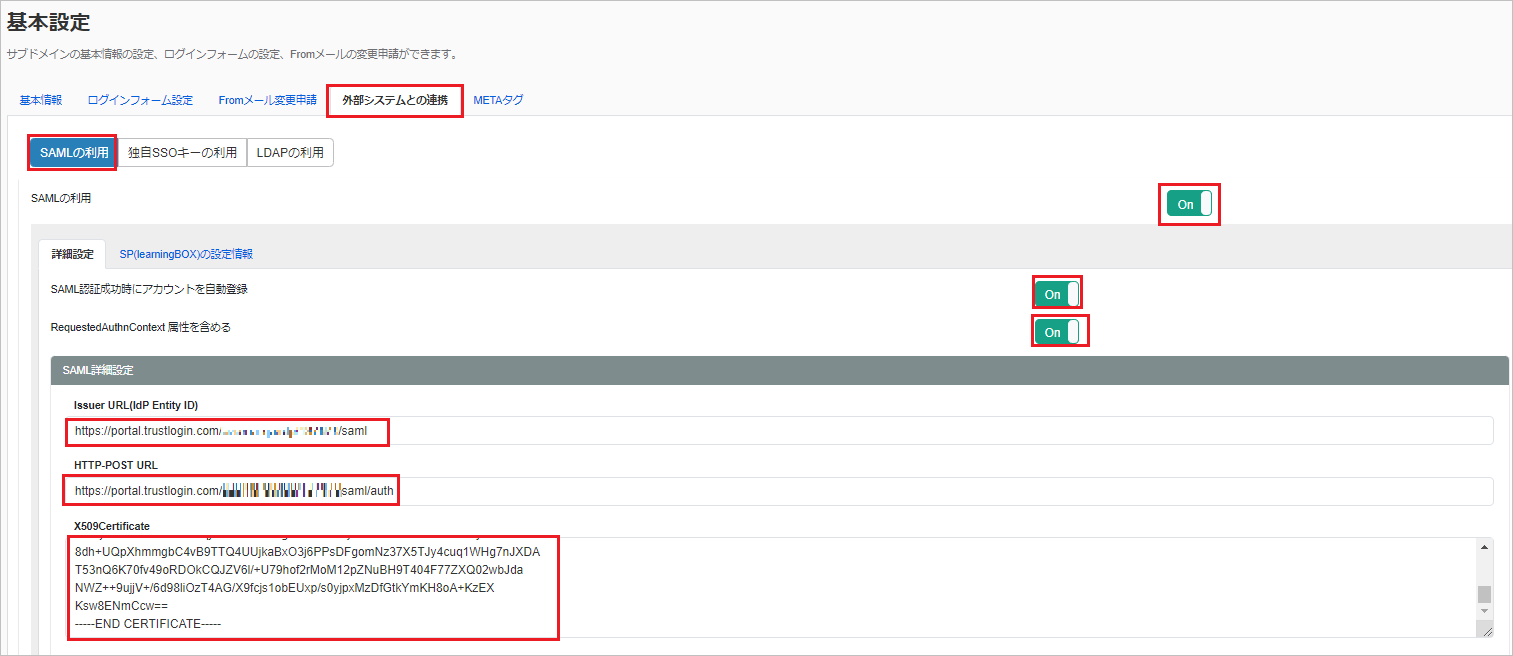

2. Open "External System Integration > Use SAML > Detailed Settings" and configure as follows.


   Automatically register account upon successful SAML authentication	On
   Include RequestedAuthnContext attribute	On
   Issuer URL(IdP Entity ID)	The "Issuer / Entity ID" noted down from TrustLogin
   HTTP-POST URL	The "Identity Provider URL" noted down from TrustLogin
   X509Certificate	Paste the contents of the "Certificate" noted down from TrustLogin

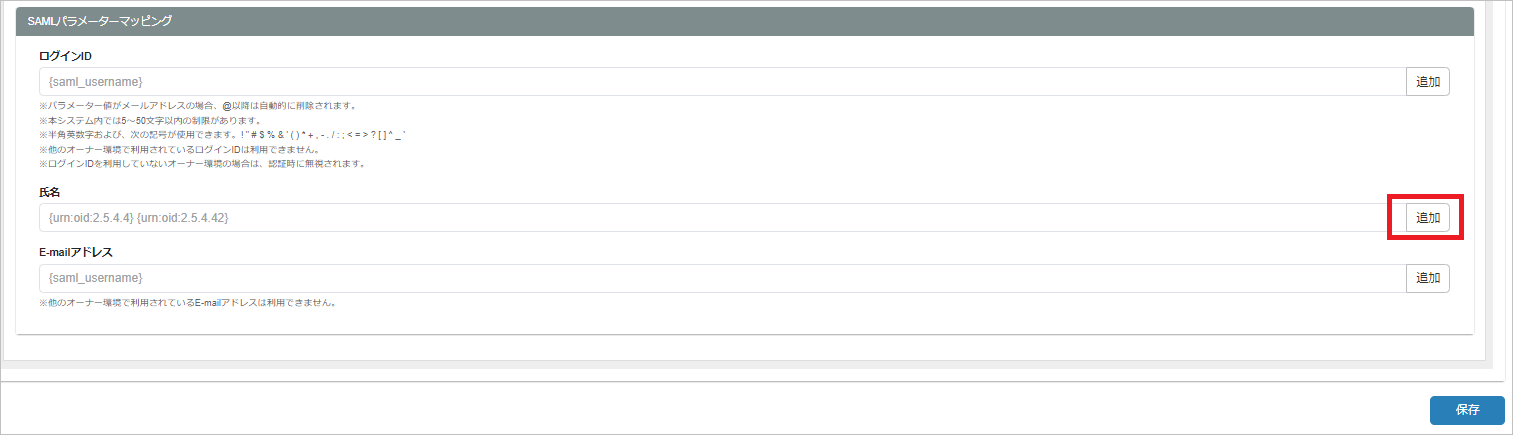

3. Scroll down the screen and select "Name > Add".

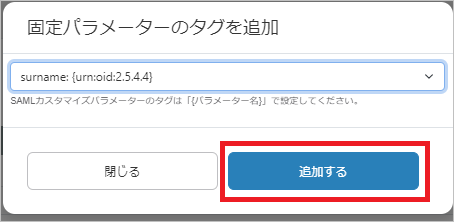

4. Select "surname: {urn:oid:2.5.4.4}" from the dropdown and add it.



5. Click "Name > Add" again, then select "givenName: {urn:oid:2.5.4.42}" from the dropdown and add it.

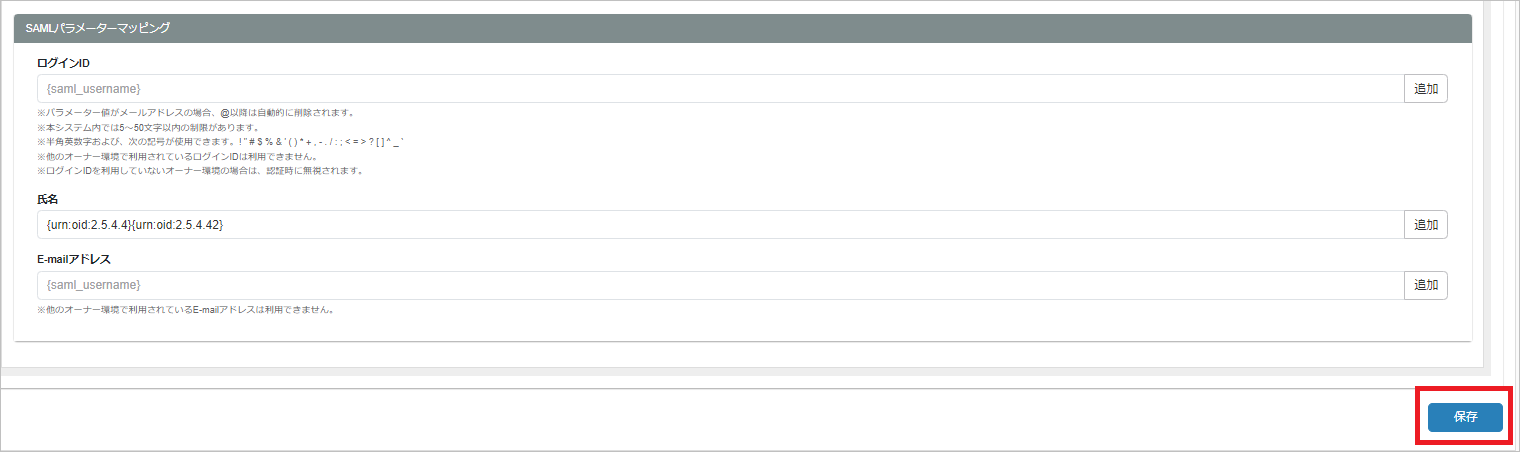

6. Confirm that the selected values are populated in the Name fields, and save the settings by clicking the "Save" button.

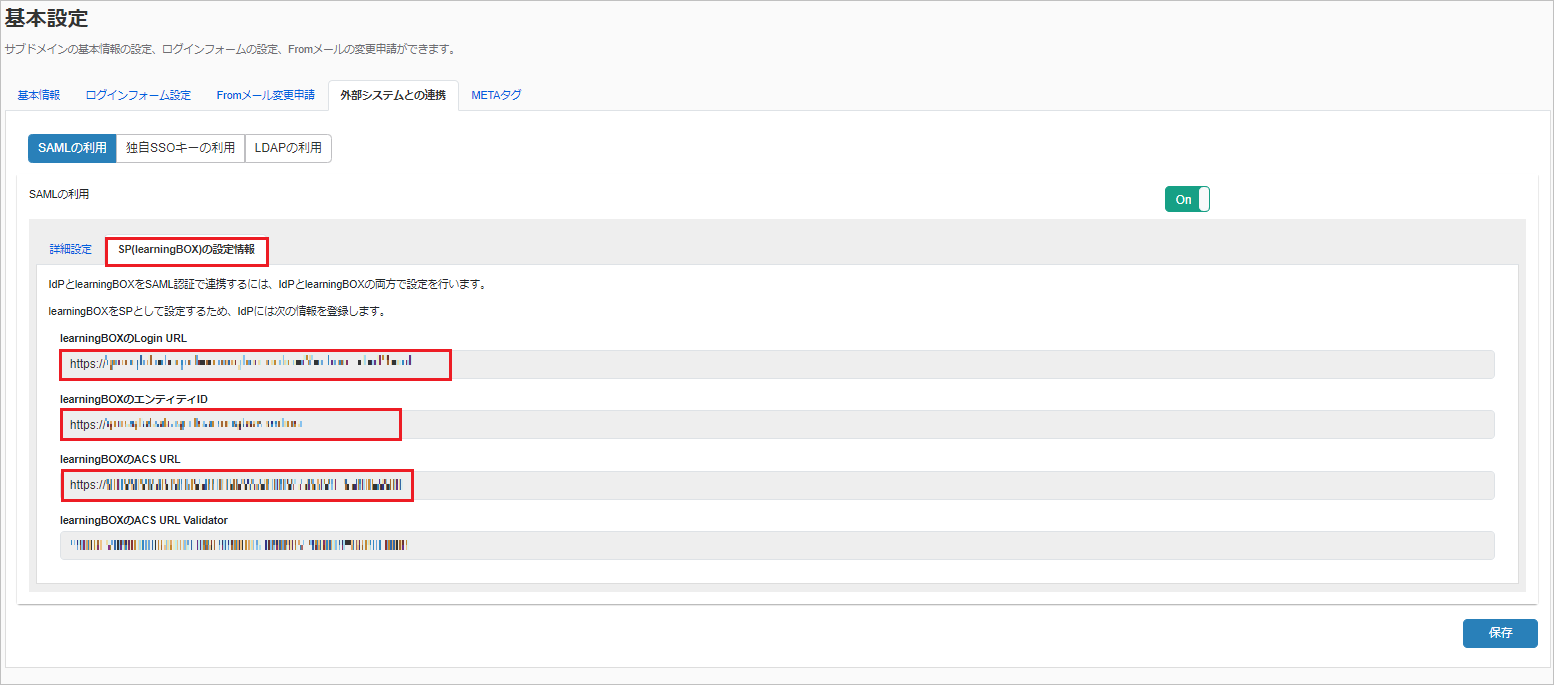

7. Open "SP (learningBOX) Configuration Information" and note down the "learningBOX Entity ID" and "learningBOX ACS URL".
   Note: The "learningBOX Login URL" is the SP-Initiated URL. Note it down if needed.
   　 SP-Initiated login is also available from the learningBOX login screen.


Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "learningBOX Entity ID" noted down from learningBOX
   ACS URL to Service	The "learningBOX ACS URL" noted down from learningBOX






2. Save by clicking the "Register" button.



TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "learningBOX (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Save" button.

②When an administrator adds members

1. Search for and click the "learningBOX (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Save" button to add them.
