TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

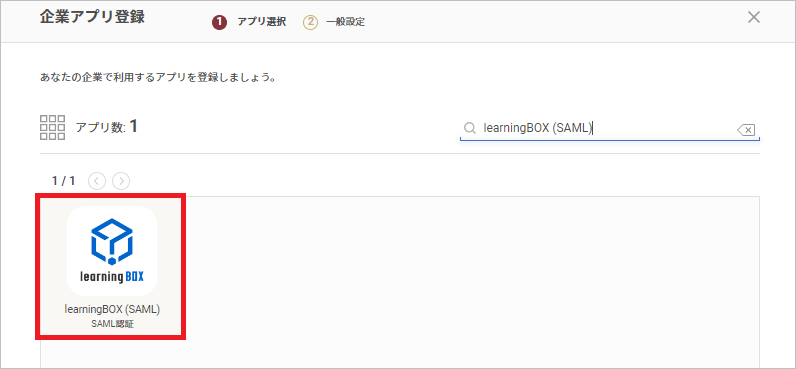

2. On the "Corporate App Registration" screen, search and select "learningBOX (SAML)."



3. Note the "Identity Provider URL" and "Issuer / Entity ID" values under "Identity Provider Information," and download the certificate from the "Get Certificate" button.

Now, switch to the configuration on the learningBOX side.
Do not click the "Register" button yet — open learningBOX in a separate window.

learningBOX Configuration

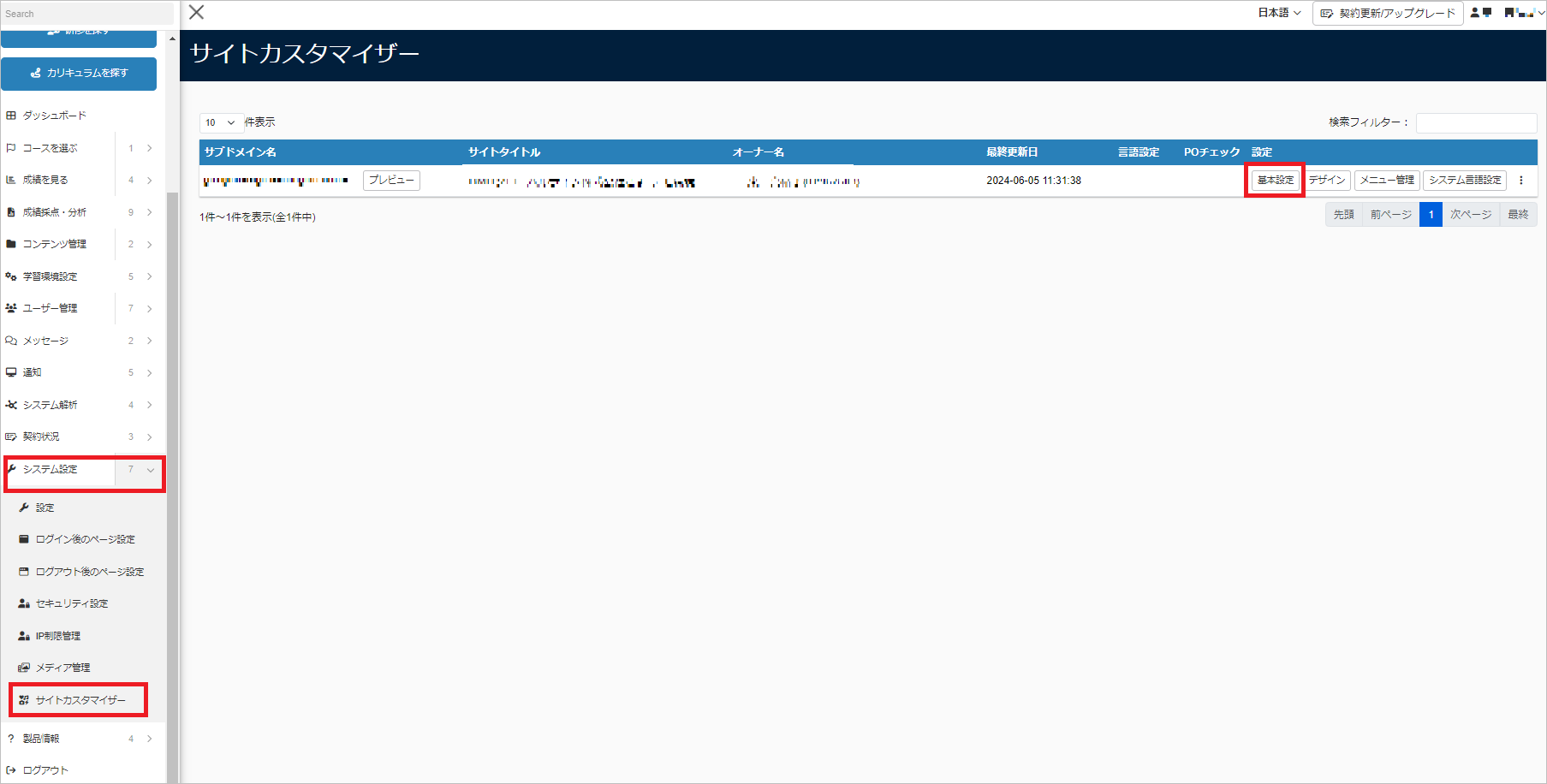

1. Log in with a user who has access to the settings page, and open "Side Menu > System Settings > Site Customizer > Basic Settings."

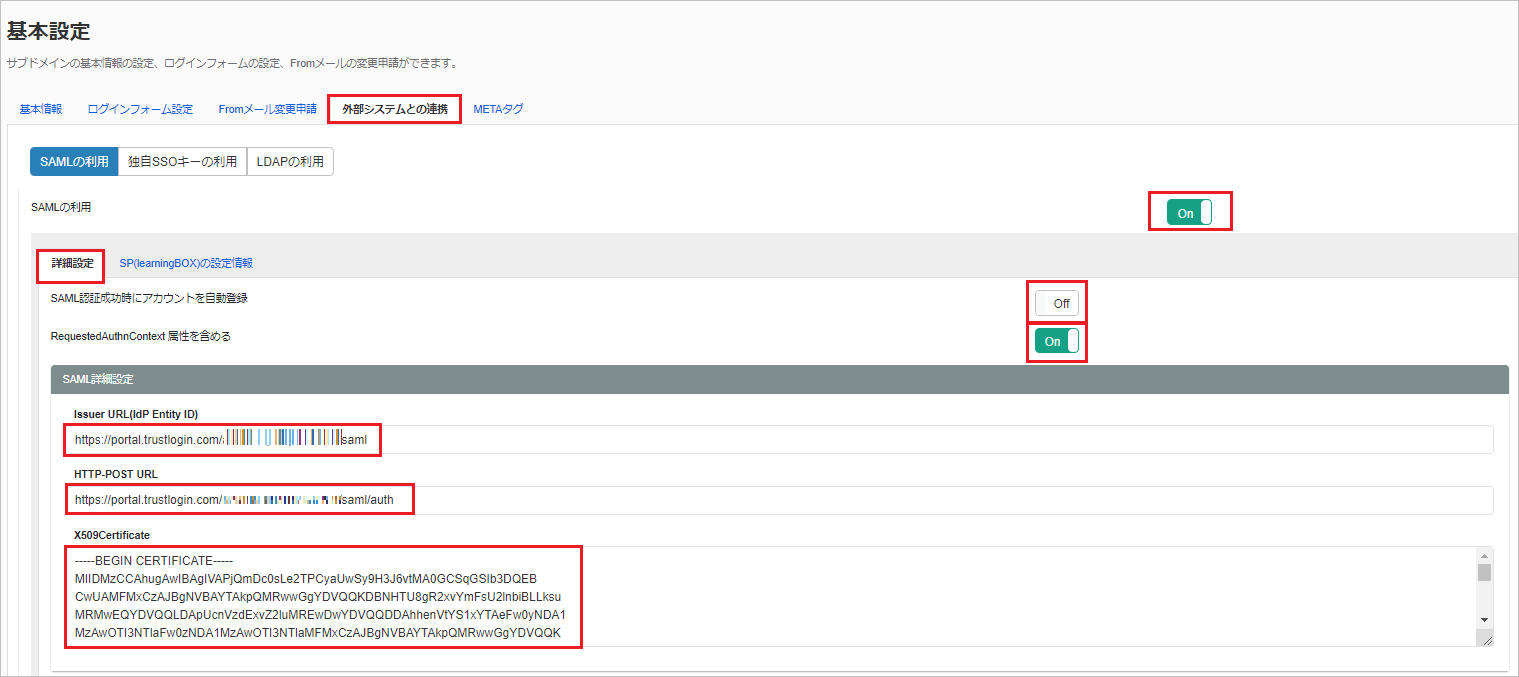

2. Open "External System Integration > Use SAML > Advanced Settings" and configure as follows.


   Automatically register account upon successful SAML authentication	Off
   Include RequestedAuthnContext attribute	On
   Issuer URL(IdP Entity ID)	The "Issuer / Entity ID" you noted from TrustLogin
   HTTP-POST URL	The "Identity Provider URL" you noted from TrustLogin
   X509Certificate	Paste the contents of the "certificate" you noted from TrustLogin

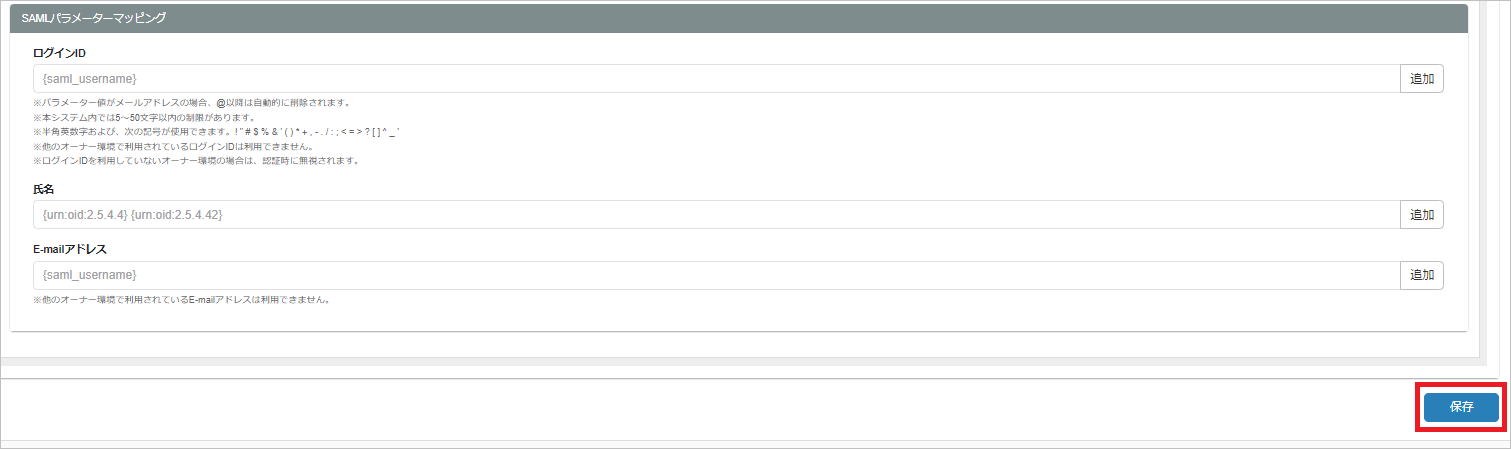

3. Scroll down the screen and click the "Save" button to save the settings.

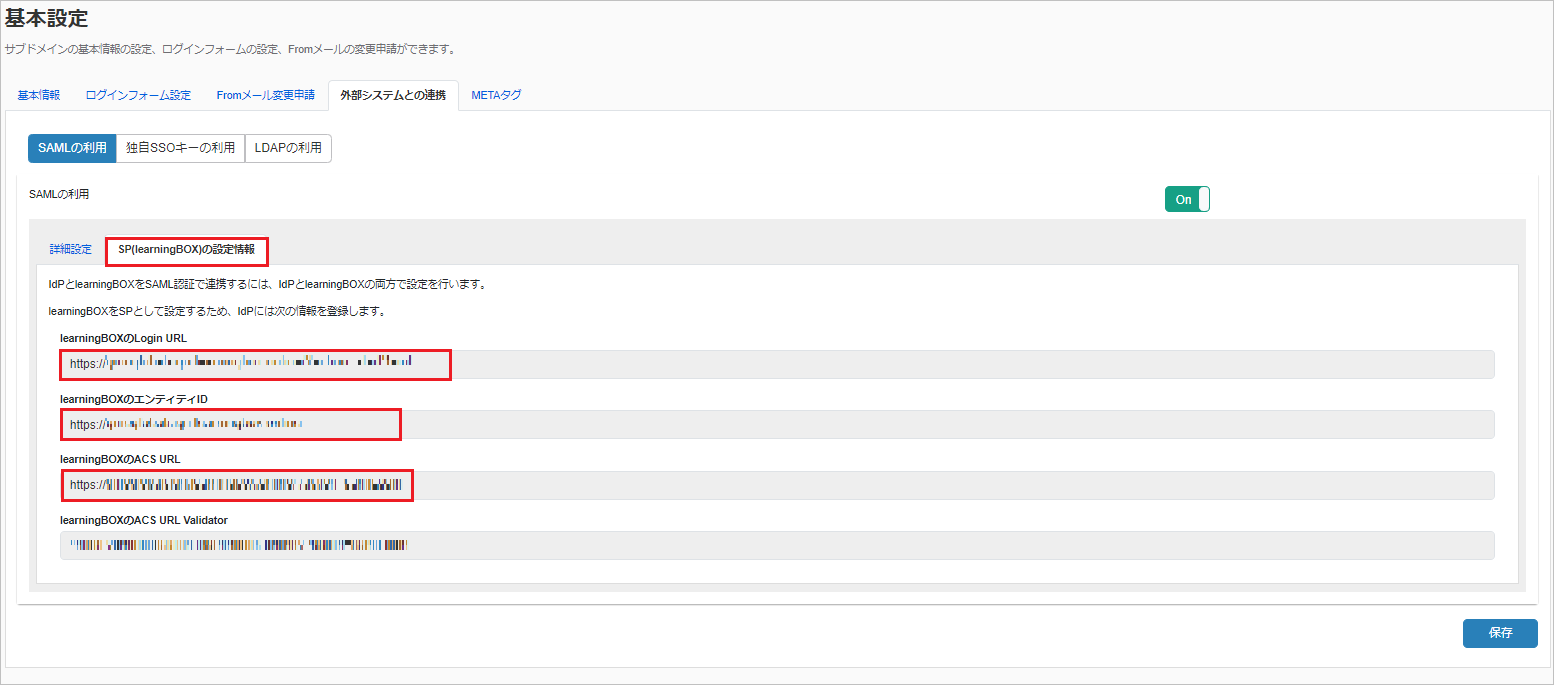

4. Open "SP (learningBOX) Configuration Information" and note the "learningBOX Entity ID" and "learningBOX ACS URL."
   Note: The "learningBOX Login URL" is the SP-Initiated URL. Note it if needed.
   　 You can also use SP-Initiated from the learningBOX login screen.


Now go back to the TrustLogin Admin Page.

TrustLogin Admin Page Configuration (Continued)

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "learningBOX Entity ID" you noted from learningBOX
   ACS URL for the Service	The "learningBOX ACS URL" you noted from learningBOX






2. Click the "Register" button to save.

TrustLogin User Configuration

① When Users Add the App from My Page

1. On "My Page," click the "Add App" button.
2. On the "App Registration" screen, select "learningBOX (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "learningBOX (SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
