Preparation

Add a Custom Attribute to User Information

Add the Smart Session "Member ID" information as a custom attribute in the TrustLogin member information.
Note: This is not necessary if the "Smart Session Member ID" matches the "email address registered in TrustLogin". Please proceed to the next step.

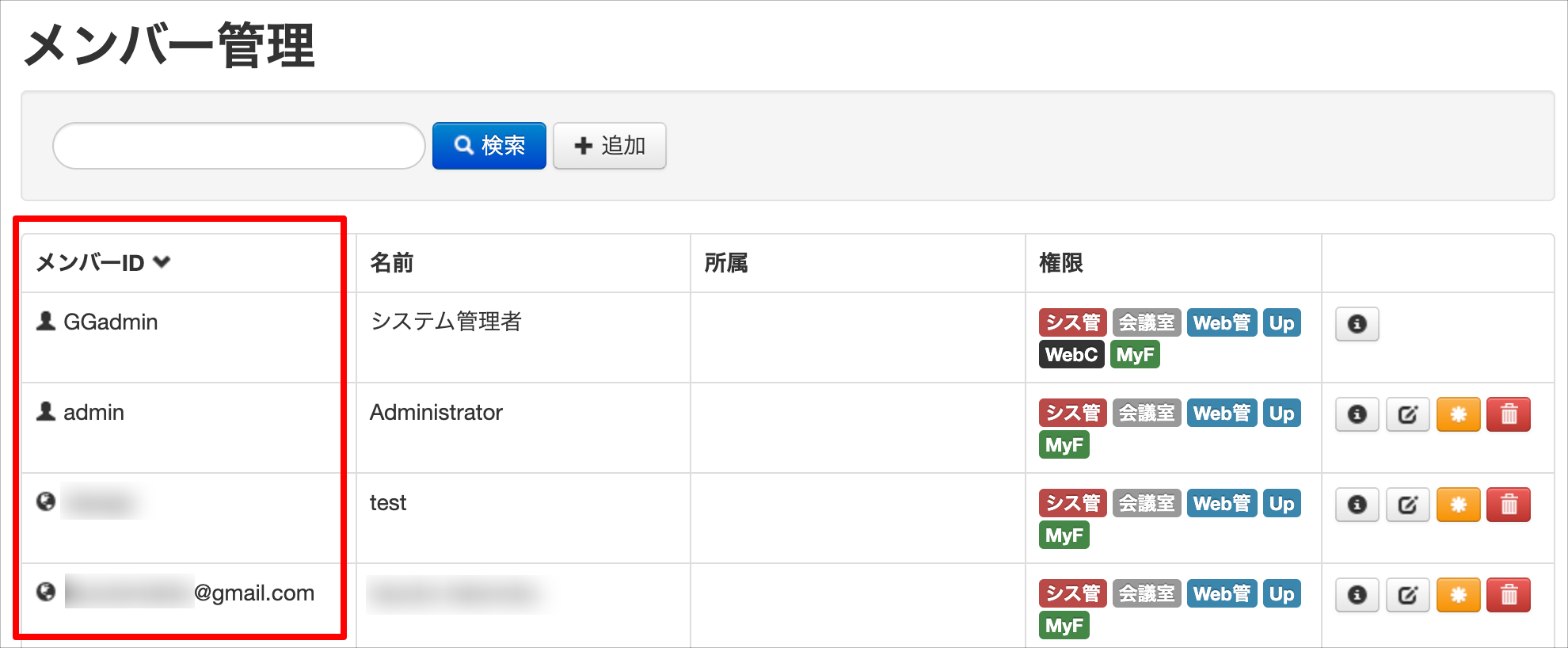

[Smart Session Member Management Screen]

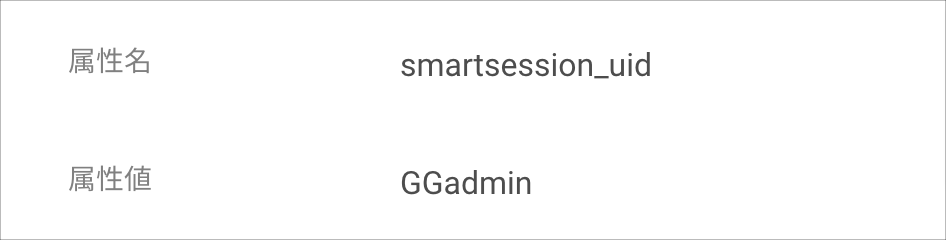

[TrustLogin Custom Attribute Configuration Example]

Please refer to the following pages for instructions on how to configure a custom attribute. The custom attribute name can be anything you like.

Custom Attribute Setup (Individual Registration)

Custom Attribute Setup (Bulk Registration)

TrustLogin Admin Page Settings

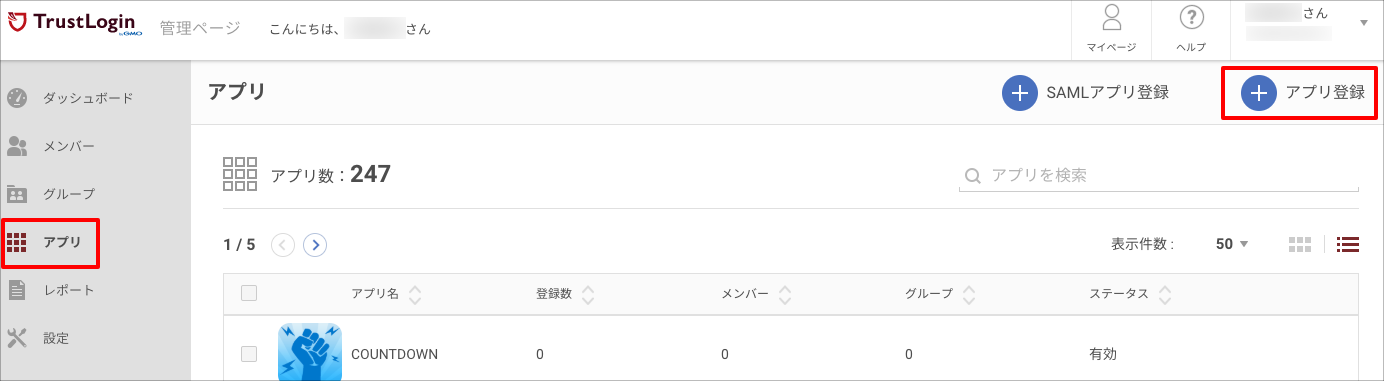

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

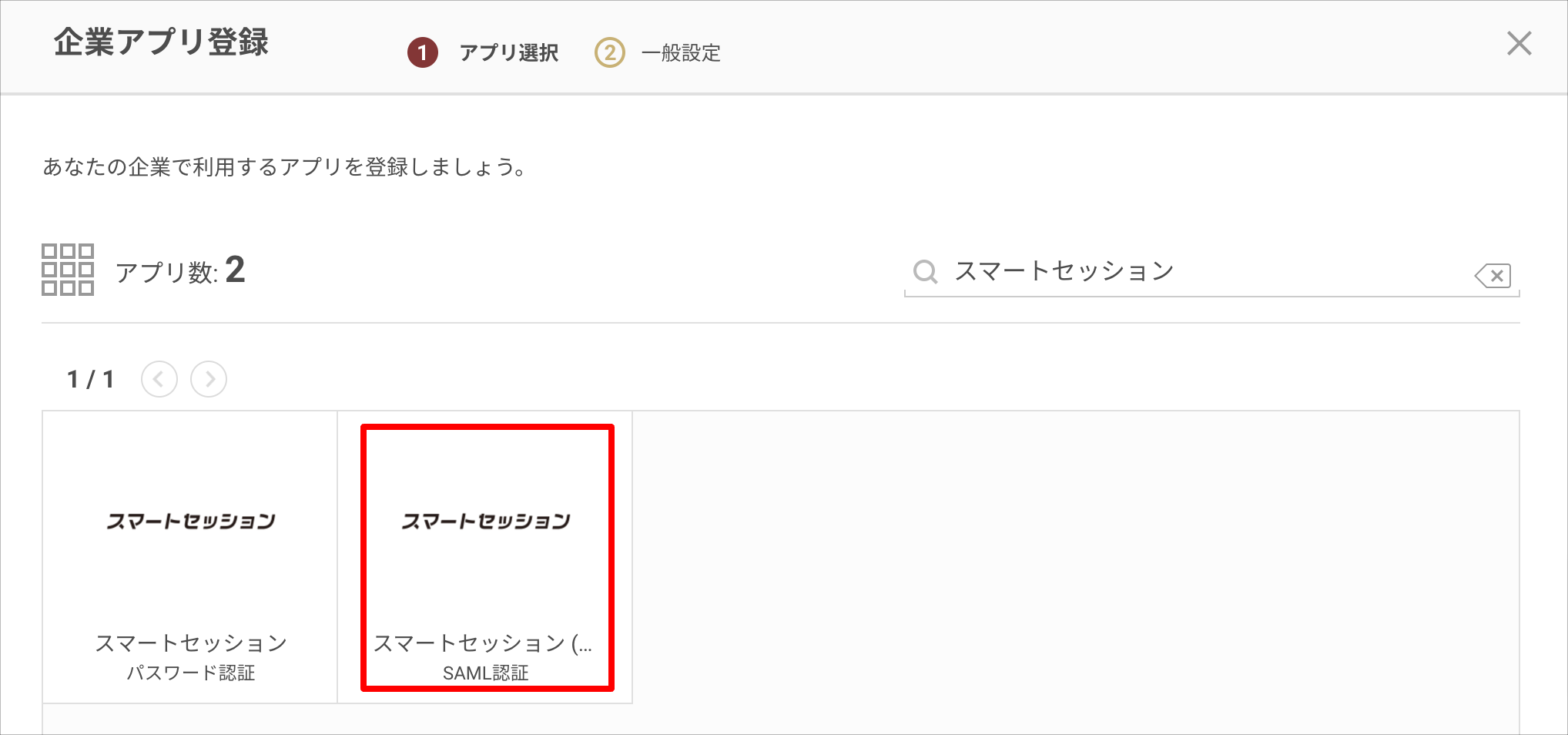

2. Search on the "Register Company App" screen and select "Smart Session (SAML)".

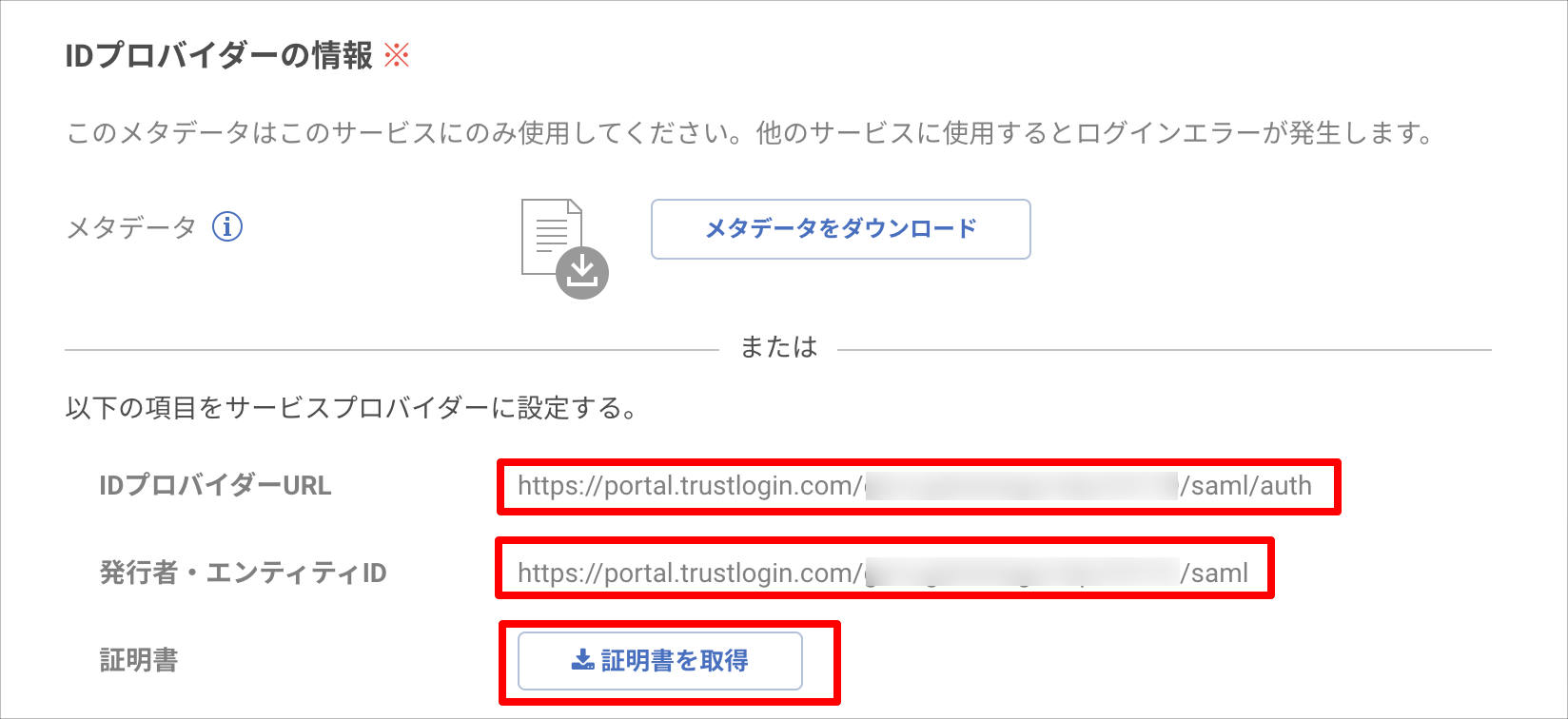

3. Note down the "Identity Provider URL" and "Issuer/Entity ID" values under "Identity Provider Information", and download the certificate by clicking the "Get Certificate" button.



4. Convert the downloaded certificate's file extension to ".pem".

Now, switch to configuring Smart Session.
Do not click the "Register" button yet — open Smart Session in a separate window.

Smart Session Settings

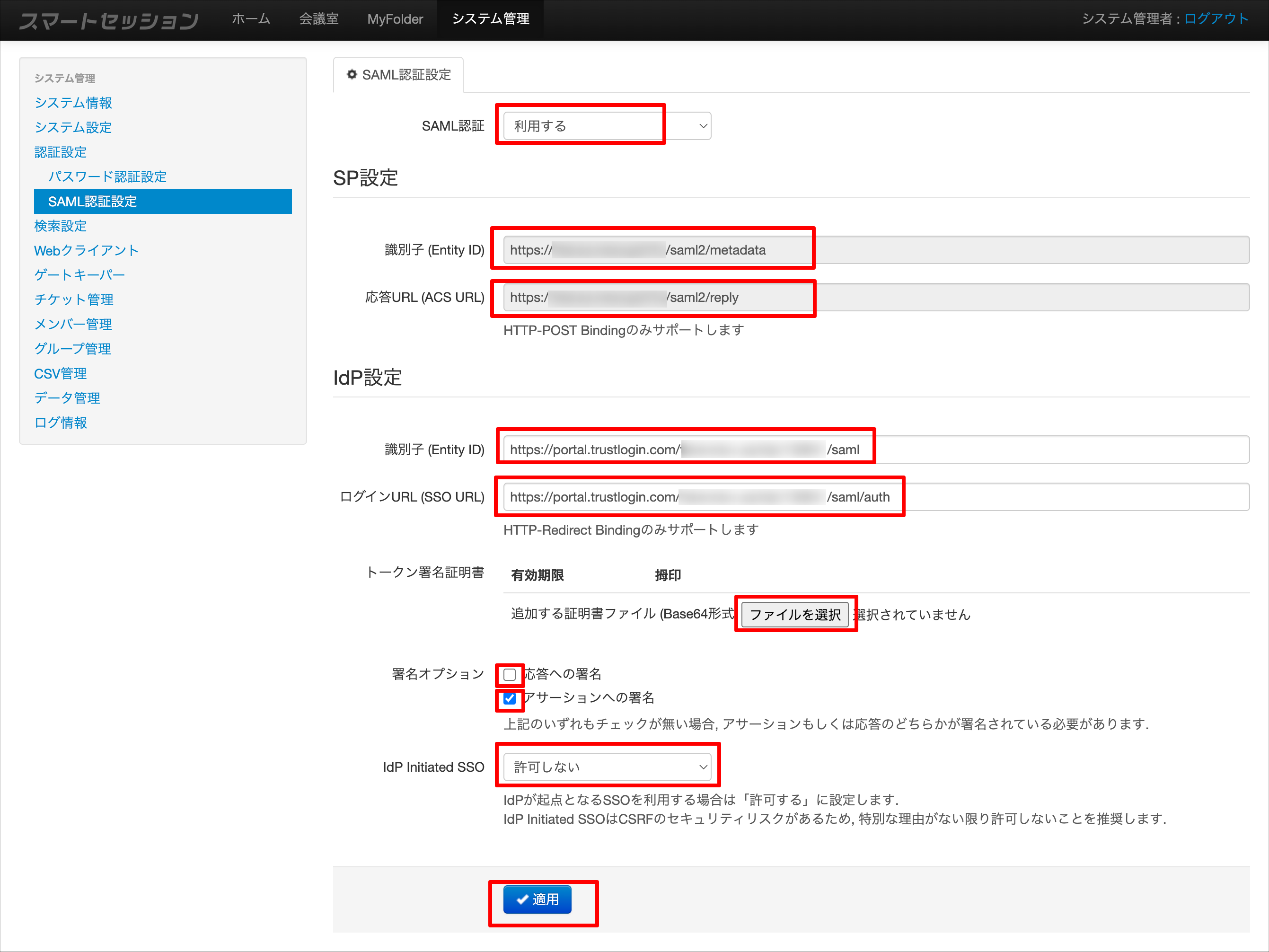

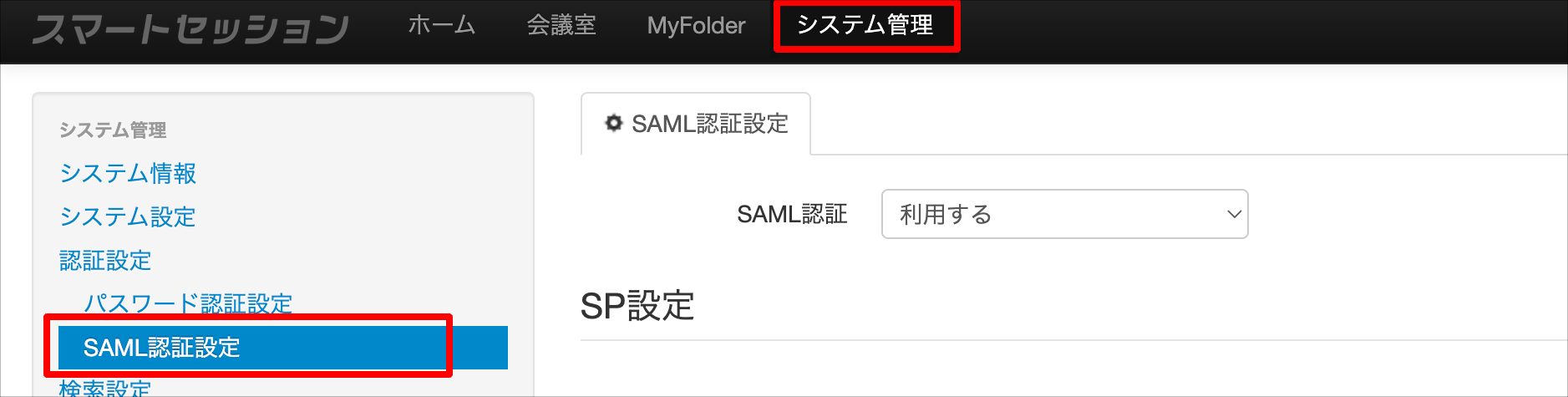

1. Open "System Administration > SAML Authentication Settings".



2. Configure each item as follows, and finally save by clicking the "Apply" button.


   SAML Authentication	Select "Use"
   Identifier (Entity ID) (SP Setting)	Copy and note it down
   Response URL (ACS URL)	Copy and note it down
   Identifier (Entity ID) (IdP Setting)	The "Issuer/Entity ID" obtained from TrustLogin
   Login URL (SSO URL)	The "Identity Provider URL" obtained from TrustLogin
   Token Signing Certificate	Upload the "certificate" obtained from TrustLogin, converted to PEM format, using the "Choose File" button
   Sign Response	Turn the checkbox OFF
   Sign Assertion	Turn the checkbox ON
   IdP Initiated SSO	Do not allow

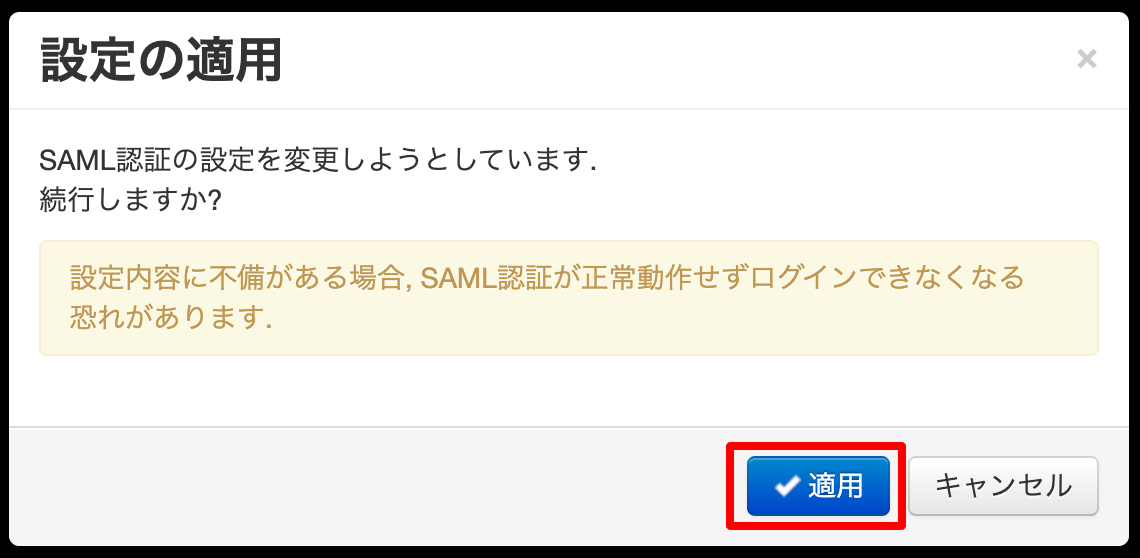

   Click the "Apply" button on the confirmation message.



3. For registered members to use SAML integration, you must reset their password in the member management screen, leaving the password field blank when resetting.

   When registering a new user, leave the password field blank when registering.



Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

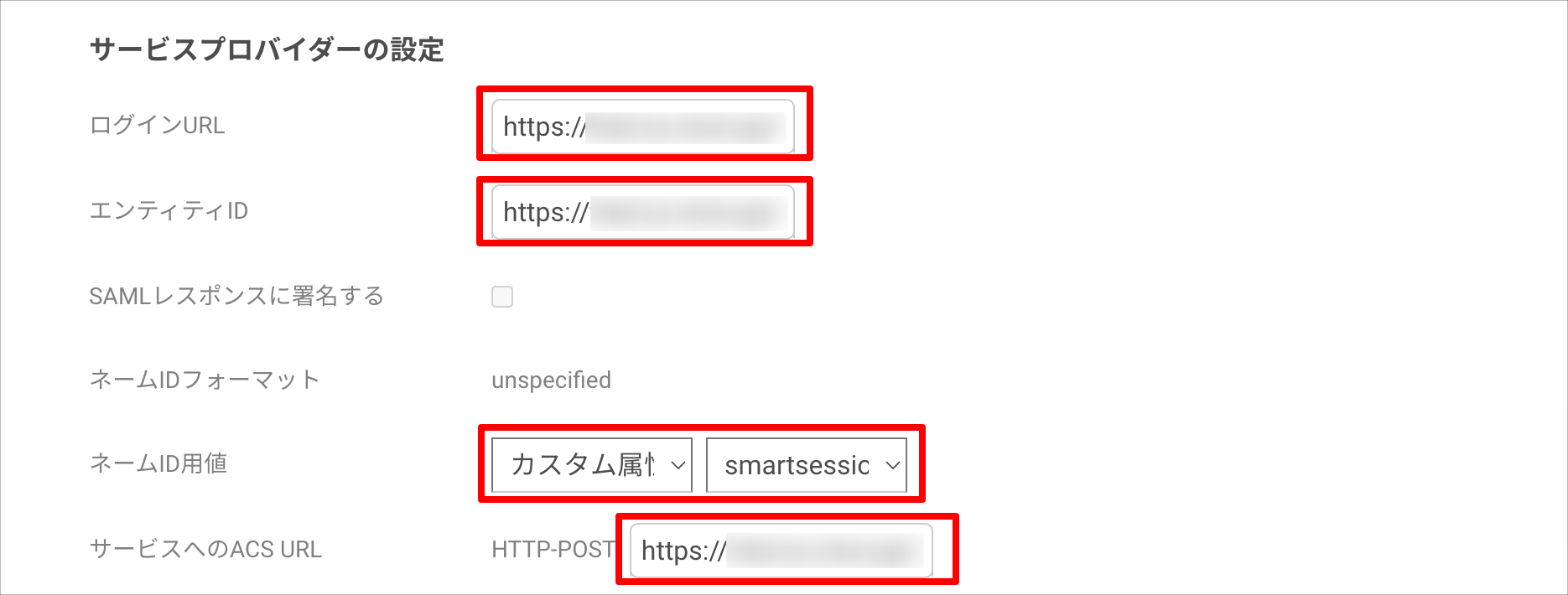

1. Configure "Service Provider Settings" as follows.


   Login URL	The customer's login URL to redirect to after clicking the SAML app In Smart Session, SAML authentication can be performed from the following login screens. ・Management Tool (eDocManager) ・Web Client
   Entity ID	The "Identifier (Entity ID)" obtained from Smart Session
   Name ID Value	"Custom Attribute > the custom attribute name you configured" Note: If the "Smart Session Member ID" matches the "TrustLogin email address", set "Member > email"
   ACS URL to Service	The "Response URL (ACS URL)" obtained from Smart Session





2. Click the "Register" button to save.




TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Smart Session (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

1. Search for and click the "Smart Session (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
