TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

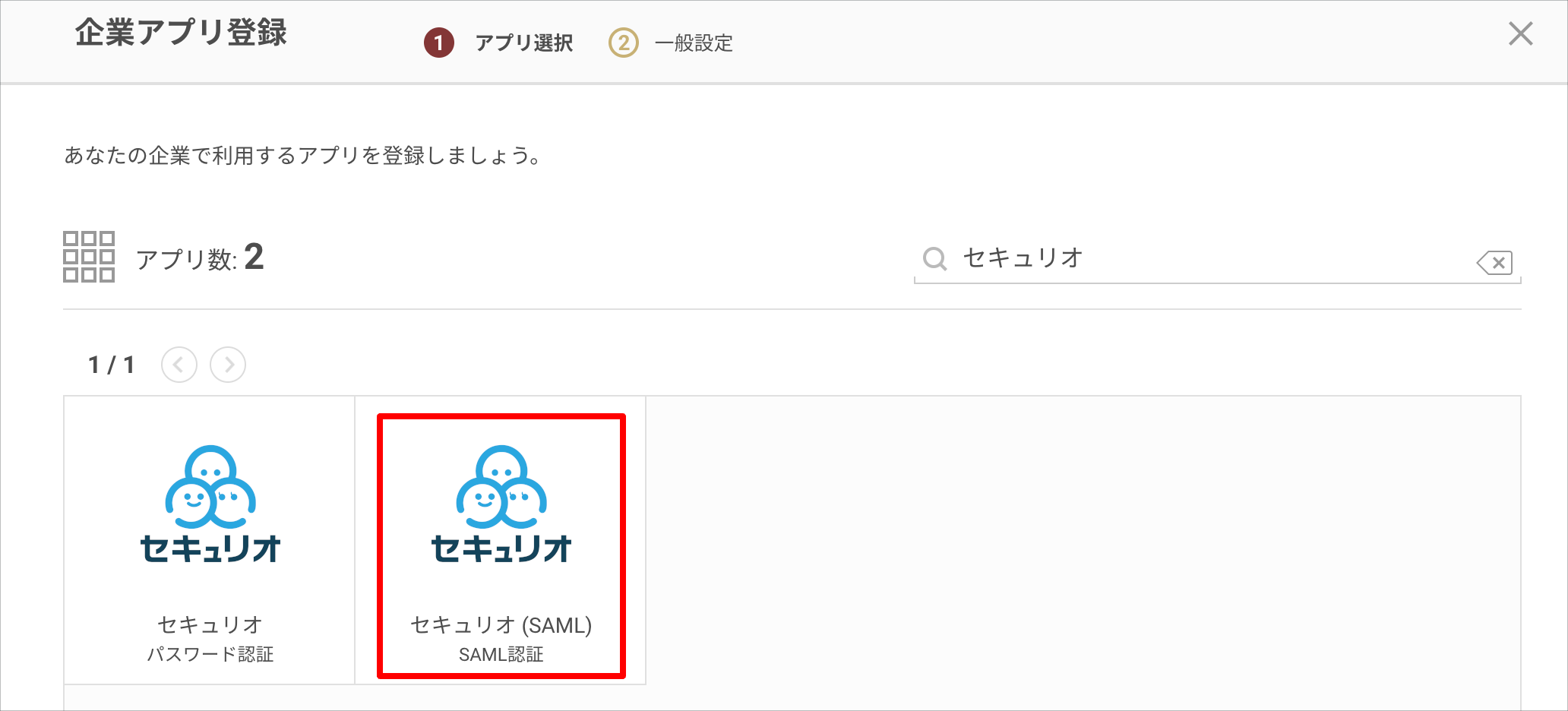

2. Search on the "Register Company App" screen and select "Seculio (SAML)".



3. Under "Identity Provider Information," note down the value of "Identity Provider URL," and download the certificate using the "Get Certificate" button.



At this point, switch to configuring the Seculio side.
Do not click the "Register" button yet — open Seculio in a separate window.

Seculio Settings

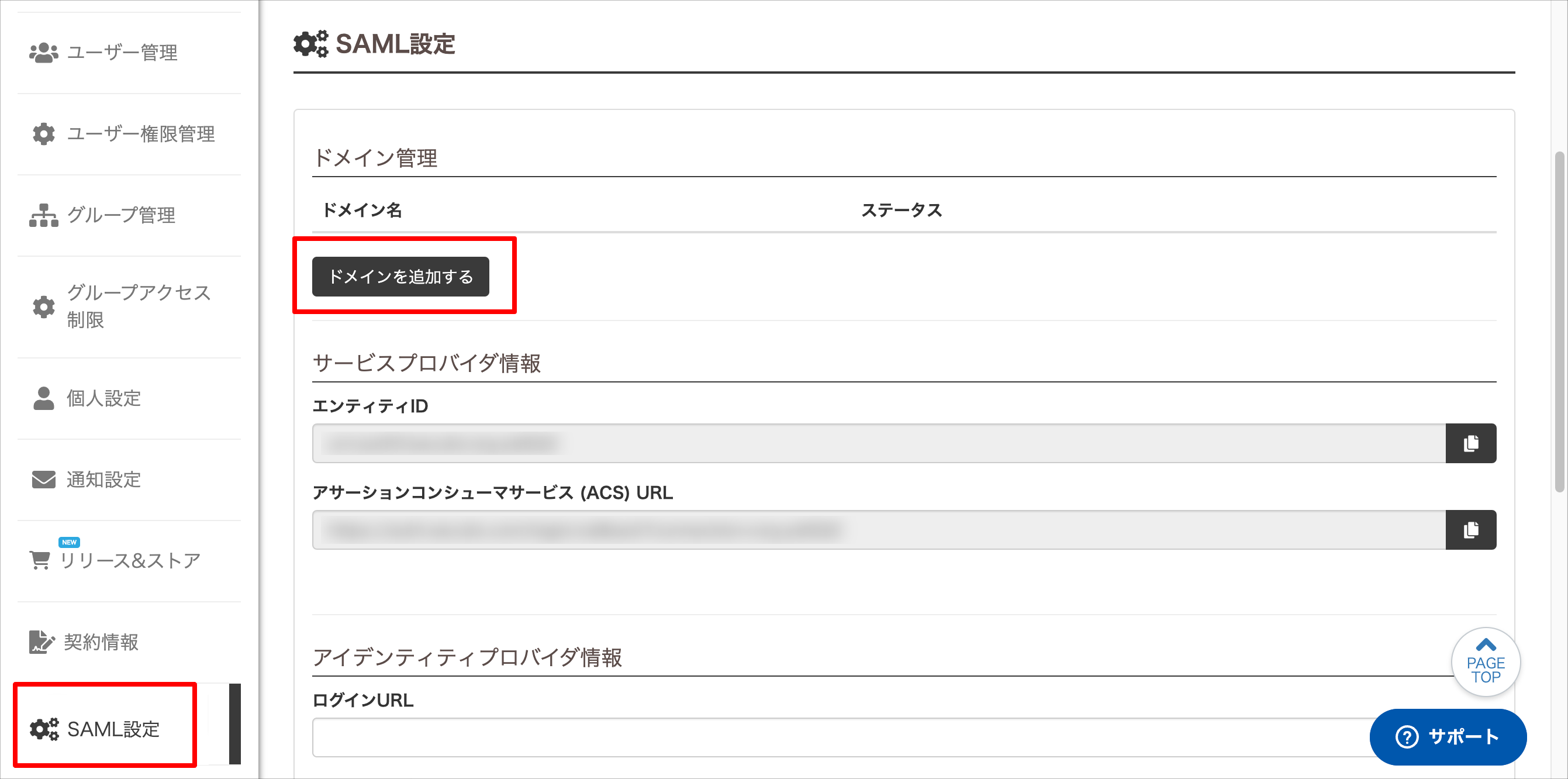

1. Open "Settings > SAML Settings" and click "Add Domain" under Domain Management.

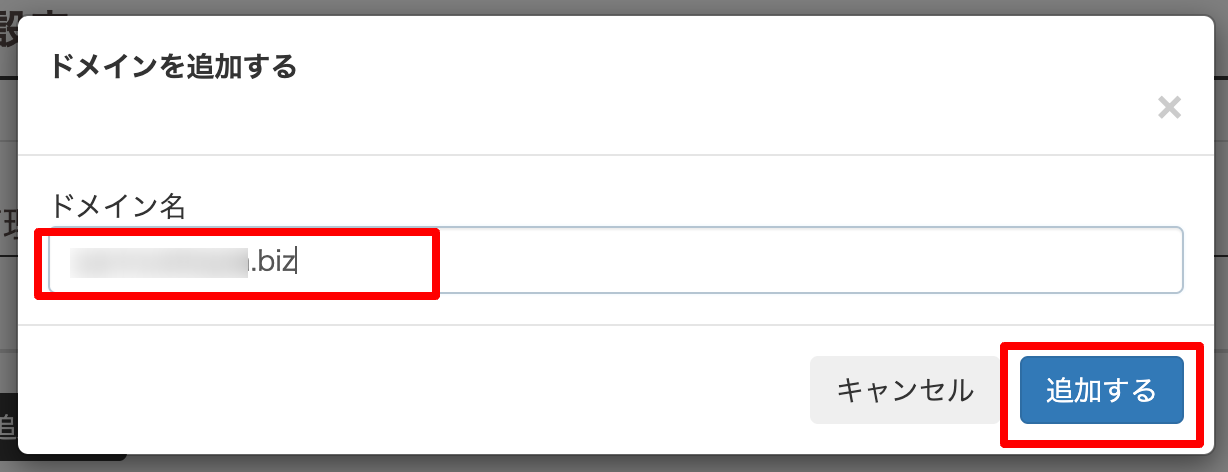

2. Enter the domain name and click "Add."

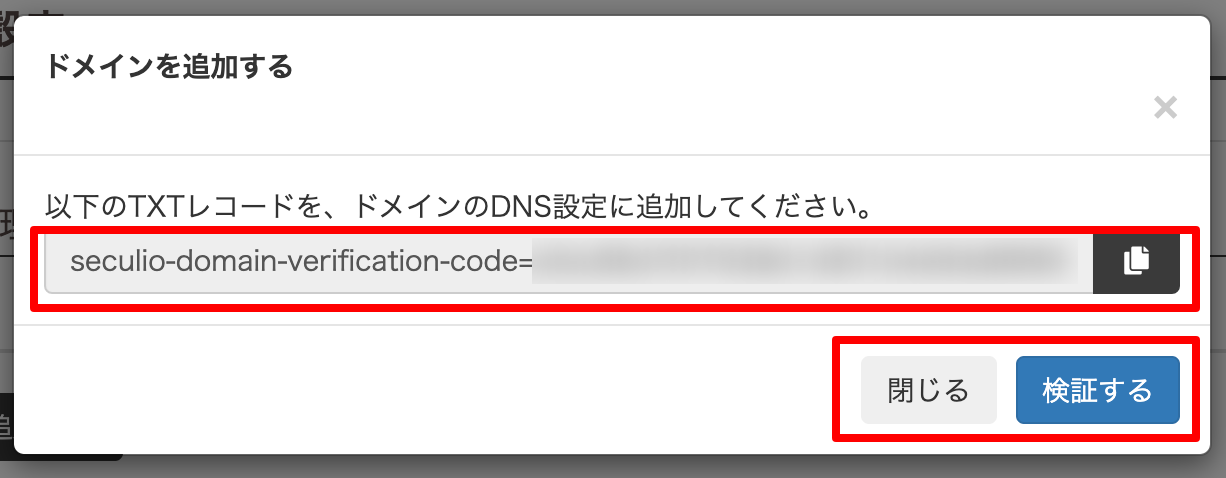

3. Copy the displayed TXT record and add it to your domain's DNS settings.
   Once you have added it, click "Verify." Note that DNS record propagation can take up to 72 hours, so you can click "Close" and verify later if needed.

   Note: How to configure DNS records varies by domain registrar. Please refer to your domain registrar's help documentation.

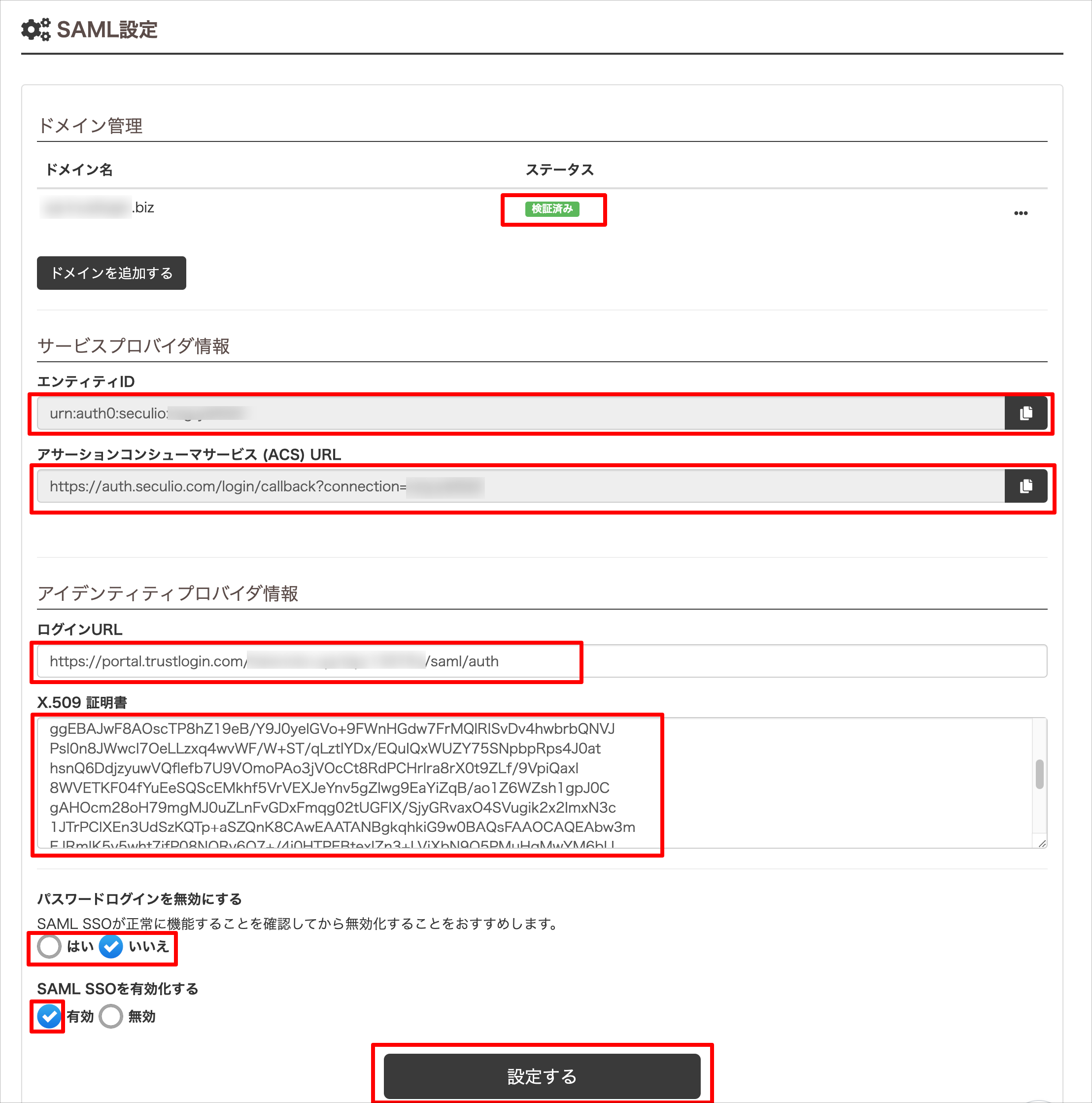

4. Confirm that the domain status has changed to "Verified," and configure each item as follows.
   Finally, save by clicking the "Configure" button.


   Entity ID	Copy and note down the value
   Assertion Consumer Service (ACS) URL	Copy and note down the value
   Login URL	The "Identity Provider URL" obtained from TrustLogin
   X.509 Certificate	The contents of the "Certificate" obtained from TrustLogin
   Disable Password Login	You can choose the setting for "Disable Password Login" according to your operational needs, but we recommend selecting "No" here, and changing it to "Yes" after you have verified SAML functionality and notified your users.
   Enable SAML SSO	Enabled






Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

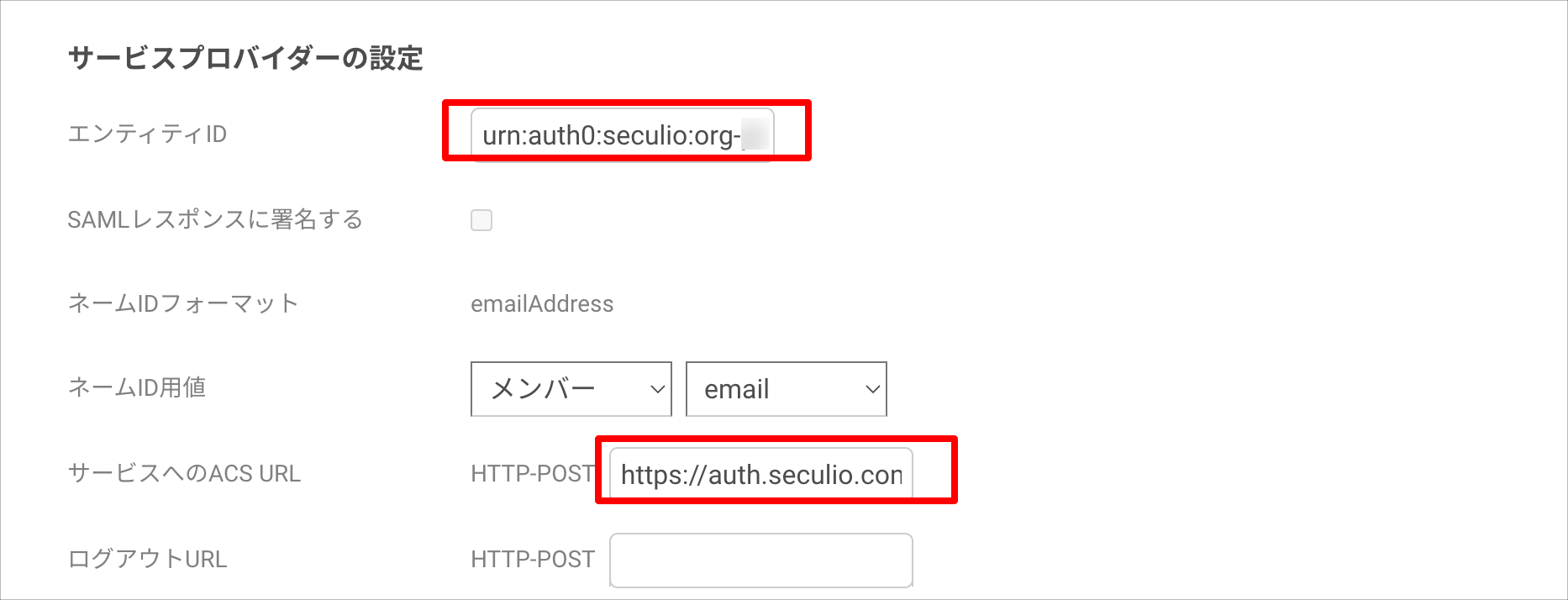

1. Configure the "Service Provider Settings" as follows.


   Entity ID	The "Entity ID" obtained from Seculio
   Service ACS URL	The "Assertion Consumer Service (ACS) URL" obtained from Seculio
   Logout URL	Not configured





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Seculio (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

② When an administrator adds members

1. Search for and click the "Seculio (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
