Item	Details
Prior Confirmation	Prior configuration in Cisco Meraki is required. For the latest setup instructions, please check the manual provided by Cisco Meraki.
Name ID		Email address
	〇	Custom attribute　Note: For instructions on how to configure a custom attribute, click here
SP-side Configuration	〇	Configured by the administrator
		Request configuration from the SP
Provisioning		Provisioning via API supported (account management possible in TrustLogin)
	〇	SAML JIT provisioning supported (account management possible in TrustLogin; user deletion not supported)
		None (accounts are created in each system)
Access Method	〇	SP-Initiated SSO
	〇	IdP-Initiated SSO
Verified Operation by Device	〇	PC - Browser
	ー	PC - Desktop App
	〇	iOS - Standard Browser (Safari)
	〇	iOS - TrustLogin Mobile App In-App Browser
	〇	iOS - Native App
	〇	Android - Standard Browser (Chrome)
	〇	Android - TrustLogin Mobile App In-App Browser
	〇	Android - Native App

Prerequisites

Add a Custom Attribute to User Information

Add the Cisco Meraki "Username" and "SAML Administrator Role" information as custom attributes in TrustLogin member information.

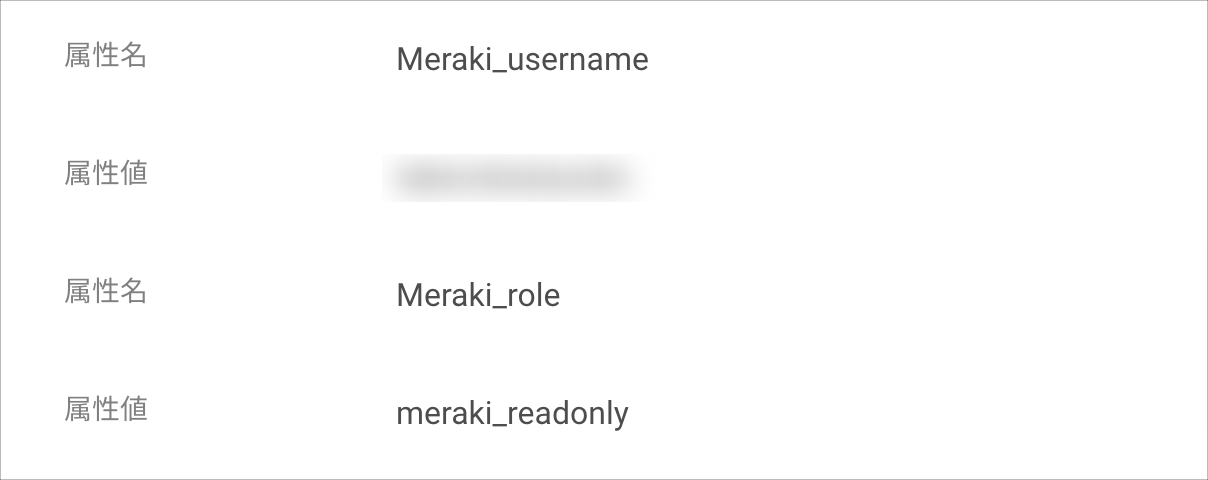

[TrustLogin Custom Attribute Configuration Example]

• The attribute name for the custom attribute can be anything you choose.
• The attribute value for "SAML Administrator Role" is the name of the SAML administrator role you will configure on the Cisco Meraki side later.





Please refer to the following pages for instructions on how to configure custom attributes.

Custom Attribute Setup (Individual Registration)

Custom Attribute Setup (Bulk Registration)

The "SAML Administrator Role" can also be configured using group mapping, but this manual introduces the setup method using a custom attribute.

TrustLogin Admin Page Configuration

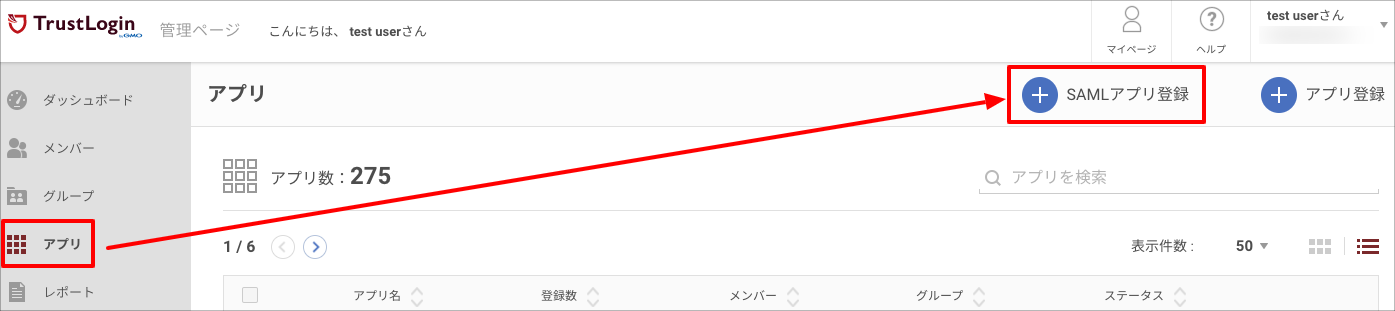

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register SAML App" button at the top right of the screen.

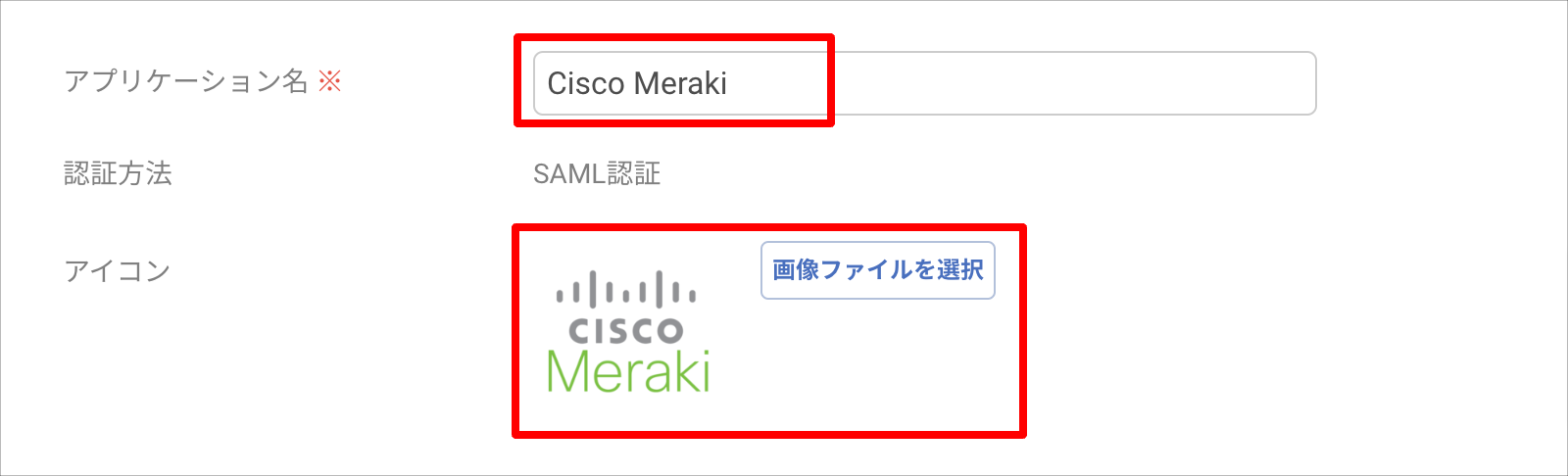

2. Configure the "Application Name" and "Icon" (optional).

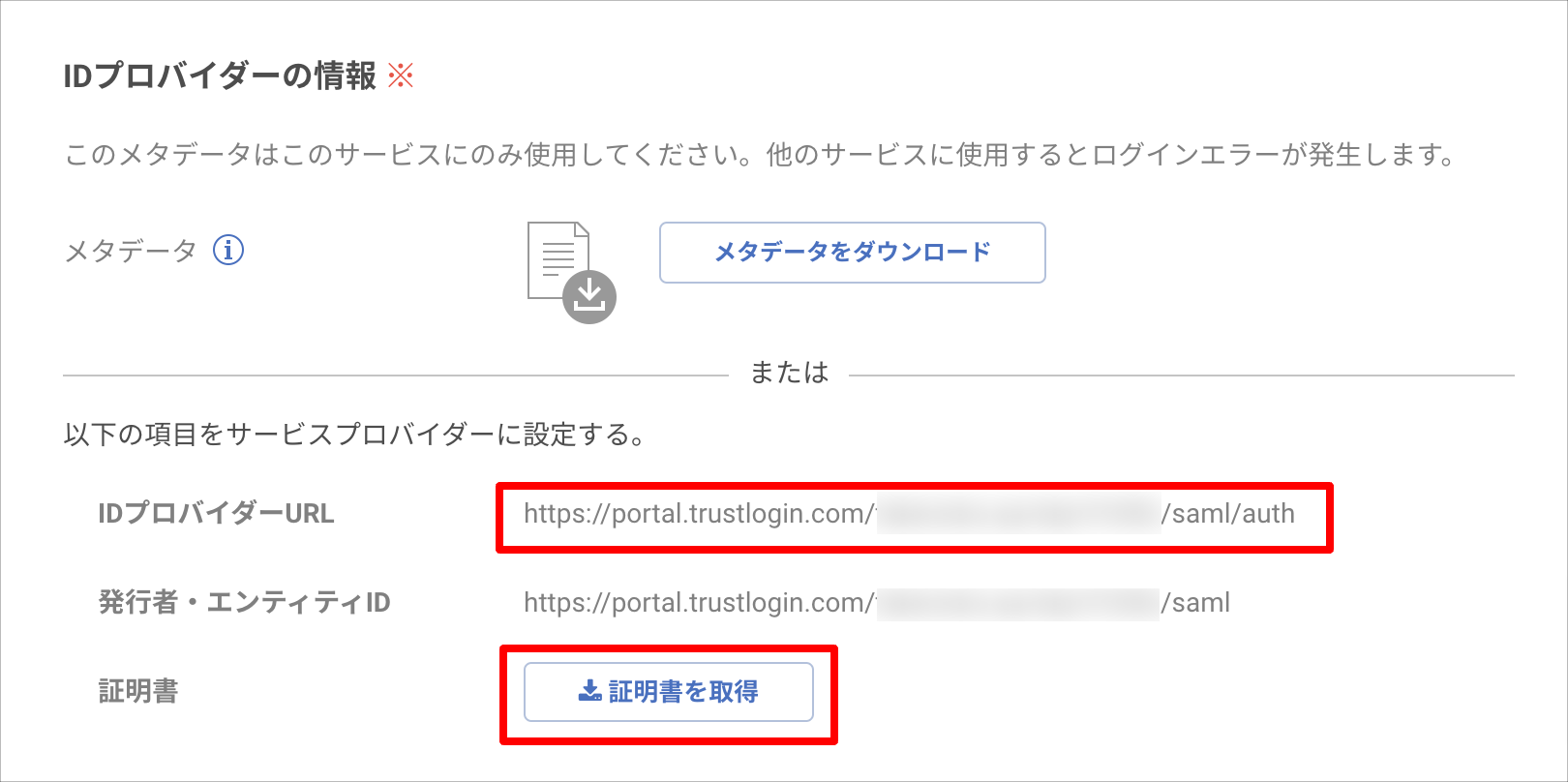

3. Note down the "Identity Provider URL" value under "Identity Provider Information", and download the certificate using the "Download Certificate" button.

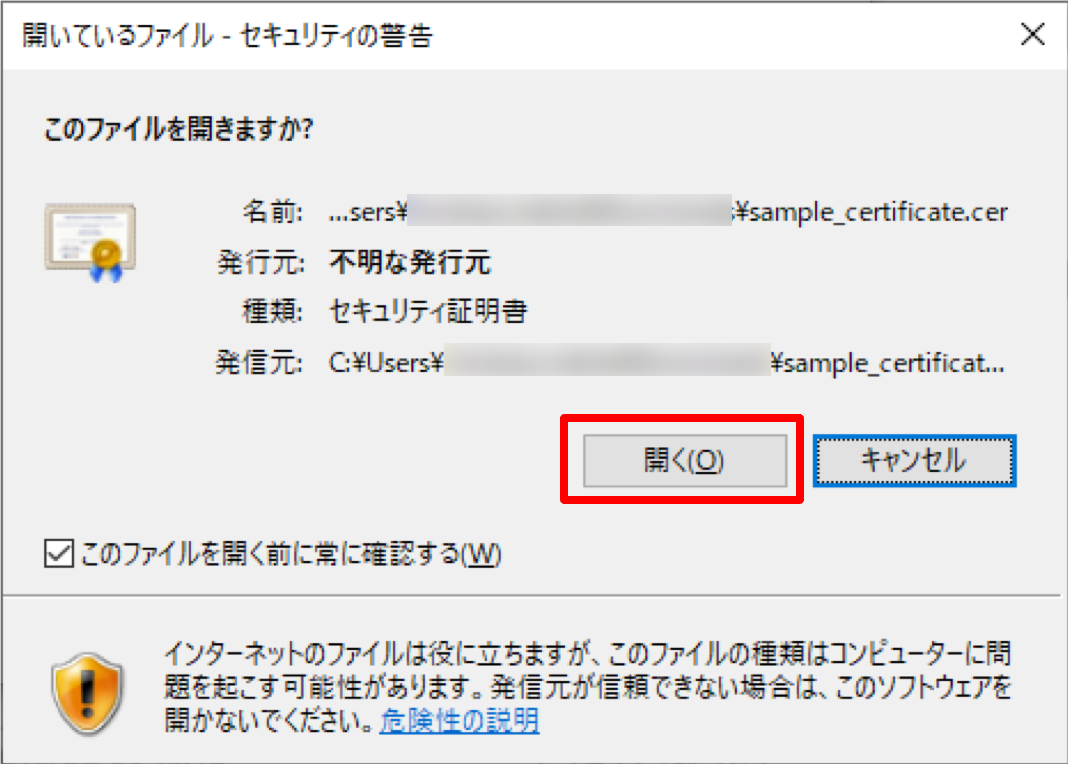

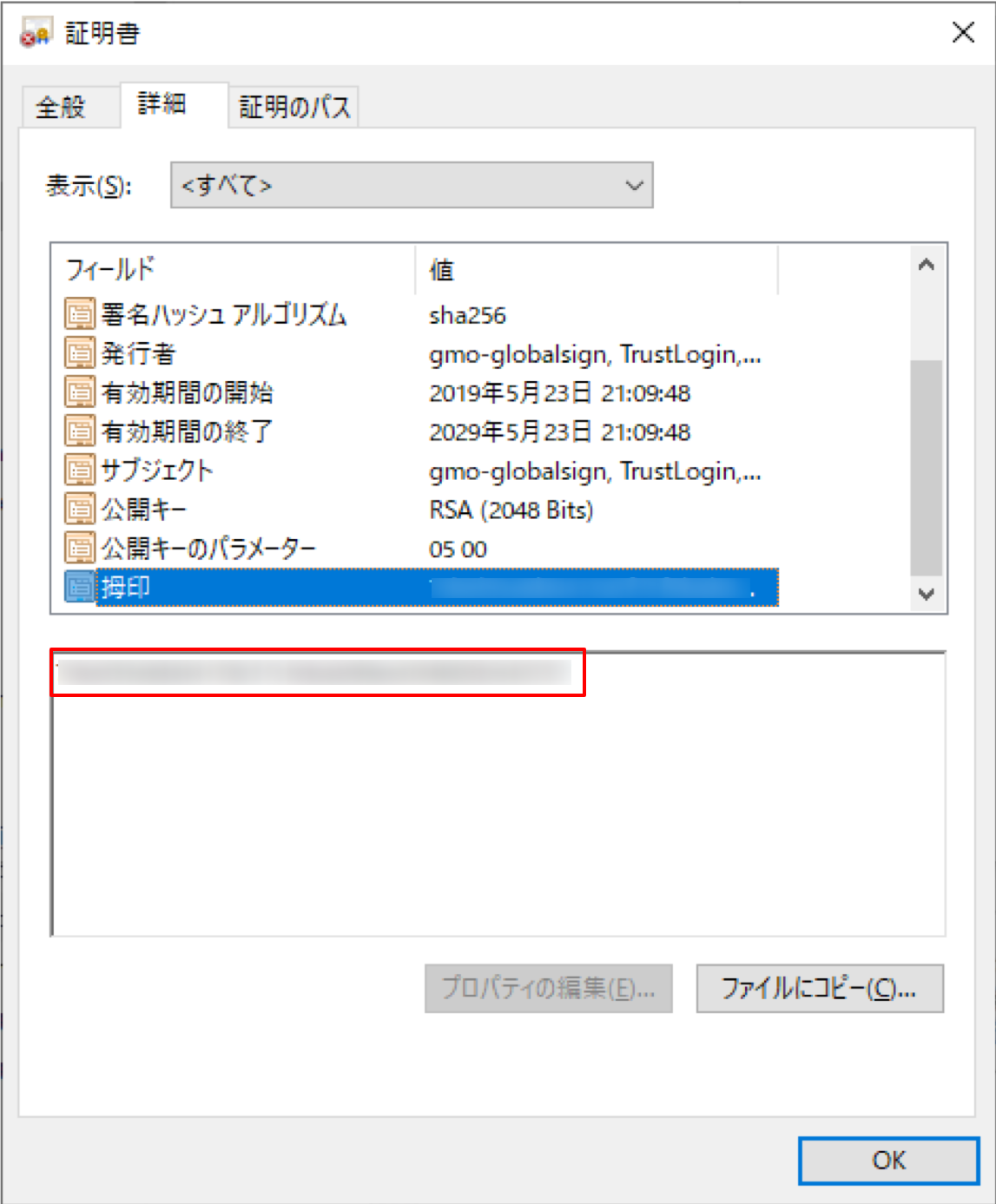

4. Change the extension of the downloaded certificate to [.cer] and open the file.



   Copy the value of the "Thumbprint" field on the "Details" tab.

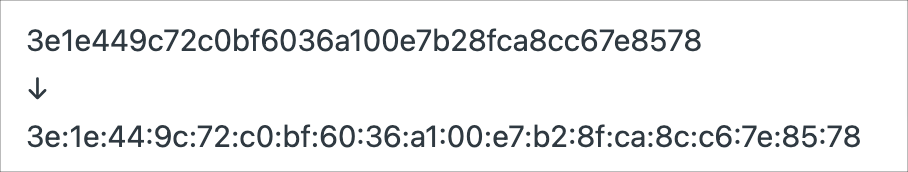

   Paste the copied "Thumbprint" value into a text editor or similar, and generate a value with a colon (:) inserted every 2 characters.




Now, switch over to configuring the Cisco Meraki side.
Do not click the "Register" button yet — open the Cisco Meraki dashboard in a separate window.

Cisco Meraki Configuration

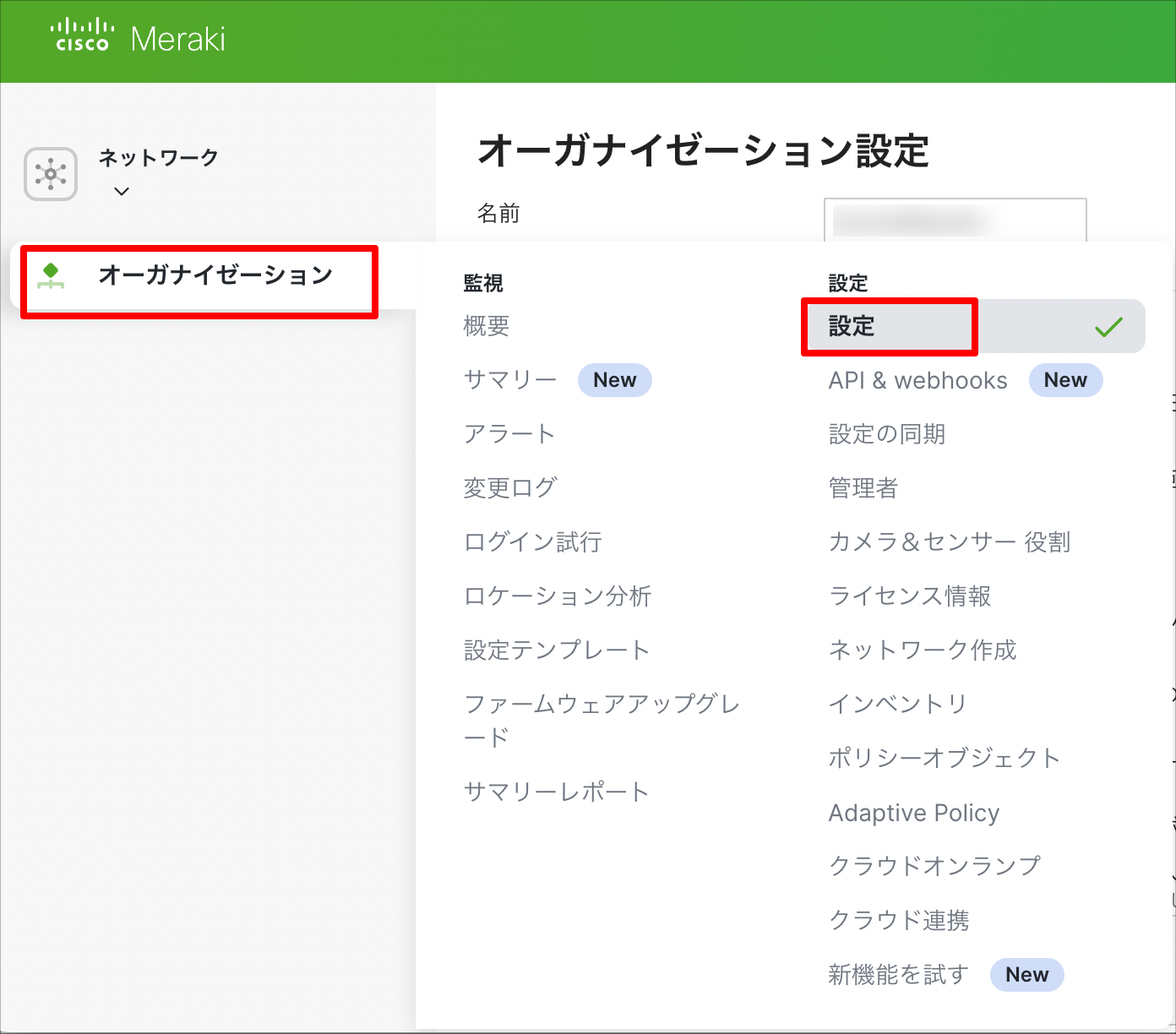

1. Open "Organization" > "Settings".

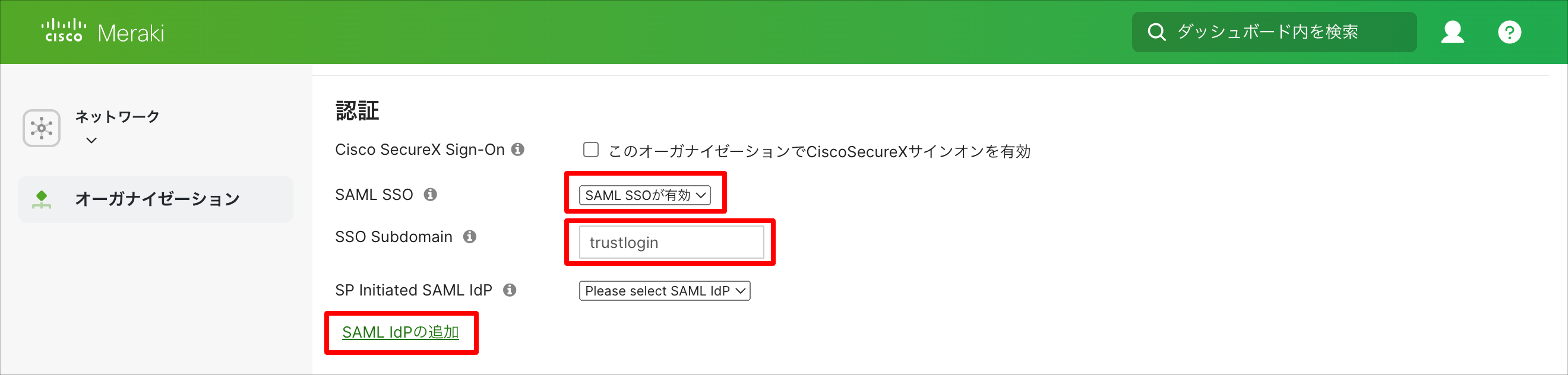

2. Go to the "Authentication" settings, switch on "SAML SSO enabled", and specify any subdomain for "SSO Subdomain". Click "Add a SAML IdP".

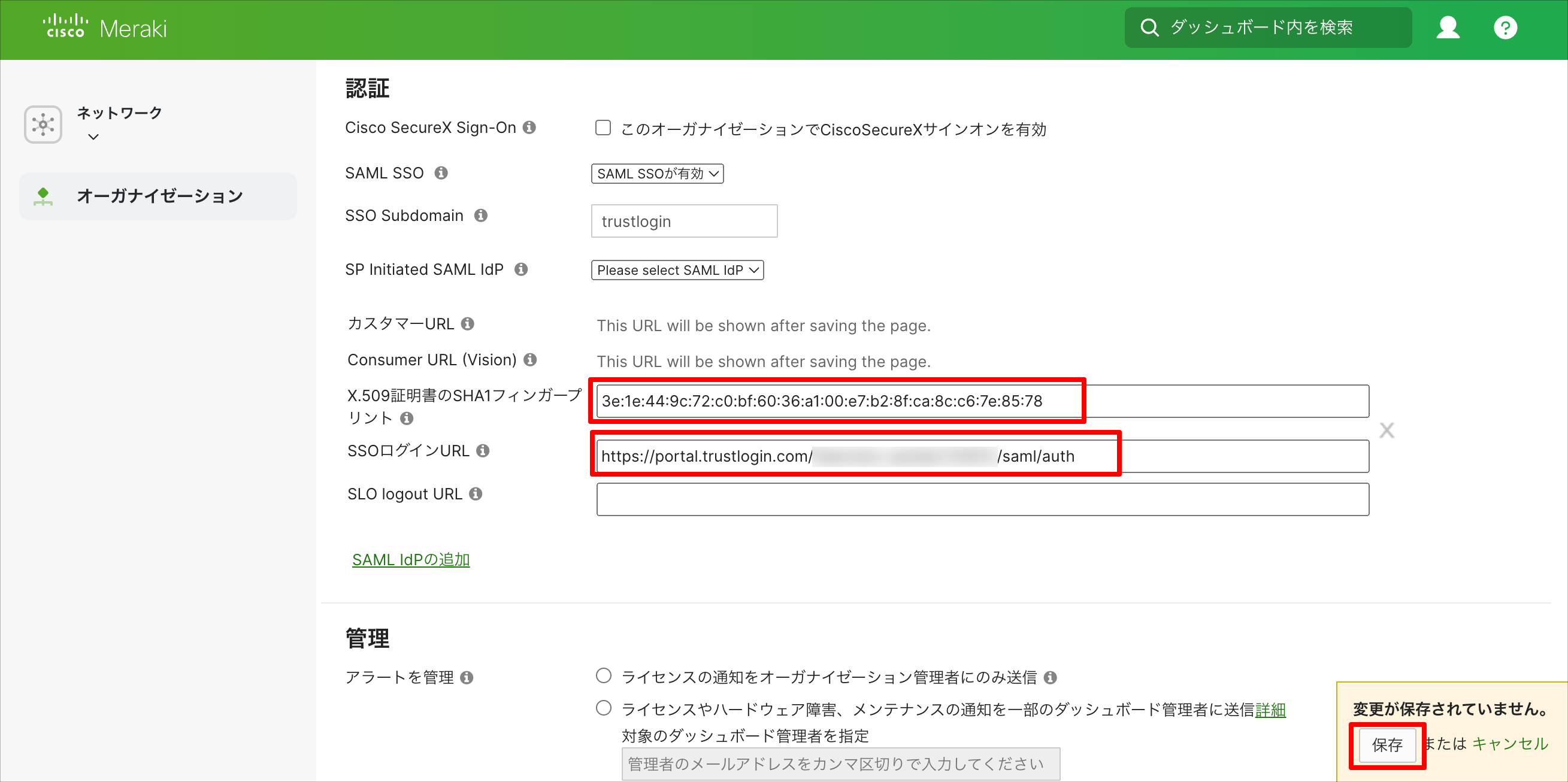

3. Configure the settings as follows, and save by clicking the "Save" button at the bottom right.


   X.509 cert SHA1 fingerprint	The "Thumbprint" value generated in Step 4 above
   SSO login URL	The "Identity Provider URL" obtained from TrustLogin

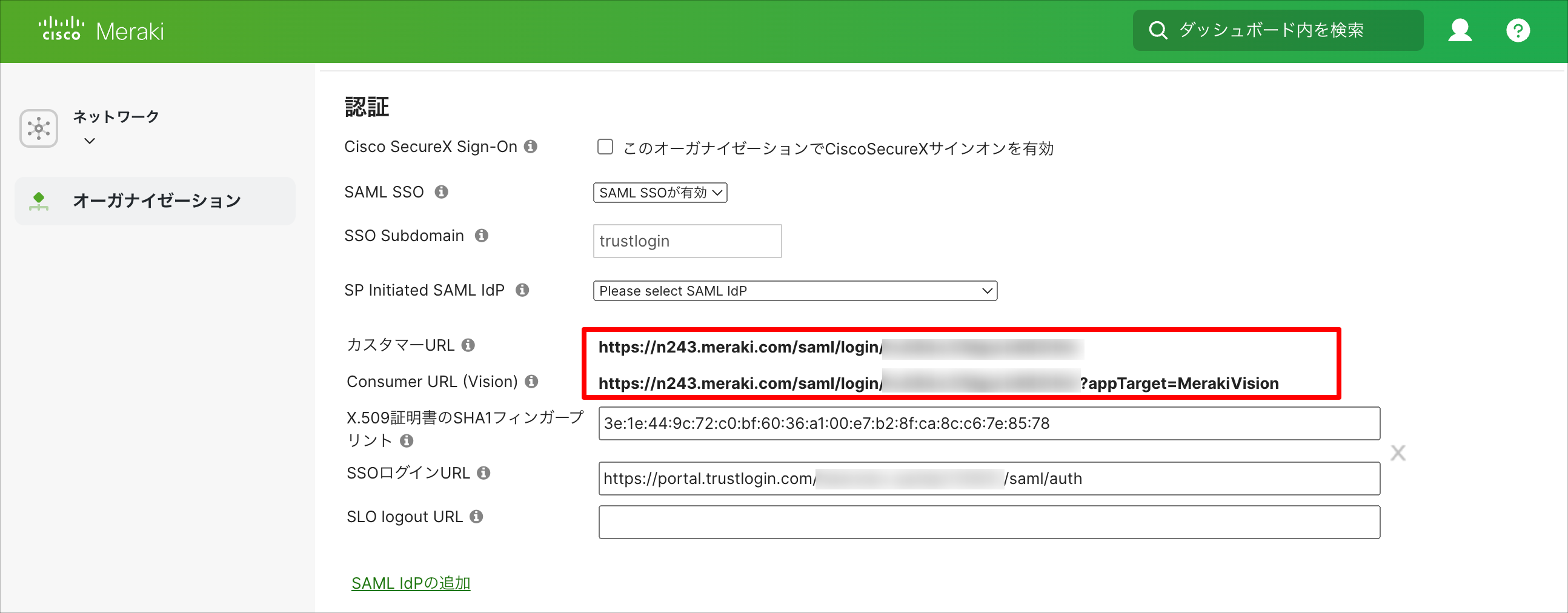

4. Make a note of either the "Consumer URL" or "Consumer URL (Vision)".
   This URL is where users will be redirected to after authentication, so choose it according to your operational needs.

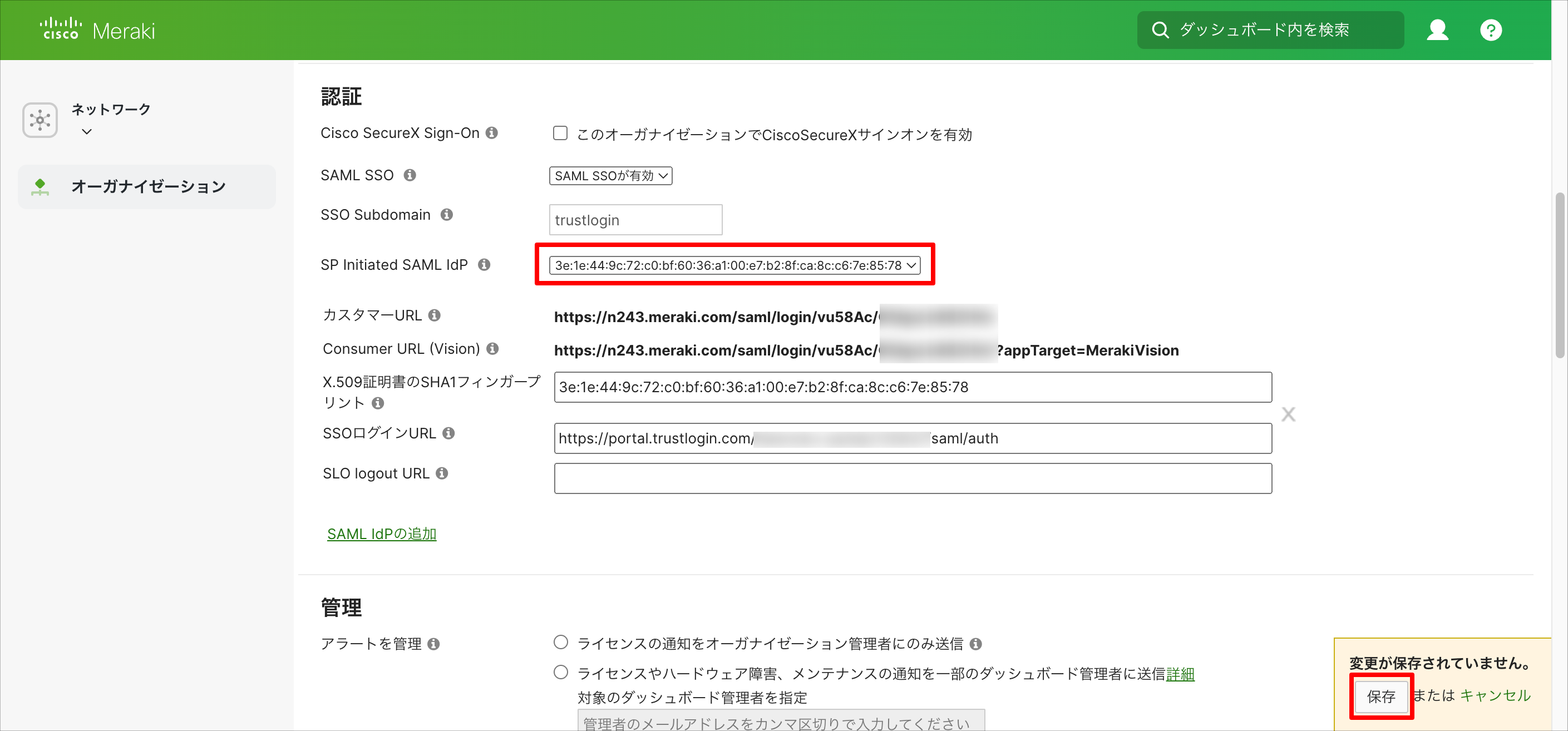

5. Select the thumbprint of the SAML IdP you configured under "SP initiated SAML IdP", and save by clicking the "Save" button.


   For SP-Initiated SSO, you can log in from the following URLs.
   ・https://account.meraki.com/login/dashboard_login?sso=true
   ・[your configured SSO Subdomain].sso.meraki.com
   ・Meraki Vision login page

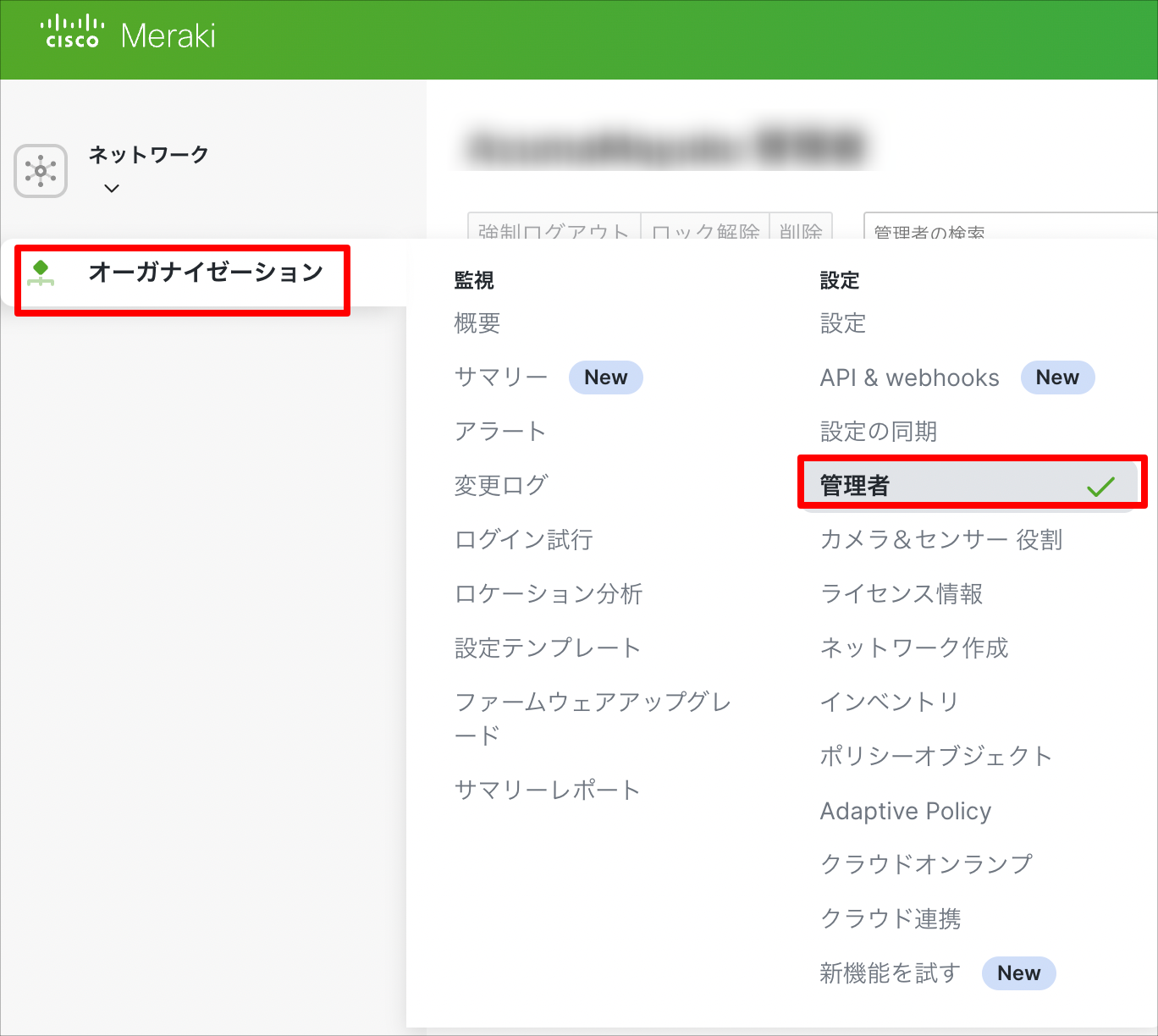

6. Open "Organization" > "Administrators".

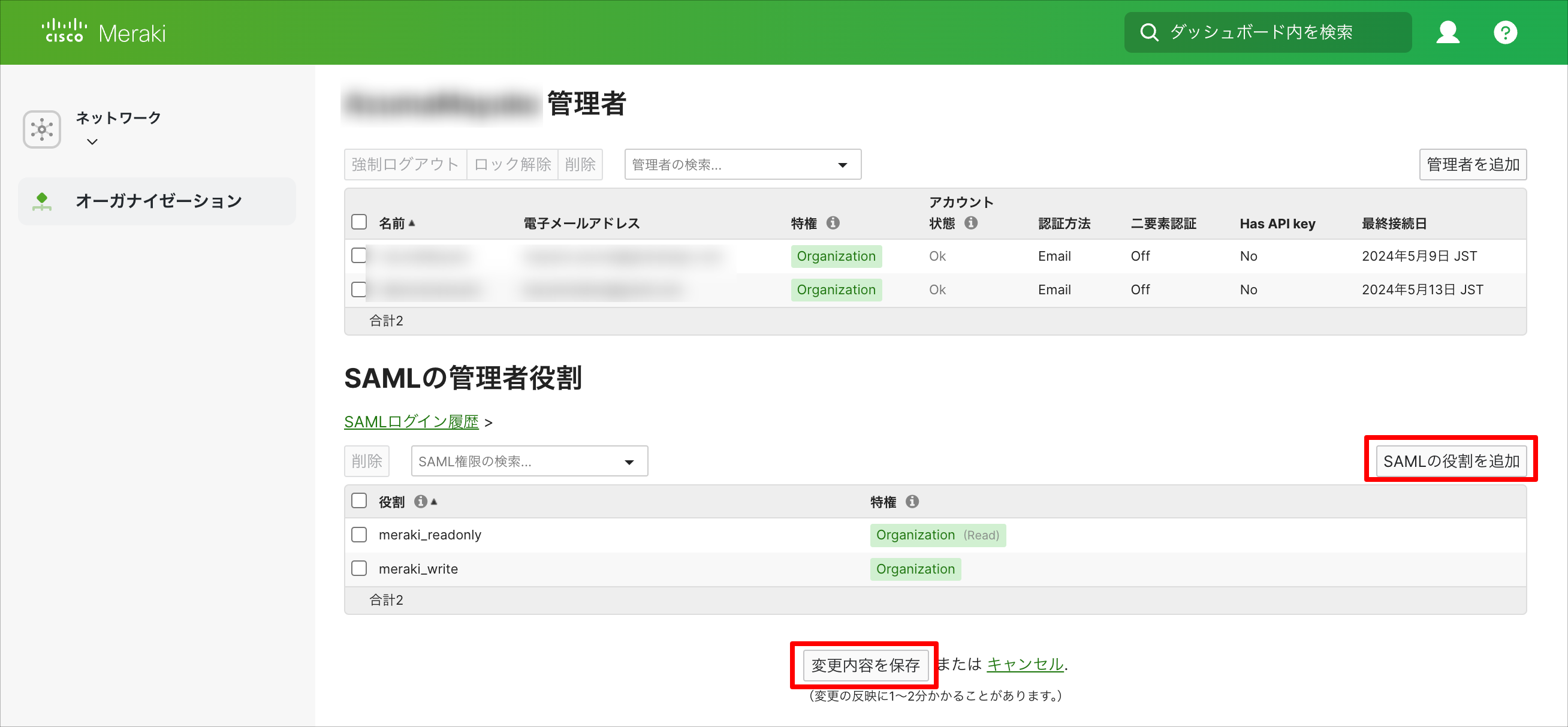

7. Click the "Add a SAML role" button to add an administrator role setting.
   The role name is the attribute value you added to the custom attribute.
   Save by clicking the "Save changes" button.


Now return to the TrustLogin admin page again.

TrustLogin Admin Page Configuration (Continued)

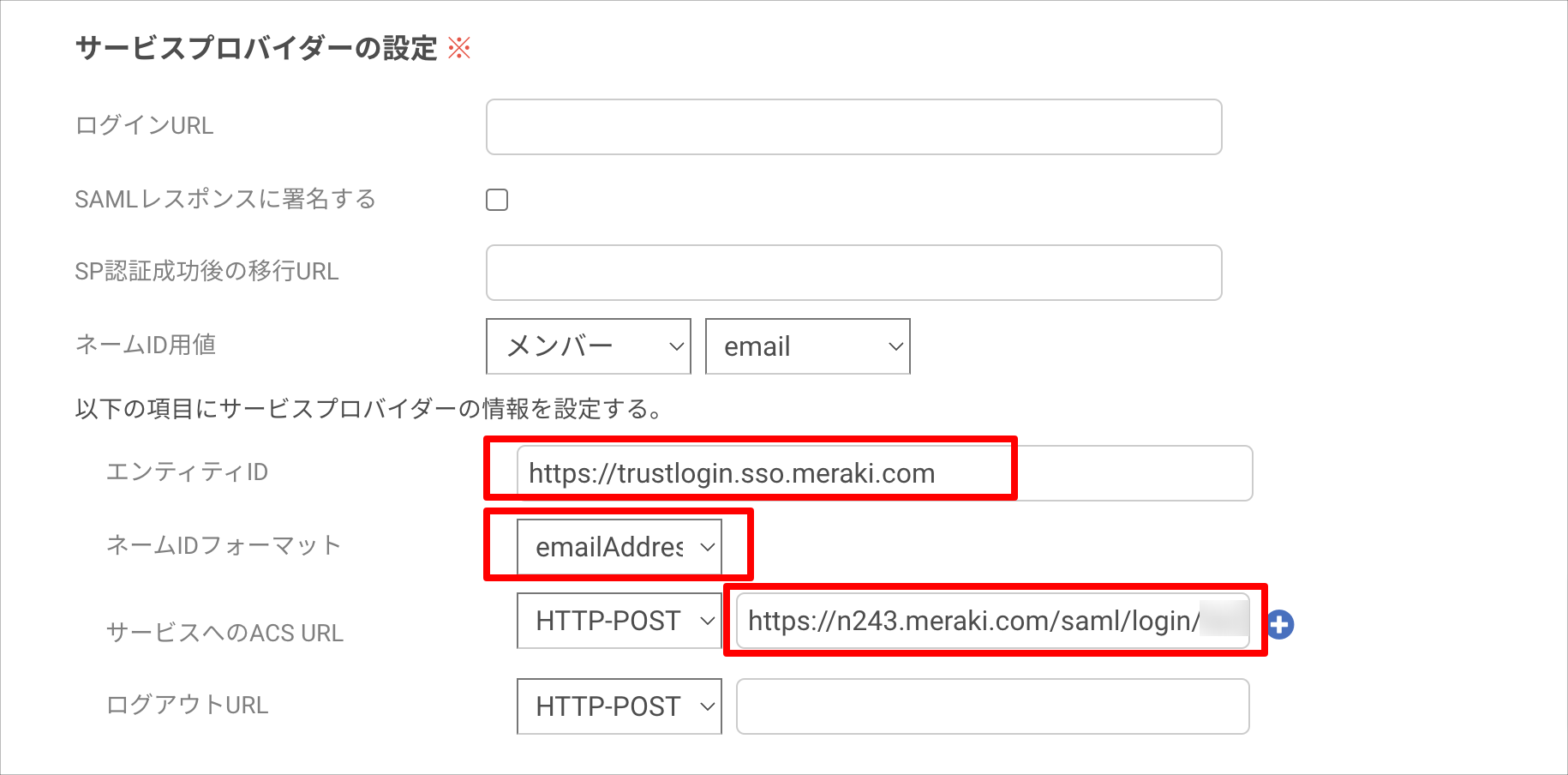

1. Configure "Service Provider Settings" as follows.


   Entity ID	https://[the SSO Subdomain you configured in Cisco Meraki].sso.meraki.com
   Name ID Format	emailAddress
   ACS URL to Service	The "Consumer URL" or "Consumer URL (Vision)" obtained from Cisco Meraki

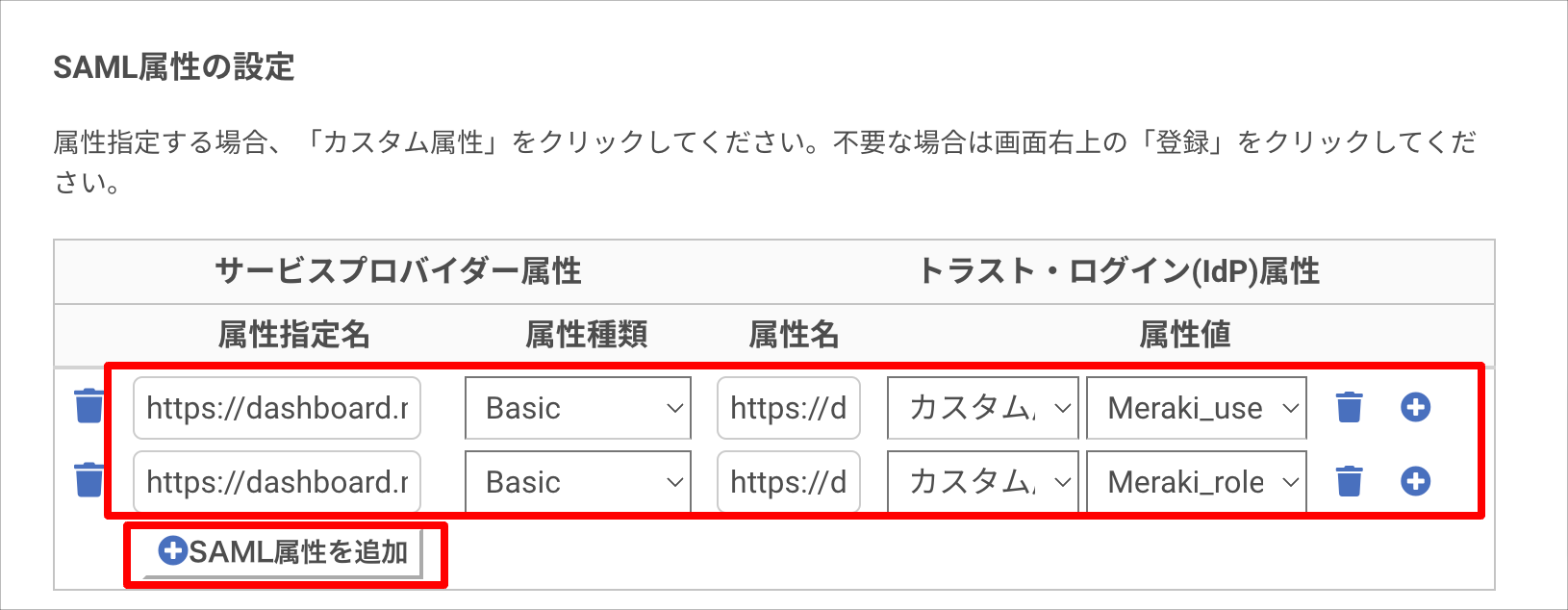

2. Click the "Specify Custom Attribute" button in "SAML Attribute Settings", then add a row (attribute) using the "Add SAML Attribute" button and configure it as follows.


   Service Provider Attribute			TrustLogin (IdP) Attribute
   Attribute Name	Attribute Type	Attribute Name		Attribute Value
   Value ①	Basic	Value ①	Custom Attribute	The attribute name in which "Username" was configured
   Value ②	Basic	Value ②	Custom Attribute	The attribute name in which "SAML Administrator Role" was configured

   ① https://dashboard.meraki.com/saml/attributes/username
   ② https://dashboard.meraki.com/saml/attributes/role




3. Save by clicking the "Register" button.

TrustLogin User Configuration

① When a User Adds the App via My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select the custom SAML app you created, and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

②When an Administrator Adds a Member

1. Search for and click the custom SAML app you created in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
