Prerequisites
When a user is created via SAML JIT, the "Display Name" is synced to microCMS. You need to configure a custom attribute in advance to link microCMS's "Display Name" to the TrustLogin member information.

Note: The attribute name can be anything you choose.

[TrustLogin Custom Attribute Configuration Example]

Please refer to the following pages for instructions on how to configure custom attributes.

• Custom Attribute Setup (Individual Registration)
• Custom Attribute Setup (Bulk Registration)

TrustLogin Admin Page Settings

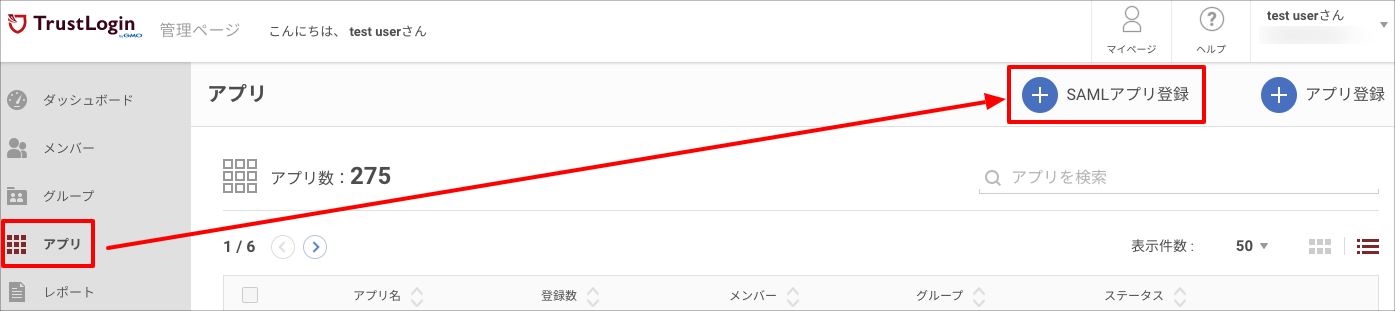

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register SAML App" button in the upper right of the screen.

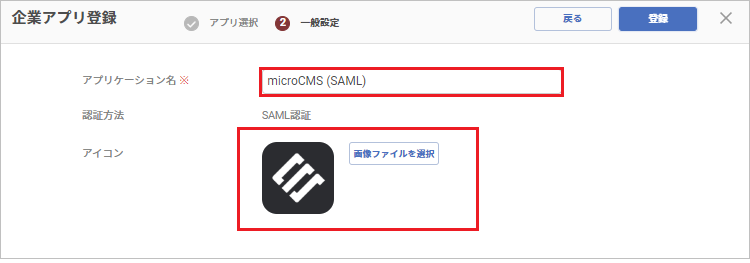

2. Configure the "Application Name" and "Icon" (optional).




3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".



Now, switch to configuring microCMS.
Do not click the "Register" button yet — open microCMS in a separate window.

microCMS Settings

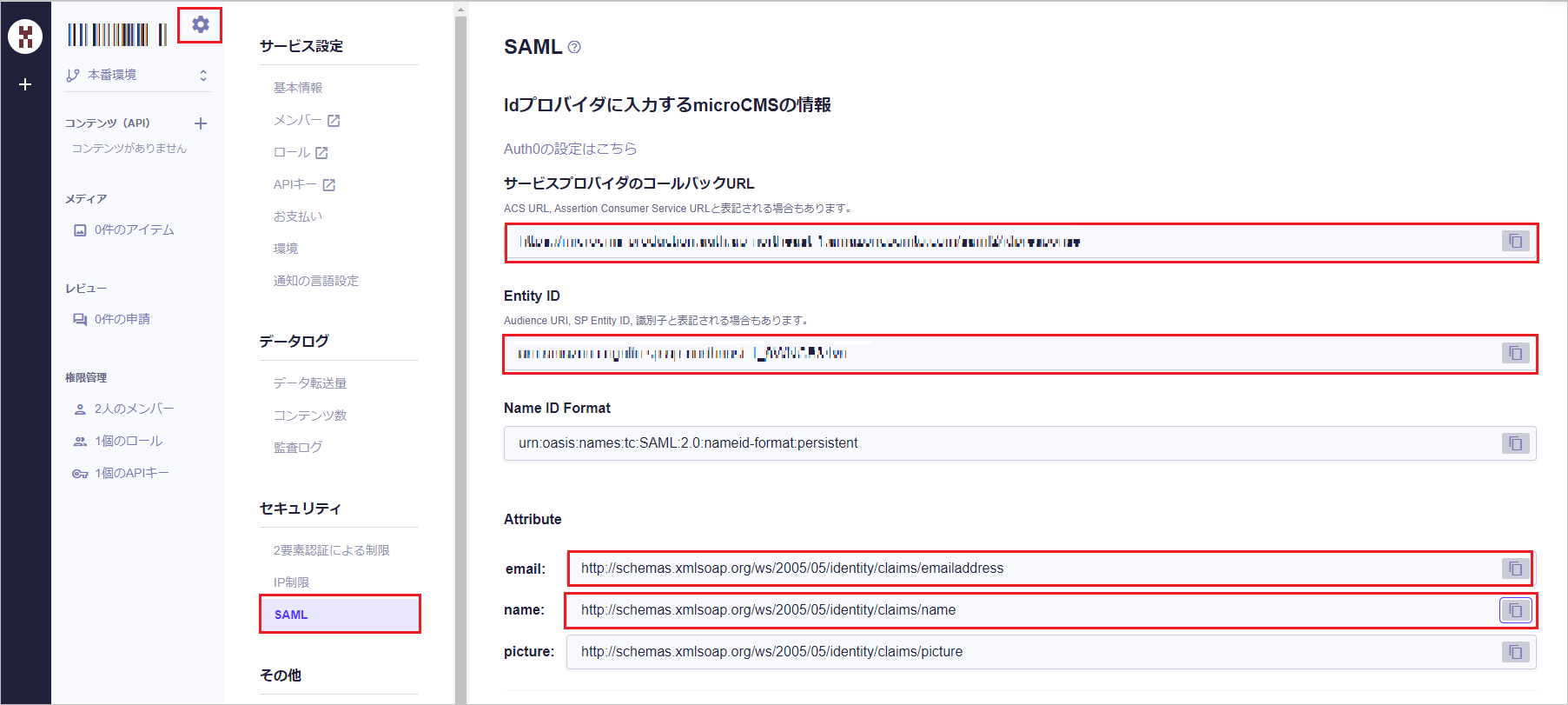

1. Log in with an administrator account and open "Gear icon > Security > SAML".
   Make a note of the "Service Provider Callback URL" and "Entity ID" values for the microCMS information to enter into the identity provider, as well as the "email" and "name" attribute values.

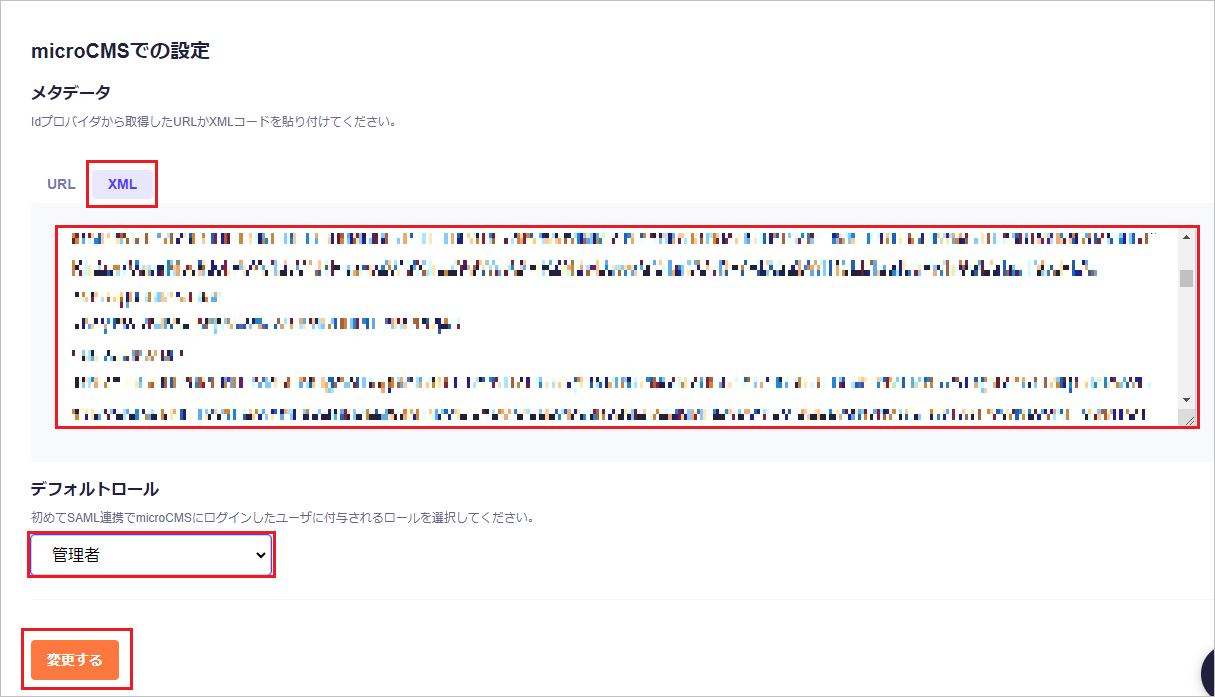

2. Configure as follows, and save the settings by clicking "Change".


   Metadata	Select the "XML" tab and paste the contents of the TrustLogin metadata
   Default Role	Select the role to be assigned when a user first logs in via SAML JIT Note: The role is set to Administrator by default.We recommend first configuring it as Administrator and verifying the SAML JIT connection. Note: If you want to assign a different role, you must create the role in microCMS in advance.

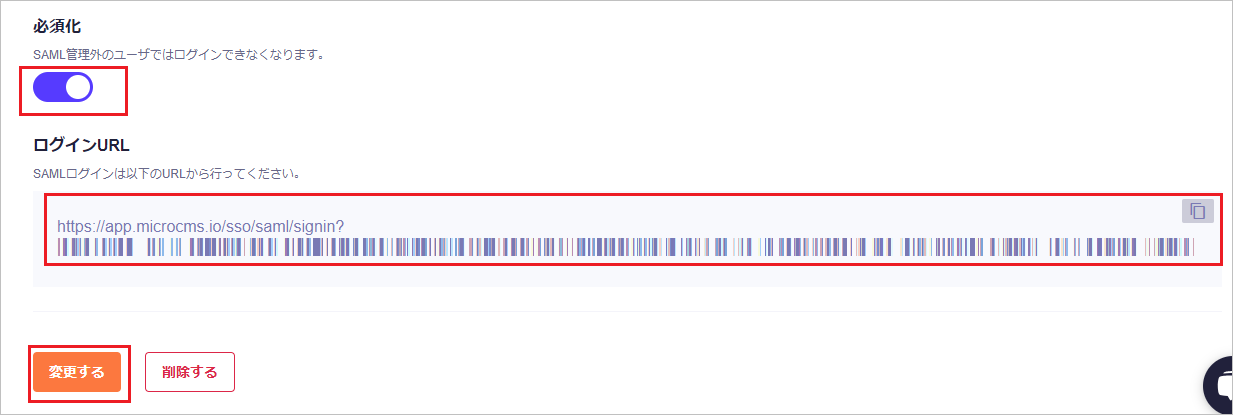

3. Configure as follows, and click the "Change" button again.


   Required

   Configure as desired Note: Turning this on will mean the admin screen, etc. can only be accessed via SAML authentication. (Even though password login itself will still work, access to the admin screen will not be allowed.) If you turn this on, please do so only after confirming that SAML authentication was successful. Note: If you set the default role to something other than Administrator during the initial SAML setup and turn this toggle on, all members will lose access to the admin screen. For this reason, when testing SAML for the first time, set the default role to Administrator and make sure an administrator user is created via SAML JIT.

   Login URL

   Copy and make a note of it




Now return to the TrustLogin admin page.

TrustLogin Admin Page Settings (Continued)

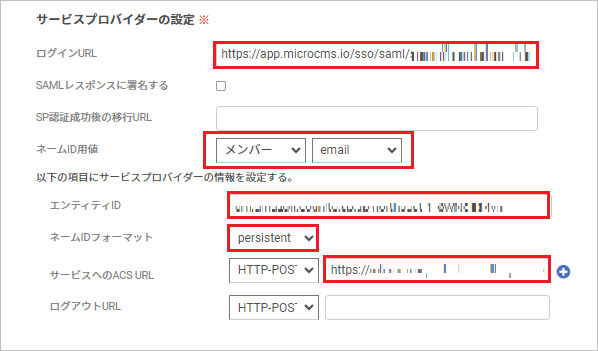

1. Configure "Service Provider Settings" as follows.


   Login URL	The "Login URL" you noted from microCMS
   Value for Name ID	Select "Member" - "email" (leave as default)
   Entity ID	The "Entity ID" you noted from microCMS
   Name ID Format	Select persistent
   ACS URL to Service	The "Service Provider Callback URL" you noted from microCMS

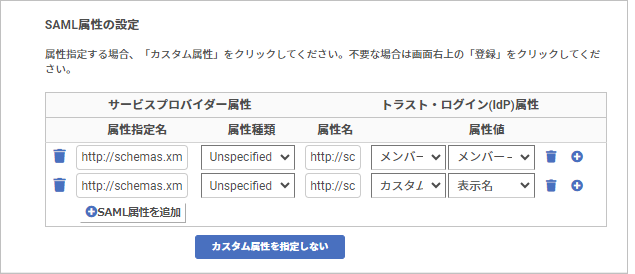

2. Click the "Add SAML Attribute" button in "SAML Attribute Settings" to add a row (attribute), and configure it as follows.

   Service Provider Attribute			TrustLogin (IdP) Attribute
   Attribute Name	Attribute Type	Attribute Name		Attribute Value
   The value of the "email" Attribute noted from microCMS http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress	Unspecified	http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress	Member	Member - Email Address
   The value of the "name" Attribute noted from microCMS http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name	Unspecified	http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name	Custom Attribute	The attribute name you configured (e.g., Display Name)





3. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "App Registration" screen, select the custom SAML app you created, and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, and click the "Register" button.

②When an Administrator Adds a Member

1. Search for and click the custom SAML app you created in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
