How to Configure SAML Authentication for Kurozika Schedule Management

Item

Details

Prior Confirmation

  • Pre-configuration is required in Kurozika Schedule Management.

  • You must create an account in Kurozika Schedule Management using the same email address as your TrustLogin account.

  • For the latest setup instructions, please refer to the manual provided by Kurozika Schedule Management.

Name ID

Email address

Custom attribute Note: For instructions on how to configure a custom attribute, click here

SP-side Configuration

Configured by the administrator

Request configuration from the SP

Provisioning

API-based Provisioning supported (account management possible in TrustLogin)

SAML JITProvisioning supported (account management possible in TrustLogin; user deletion not supported)

None (accounts created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verified Operation by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App

Note: The app is a Progressive Web App (PWA) that is installed from a web page.

TrustLogin Admin Page Configuration

  1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

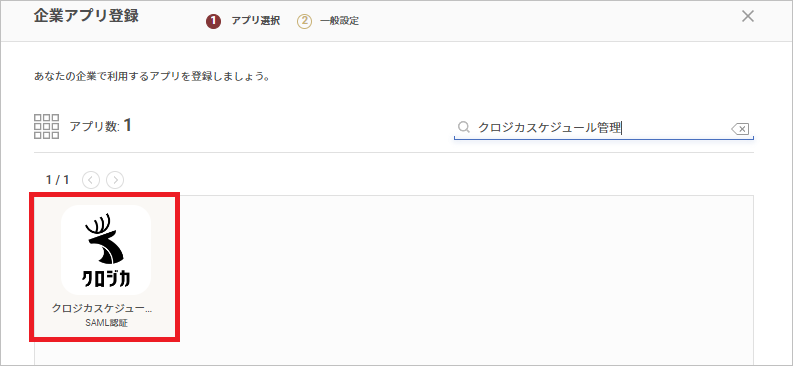

  2. Search on the "Register Company App" screen and select "Kurozika Schedule Management (SAML)".

  3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".03.png

Now, switch over to configuring Kurozika Schedule Management.
Do not click the "Register" button yet — open Kurozika Schedule Management in a separate window.

Kurozika Schedule Management Configuration

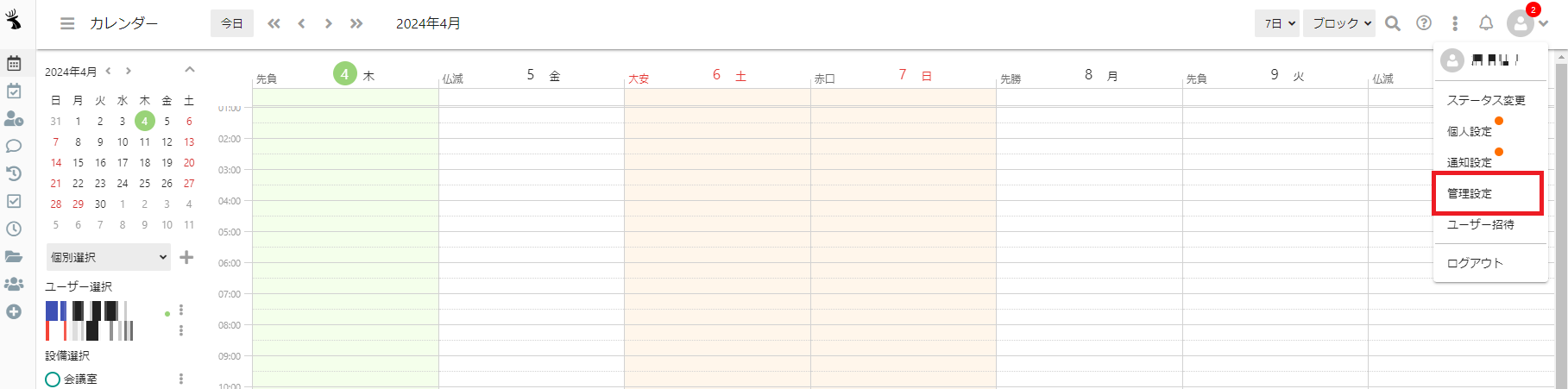

  1. Log in to Kurozika Schedule Management with an administrator account, and open "Admin Settings".

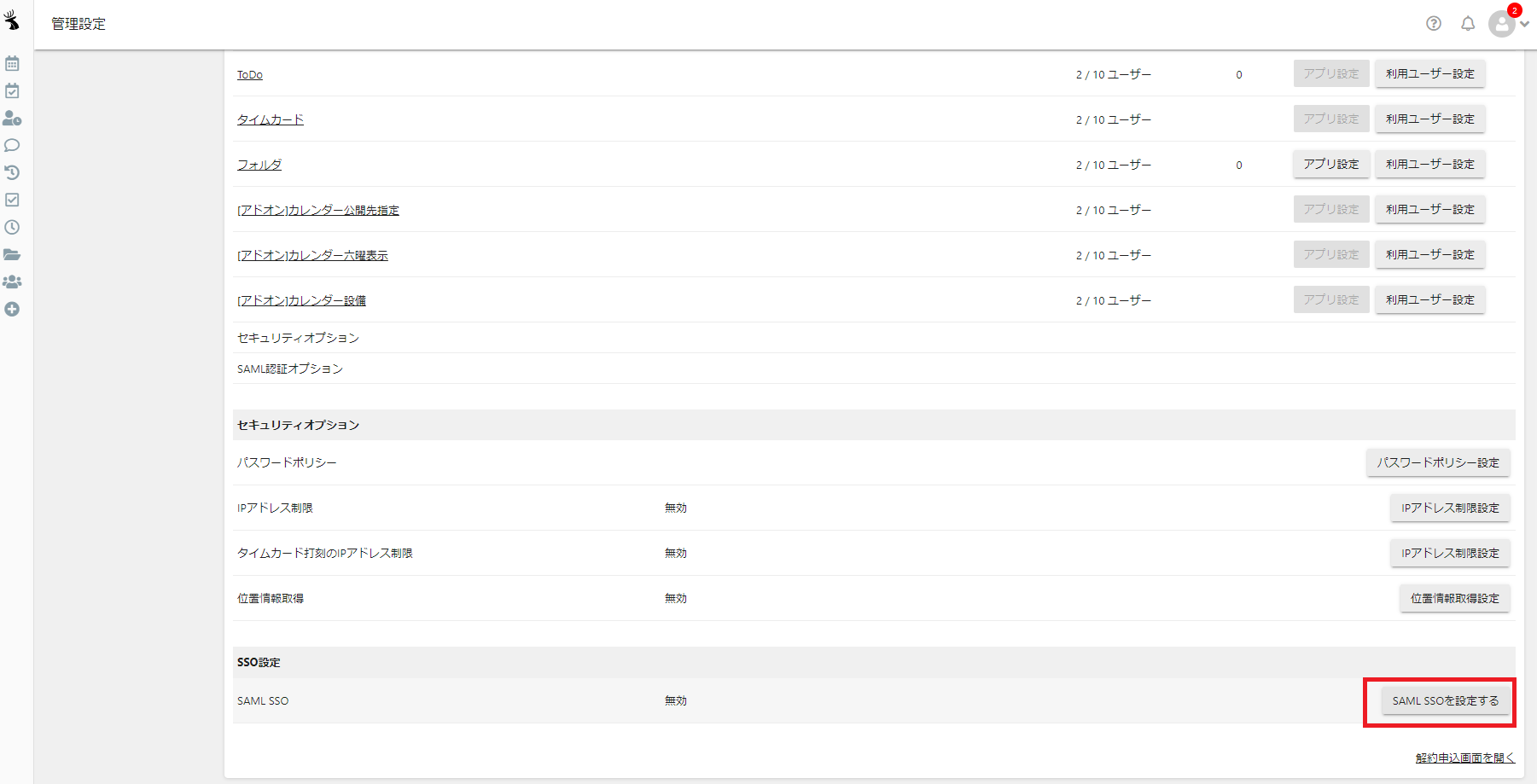

  2. Scroll to the bottom of the screen, and select "SSO Settings > Configure SAML SSO".

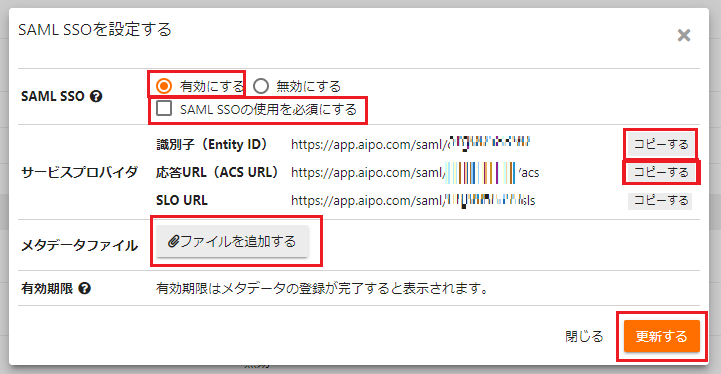

  3. Configure the following, and click "Update".
    SAML SSO

    Select "Enable"

    Note: If you check "Require SAML SSO", users will no longer be able to log in with a password.

    Service Provider Copy and note down the "Identifier (Entity ID)" and "Response URL (ACS URL)" respectively
    Metadata File Use "Add File" to upload the metadata you noted down from TrustLogin


Now return to the TrustLogin Admin Page.

TrustLogin Admin Page Configuration (Continued)

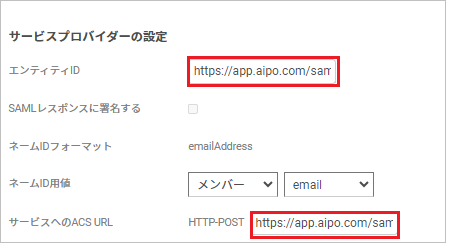

  1. Configure the "Service Provider Settings" as follows.
    Entity ID

    The "Identifier (Entity ID)" you noted down from Kurozika Schedule Management

    ACS URL to Service The "Response URL (ACS URL)" you noted down from Kurozika Schedule Management


  2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App via My Page

  1. Click the "Add App" button on "My Page".
  2. On the "Register App" screen, select "Kurozika Schedule Management (SAML)", and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an Administrator Adds a Member

  1. Search for and click the "Kurozika Schedule Management (SAML)" app in the "Admin Page > App" menu.
  2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
