Configuring the TrustLogin Admin Page

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

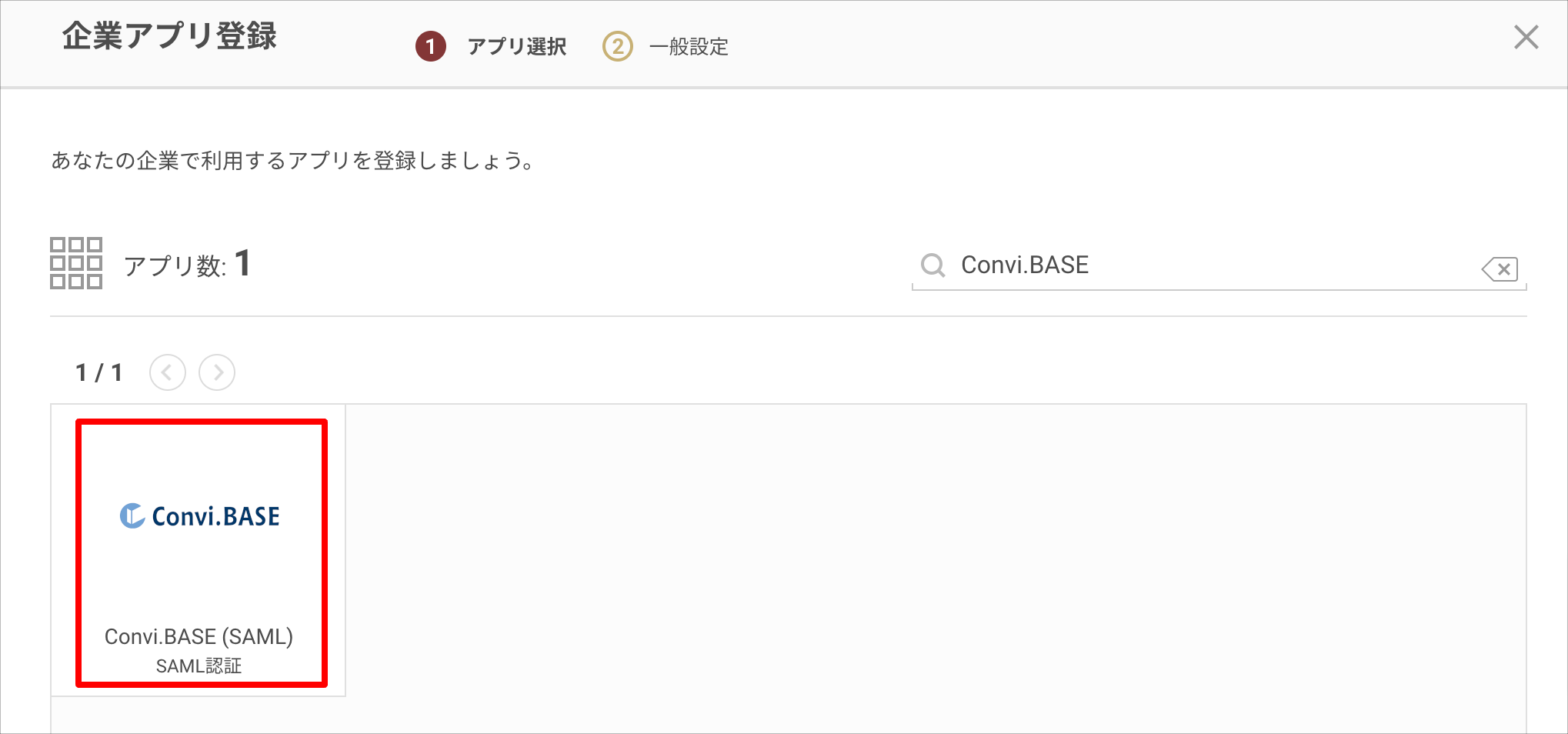

2. Search on the "Register Corporate App" screen and select "Convi.BASE (SAML)".



3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".



At this point, switch to the configuration on the Convi.BASE side.
Do not click the "Register" button yet — open Convi.BASE in a separate window.

Configuring Convi.BASE

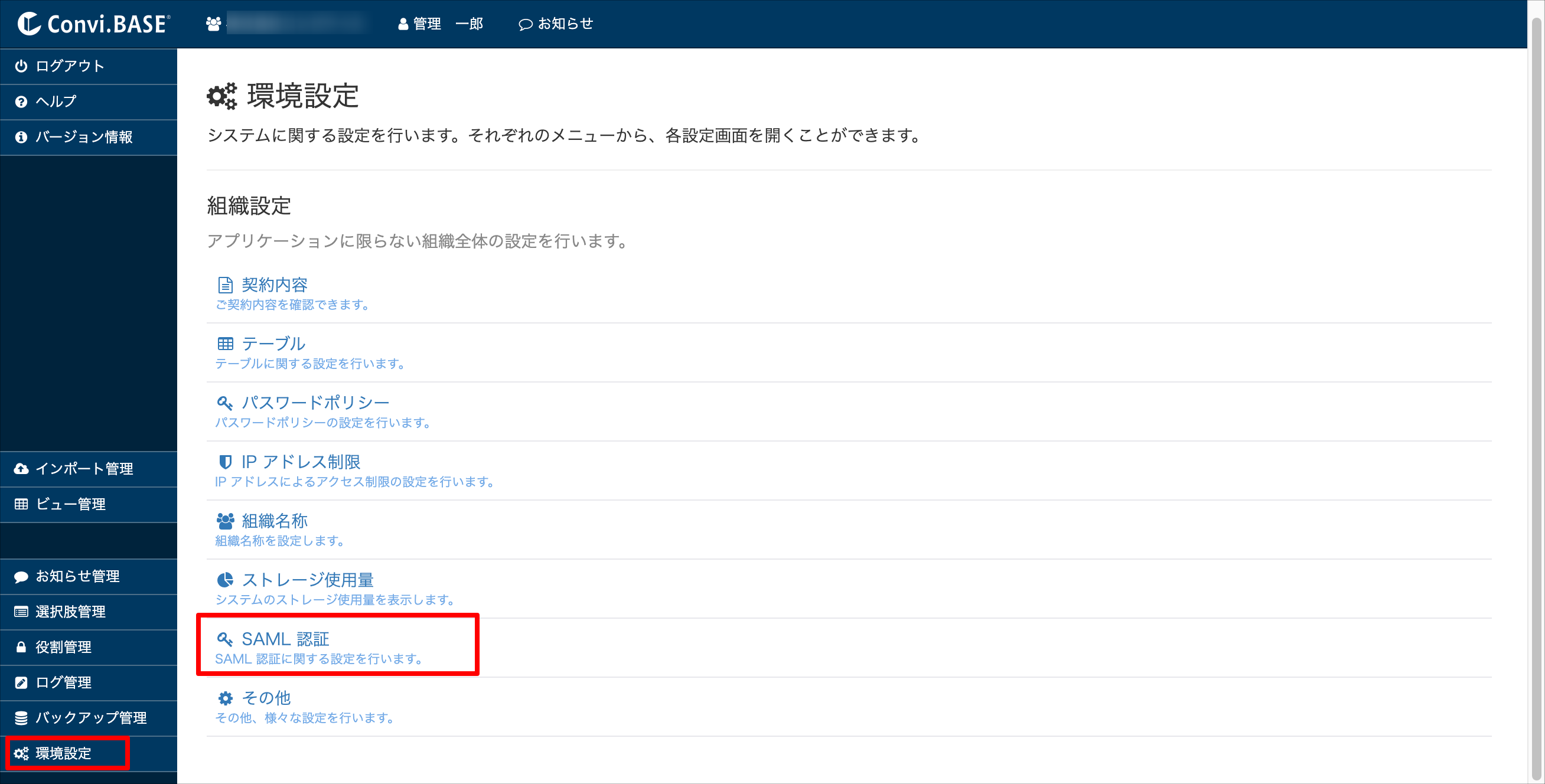

1. Log in with a system administrator account and open "Environment Settings > SAML Authentication".

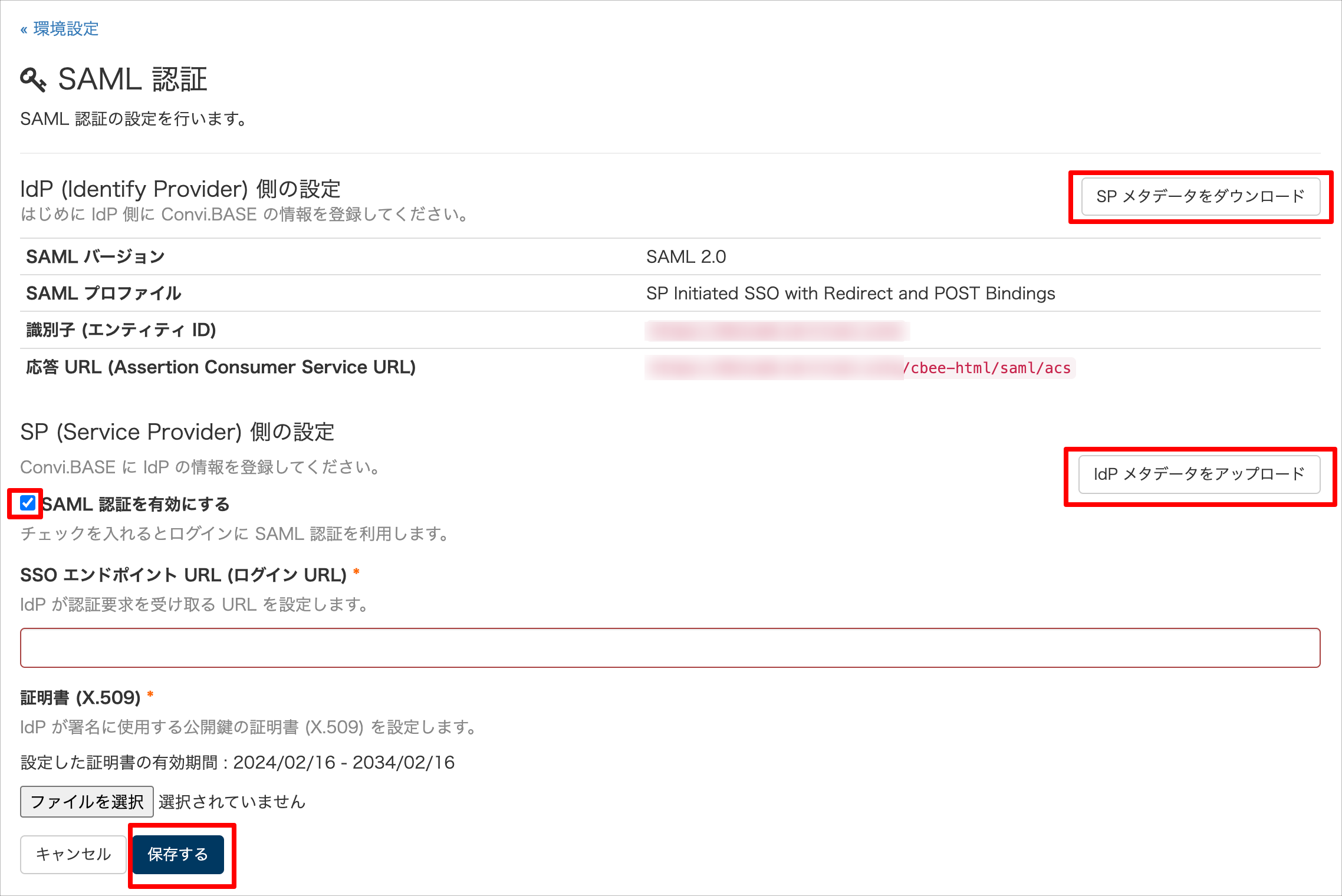

2. Use each button to download and upload the metadata, then save by clicking the "Save" button.
   Note: Once you save this setting, password login will no longer be available.


   Download SP Metadata	Click the button to download the metadata
   Upload IdP Metadata	Check "Enable SAML Authentication", then click the button to upload the "metadata" obtained from TrustLogin




Now return to the TrustLogin Admin Page.

Configuring the TrustLogin Admin Page (Continued)

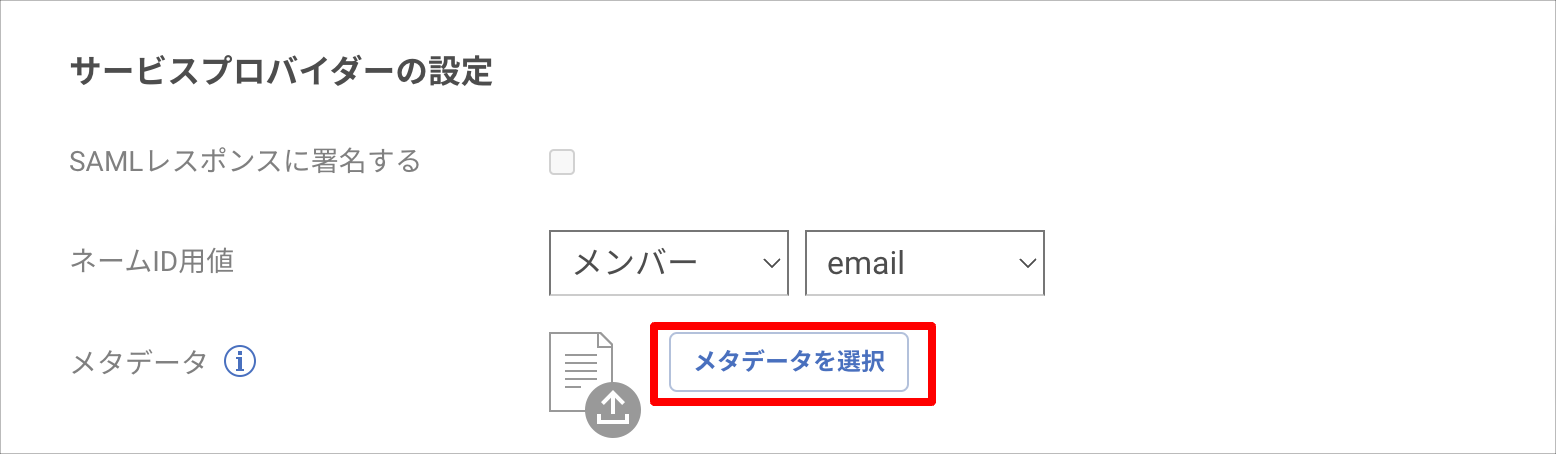

1. Click the "Select Metadata" button under "Service Provider Settings" and upload the metadata obtained from Convi.BASE.



2. Save by clicking the "Register" button.

Configuring TrustLogin Users

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Convi.BASE (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an administrator adds members

1. In the "Admin Page > Apps" menu, search for and click the "Convi.BASE (SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
