Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to configure custom attributes, see here |
||
|
SP-side Settings |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
Supports provisioning via API (account management possible in TrustLogin) |
|
|
Supports SAML JIT provisioning (account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts created in each system) |
|
|
Access Method |
|
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verification Status by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Configuration
-
Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

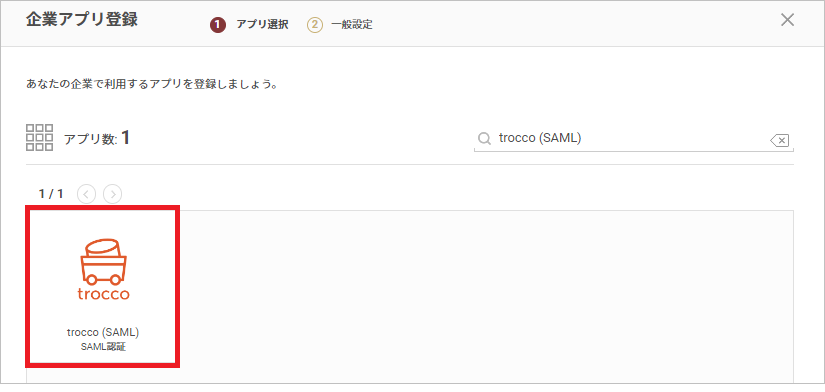

- Search on the "Register Corporate App" screen and select "trocco (SAML)".
- Download the metadata from the "Download Metadata" button under "Identity Provider Information".
At this point, switch to configuring the trocco® side.
Do not click the "Register" button yet — open trocco® in a separate window.
trocco® Configuration

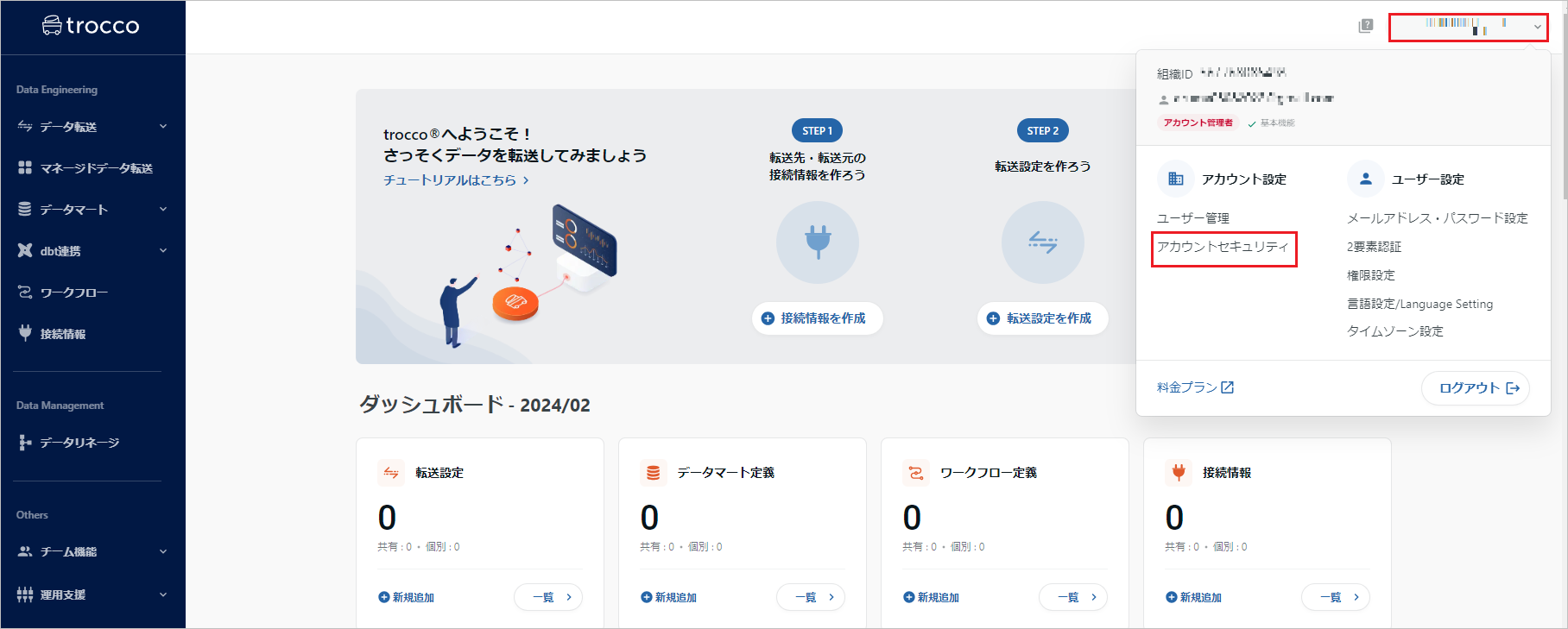

- Log in to trocco® as the account administrator, and click your email address in the upper right of the screen > Account Security.

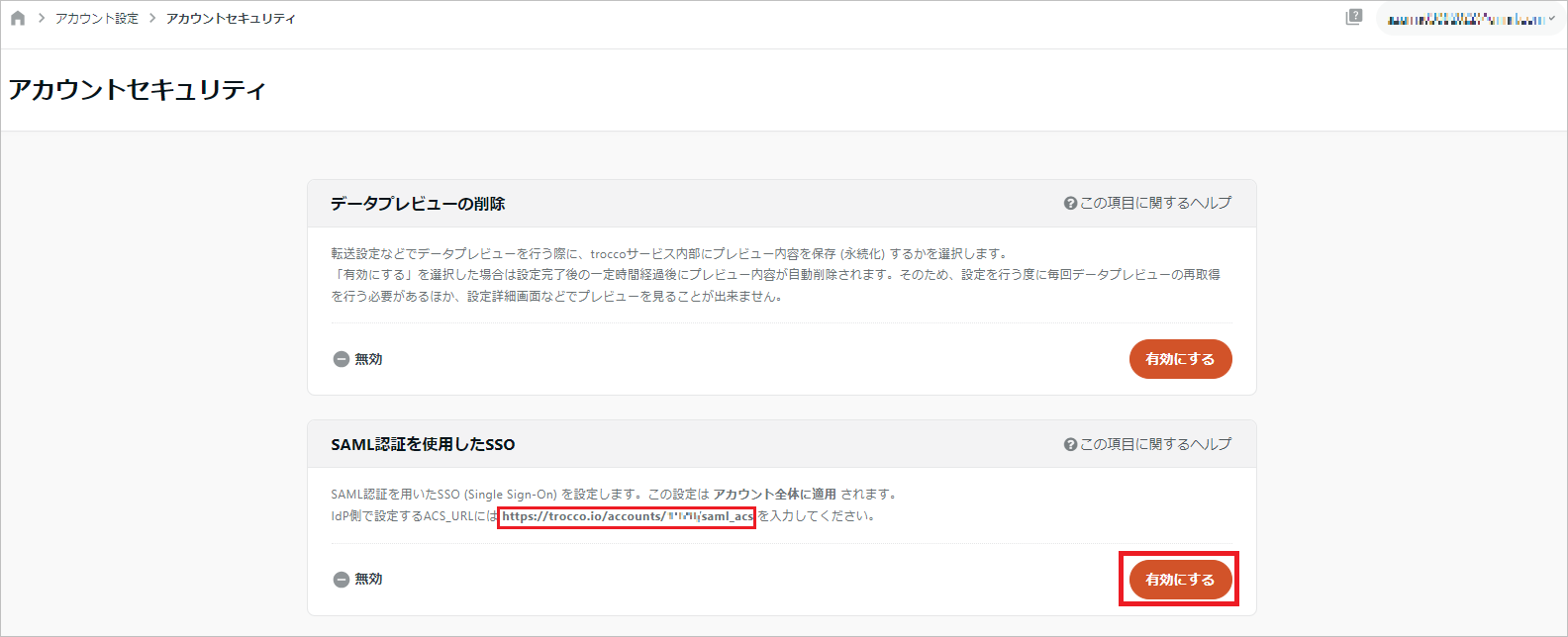

- On the Account Security screen, copy the "ACS_URL" displayed under "SSO Using SAML Authentication" and make a note of it. Then click "Enable".

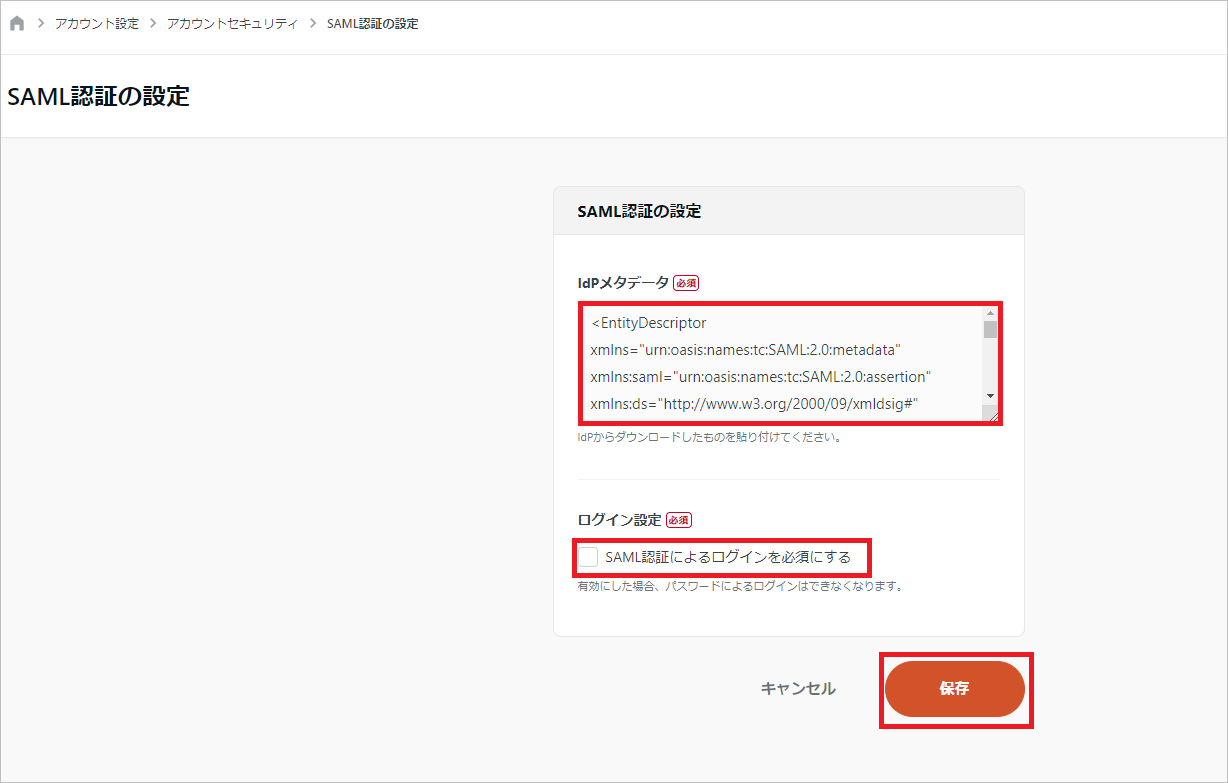

- Configure the "SAML Authentication Settings" as follows, and save the settings by clicking the "Save" button.
IdP Metadata Copy and paste the contents of the metadata you saved from TrustLogin Login Settings Check this box according to your operational needs
Note: Checking this box will restrict login to SAML authentication only, and password login will no longer be available. We recommend checking this box after confirming that the SAML authentication connection succeeds.
Return to the TrustLogin Admin Page again.
TrustLogin Admin Page Configuration (Continued)
- In "Service Provider Settings", enter the "ACS_URL" you noted from trocco® into "ACS URL for Service".
- Click the "Register" button to save.
TrustLogin User Configuration
① When Users Add the App from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "trocco (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When Administrators Add Members
- In the "Admin Page > Apps" menu, search for and click the "trocco (SAML)" app.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
