Note: If you are using client authentication, SSO is not available on the iOS - Native App or Android - Native App.

TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

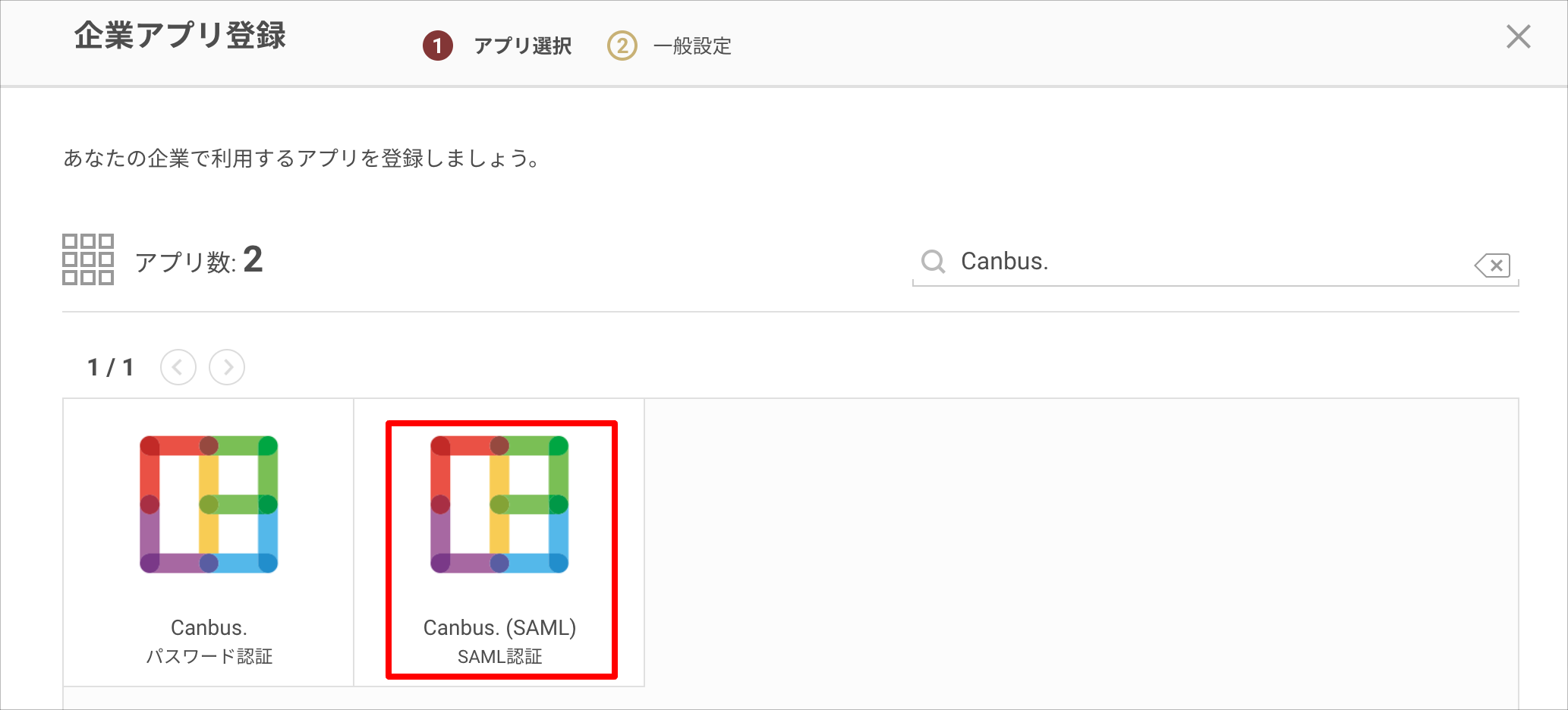

2. Search on the "Register Company App" screen and select "Canbus. (SAML)".



3. Note down the value of "Identity Provider URL" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.



4. Convert the file extension of the downloaded certificate to ".crt".

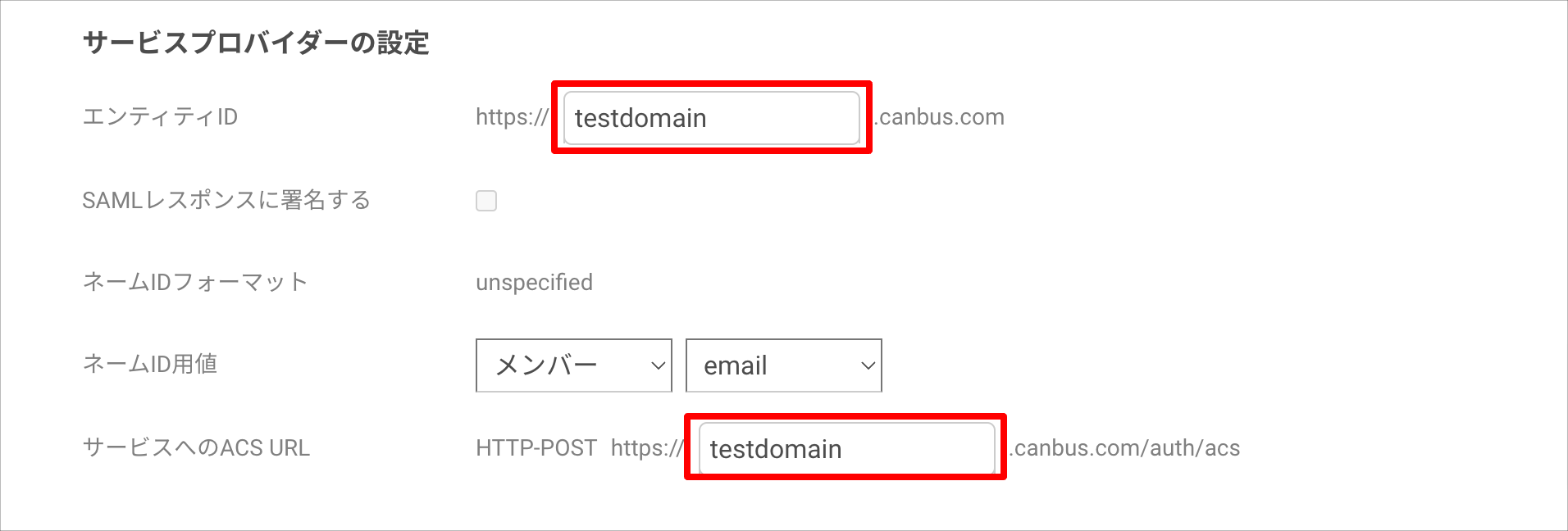

5. In the "Service Provider Settings" section, enter your Canbus. tenant ID in the "Entity ID" and "ACS URL to Service" fields.


6. Save by clicking the "Register" button.

Canbus. Settings

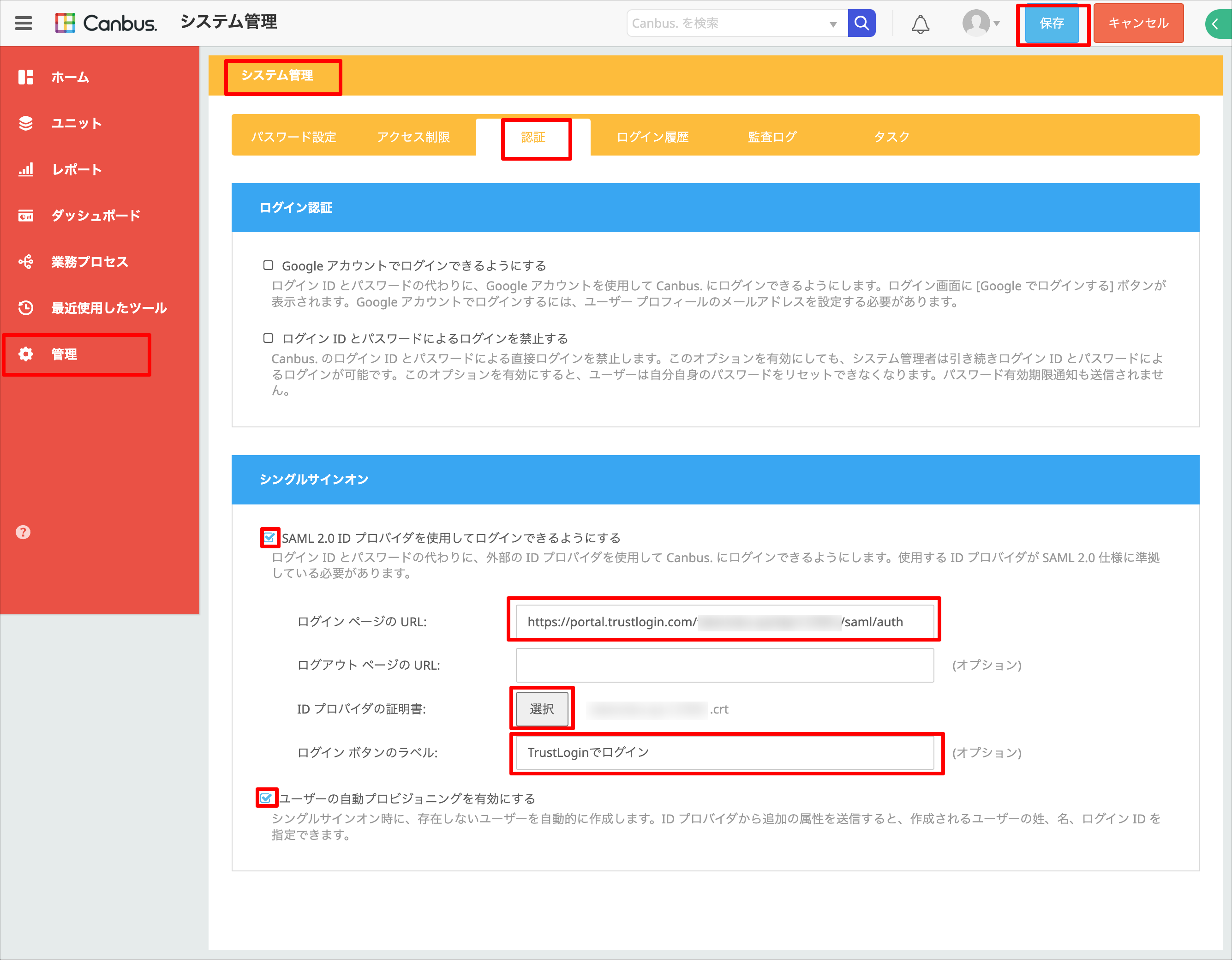

1. Log in with an administrator account, open "Admin > System Administration > Authentication", and configure each item as follows.


   Enable login using SAML 2.0 identity provider	Check the box
   Login page URL	The "Identity Provider URL" obtained from TrustLogin
   Identity provider certificate	The "certificate" obtained from TrustLogin, converted to Crt format
   Login button label (optional)	Label for the SSO button on the login page
   Enable automatic user provisioning	Check the box





2. Save the settings by clicking the "Save" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Canbus. (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

1. Search for and click the "Canbus. (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
