TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

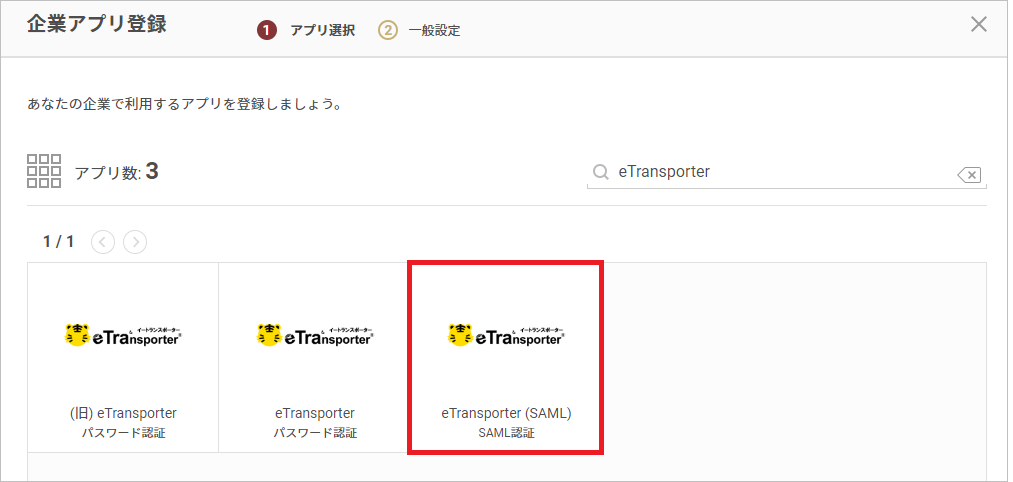

2. Search on the "Register Company App" screen and select "eTransporter (SAML)".



3. Under "Identity Provider Information", note down the values of "Identity Provider URL" and "Issuer / Entity ID", and download the certificate using the "Get Certificate" button.

Now, let's move on to the settings on the eTransporter side.
Do not click the "Register" button, and open eTransporter in a separate window.

eTransporter Settings

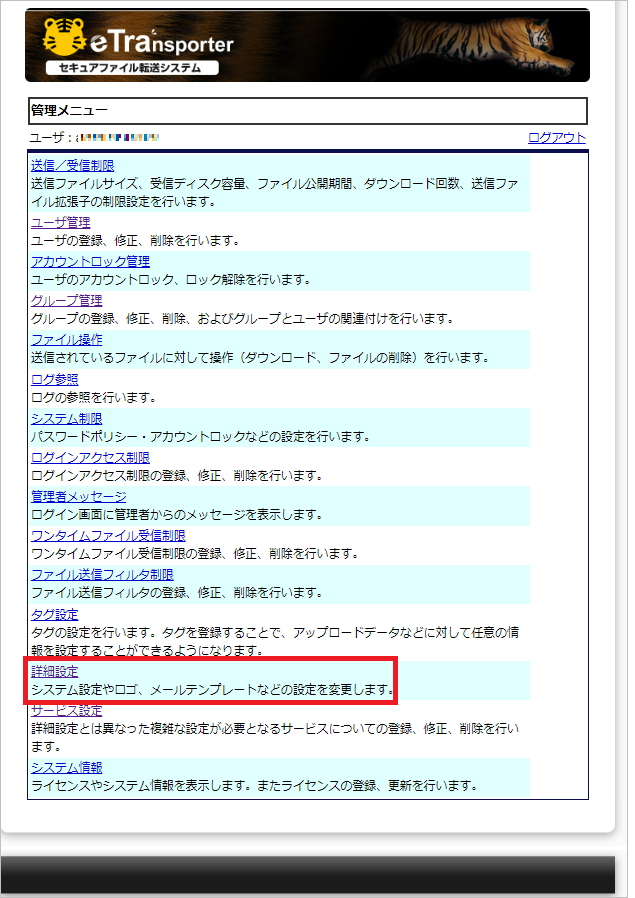

1. Log in to the eTransporter Admin screen and open "Advanced Settings".

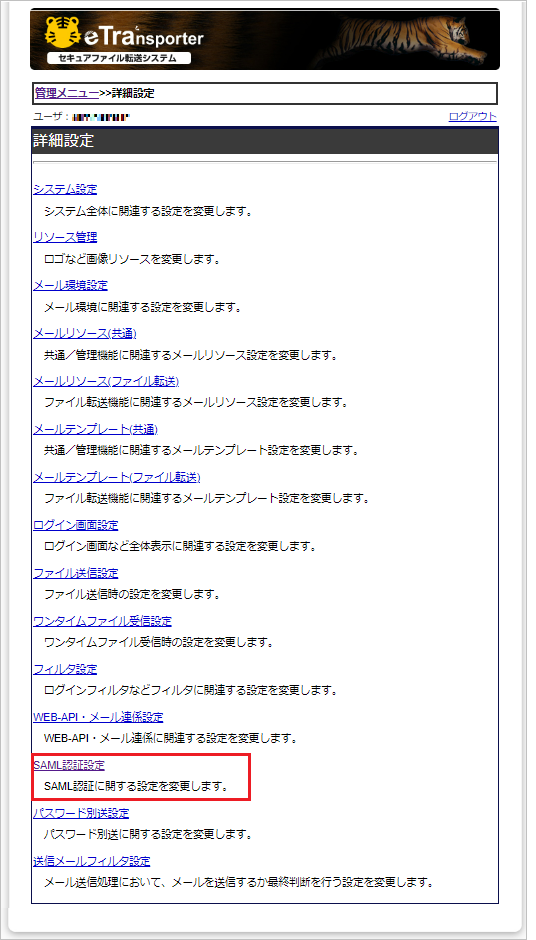

2. Select "SAML Authentication Settings".

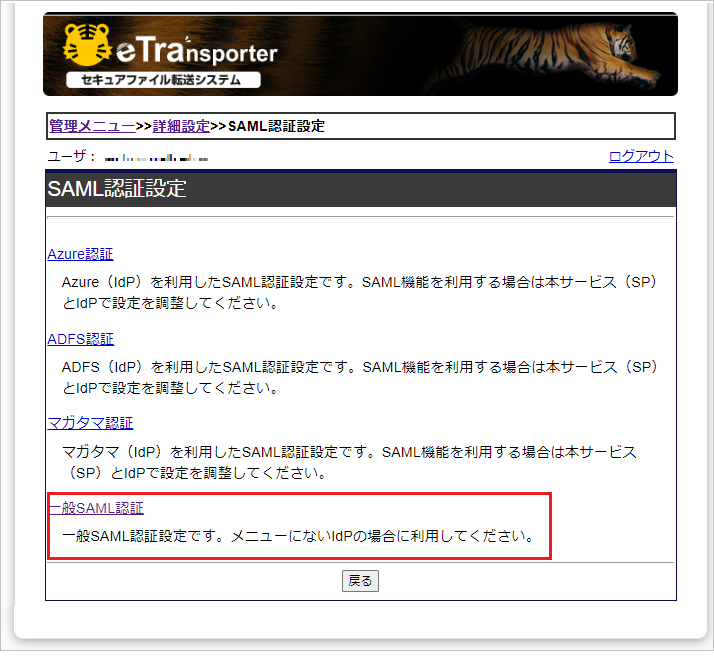

3. Select "General SAML Authentication".

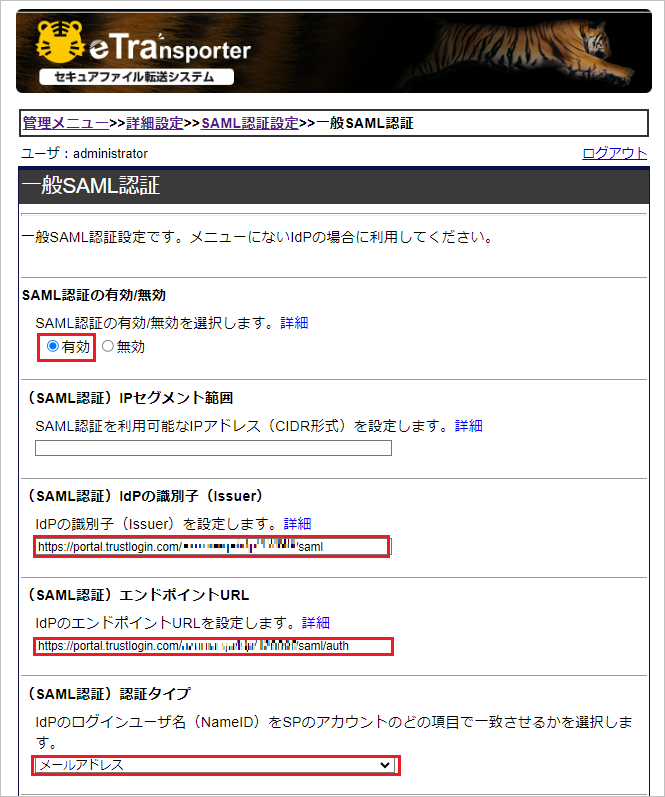

4. Configure the settings as follows, then click "Update".


   Enable/Disable SAML Authentication	Enabled
   (SAML Authentication) IP Segment Range	Set as needed　 Note: Set the IP addresses from which SAML authentication can be used. Only access from within the specified range will display the authentication link on the login screen. If left blank, there is no restriction.
   (SAML Authentication) IdP Identifier (Issuer)	The "Issuer / Entity ID" you noted from TrustLogin
   (SAML Authentication) Endpoint URL	The "Identity Provider URL" you noted from TrustLogin
   (SAML Authentication) Authentication Type	Email address

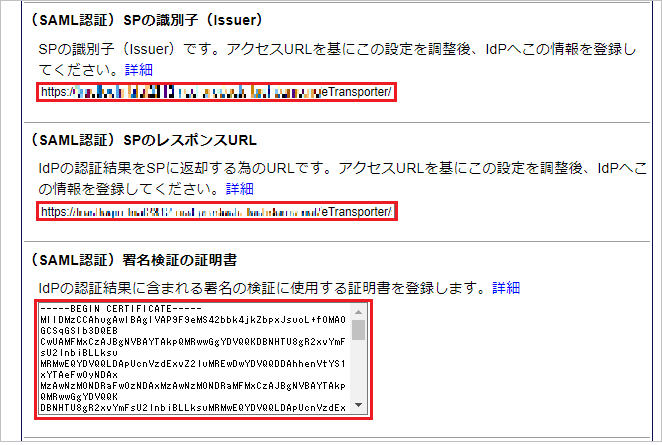

   (SAML Authentication) SP Identifier (Issuer)	Change the "localhost" portion of the URL to your company's eTransporter FQDN Copy the updated URL and keep a note of it
   (SAML Authentication) SP Response URL	Change the "localhost" portion of the URL to your company's eTransporter FQDN Copy the updated URL and keep a note of it
   (SAML Authentication) Signature Verification Certificate	Paste the contents of the "Certificate" you noted from TrustLogin

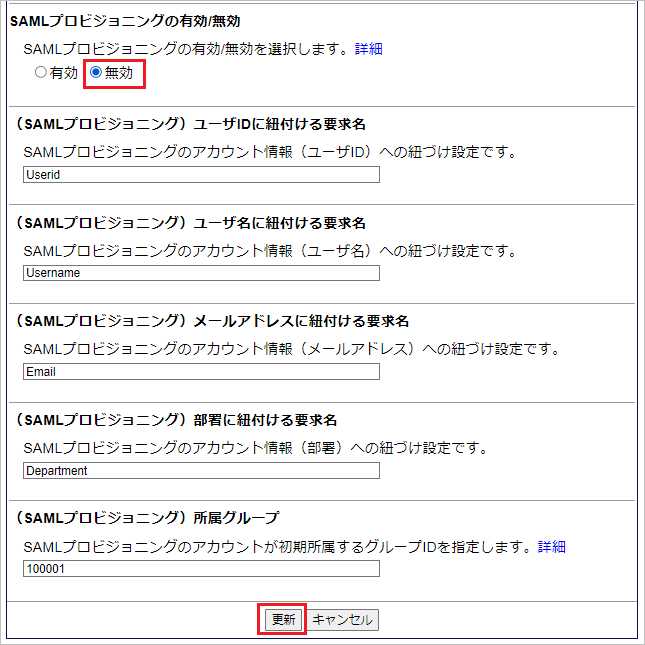

   Enable/Disable SAML Provisioning	Disabled
   (SAML Provisioning) Claim Name Mapped to User ID	Userid
   (SAML Provisioning) Claim Name Mapped to Username	Username
   (SAML Provisioning) Claim Name Mapped to Email Address	Email
   (SAML Provisioning) Claim Name Mapped to Department	Department
   (SAML Provisioning) Affiliated Group	Specify the group ID that the user will belong to when a new user is created via SAML JIT. Note: If the user belongs to multiple groups, enter them separated by commas.

   Note: The provisioning configuration items are required to be entered, but provisioning is not performed in this manual.






Now, return to the TrustLogin Admin Page.

TrustLogin Admin Page Settings (Continued)

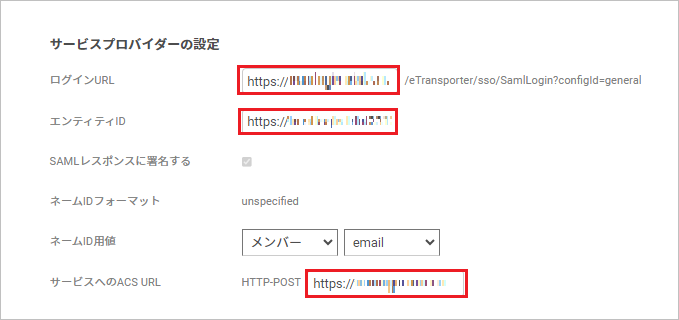

1. Configure "Service Provider Settings" as follows.


   Login URL	The user login URL for eTransporter Example: https://xxxx.△△△△.net
   Entity ID	The "SP Identifier (Issuer)" you noted from eTransporter
   ACS URL for the Service	The "SP Response URL" you noted from eTransporter





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

1. On "My Page", click the "Add App" button.
2. On the "Register App" screen, select "eTransporter (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

② When an Administrator Adds Members

1. In the "Admin Page > App" menu, search for and click the "eTransporter (SAML)" app.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
