TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

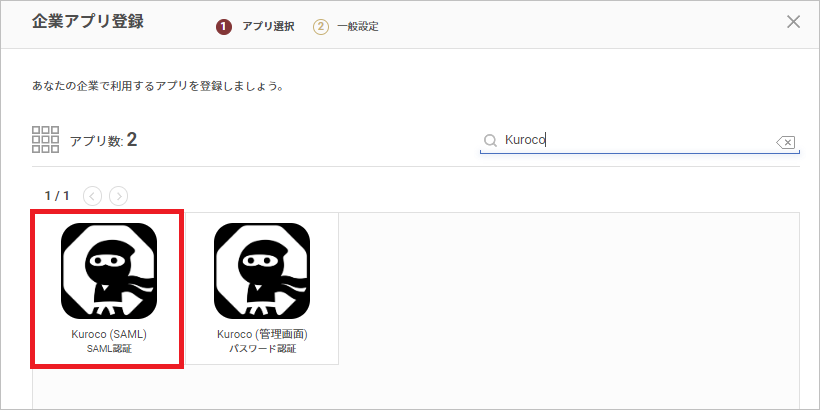

2. Search on the "Register Company App" screen and select "Kuroco (SAML)".



3. Note down the "Identity Provider URL" and "Issuer/Entity ID" values under "Identity Provider Information", then download the certificate from the "Get Certificate" button.



4. Convert the file extension of the downloaded certificate to ".cer".


Now, switch to configuring Kuroco.
Do not click the "Register" button yet — open the Kuroco admin screen in a separate window.

Kuroco Settings

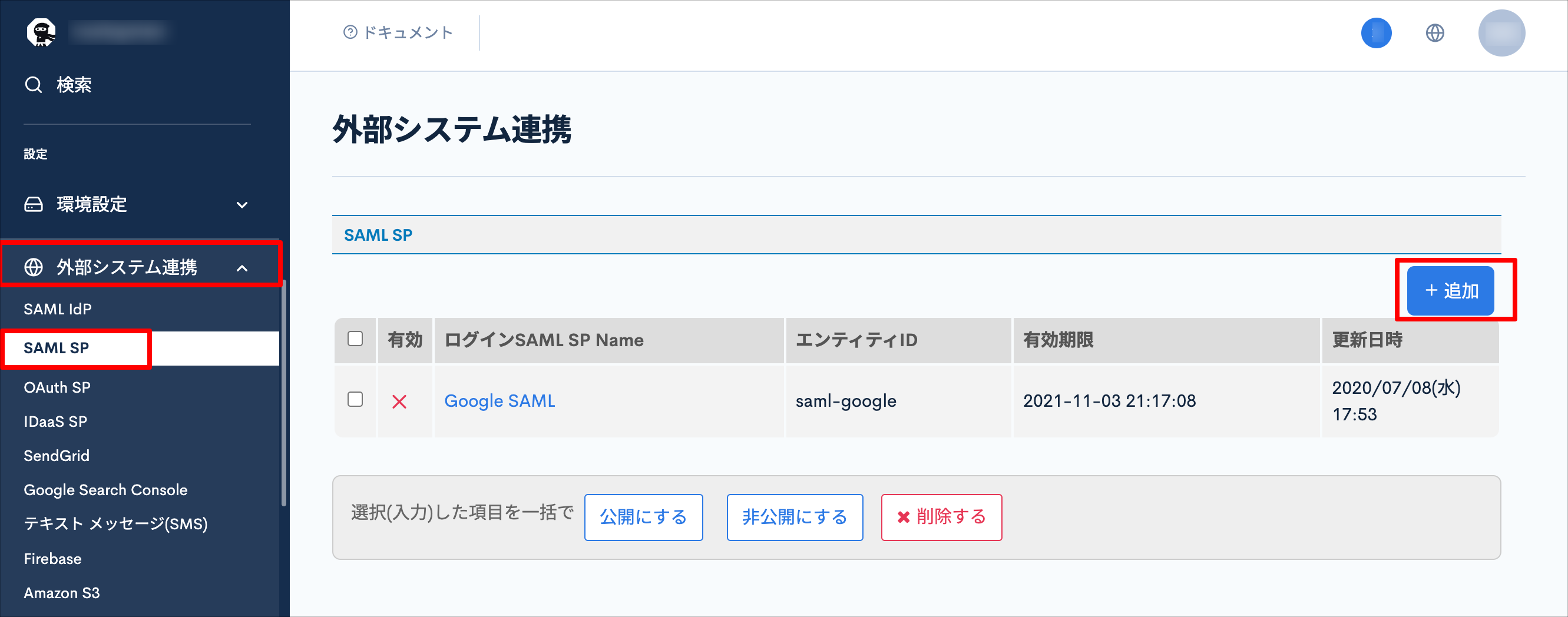

1. Select "External System Integration > SAML SP" from the left menu and click the "Add" button.

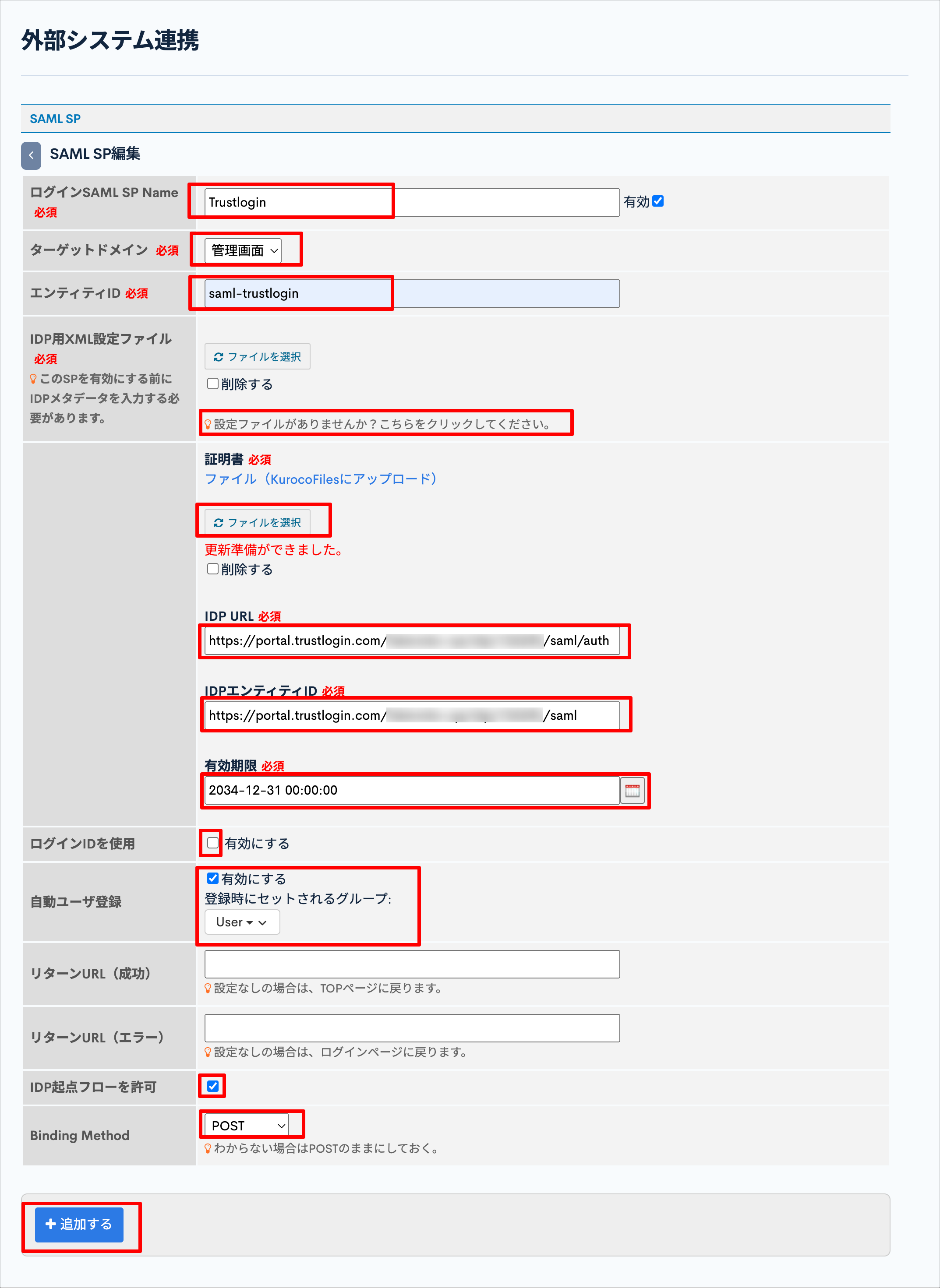

2. Configure each item as follows, and finally save by clicking the "Add" button.


   Login SAML SP Name	Set any name you like
   Target Domain	Specify the page to redirect to after login
   Entity ID	Set any string you like
   IDP XML Configuration File	Click "Don't have a configuration file? Click here."
   Certificate	The "Certificate" obtained from TrustLogin (converted to a CER file)
   IDP URL	The "Identity Provider URL" obtained from TrustLogin
   IDP Entity ID	The "Issuer/Entity ID" obtained from TrustLogin
   Expiration Date	Set any date and time you like
   Use Login ID	Turn the checkbox OFF
   Automatic User Registration	Turn the checkbox ON Select the group to assign to the user upon new registration
   Allow IDP-Initiated Flow	Turn the checkbox ON
   Binding Method	Select "POST"

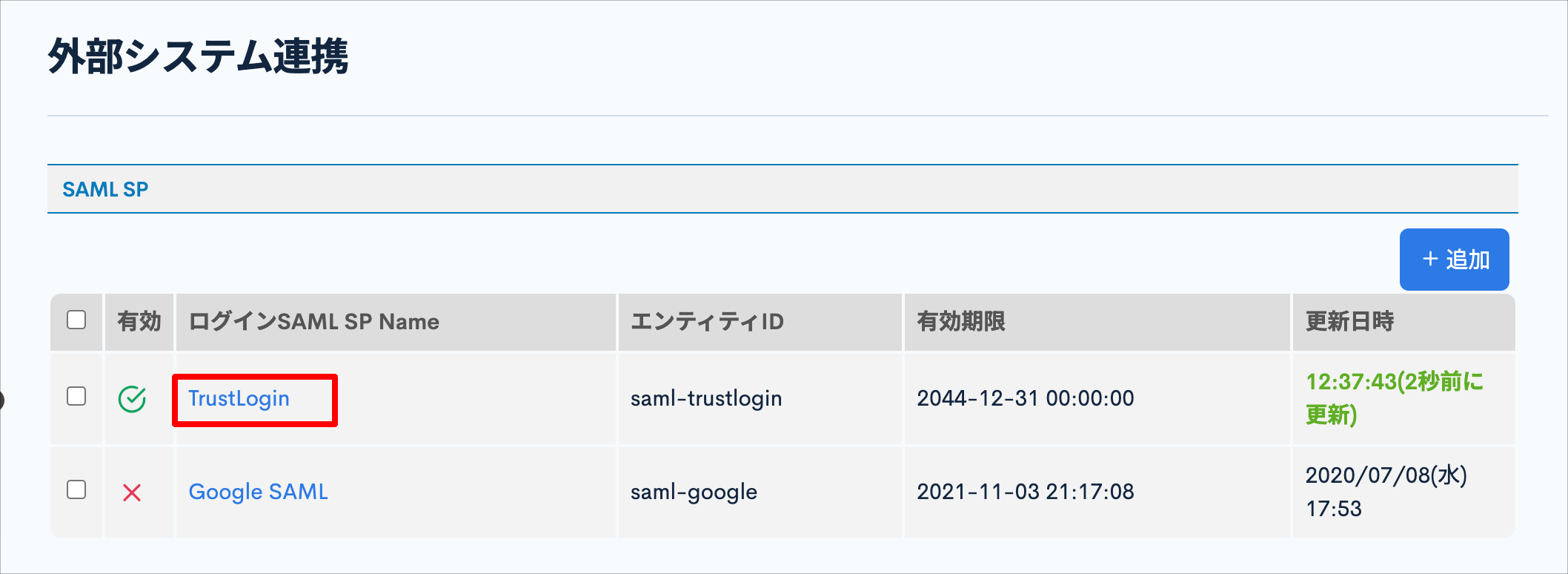

3. Click the SAML SP configuration you created.

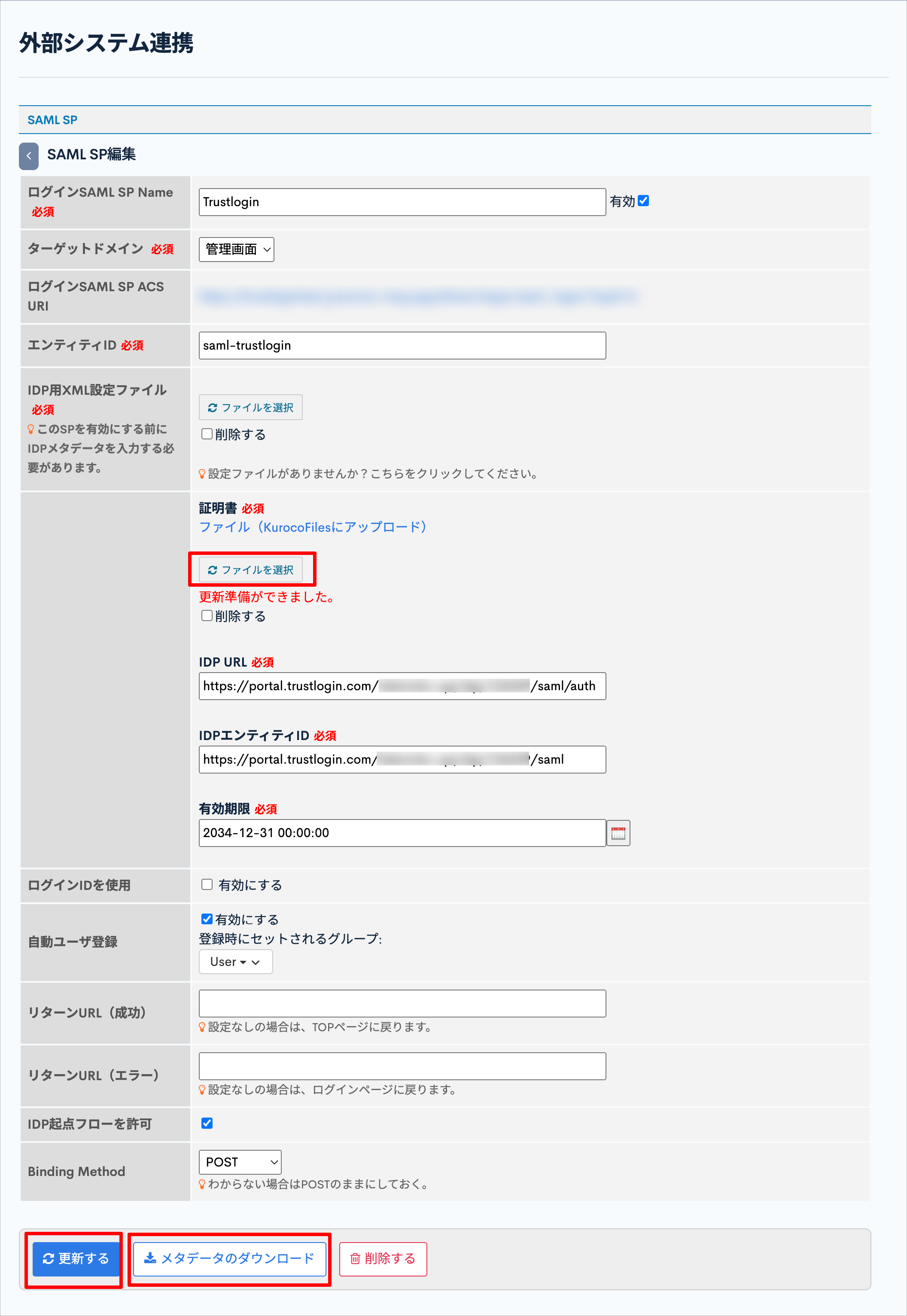

4. Upload the "Certificate" obtained from TrustLogin to "Certificate" again, and
   get the metadata from "Download Metadata".
   Finally, update by clicking the "Update" button.


Now return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

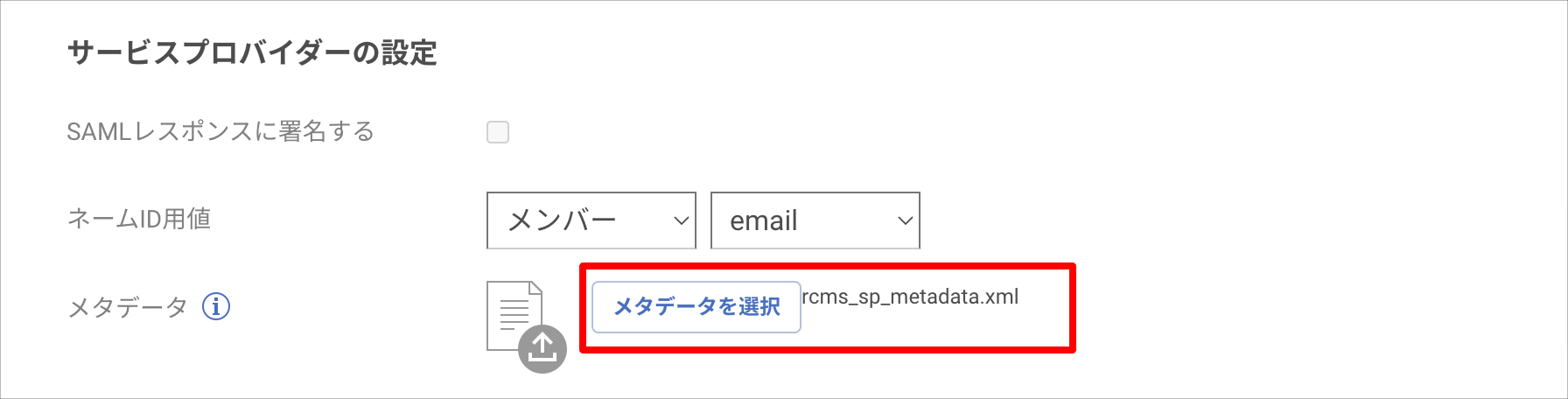

1. Upload the "Metadata" obtained from Kuroco to "Metadata" under "Service Provider Settings".



2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Kuroco (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

1. Search for and click the "Kuroco (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
