TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

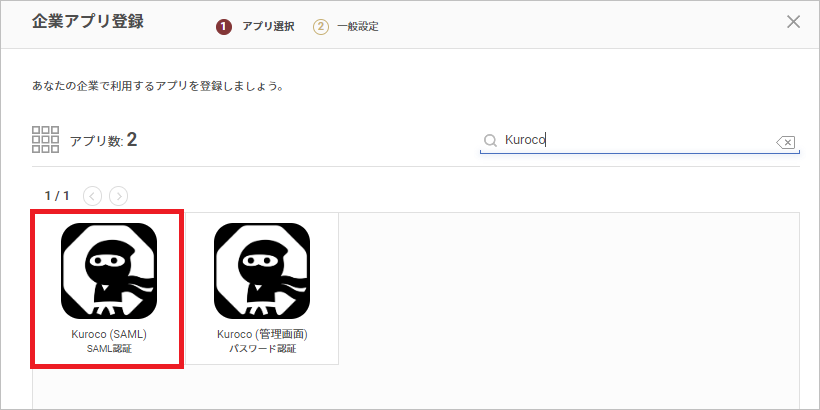

2. Search on the "Register Corporate App" screen and select "Kuroco (SAML)".



3. Note down the values of "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information," and download the certificate using the "Get Certificate" button.



4. Convert the downloaded certificate's file extension to ".cer".


At this point, switch to configuring the Kuroco side.
Do not click the "Register" button yet — open the Kuroco admin screen in a separate window.

Kuroco Configuration

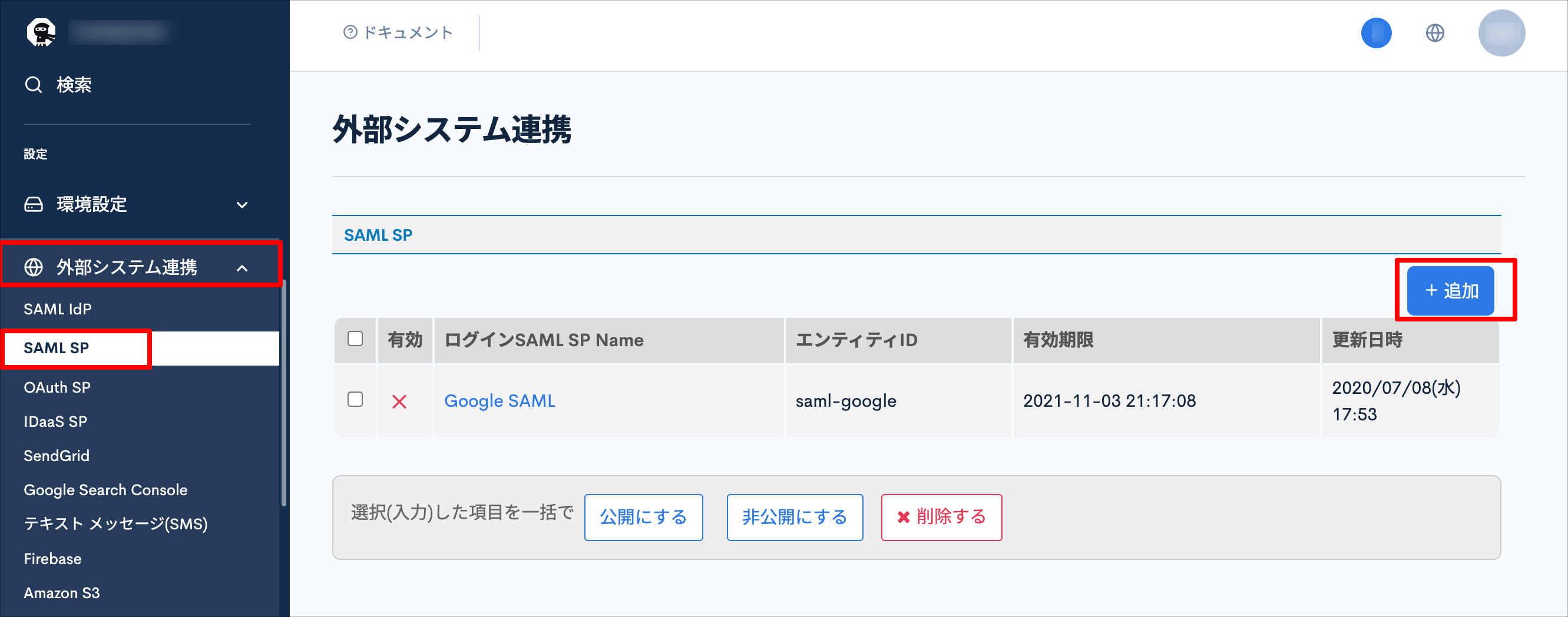

1. From the left menu, select "External System Integration > SAML SP" and click the "Add" button.

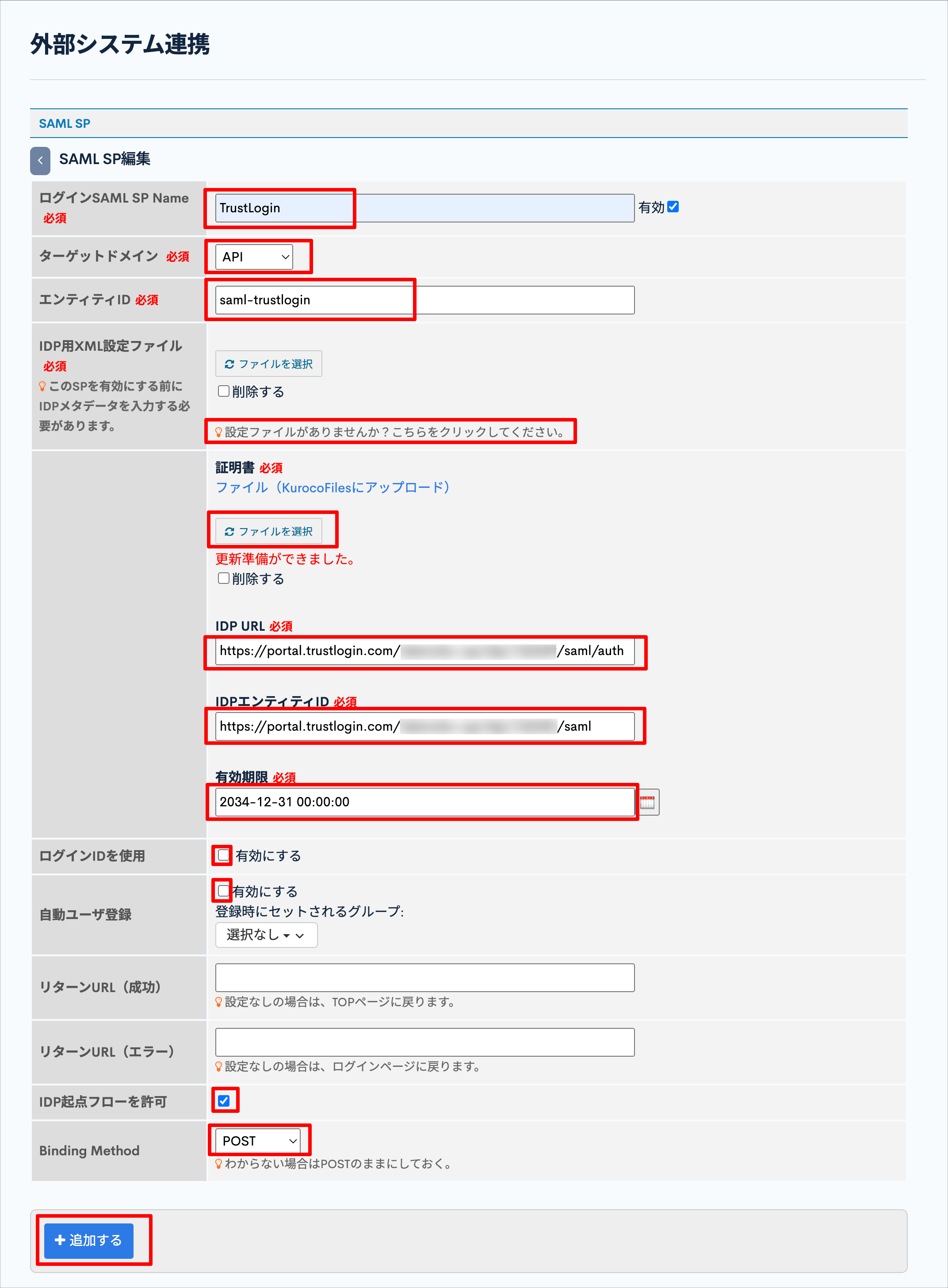

2. Configure each item as follows, and finally save by clicking the "Add" button.


   Login SAML SP Name	Set any name of your choice
   Target Domain	Specify the page to redirect to after login
   Entity ID	Set any string of your choice
   XML Configuration File for IDP	Click "Don't have a configuration file? Click here."
   Certificate	The "Certificate" obtained from TrustLogin (converted to a CER file)
   IDP URL	The "IdP URL" obtained from TrustLogin
   IDP Entity ID	The "Issuer/Entity ID" obtained from TrustLogin
   Expiration Date	Set any date and time of your choice
   Use Login ID	Turn the checkbox OFF
   Automatic User Registration	Turn the checkbox OFF
   Allow IDP-Initiated Flow	Turn the checkbox ON
   Binding Method	Select "POST"

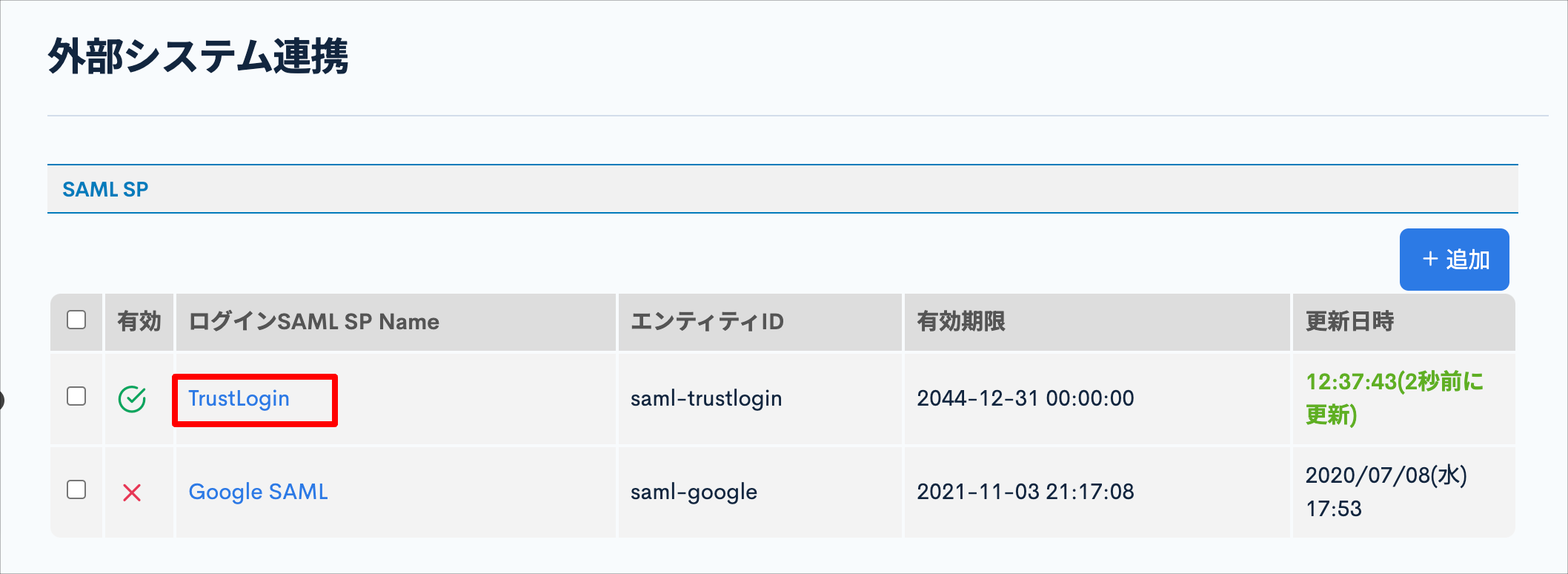

3. Click the SAML SP configuration you created.

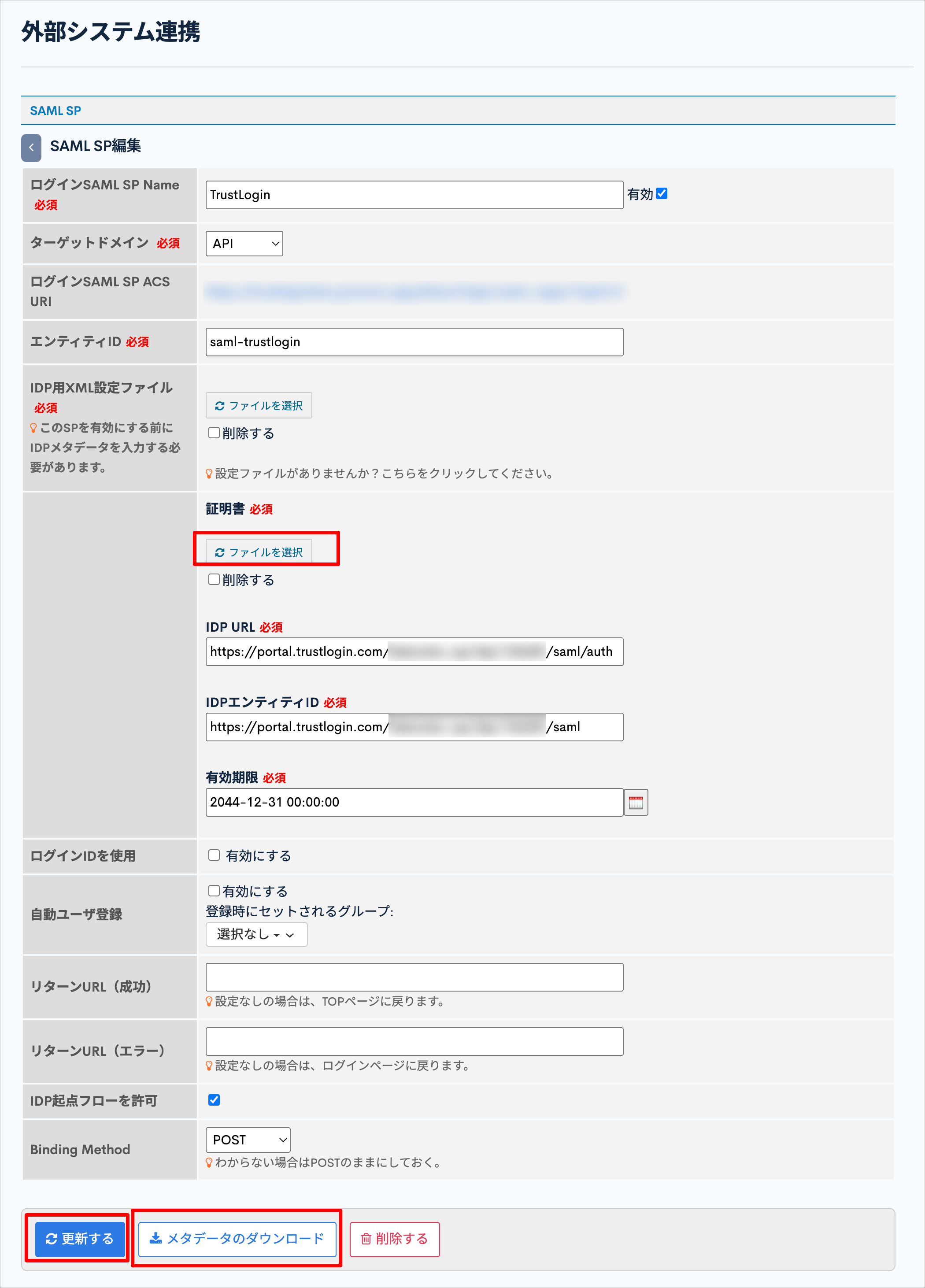

4. Upload the "Certificate" obtained from TrustLogin to "Certificate" again,
   and obtain the metadata from "Download Metadata."
   Finally, update by clicking the "Update" button.




Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Configuration (Continued)

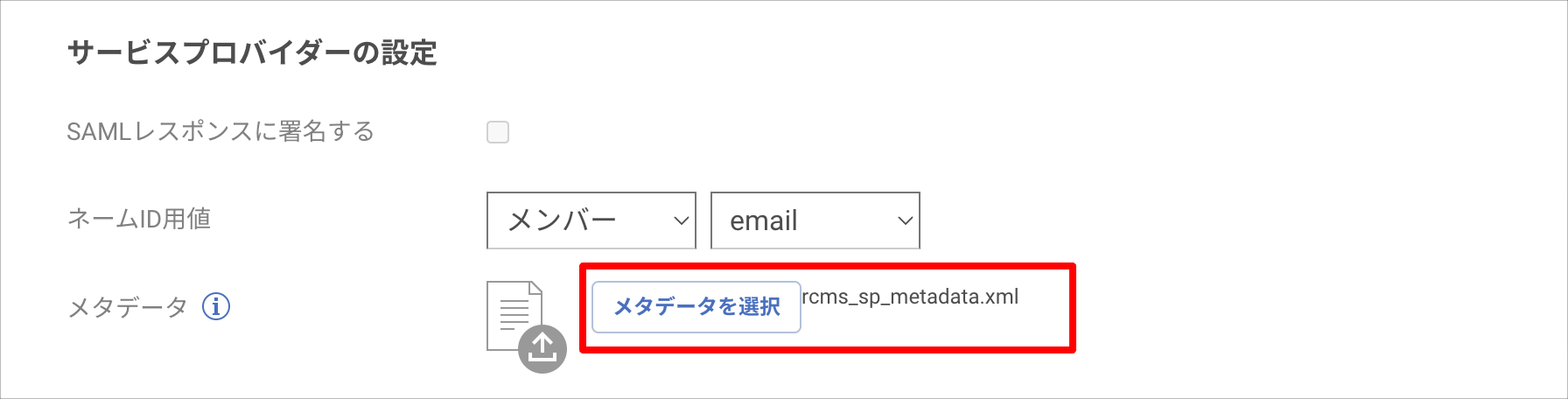

1. In "Service Provider Settings," upload the "Metadata" obtained from Kuroco to "Metadata."



2. Click the "Register" button to save.

TrustLogin User Configuration

① When Users Add the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Kuroco (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When Administrators Add Members

1. In the "Admin Page > Apps" menu, search for and click the "Kuroco (SAML)" app.
2. Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
