Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, see here |
||
|
SP Configuration |
〇 |
Configured by the administrator |
|
Request SP to configure |
||
|
Provisioning |
API-based Provisioning supported (account management available in TrustLogin) |
|
| 〇 |
SAML JITProvisioning supported (account management available in TrustLogin; user deletion not supported) |
|
|
|
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Device Compatibility |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Default Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
〇 |
iOS - Native App |
|
|
〇 |
Android - Default Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
〇 |
Android - Native App |
|
Note: If you are using client authentication, SSO is not available on iOS - Native App or Android - Native App.
TrustLogin Admin Page Settings
- Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

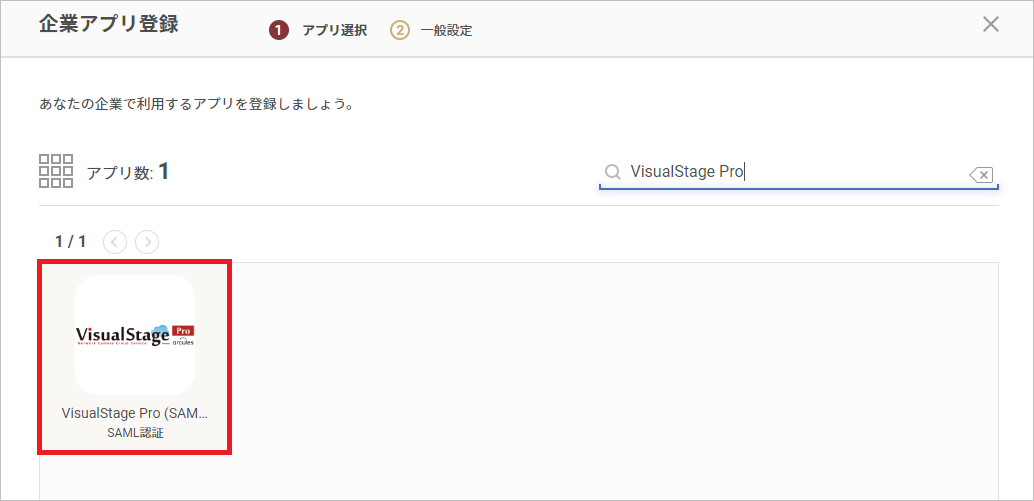

- Search on the "Register Company App" screen and select "VisualStage Pro (SAML)".
- Download the metadata from the "Download Metadata" button under "Identity Provider Information".

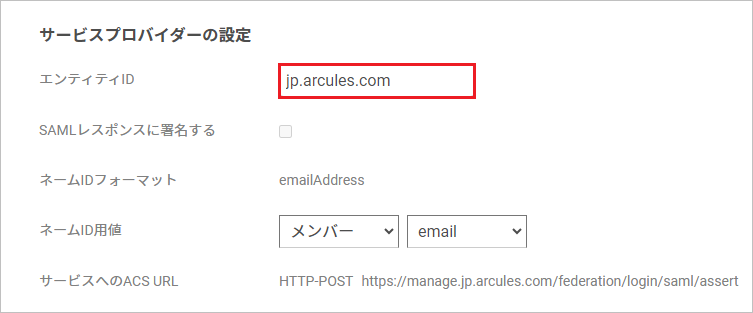

- Configure "Service Provider Settings" as follows.
Entity ID Enter jp.arcules.com
Note: This differs depending on your data center region.
For Japan, enter jp.arcules.com. For US, enter arcules.com. For EMEA, enter eu.arcules.com.
- Save by clicking the "Register" button.
VisualStage Pro Settings

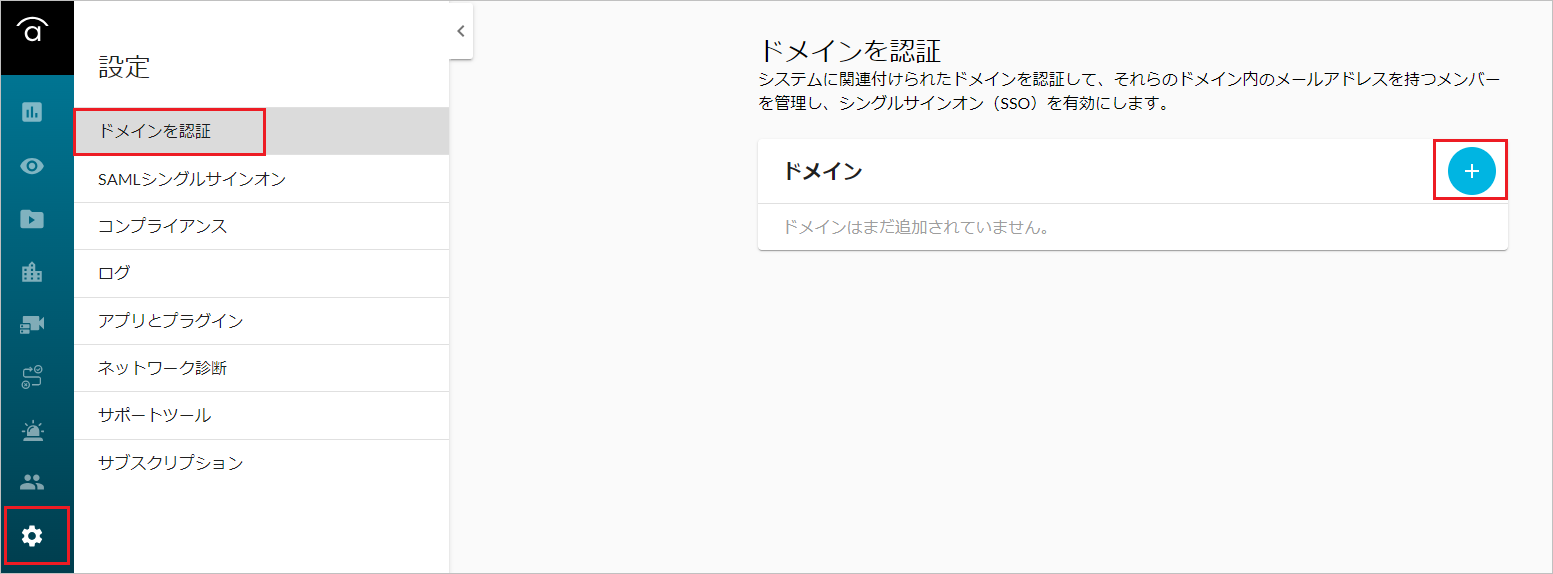

- Log in to VisualStage Pro, open "Settings > Verify Domains", and click the + button.

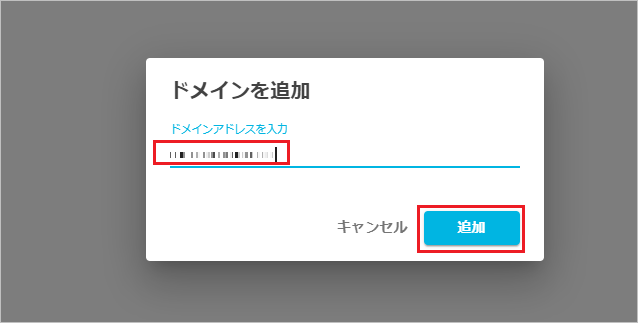

- On "Add Domain", enter the domain name to verify and click "Add".

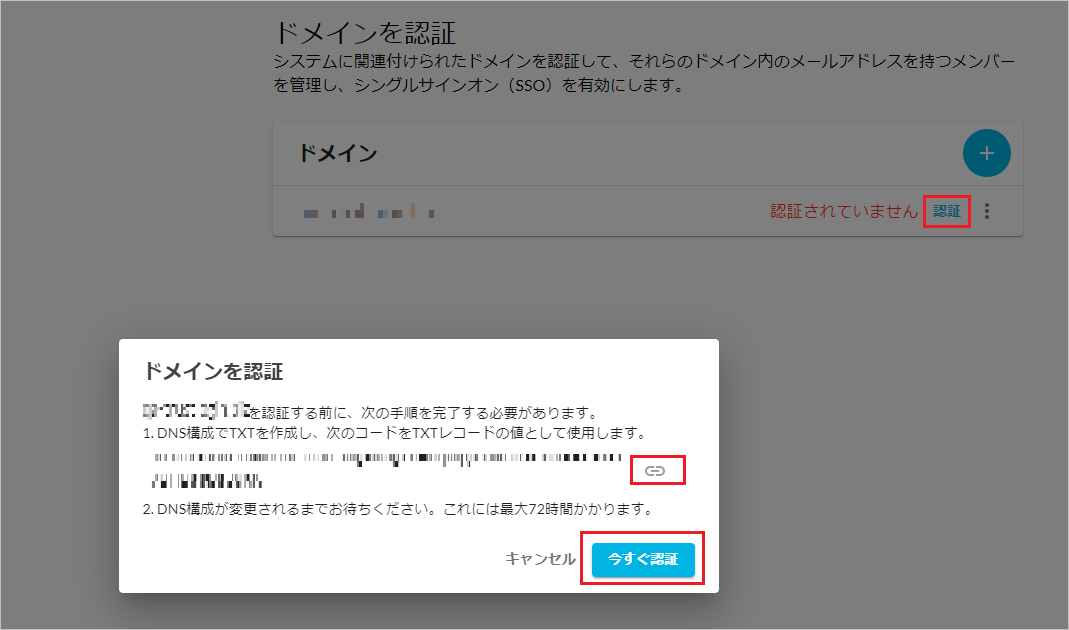

- Click the "Verify" button and configure the domain's DNS records by following the displayed instructions. For how to configure DNS records for your domain, please refer to the help documentation provided by your domain registrar.
Note: DNS record updates may take up to approximately 72 hours to propagate.
After configuring, click "Verify Now".

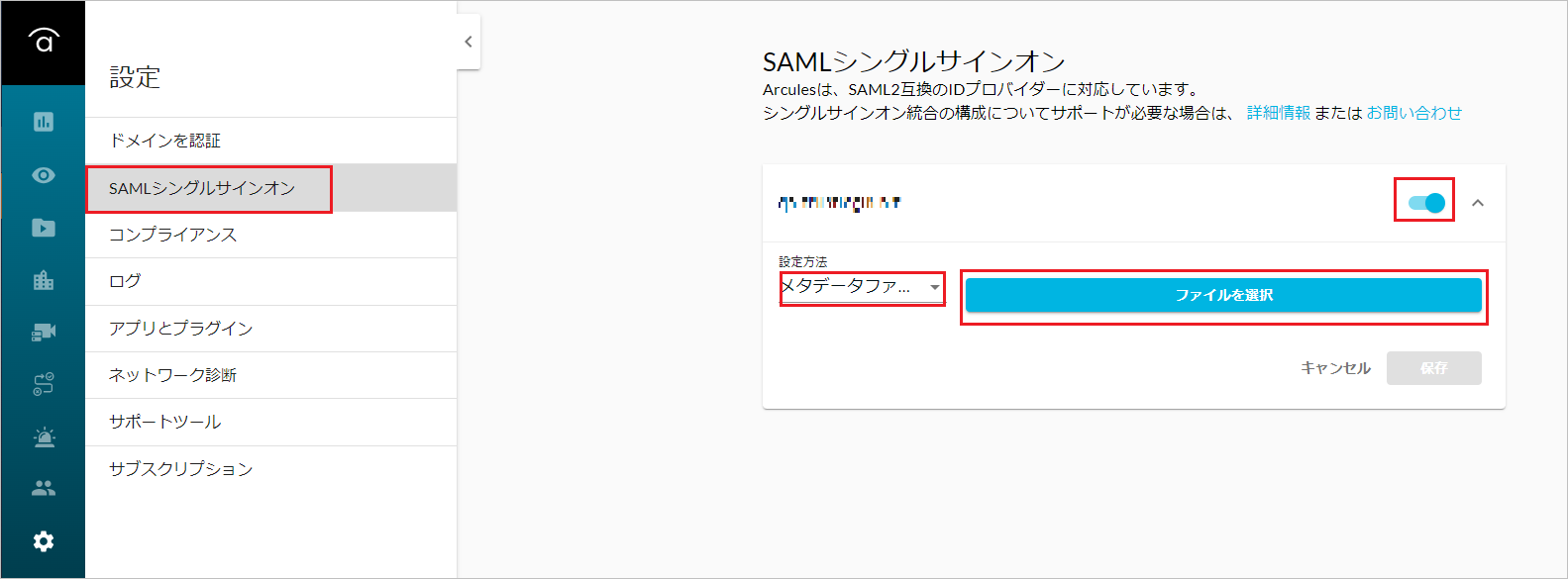

- Open "SAML Single Sign-On" and turn on the toggle next to the domain.
For "Configuration Method", select "Use Metadata File" and upload the metadata you noted down from TrustLogin.
- After uploading the metadata, save the settings by clicking "Save".

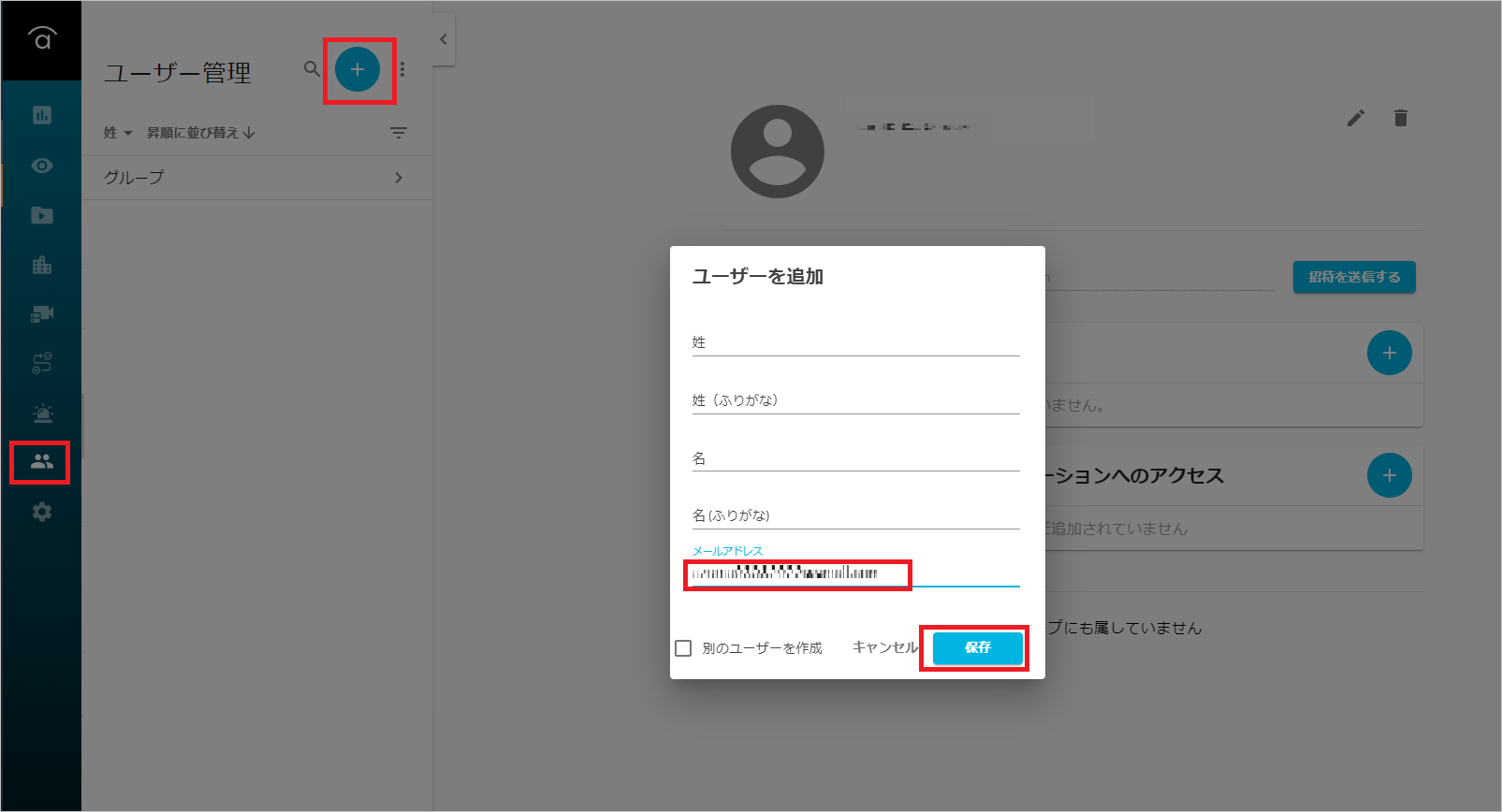

- To log in via SAML JIT, you need to add users in advance. Click the + button from "User Management", enter the email address under "Add User", and click "Save". Note: Enter an email address using the domain you configured in step 2.

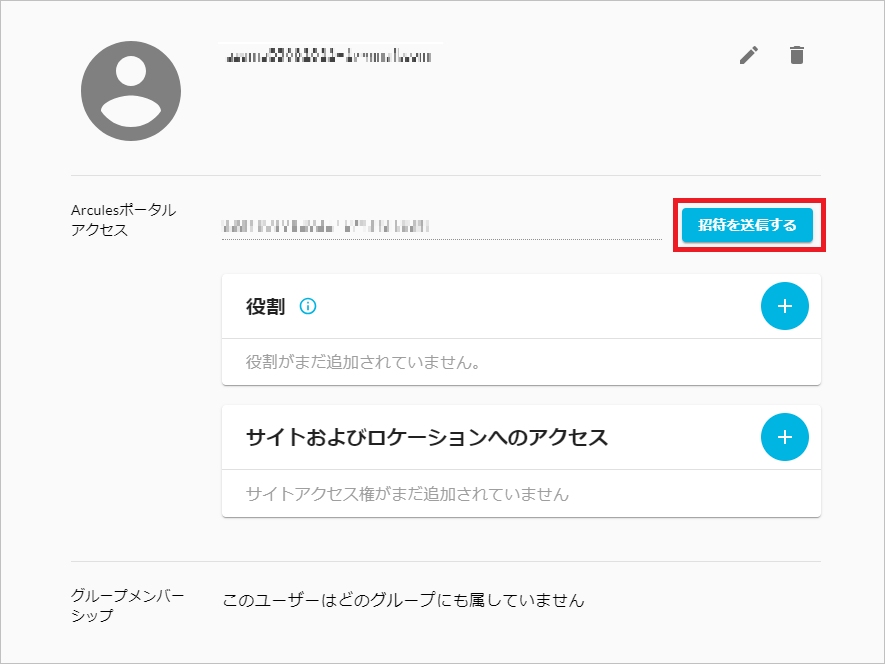

- After adding the user, click "Send Invitation". Note: If you skip this step, login via SAML JIT will not be possible.
TrustLogin User Settings
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "VisualStage Pro (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
②When an administrator adds members
- Search for and click the "VisualStage Pro (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
