How to Configure SAML Authentication for Everidays

Item

Details

Pre-check

  • Advance configuration in Everidays is required.

  • You must create an account in Everidays using the same email address as your TrustLogin account.

  • For the latest configuration steps, please refer to the manual provided by Everidays.

Name ID

Email address

Custom attribute Note: For instructions on setting up a custom attribute, see here

SP-Side Configuration

Configured by the administrator

Request the SP to configure this

Provisioning

Supports provisioning via API (account management possible in TrustLogin)

Supports SAML JIT provisioning (account management possible in TrustLogin; user deletion not possible)

None (accounts are created individually in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Device Compatibility

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App Internal Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App Internal Browser

Android - Native App

Note: If you are using client authentication, SSO is not available on the iOS - Native App or Android - Native App.

TrustLogin Admin Page Settings

  1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

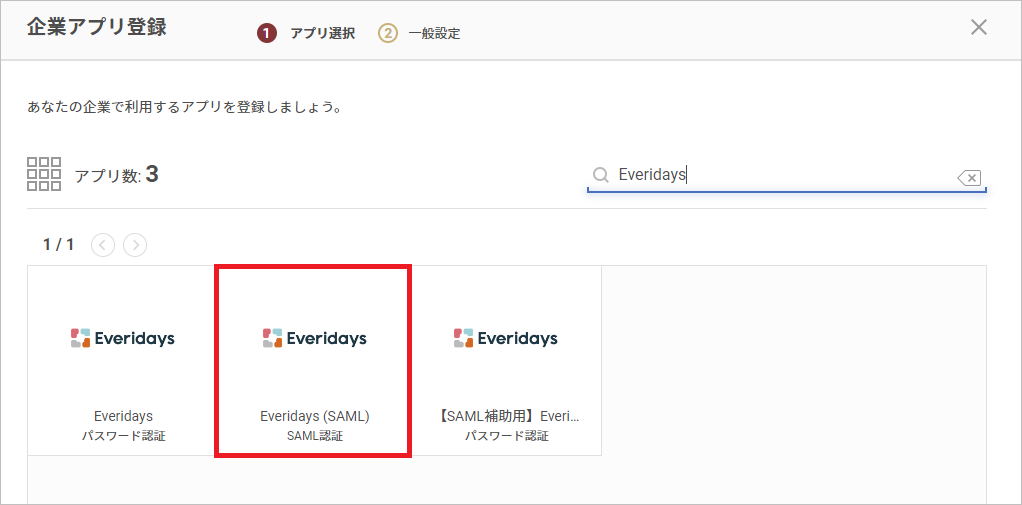

  2. Search on the "Register Corporate App" screen and select "Everidays (SAML)."

  3. Note down the values of "Identity Provider URL" and "Issuer/Entity ID" under "Identity Provider Information," and download the certificate using the "Get Certificate" button.03.png

At this point, switch to the Everidays configuration.
Do not click the "Register" button yet — open Everidays in a separate window.

Everidays Settings

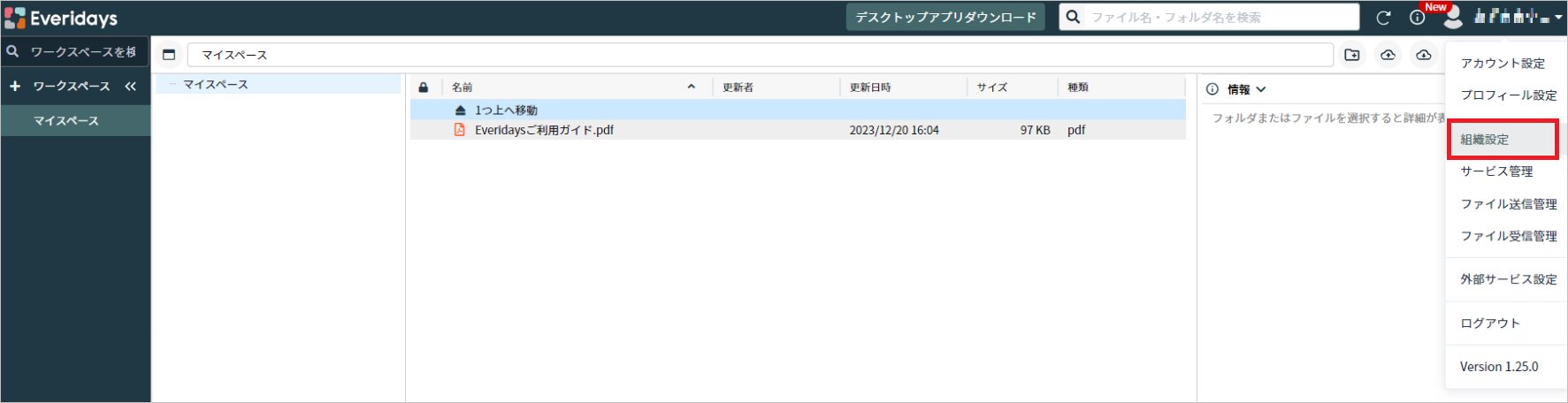

  1. Log in to Everidays as an organization administrator and select "Organization Settings."

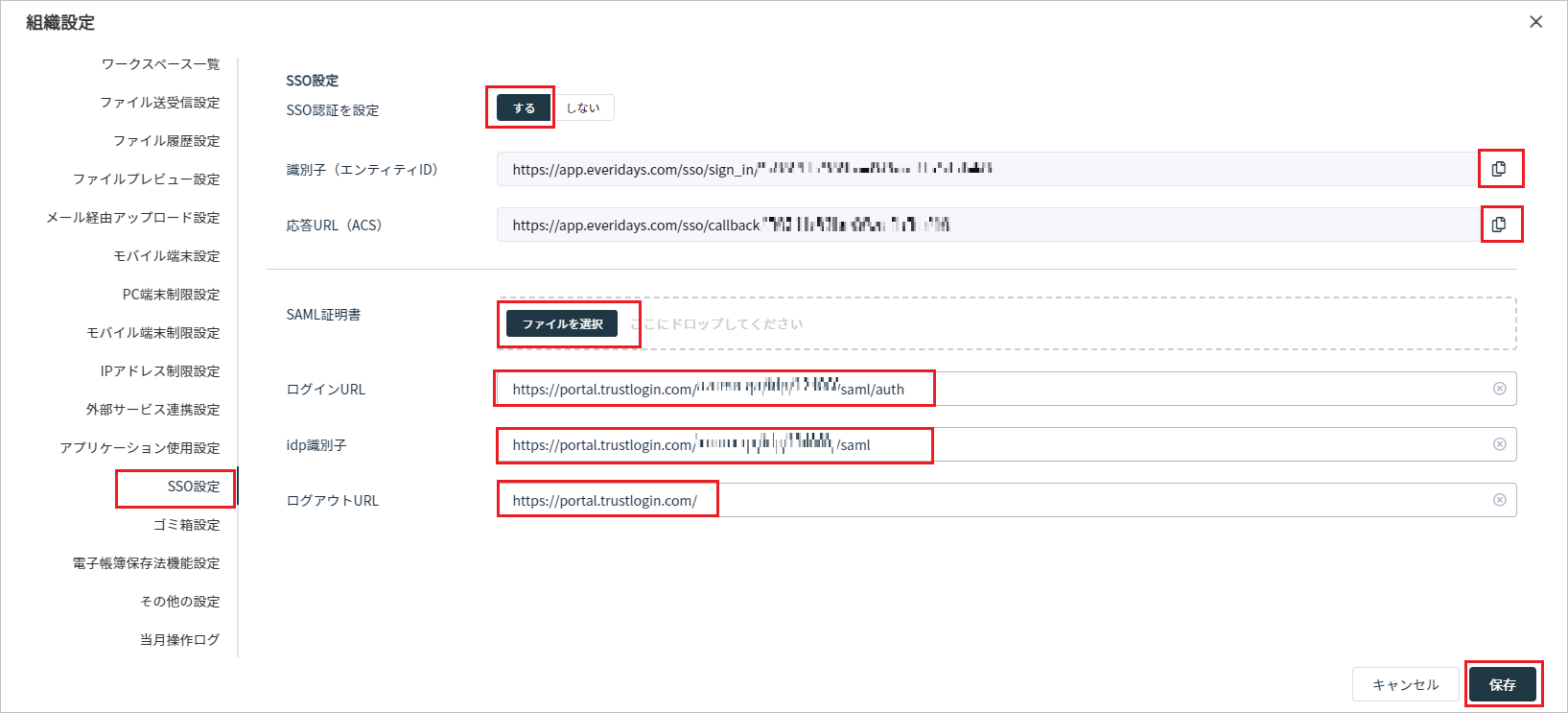

  2. Open "SSO Settings" and edit it. Configure the settings as shown below, then click "Save."
    Configure SSO Authentication Select "Enable"
    Identifier (Entity ID) Note it down using the copy button
    Response URL (ACS) Note it down using the copy button
    SAML Certificate Upload the "Certificate" you noted down from TrustLogin
    Login URL Enter the "Identity Provider URL" you noted down from TrustLogin
    idp Identifier Enter the "Issuer/Entity ID" you noted down from TrustLogin
    Logout URL

    https://portal.trustlogin.com/



Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

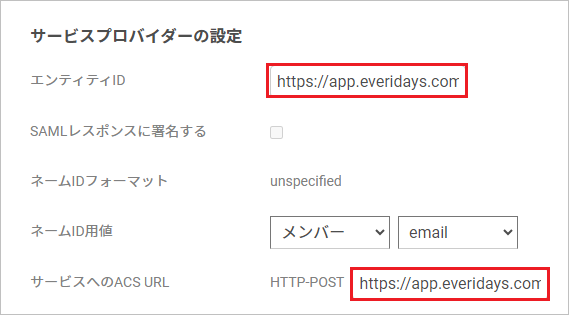

  1. Configure "Service Provider Settings" as follows.
    Entity ID The "Identifier (Entity ID)" you noted down from Everidays
    ACS URL for the Service The "Response URL (ACS)" you noted down from Everidays


  2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

  1. On "My Page," click the "Add App" button.
  2. On the "Register App" screen, select "Everidays (SAML)," and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name," enter a new one, then click the "Register" button.

② When an administrator adds members

  1. In the "Admin Page > App" menu, search for and click the "Everidays (SAML)" app.
  2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
