TrustLogin Admin Page Settings

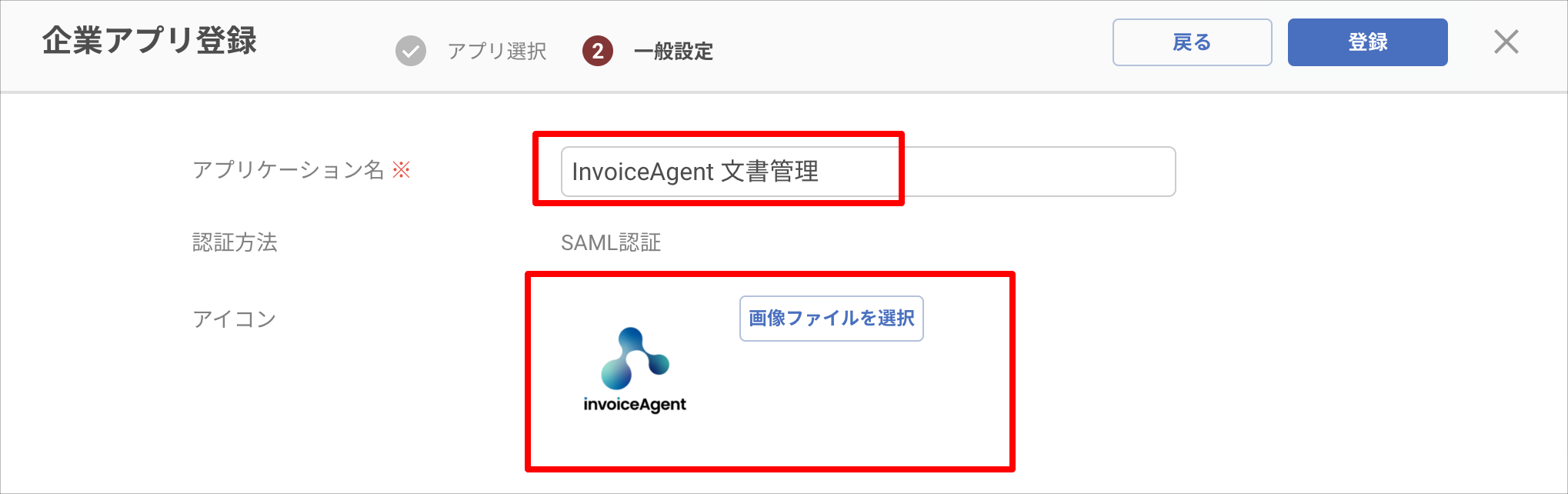

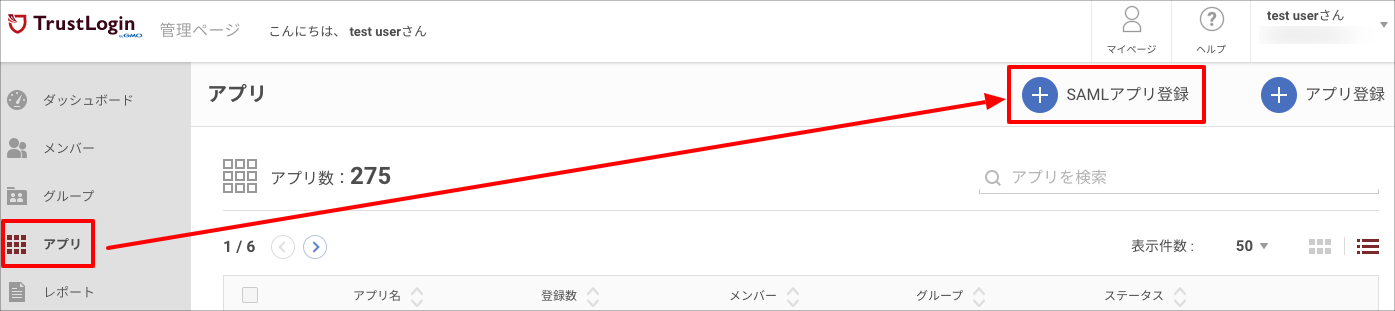

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register SAML App" button in the upper right of the screen.



2. Register the "Application Name" and "Icon" (optional).

3. Note the value of the "Identity Provider URL" under "Identity Provider Information", and download the certificate using the "Download Certificate" button.


Now, switch to configuring invoiceAgent Document Management.
Do not click the "Register" button yet — open invoiceAgent Document Management in a separate window.

invoiceAgent Document Management Settings

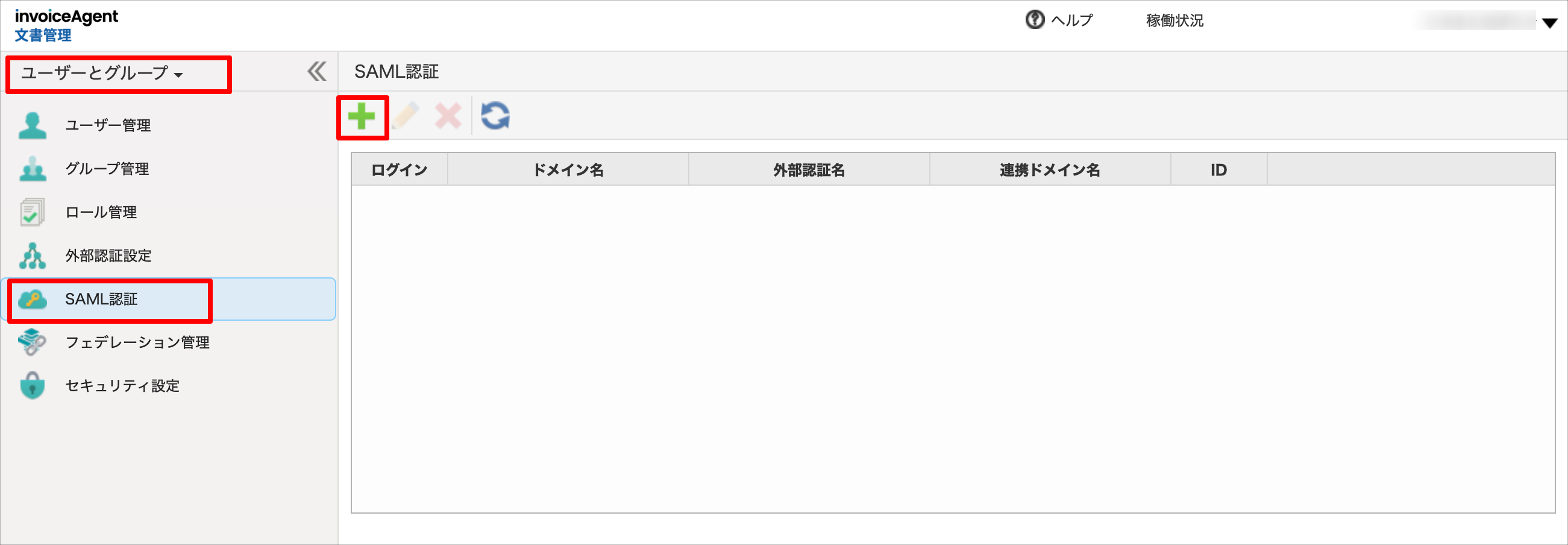

1. Open "Users and Groups > SAML Authentication" and click the "＋" mark.

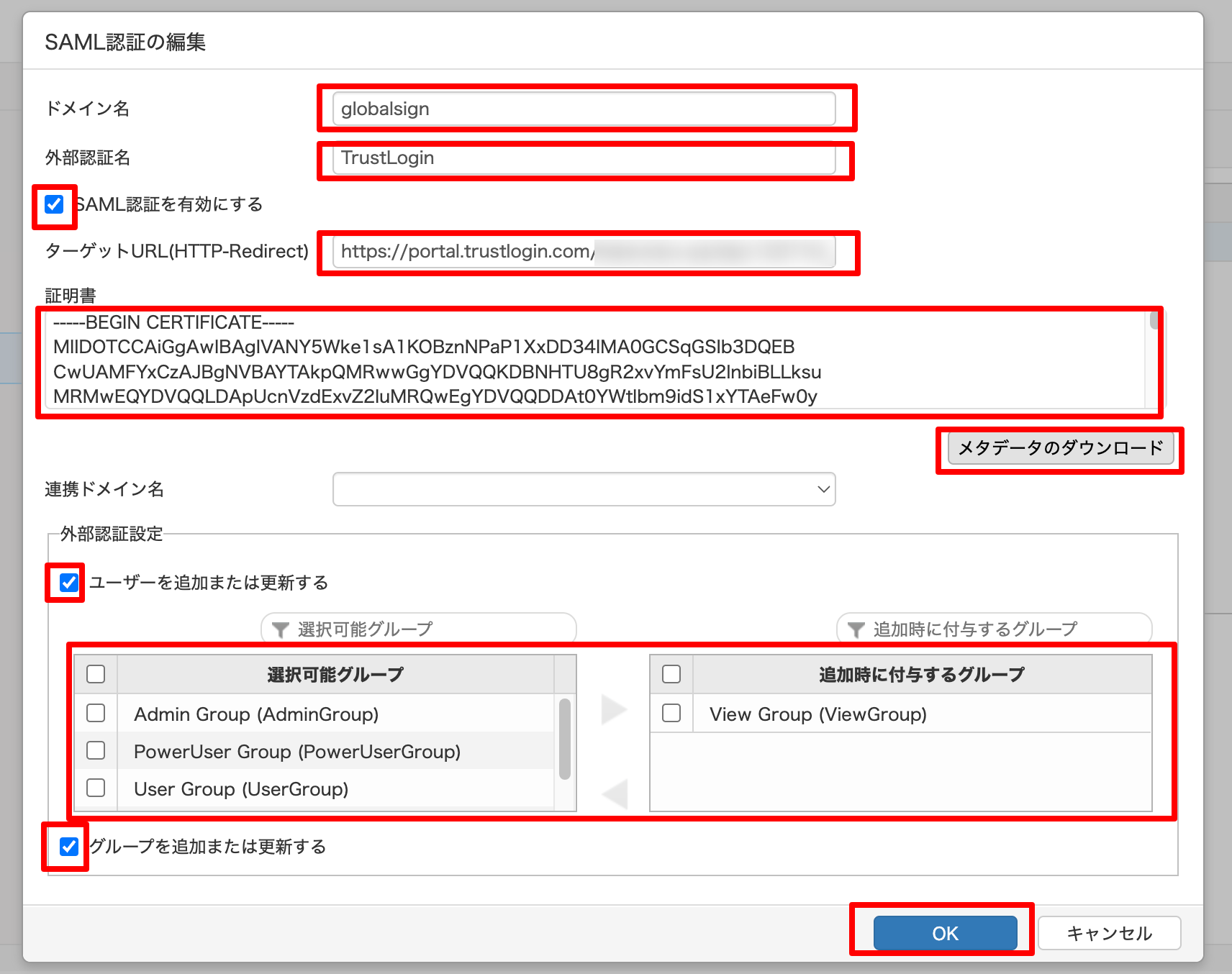

2. Configure each item as follows, and save by clicking the "OK" button.


   Domain Name	Any name of your choice
   External Authentication Name	Any name of your choice
   Enable SAML Authentication	Check the box Note: This will disable regular password login.
   Target URL	The "Identity Provider URL" obtained from TrustLogin
   Certificate	The contents of the "Certificate" obtained from TrustLogin
   Download Metadata	Click the button to download the metadata
   Add or Update Users	Check the box and configure the group to be assigned when a user is added
   Add or Update Groups	Check the box if you want to add or update domain groups






Return to the TrustLogin admin page again.

TrustLogin Admin Page Settings (Continued)

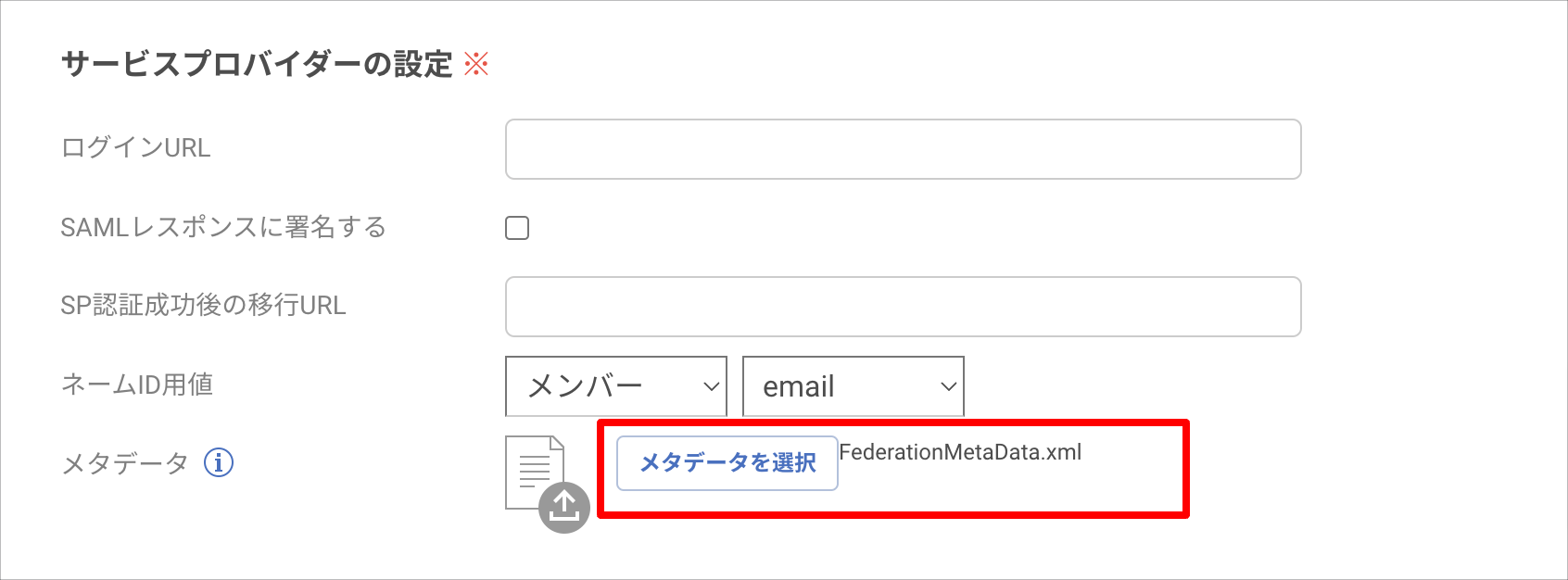

1. Upload the "Metadata" obtained from invoiceAgent Document Management to "Metadata" under "Service Provider Settings".

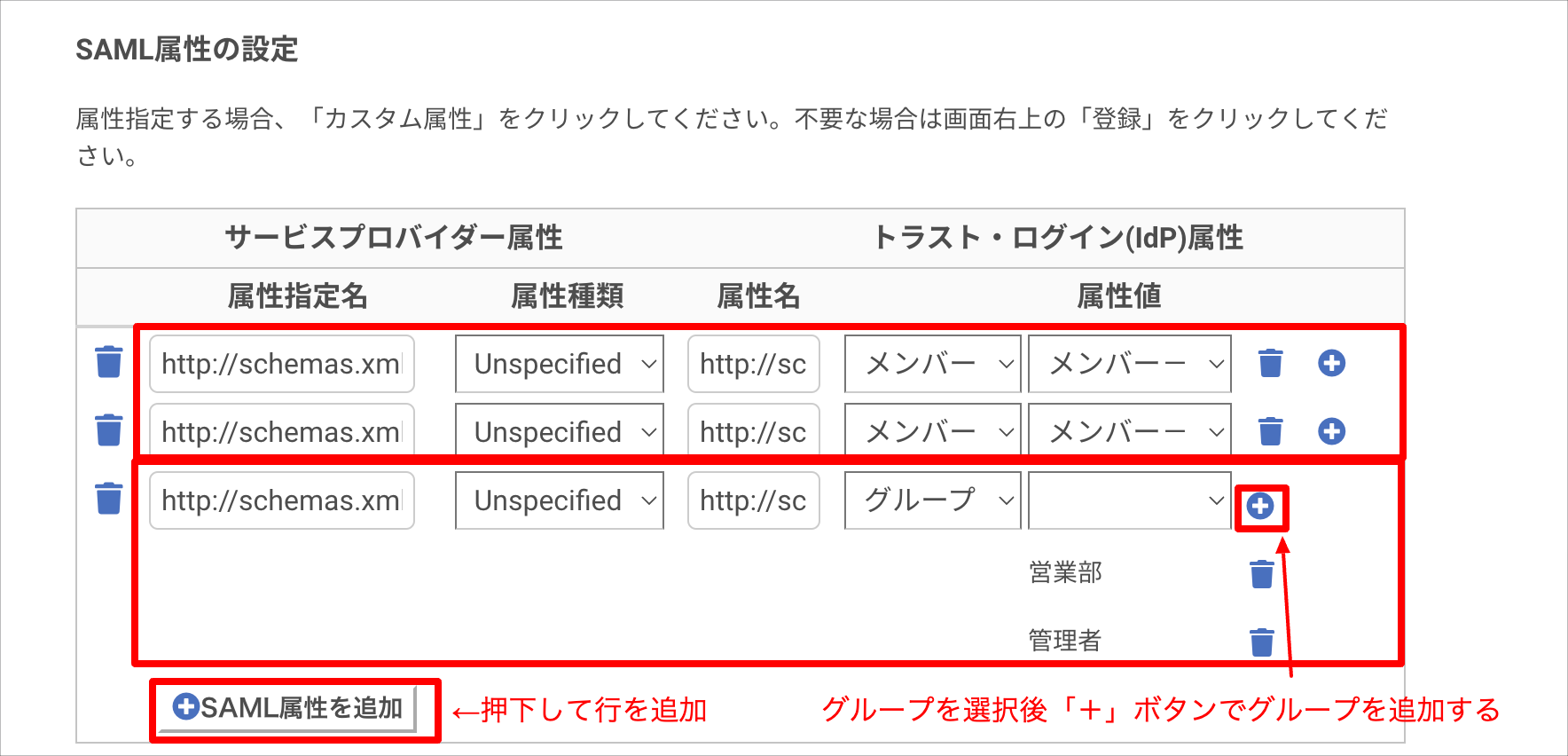

2. Click the "Specify Custom Attribute" button in "SAML Attribute Settings", then add a row (attribute) using the "Add SAML Attribute" button and configure it as follows.

   The third row only needs to be configured if you are adding or updating groups.
   For the group attribute value, select a group name from the dropdown; you can add multiple groups using the "＋" mark on the right.


   Service Provider Attribute			TrustLogin (IdP) Attribute
   Attribute Name	Attribute Type	Attribute Name		Attribute Value
   Value of ① below	Unspecified	Value of ① below	Member > Member - Email Address Member > Member - Last Name Custom Attribute (*) Select the item you want to sync to the "Full Name" field in invoiceAgent Document Management's user information, from options such as those above
   Value of ② below	Unspecified	Value of ② below	Member	Member - Email Address
   Value of ③ below	Unspecified	Value of ③ below	Group	Select the group name you configured and add it using the "＋" button

   ① http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name
   ② http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
   ③ http://schemas.xmlsoap.org/claims/Group
   Note: Custom attributes require separate configuration. For how to configure custom attributes, see here




3. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select the custom SAML app you created, and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, and click the "Register" button.

② When an Administrator Adds Members

1. Search for and click the custom SAML app you created in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.

Note: If, for any reason, an error in the SAML authentication configuration prevents you from logging in to invoiceAgent Document Management,
you can enable password login by adding "?nosaml" to the end of the login URL.
Example: https://xxxxx.spa-cloud.com/spa/?nosaml
