TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

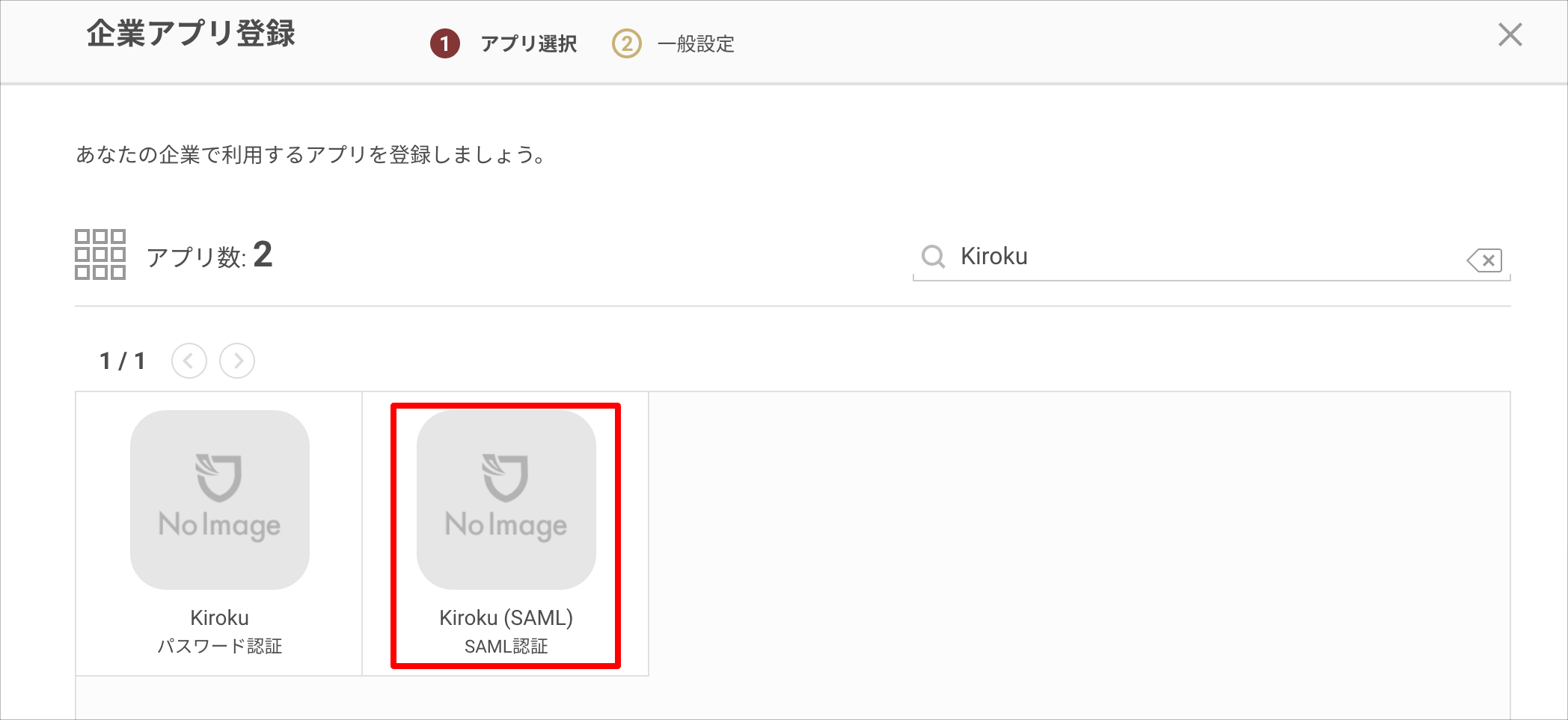

2. Search on the "Register Corporate App" screen and select "Kiroku (SAML)".



3. From "Identity Provider Information," note down the values of "Identity Provider URL" and "Issuer / Entity ID," and download the certificate using the "Get Certificate" button.



Now, switch to the configuration on the Kiroku side.
Do not click the "Register" button yet — open Kiroku in a separate window.

Kiroku Settings

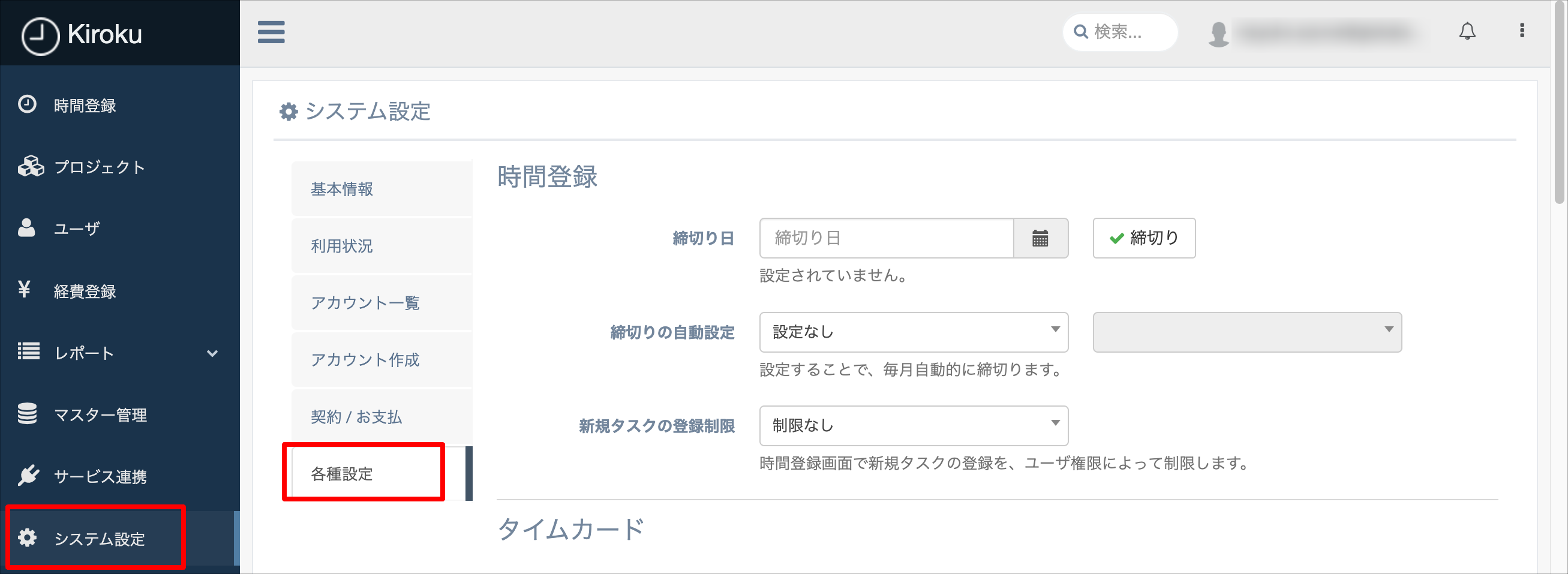

1. Open "System Settings > General Settings."

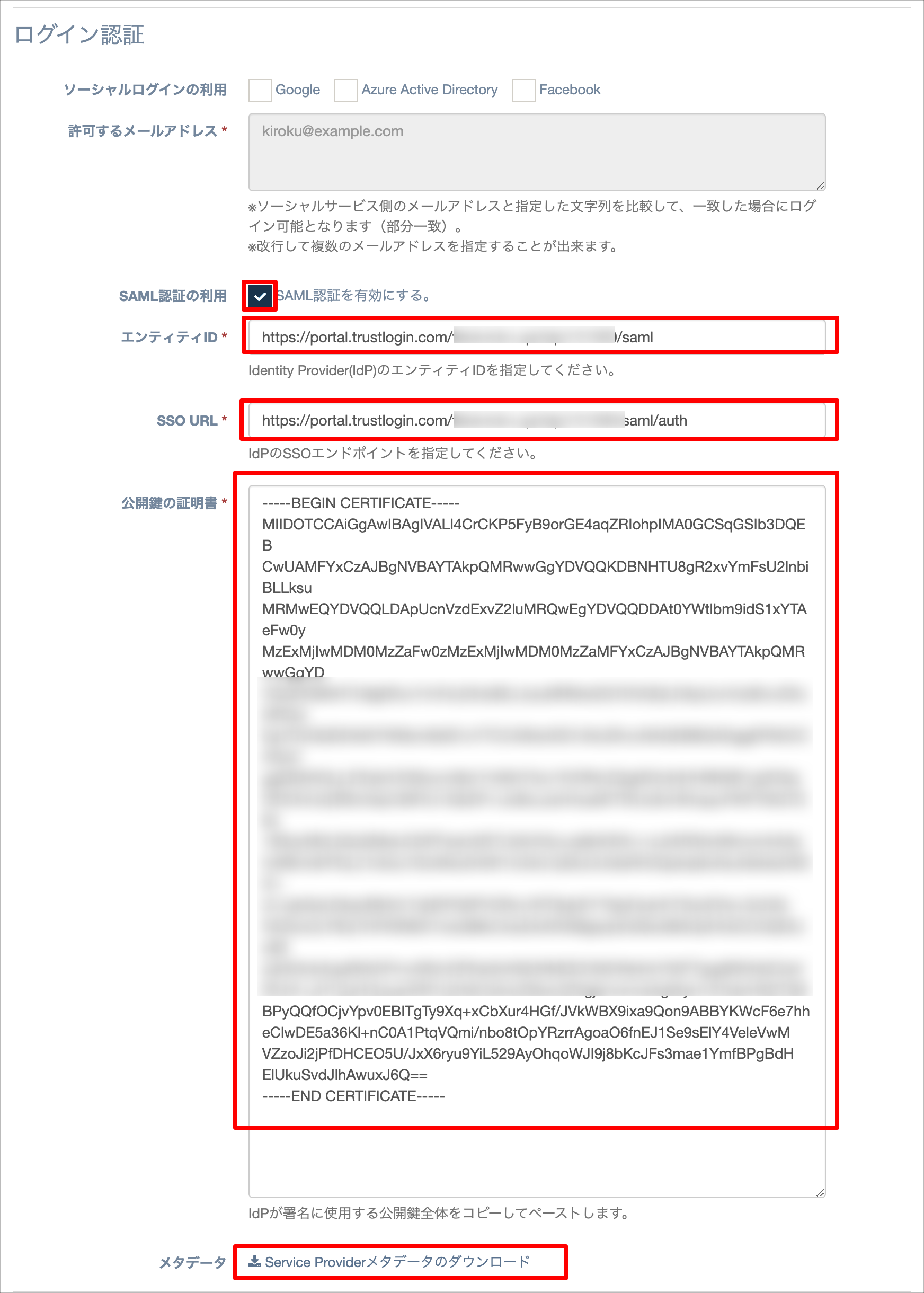

2. Scroll to "Login Authentication" and check "Enable SAML Authentication."
   Configure the items that appear below as follows.


   Entity ID	The "Issuer / Entity ID" obtained from TrustLogin
   SSO URL	The "Identity Provider URL" obtained from TrustLogin
   Public Key Certificate	The contents of the "Certificate" obtained from TrustLogin
   Metadata	Click "Download Service Provider Metadata" to download the metadata

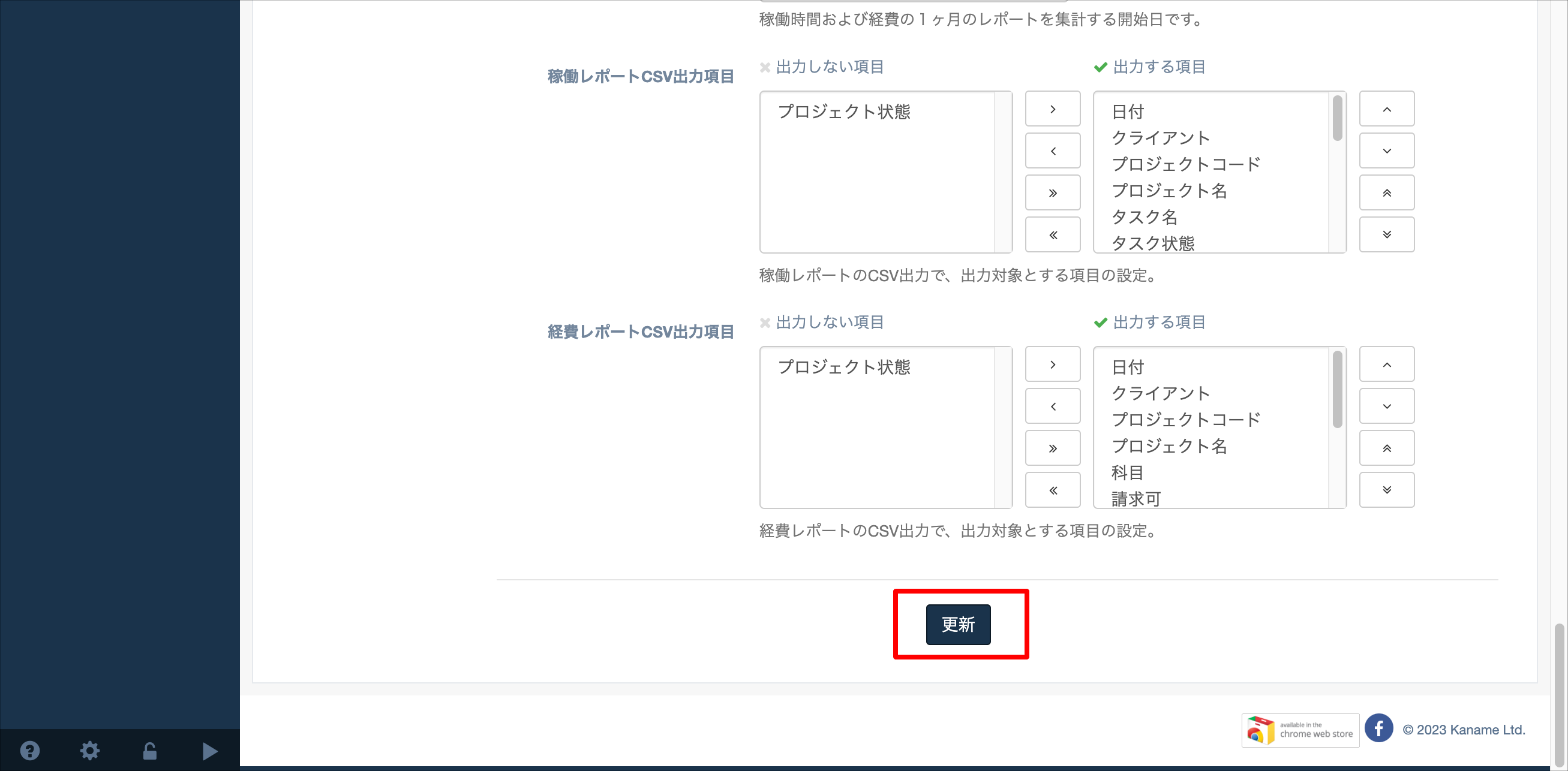

3. Scroll to the very bottom and save by clicking the "Update" button.


Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

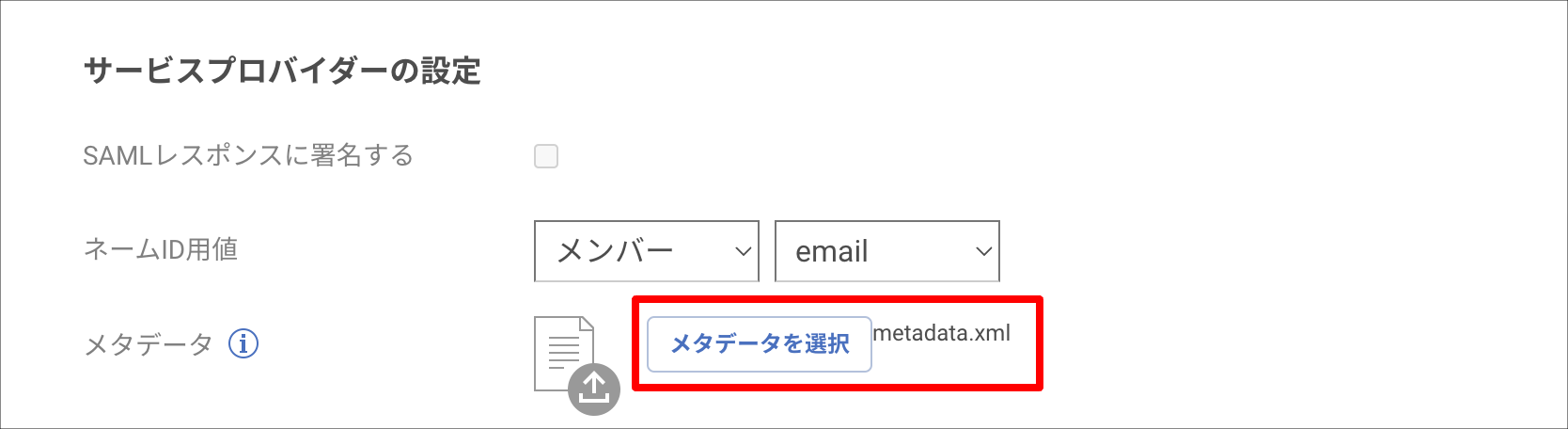

1. Upload the metadata downloaded from Kiroku to "Service Provider Settings > Metadata."



2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page."
2. Select "Kiroku (SAML)" on the "Register App" screen, and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds a Member

1. In the "Admin Page > Apps" menu, search for and click the "Kiroku (SAML)" app.
2. Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
