How to Configure SAML Authentication for Brightcove Video Cloud Studio

Item

Details

Prerequisites

  • Prior setup is required in Brightcove Video Cloud Studio (hereinafter Video Cloud Studio).

  • You must have already created an account in Video Cloud Studio using the same email address as TrustLogin.

  • For the latest setup instructions, please refer to the manual provided by Video Cloud Studio.

  • For how to configure SAML authentication for Brightcove Gallery, click here

Name ID

Email address

Custom attribute Note: For how to configure custom attributes, click here

SP-side Settings

Configured by the administrator

Request the SP to configure settings

Provisioning

Supports provisioning via API (account management possible in TrustLogin)

Supports SAML JIT provisioning (account management possible in TrustLogin; user deletion not possible)

None (accounts created in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Verified Operation Status by Device

PC - Browser

PC - Desktop App

iOS - Standard Browser (Safari)

iOS - TrustLogin Mobile App Internal Browser

iOS - Native App

Android - Standard Browser (Chrome)

Android - TrustLogin Mobile App Internal Browser

Android - Native App

TrustLogin Admin Page Settings

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

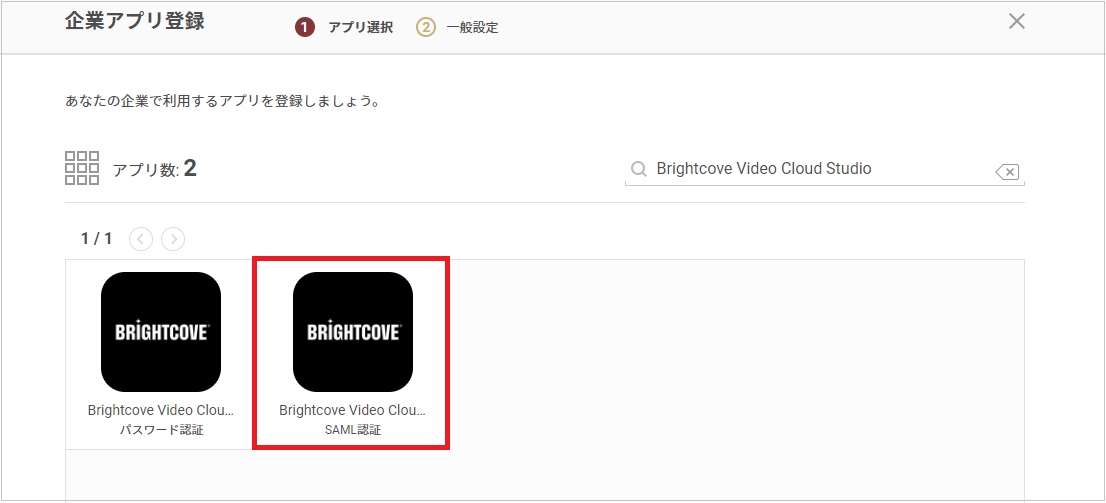

  2. Search on the "Register Corporate App" screen and select "Brightcove Video Cloud Studio (SAML)".

  3. From "Identity Provider Information," download the metadata using the "Download Metadata" button.

  4. Save by clicking the "Register" button.

  5. Please send the "metadata" you obtained to your Brightcove representative and request SAML configuration.

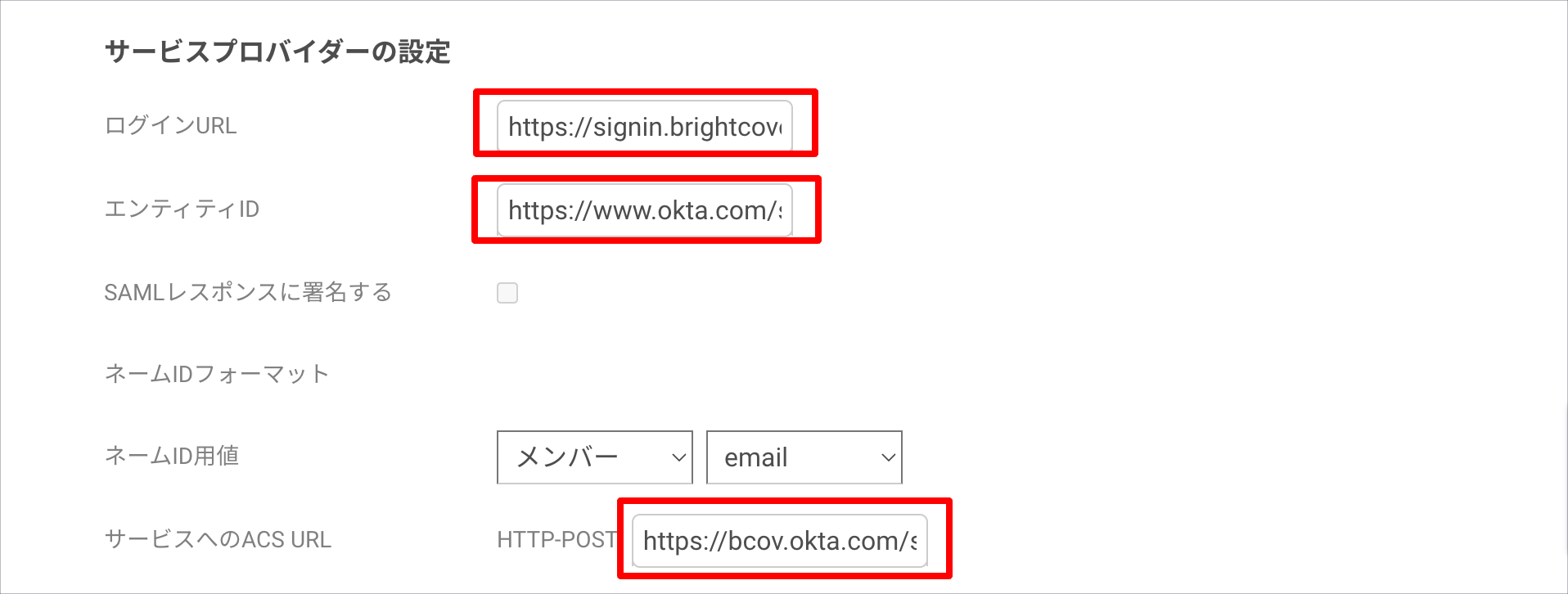

  6. Once Brightcove notifies you that the SAML configuration is complete, open "App Management Screen > Change SAML App Settings" and configure the service provider settings.
    Login URL The "SSO URL" notified by Video Cloud Studio
    Entity ID The "Audience URI" notified by Video Cloud Studio
    ACS URL to the Service The "Assertion Consumer Service URL" notified by Video Cloud Studio


  7. Save by clicking the "Register" button.

TrustLogin User Settings

① When a User Adds the App from My Page

  1. Click the "Add App" button on "My Page."
  2. Select "Brightcove Video Cloud Studio (SAML)" on the "Register App" screen, and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds a Member

  1. In the "Admin Page > Apps" menu, search for and click the "Brightcove Video Cloud Studio (SAML)" app.
  2. Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
