TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

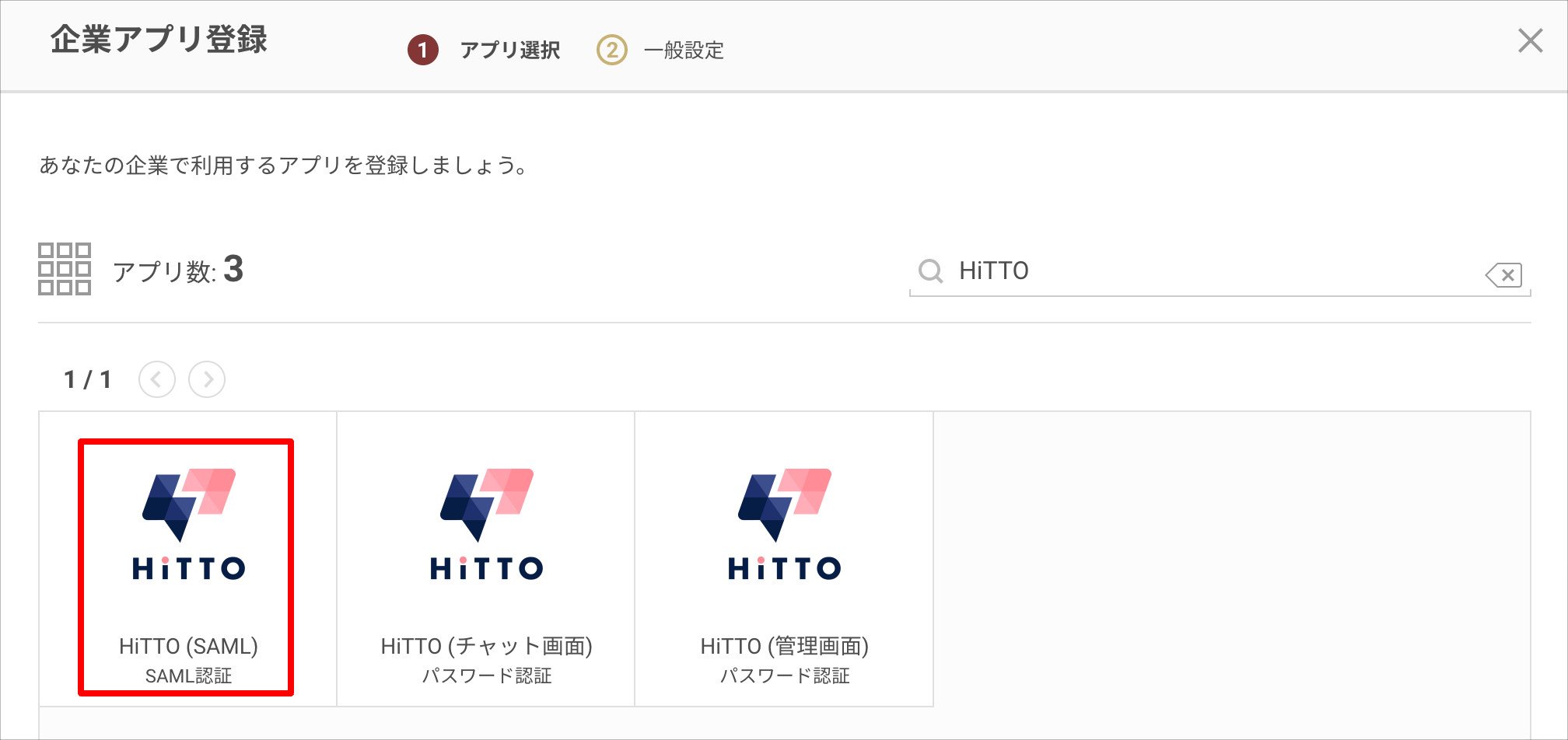

2. On the "Register Enterprise App" screen, search and select "HiTTO (SAML)".



3. Under "Identity Provider Information", download the metadata using the "Download Metadata" button.



At this point, switch to the HiTTO settings.
Do not click the "Register" button yet; open HiTTO in a separate window.

HiTTO Settings

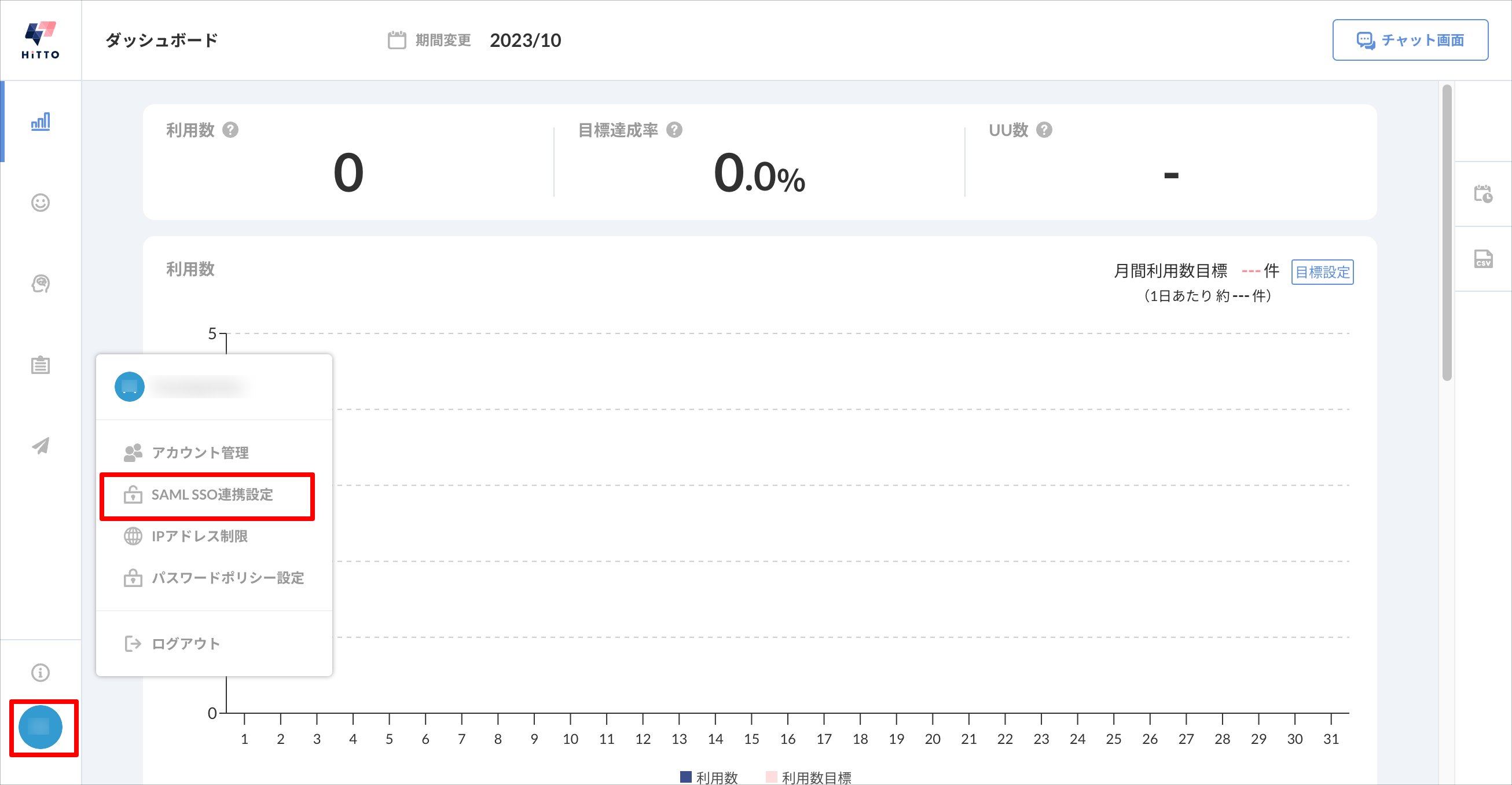

1. Log in with company administrator privileges, and open "SAML SSO Integration Settings" from the icon in the lower left.

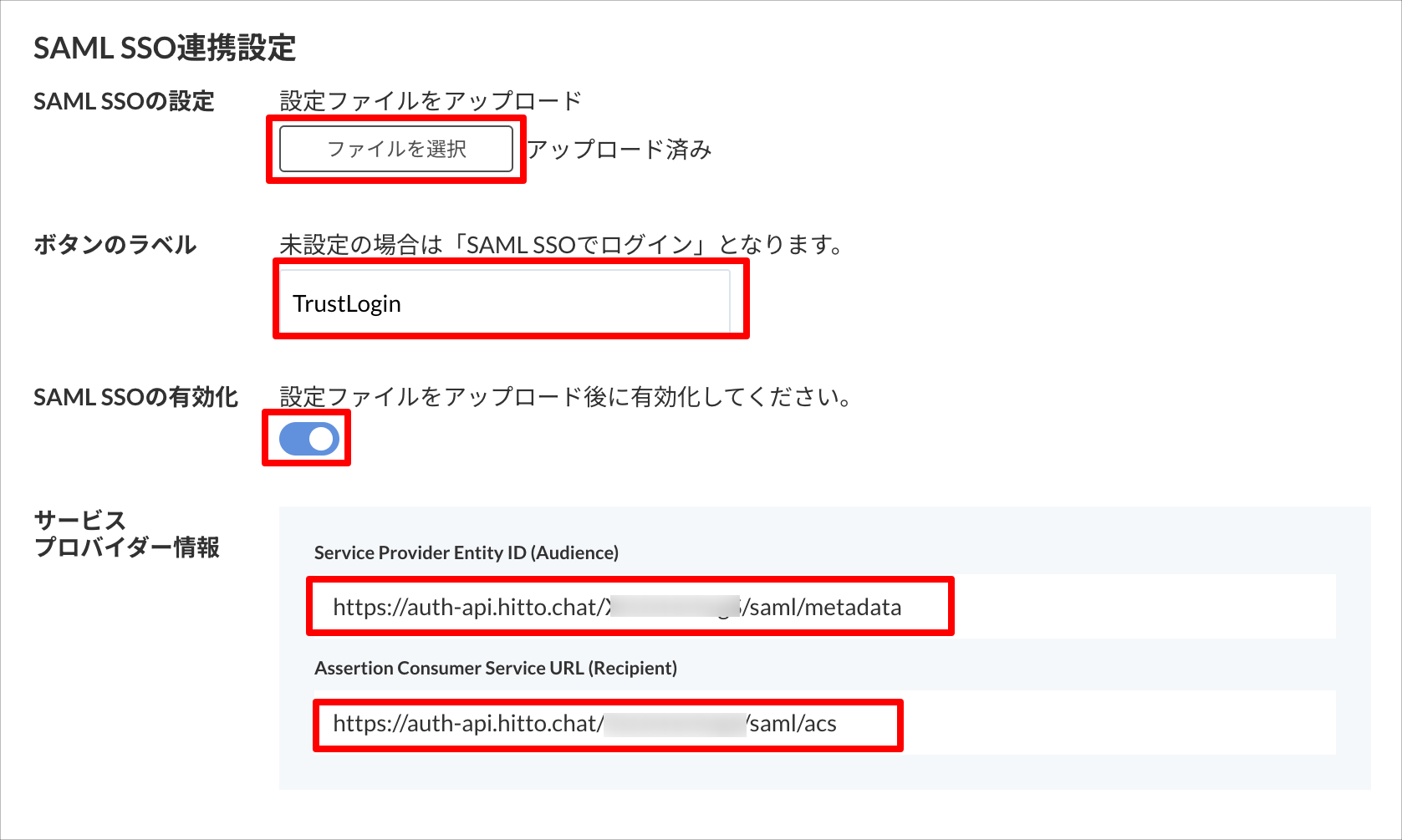

2. Configure each item as follows.


   SAML SSO Settings	Upload the "metadata" obtained from TrustLogin using the "Choose File" button
   Button Label	Specify any string for the label of the SSO login button on the login page (optional)
   Enable SAML SSO	Turn the toggle ON
   Service Provider Entity ID (Audience)	Copy and note the value
   Assertion Consumer Service URL (Recipient)	Copy and note the value

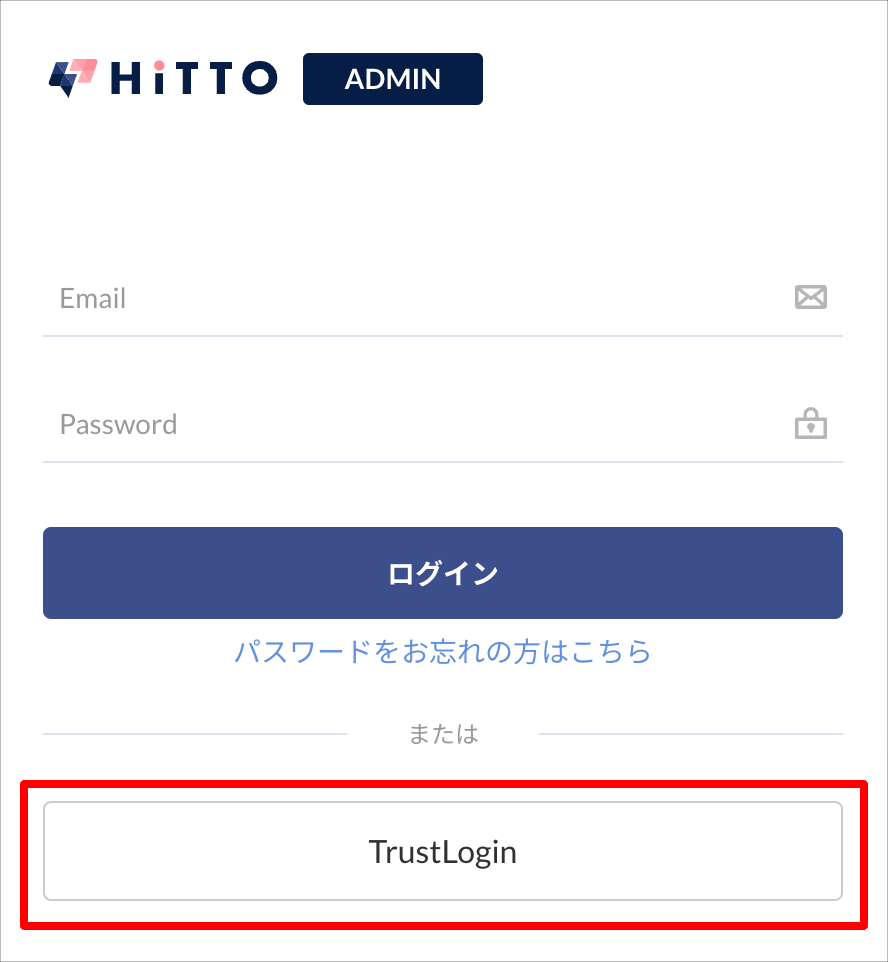

   Example of the SSO login button display when "TrustLogin" is specified for the "Button Label"


Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Configuration (Continued)

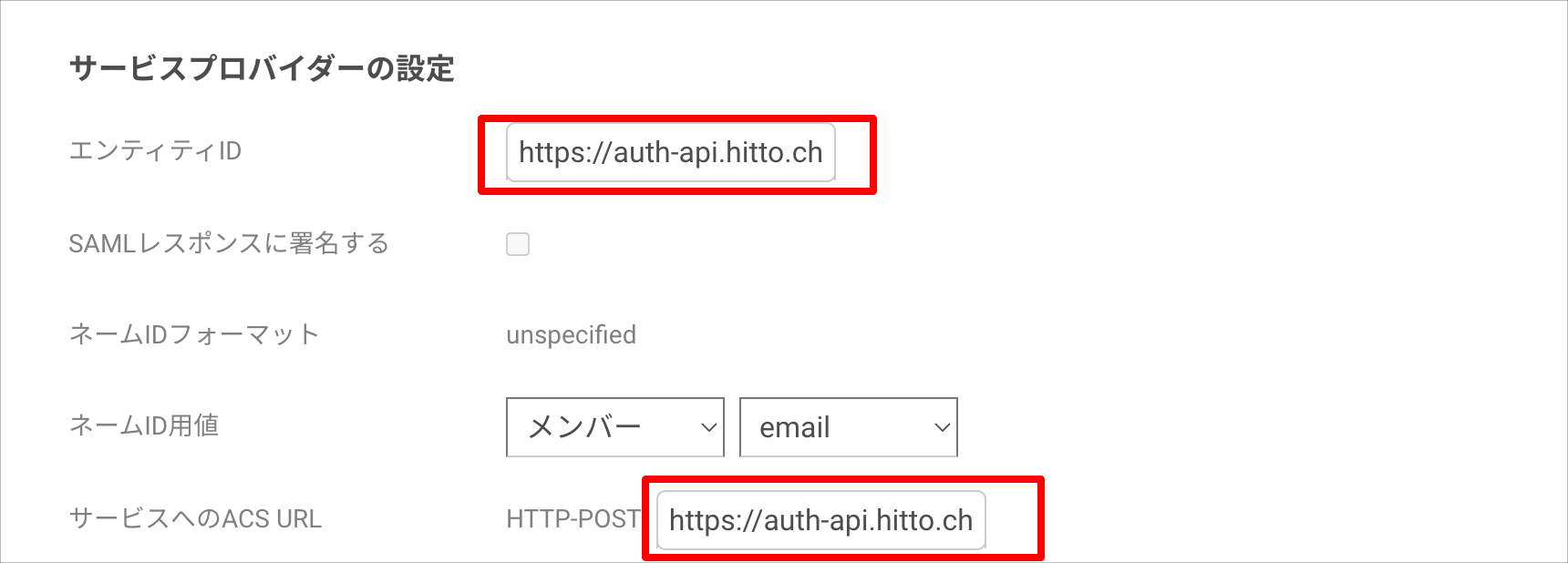

1. Configure the "Service Provider Settings" as follows.


   Entity ID	The "Service Provider Entity ID (Audience)" obtained from HiTTO
   ACS URL for the Service	The "Assertion Consumer Service URL (Recipient)" obtained from HiTTO





2. Save by clicking the "Register" button.

TrustLogin User Configuration

① When a user adds the app from My Page

1. On "My Page", click the "Add App" button.
2. On the "Register App" screen, select "HiTTO (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an administrator adds members

1. In the "Admin Page > Apps" menu, search for and click the "HiTTO (SAML)" app.
2. Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
