How to Configure SAML Authentication for Manabibako

 Item

Details

Pre-check

  • Prior configuration is required in Manabibako.

  • Your Manabibako user ID must match your TrustLogin email address.

  • This manual was verified for operation using the cloud-based version of Manabibako.
  • For the latest setup instructions, please refer to the manual provided by Manabibako.

Name ID

Email address



Custom attribute Note: For instructions on configuring custom attributes, see here

SP Configuration



Configured by the Administrator

Request configuration from SP

Provisioning



API-based Provisioning supported (account management available via TrustLogin)



SAML JITProvisioning supported (account management available via TrustLogin; user deletion not supported)

None (create accounts in each system)

Access Method

SP-Initiated SSO

IdP-Initiated SSO

Device Compatibility

PC - Browser

PC - Desktop App

iOS - Default Browser (Safari)

iOS - TrustLogin Mobile App In-App Browser

iOS - Native App

Android - Default Browser (Chrome)

Android - TrustLogin Mobile App In-App Browser

Android - Native App



TrustLogin Admin Page Configuration

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

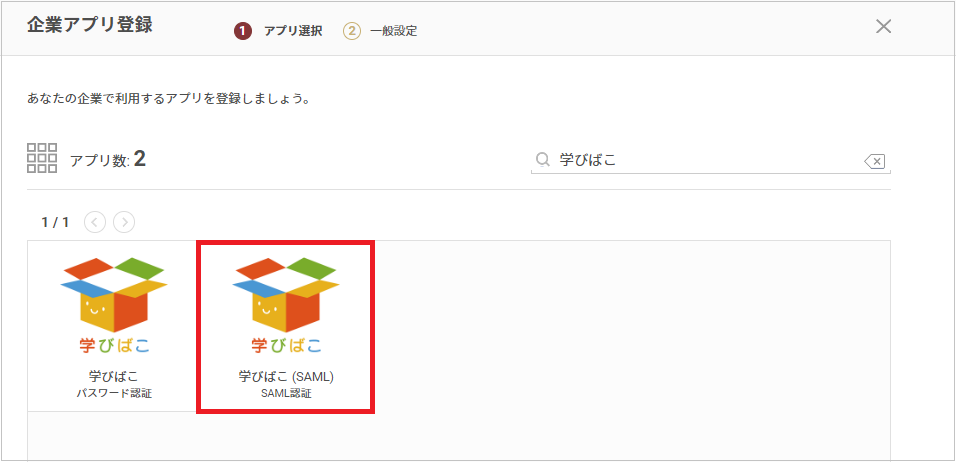

  2. On the "Corporate App Registration" screen, search and select "Manabibako (SAML)."Manabibako.png

  3. Note the "Identity Provider URL" and "Issuer / Entity ID" values under "Identity Provider Information," and download the certificate from the "Get Certificate" button.
    03 (1).png

  4. Send the three items you noted from TrustLogin — the "Identity Provider URL," "Issuer / Entity ID," and "Certificate" — to your contact at Techno Culture Co., Ltd. and request that they configure SAML.
    You will also receive the SAML configuration information for "Manabibako" to be set up on the TrustLogin side.

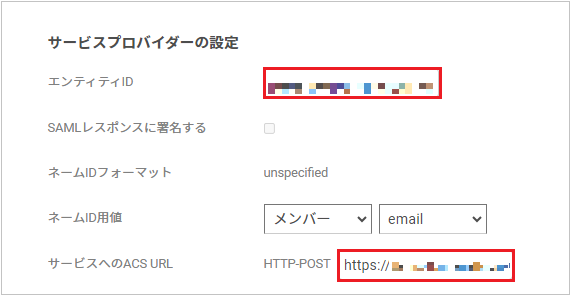

  5. Configure the following items under "Service Provider Settings" as follows.
    Entity ID The "Assertion Consumer Service (ACS) URL" sent by Techno Culture Co., Ltd.
    ACS URL for the Service The "Entity ID" sent by Techno Culture Co., Ltd.


  6. Click the "Register" button to save.


TrustLogin User Configuration

① When Users Add the App from My Page

  1. On "My Page," click the "Add App" button.
  2. On the "App Registration" screen, select "Manabibako (SAML)" and click the "Next" button in the upper right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an Administrator Adds Members

  1. In the "Admin Page > Apps" menu, search for and click the "Manabibako (SAML)" app.
  2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
