Item |
Description |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on how to set up custom attributes, see here |
||
|
SP-Side Configuration |
|
Configured by the administrator |
| 〇 |
Request configuration from the SP |
|
|
Provisioning |
Supports provisioning via API (account management possible in TrustLogin) |
|
|
Supports SAML JIT provisioning(account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verification Status by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

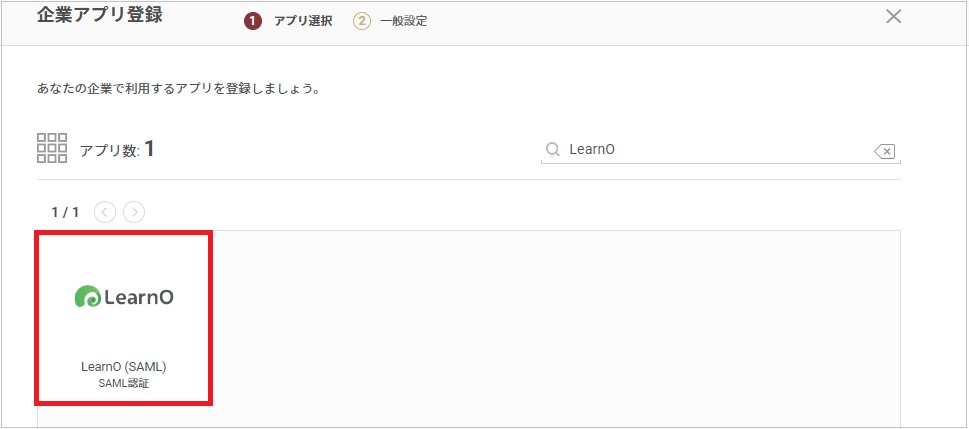

- On the "Register Corporate App" screen, search for and select "LearnO (SAML)."
- From "Identity Provider Information," note down the values of "Identity Provider URL" and "Issuer / Entity ID," then click the "Get Certificate" button to download the certificate.
-
Send the information you noted down from TrustLogin to your contact at Mogic Inc. and request that they configure SAML.
IdP SSO URL (Reply URL) The "Identity Provider URL" noted down from TrustLogin IdP Entity ID The "Issuer / Entity ID" noted down from TrustLogin IdP Certificate (cert information) Change the file extension of the certificate downloaded from TrustLogin to ".cert" and send it
-

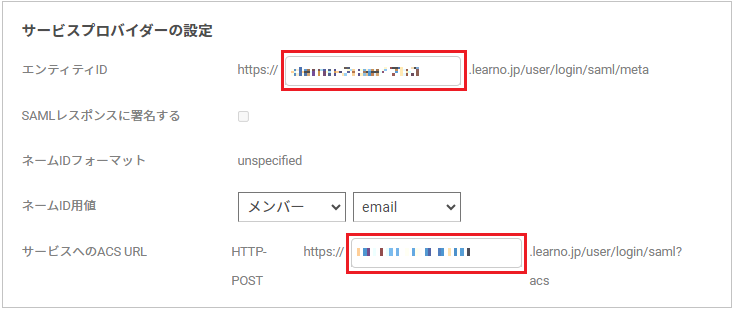

Configure each item in the "Service Provider Settings" as follows.
Entity ID Enter your LearnO ID
Note: The LearnO ID is included in your login URL.
Example: If the login URL is "https://xxxxxx.learno.jp/,"
the "xxxxxx" portion is your LearnO ID.
Note: The LearnO ID is also stated on the LearnO Service Application Form.
ACS URL for the Service Enter your LearnO ID
- Save by clicking the "Register" button.
TrustLogin User Configuration
① When a User Adds the App from My Page
- Click the "Add App" button on "My Page."
- On the "Register App" screen, select "LearnO (SAML)" and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name," enter it, then click the "Register" button.
②When an Administrator Adds Members
- In the "Admin Page > Apps" menu, search for and click the "LearnO (SAML)" app.
- Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
