Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on configuring custom attributes, click here |
||
|
SP-side configuration |
|
Configured by the administrator |
| 〇 |
Request the configuration from the SP |
|
|
Provisioning |
Supports provisioning via API (accounts can be managed in TrustLogin) |
|
|
Supports SAML JIT provisioning (accounts can be managed in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access method |
〇 |
SP-Initiated SSO |
|
|
IdP-Initiated SSO |
|
|
Verified operation by device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Native Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
〇 |
iOS - Native App |
|
|
〇 |
Android - Native Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
〇 |
Android - Native App |
|
TrustLogin Admin Page Configuration
-
Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

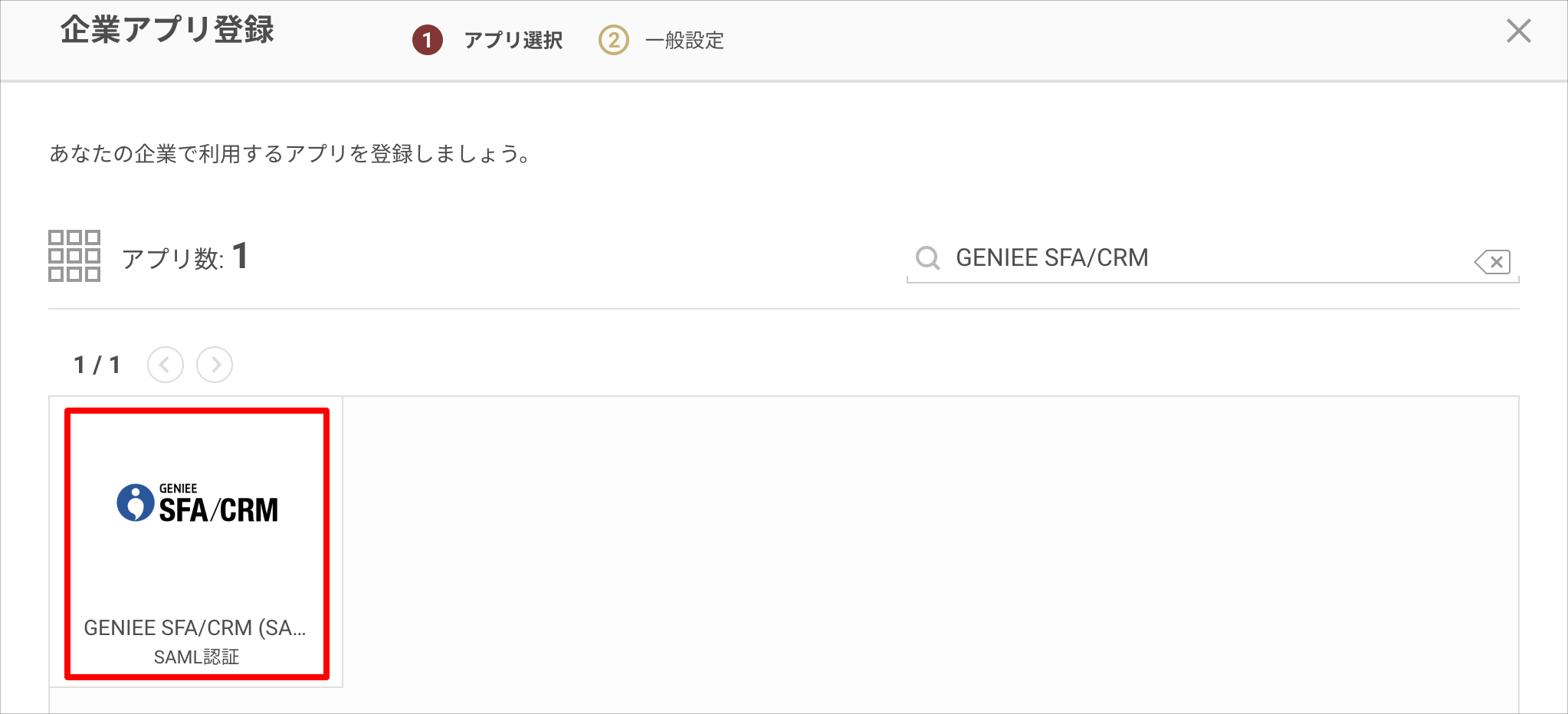

- Search on the "Register Corporate App" screen and select "GENIEE SFA/CRM (SAML)".
-
Note the values of the "Identity Provider URL" and "Issuer / Entity ID" in the "Identity Provider Information" section, and download the certificate by clicking the "Get Certificate" button.
- Save by clicking the "Register" button.
- Send the "Identity Provider URL", "Issuer / Entity ID", and "Certificate" you obtained to your Geniee, Inc. representative and request that they set up SAML.
-

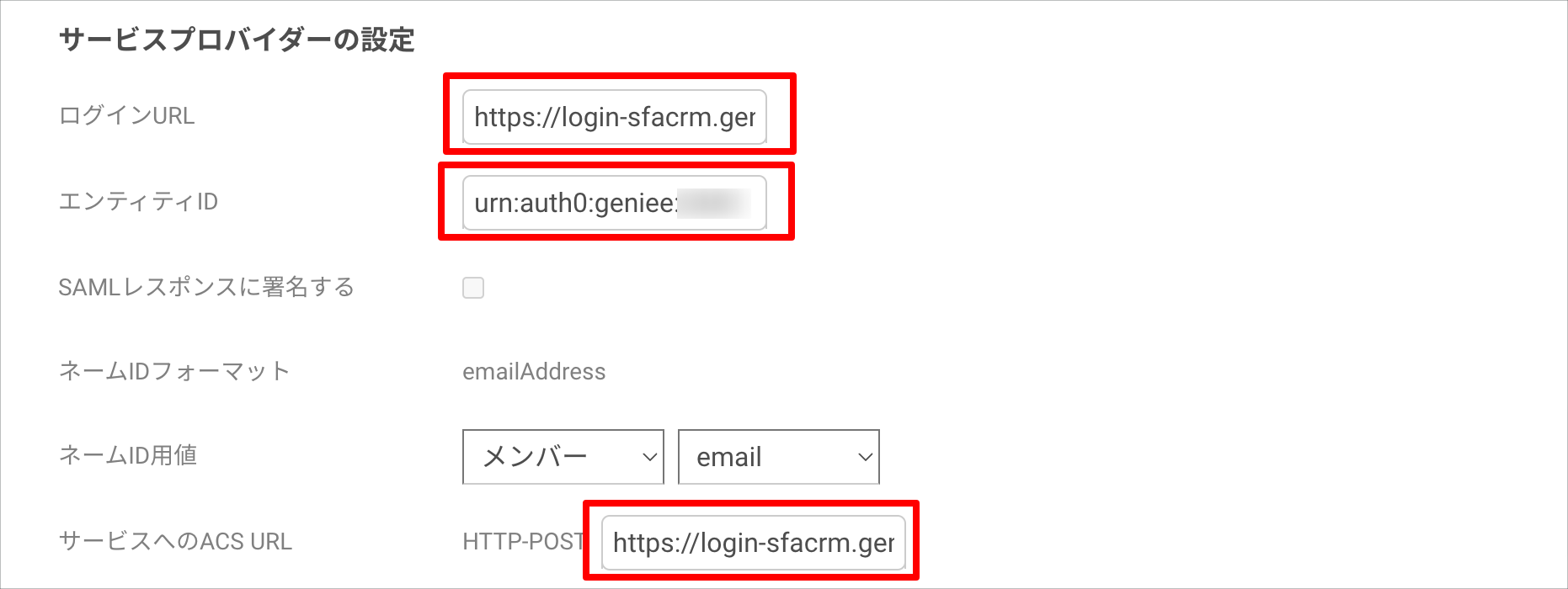

Once Geniee, Inc. notifies you that the SAML configuration is complete, open "App Management Screen > Edit SAML App Settings" and configure the Service Provider settings.
Login URL The "Login URL" provided by GENIEE SFA/CRM Entity ID The "Entity ID" provided by GENIEE SFA/CRM ACS URL for the Service The "ACS URL" provided by GENIEE SFA/CRM
- Save by clicking the "Register" button.
TrustLogin User Configuration
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "GENIEE SFA/CRM (SAML)" and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an administrator adds a member
- In the "Admin Page > Apps" menu, search for and click the "GENIEE SFA/CRM (SAML)" app.
- Click "Add Member", select the user to add from the member list, then click the "Register" button to add them.
How to Log In
① Logging in with "GENIEE SFA/CRM (SAML)"

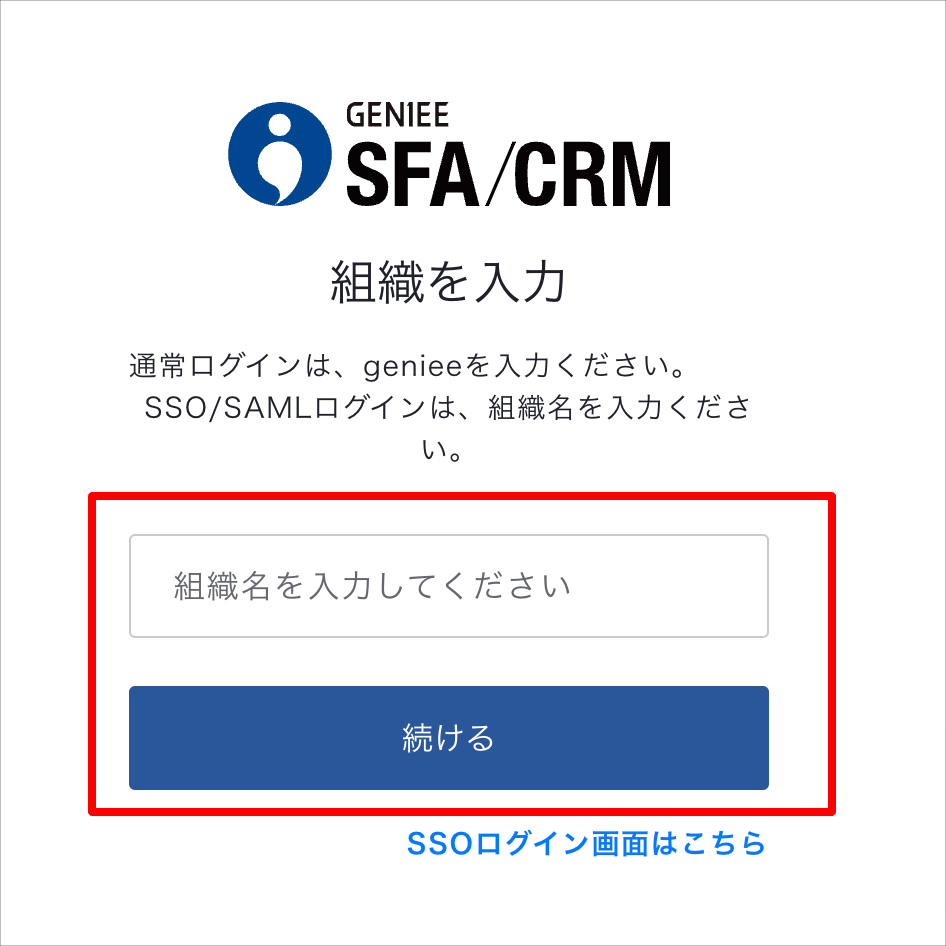

- Launching "GENIEE SFA/CRM (SAML)" from My Page or the browser extension will take you to the GENIEE SFA/CRM login screen. Enter your "Organization Name" and click the "Continue" button.

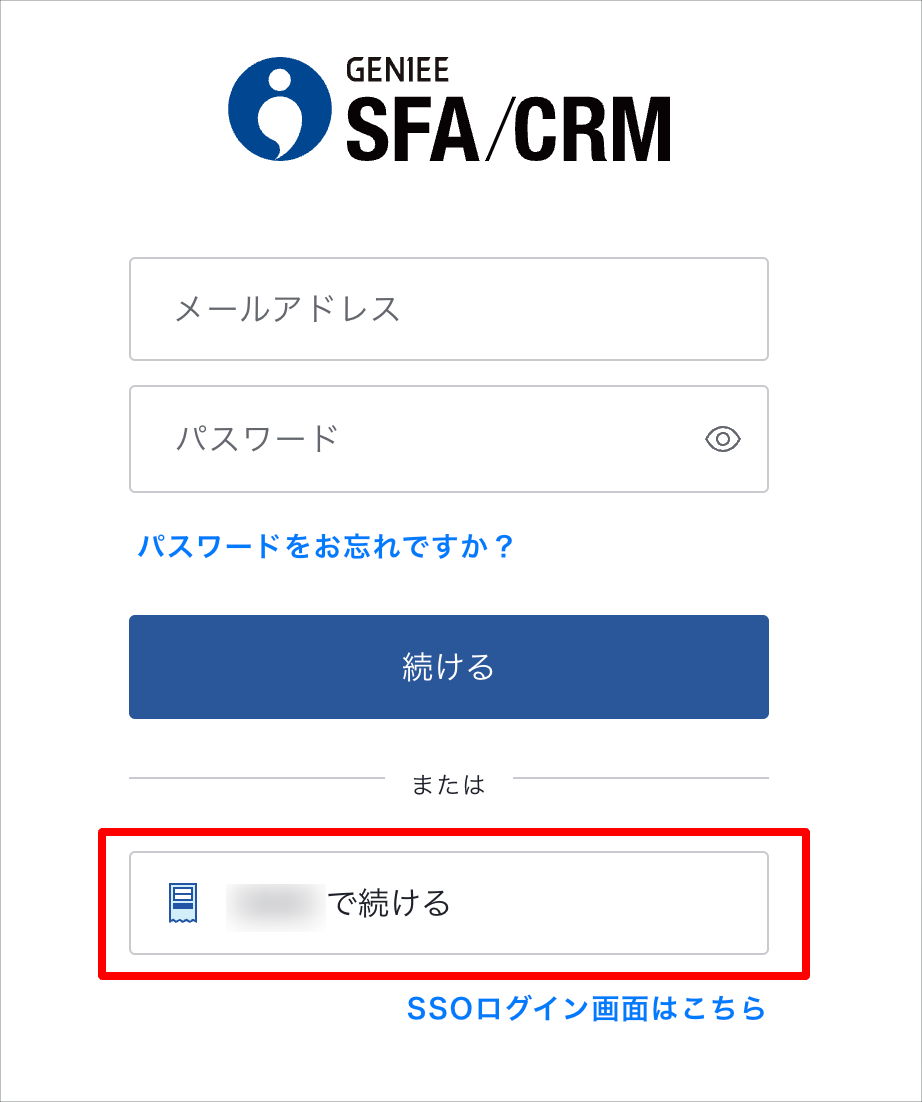

- Clicking the "Continue with (Organization Name)" button will complete the login.
② Using the helper app
We also provide a helper app that can automatically fill in the "Organization Name".

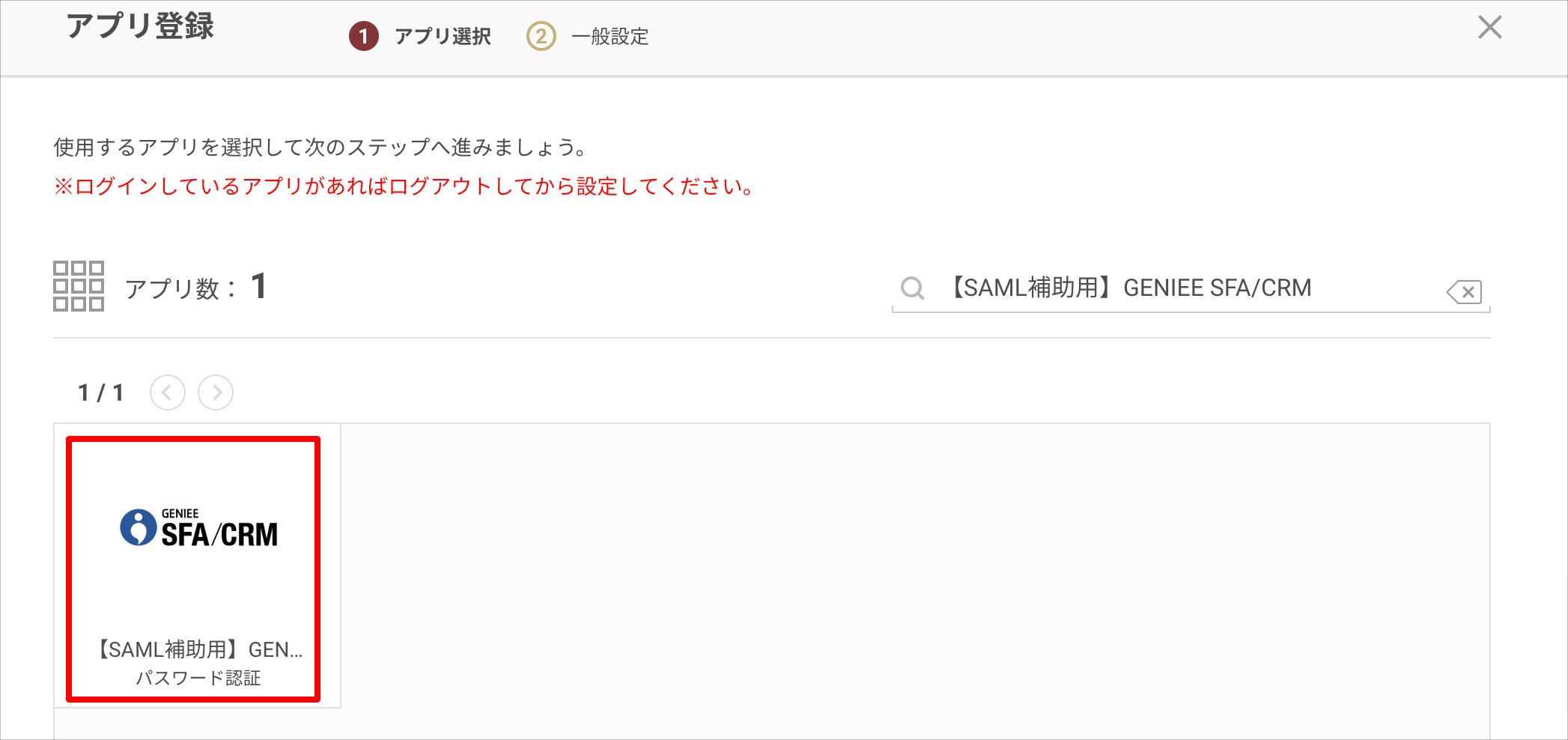

Search for it on the app search screen and register "[SAML Helper] GENIEE SFA/CRM" to use it.
Note: The helper app can only be used in a PC browser.
Note: It can also be used in the iOS in-app browser and the Android in-app browser, but you will be asked to log in to TrustLogin again.
