How to Configure SAML Authentication for ourly

Item

Details

Prerequisites

  • Prior configuration in ourly is required.

  • The login ID in ourly must match the email address used in TrustLogin.

  • For the latest configuration steps, please refer to the manual provided by ourly.

Name ID

Email address

Custom attribute Note: For instructions on configuring custom attributes, click here

SP-side configuration

Configured by the administrator

Request the SP to configure

Provisioning

Supports provisioning via API (accounts can be managed in TrustLogin)

Supports SAML JIT provisioning(accounts can be managed in TrustLogin; user deletion not supported)

None (accounts are created in each system)

Access method

SP-Initiated SSO

IdP-Initiated SSO

Verified operation status by device

PC - Browser

PC - Desktop app

iOS - Standard browser (Safari)

iOS - TrustLogin mobile app internal browser

iOS - Native app

Android - Standard browser (Chrome)

Android - TrustLogin mobile app internal browser

Android - Native app

Configuring the TrustLogin Admin Page

  1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the upper right of the screen.

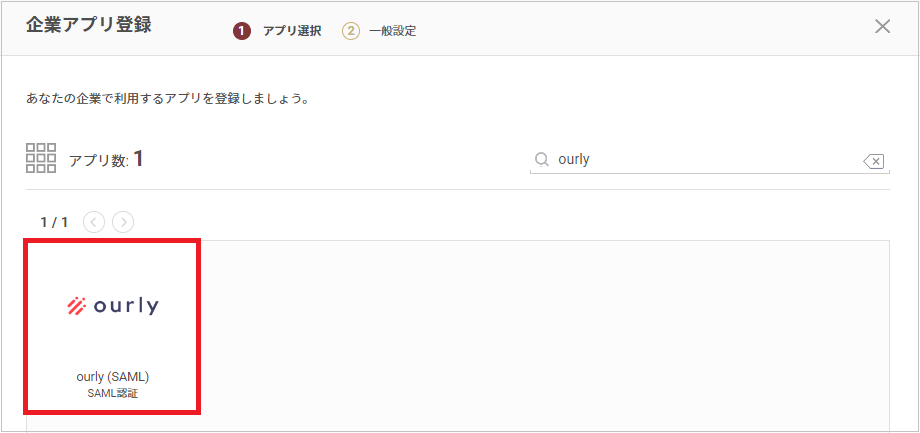

  2. Search on the "Register Corporate App" screen and select "ourly (SAML)."

  3. In the "Identity Provider Information" section, note the "Identity Provider URL" and "Issuer/Entity ID" values, and download the certificate using the "Get Certificate" button.
    03 (1).png

  4. Send the information you noted from TrustLogin to your ourly, Inc. representative and request the SAML configuration.
    SSO URL The "Identity Provider URL" noted from TrustLogin
    (IdP) Entity ID The "Issuer/Entity ID" noted from TrustLogin
    X.509 Certificate

    The certificate downloaded from TrustLogin

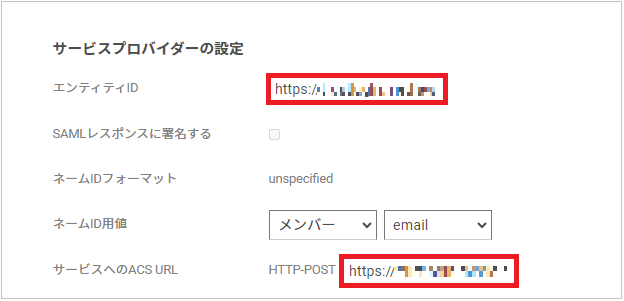

  5. Configure each item of the "Service Provider Settings" as follows.
    Entity ID The (SP) Entity ID provided by ourly, Inc.
    ACS URL for the service

    The ACS URL (Assertion Consumer Service URL / response URL) provided by ourly, Inc.



  6. Save by clicking the "Register" button.

Configuring TrustLogin Users

① When a user adds the app from My Page

  1. On "My Page," click the "Add App" button.
  2. On the "Register App" screen, select "ourly (SAML)" and click the "Next" button at the upper right of the screen.
  3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an administrator adds members

  1. In the "Admin Page > Apps" menu, search for and click the "ourly (SAML)" app.
  2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
