Configuring the TrustLogin Admin Page

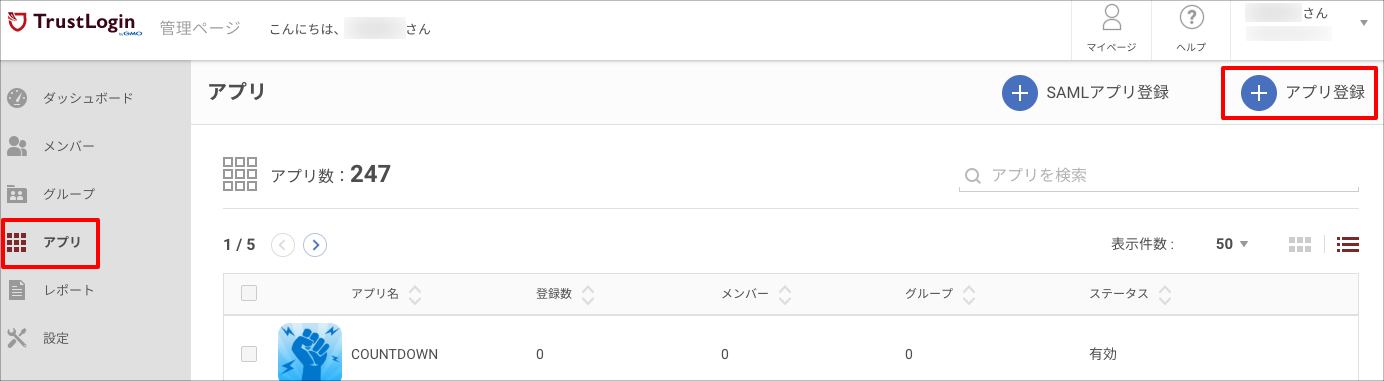

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the upper right of the screen.

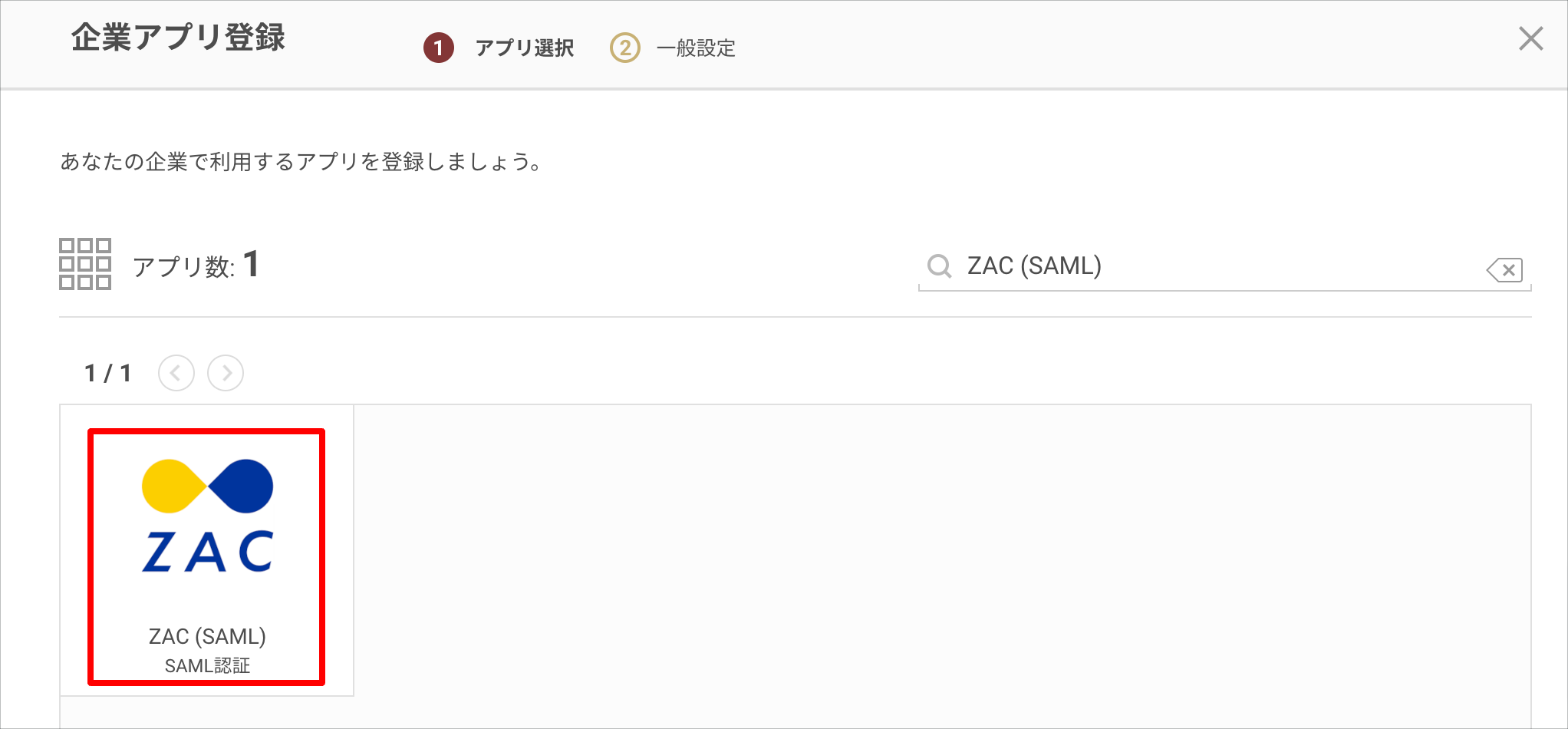

2. Search on the "Register Corporate App" screen and select "ZAC (SAML)."

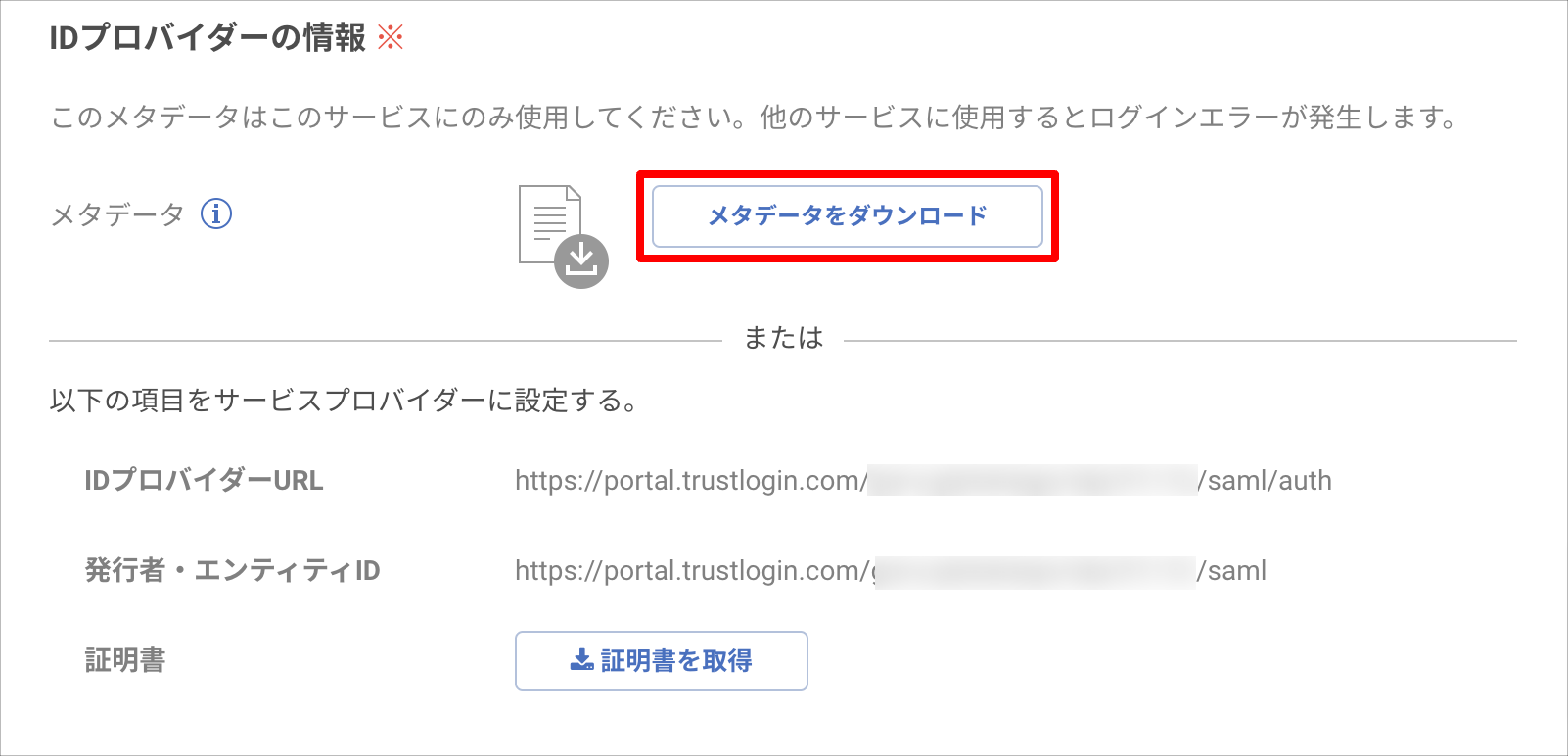

3. Download the metadata from the "Download Metadata" button in the "Identity Provider Information" section.


Now, switch to the configuration on the ZAC side.
Do not click the "Register" button yet — open ZAC in a separate window.

Configuring ZAC

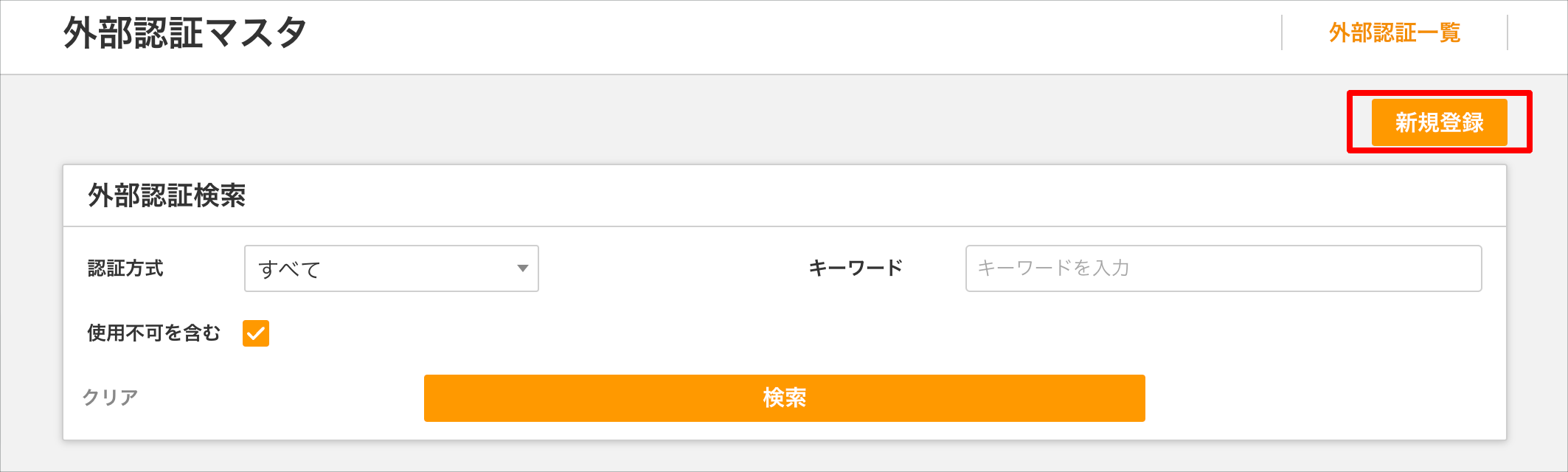

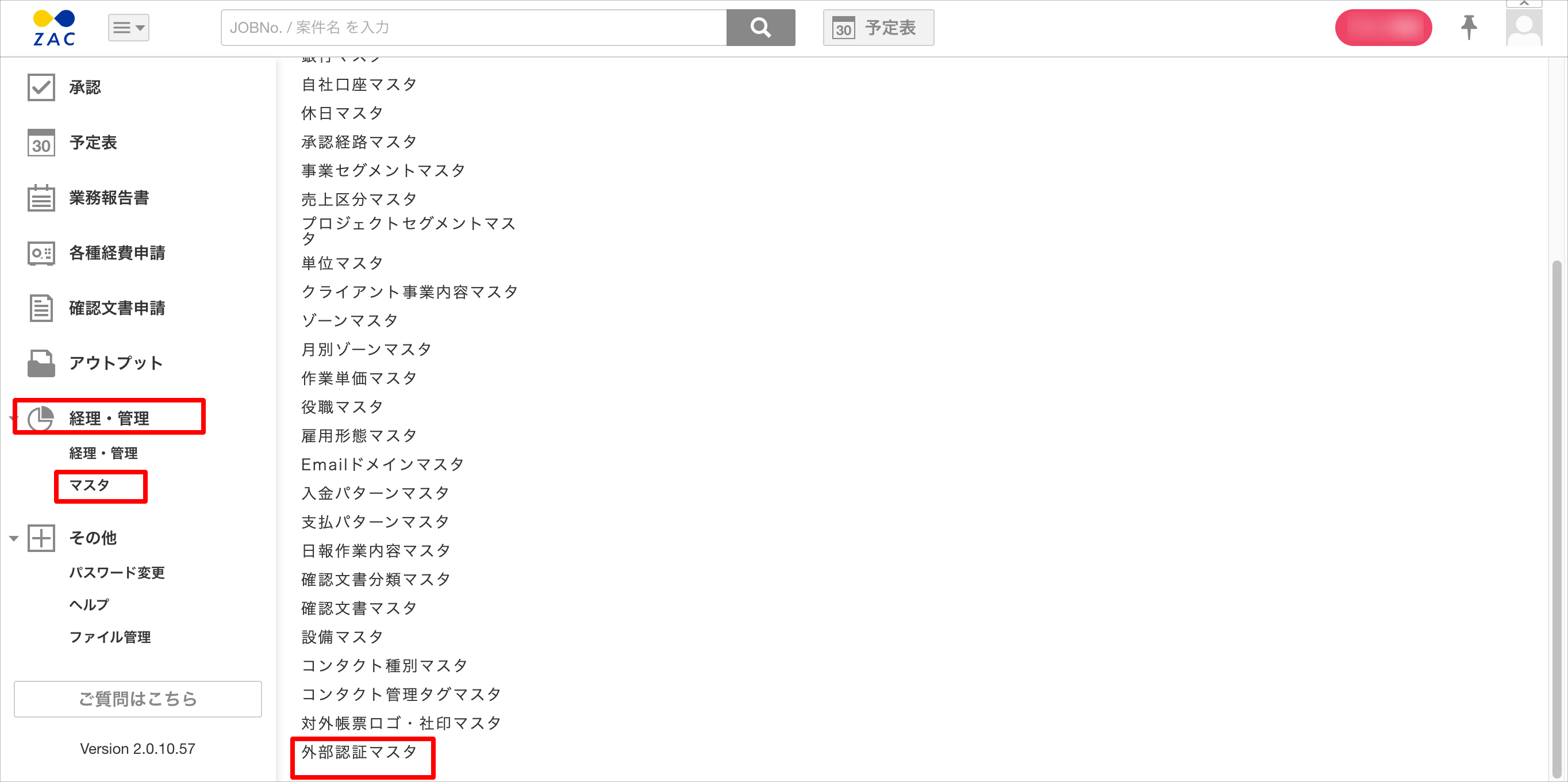

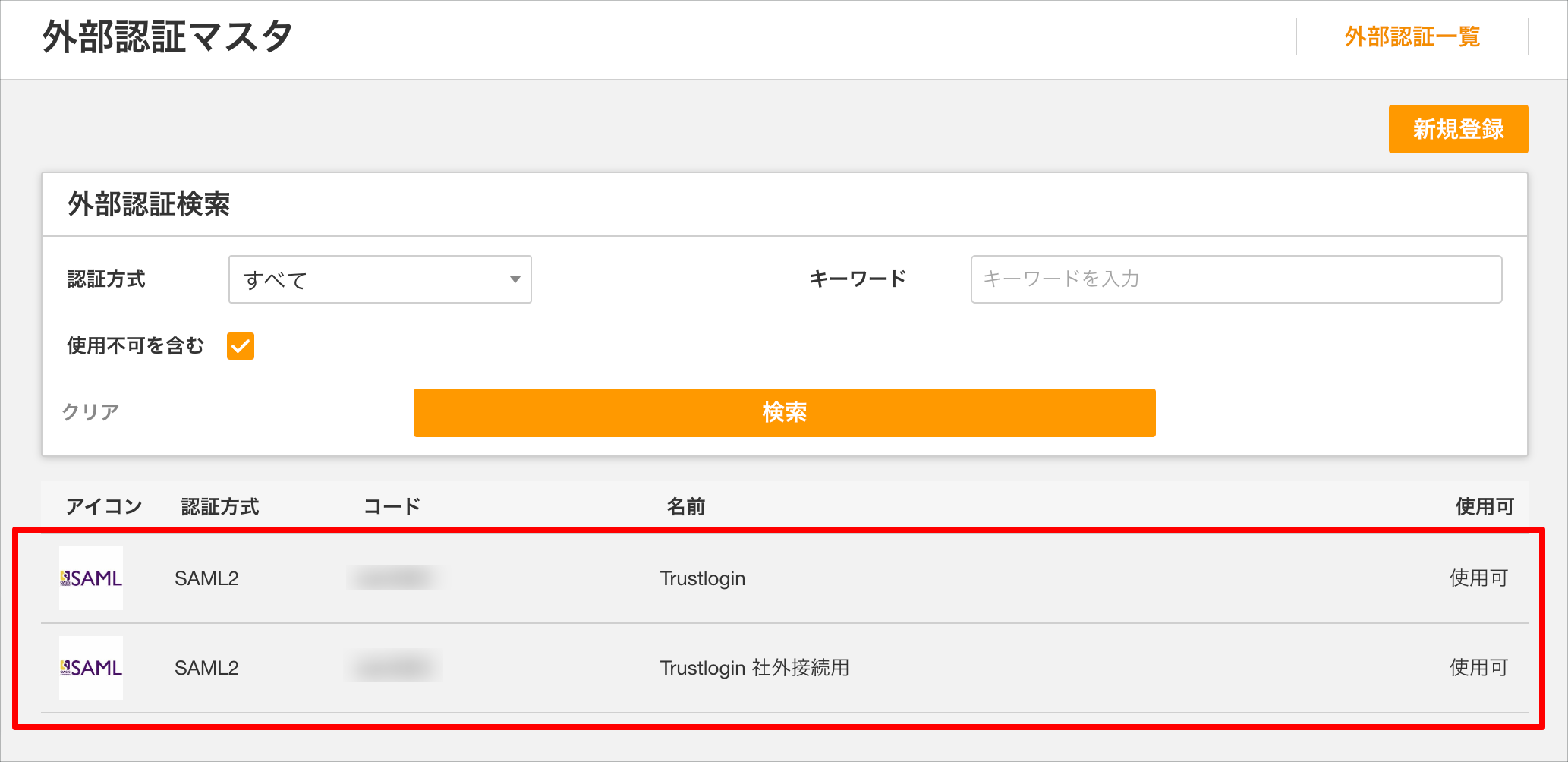

1. From the admin screen menu, open "Accounting/Administration > Master > External Authentication Master" and click the "New Registration" button.

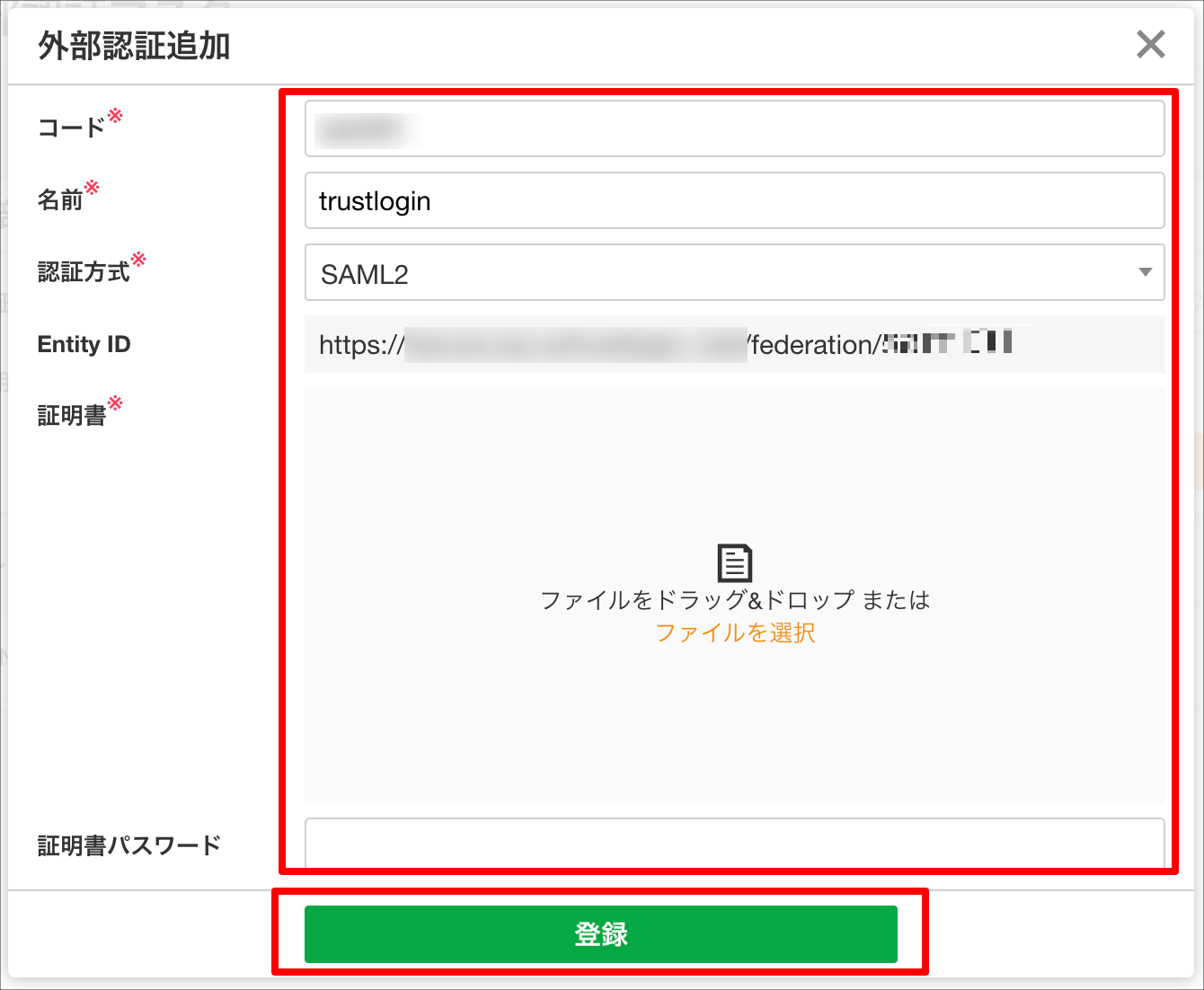

2. Configure each item as follows and save by clicking the "Register" button.


   Code	Any string
   Name	Any string (this becomes the button name displayed on the login page)
   Authentication method	Select "SAML2"
   Certificate	Upload the certificate file Note: This is the certificate used by the authentication server to verify that requests to the authentication server come from your ZAC. Note: Unlike the certificate downloaded from the TrustLogin SAML app configuration page, this certificate must be prepared by you. Note: For details, please contact your representative at Oro Corporation.
   Certificate password	The password required to use the certificate

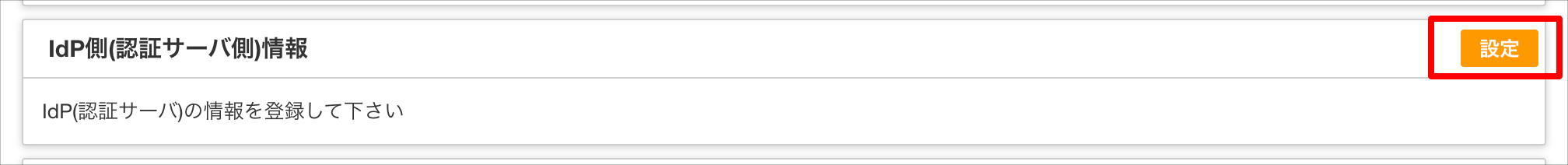

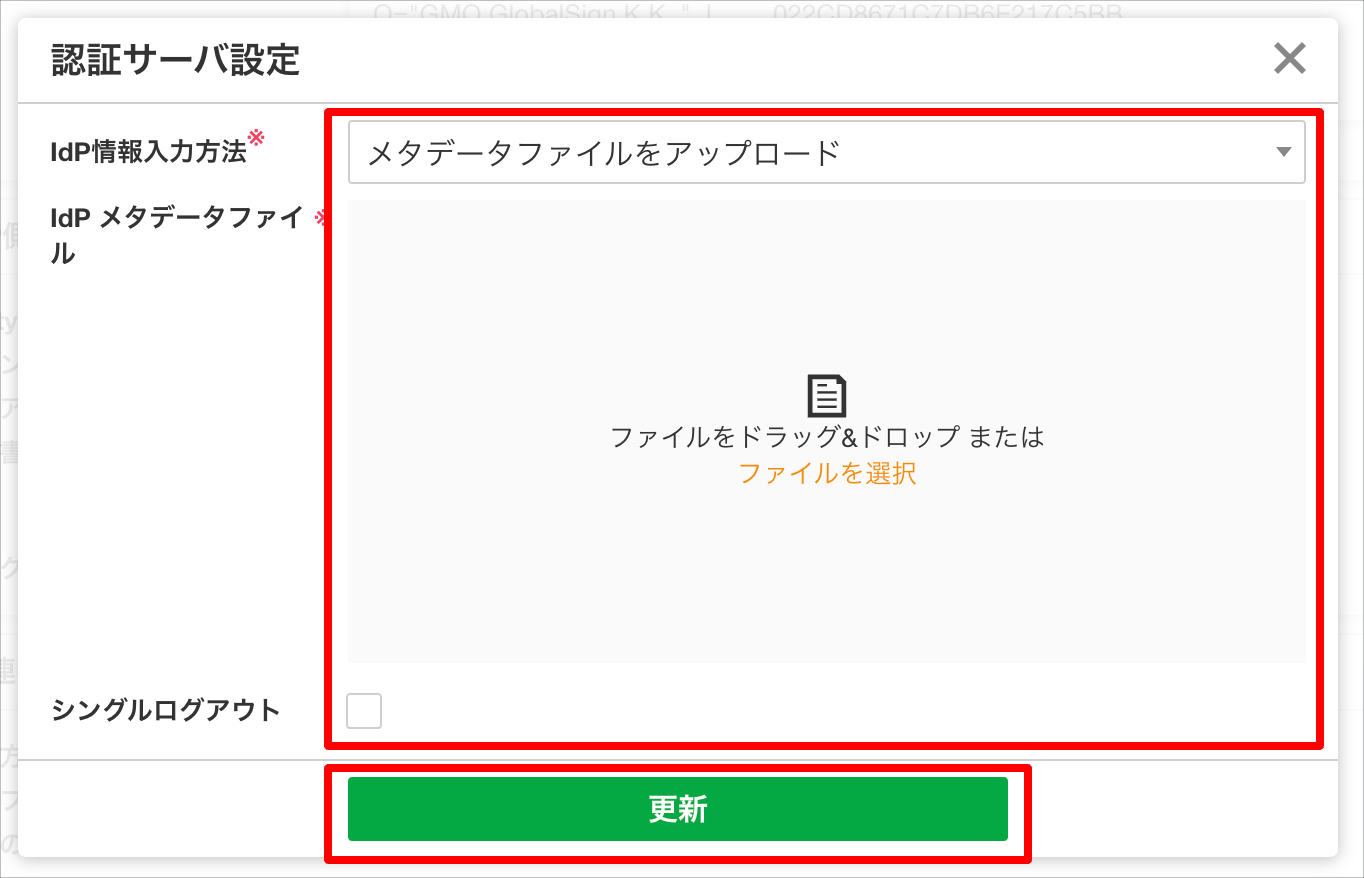

3. Click the "Configure" button in the "IdP-Side (Authentication Server-Side) Information" section, configure the authentication server settings screen as follows, and save by clicking the "Update" button.


   IdP information input method	Select "Upload metadata file"
   IdP metadata file	Upload the metadata downloaded from TrustLogin by drag-and-drop or by selecting the file
   Single logout	Turn the checkbox OFF

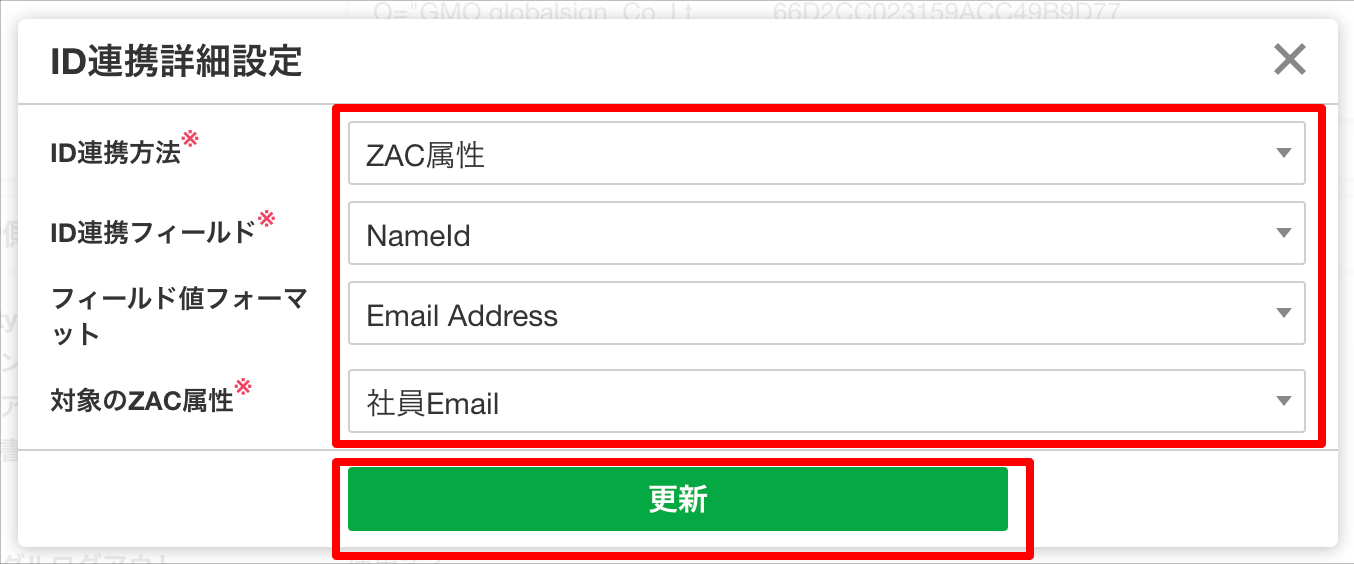

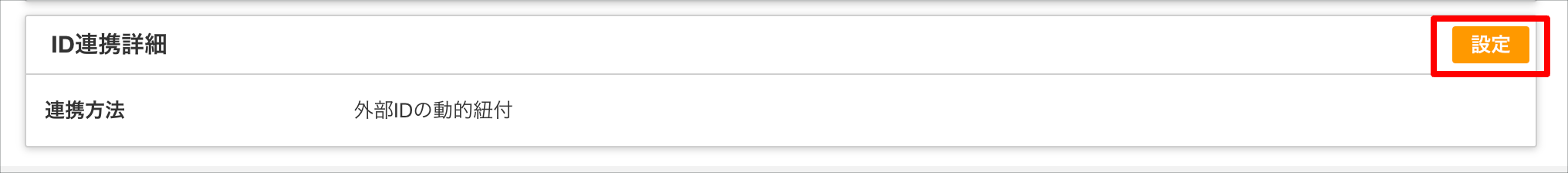

4. Click the "Configure" button in "ID Federation Details," configure the ID federation detail settings screen as follows, and save by clicking the "Update" button.


   ID federation method	ZAC attribute
   ID federation field	NameId
   Field value format	Email Address
   Target ZAC attribute	Employee Email

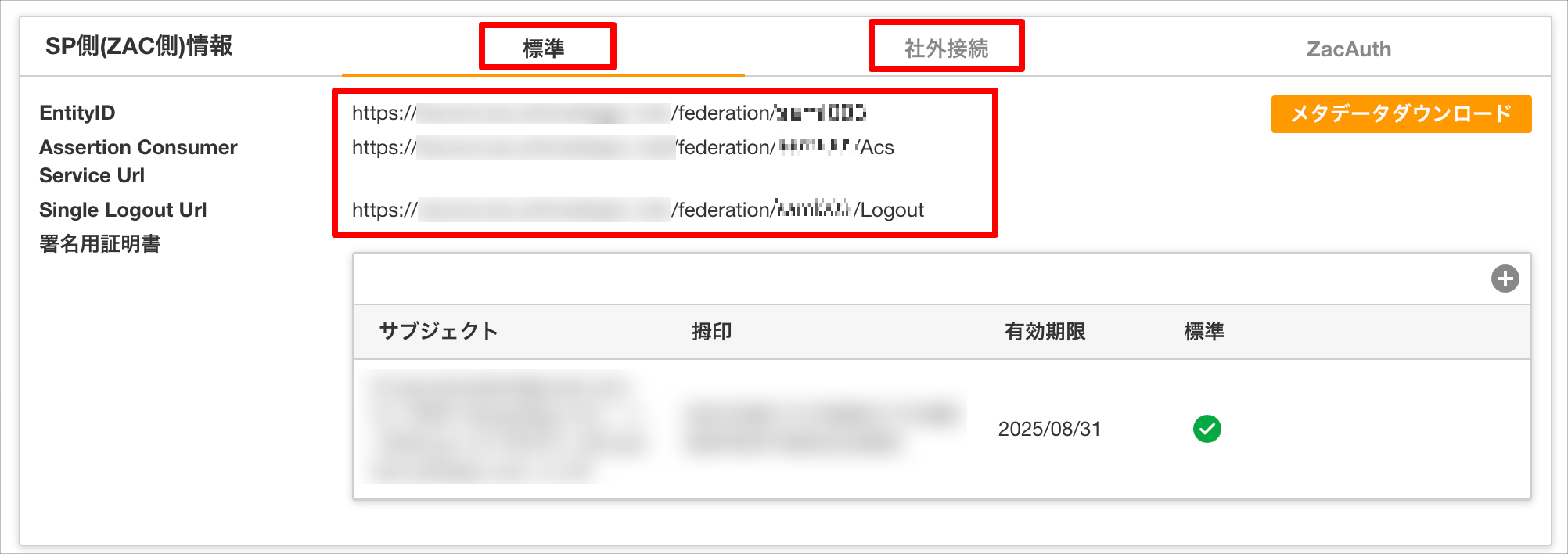

5. Make a note of the "Entity ID," "Assertion Consumer Service Url," and "Single Logout Url" values in the "SP-Side (ZAC-Side) Information" section.
   Note: If you are creating a SAML app for external connections, switch to the external connection tab to obtain this information.

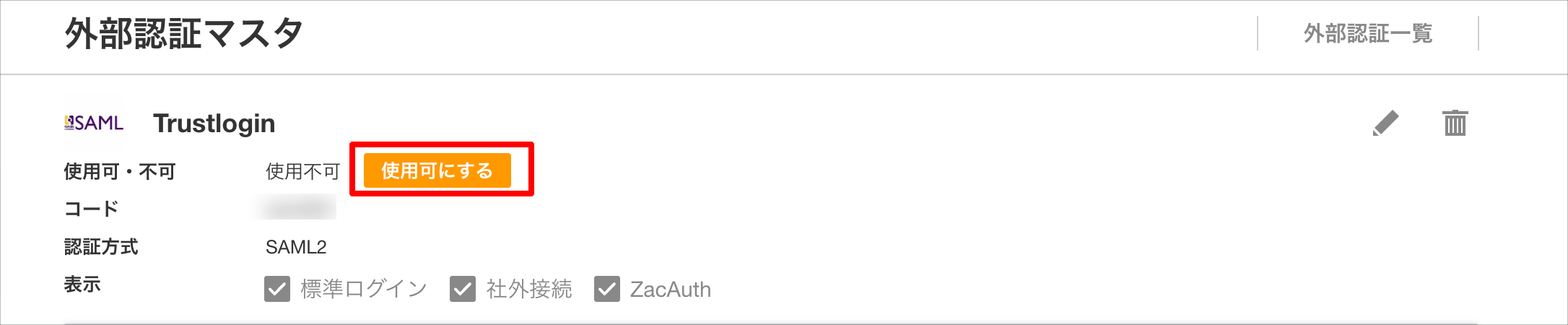

6. Click "Enable" to activate SAML.



Now return to the TrustLogin Admin Page.

Configuring the TrustLogin Admin Page (Continued)

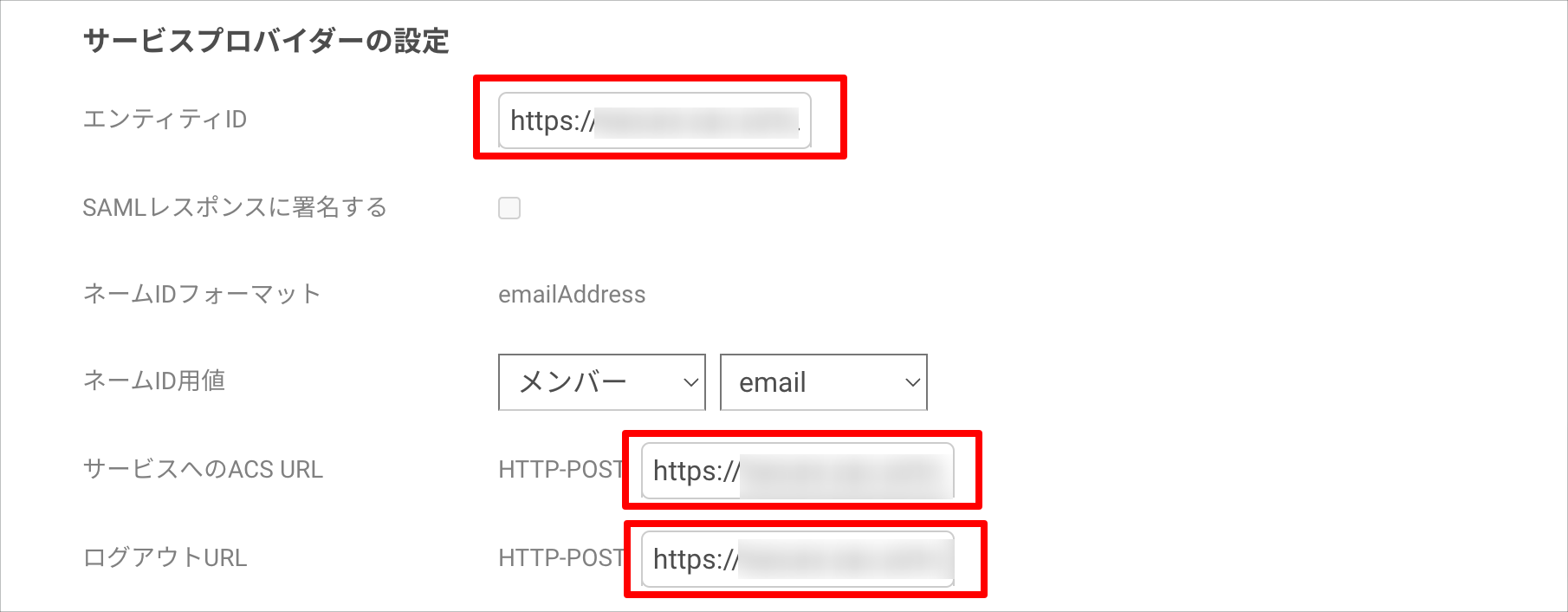

1. Configure the "Service Provider Settings" as follows.


   Entity ID	The "Entity ID" obtained from ZAC
   ACS URL for the service	The "Assertion Consumer Service Url" obtained from ZAC
   Logout URL	The "Single Logout Url" obtained from ZAC

   Note: Single logout is planned to be added as a future feature, but it is not yet implemented and does not currently work




2. Save by clicking the "Register" button.

Configuring TrustLogin Users

① When a user adds the app from My Page

1. On "My Page," click the "Add App" button.
2. On the "Register App" screen, select "ZAC (SAML)" and click the "Next" button at the upper right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

② When an administrator adds members

1. In the "Admin Page > Apps" menu, search for and click the "ZAC (SAML)" app.
2. Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.

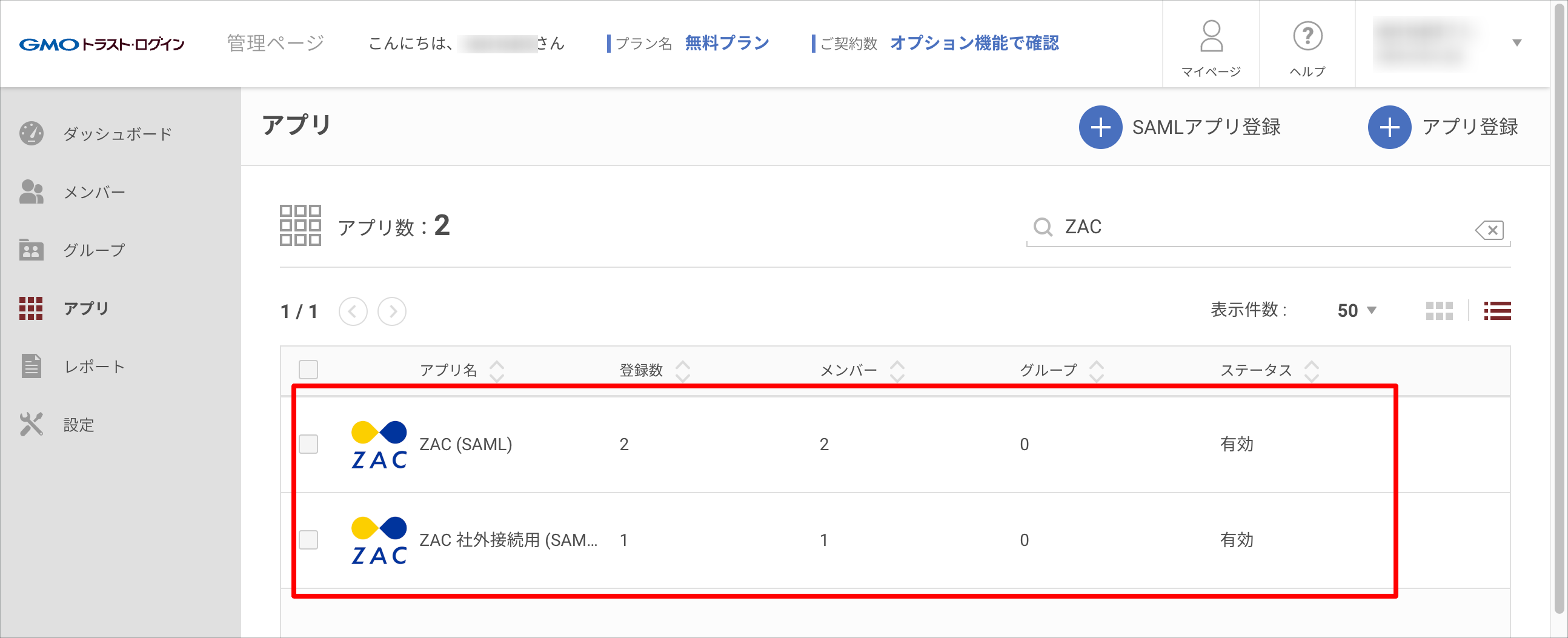

When Using the External Connection Option

If you are using the external connection option and external connection users will also use SAML, repeat the steps above to register separate configurations for the standard (internal) connection and the external connection in both ZAC and TrustLogin.
