TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

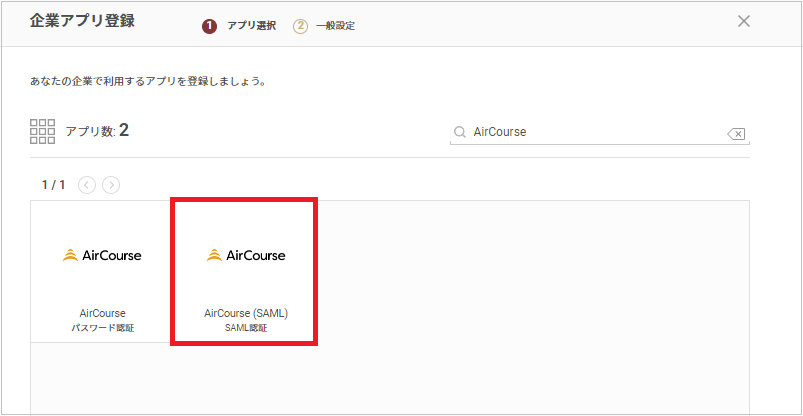

2. On the "Register Corporate App" screen, search for and select "AirCourse (SAML)."



3. From "Identity Provider Information," click the "Download Metadata" button to download the metadata.


Now, switch over to configuring the AirCourse side.
Do not click the "Register" button yet. Open AirCourse in a separate window.

AirCourse Configuration

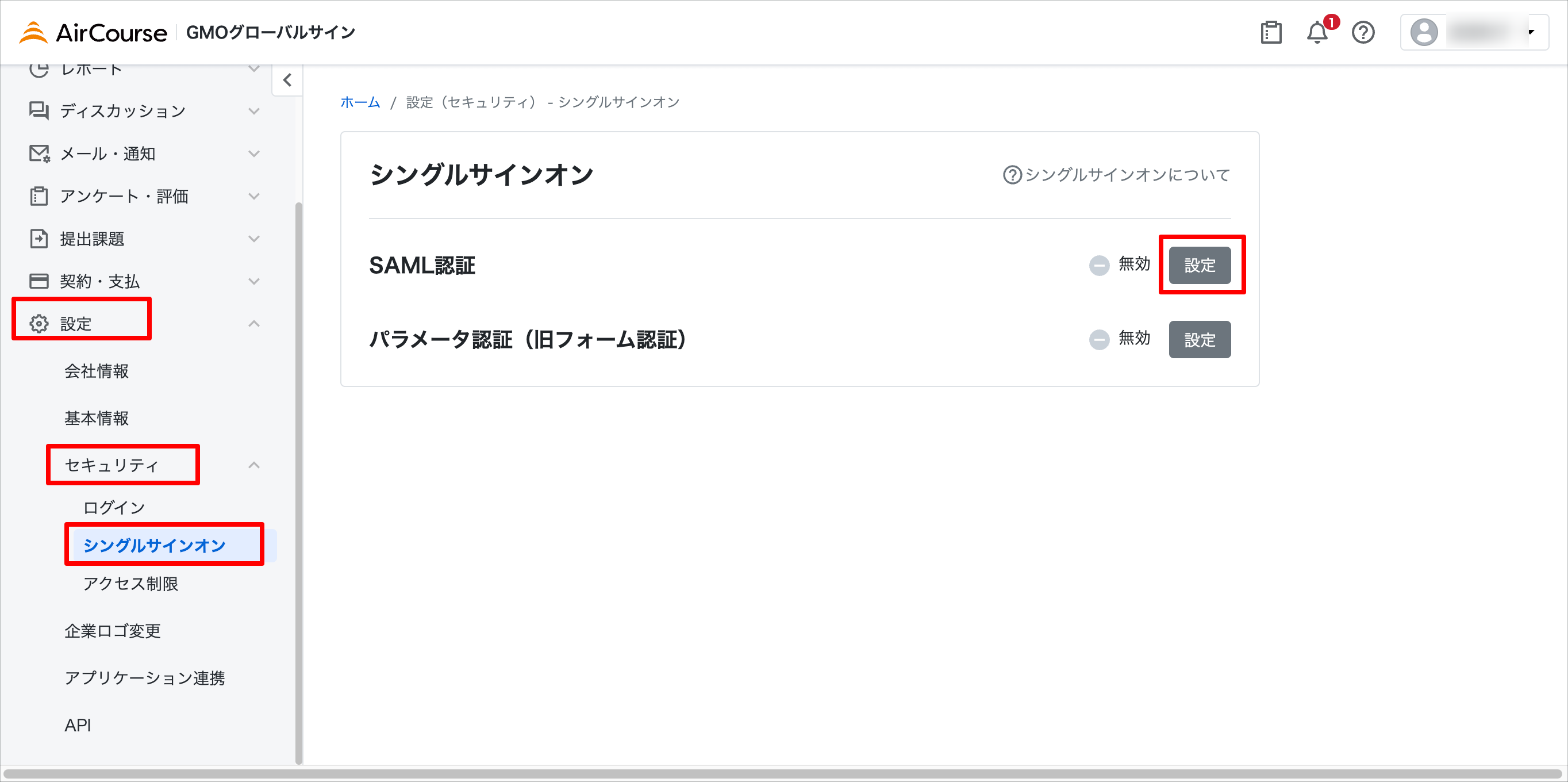

1. In the left menu, under Administrator mode, open "Settings > Security > Single Sign-On," and click "Configure" for SAML authentication.

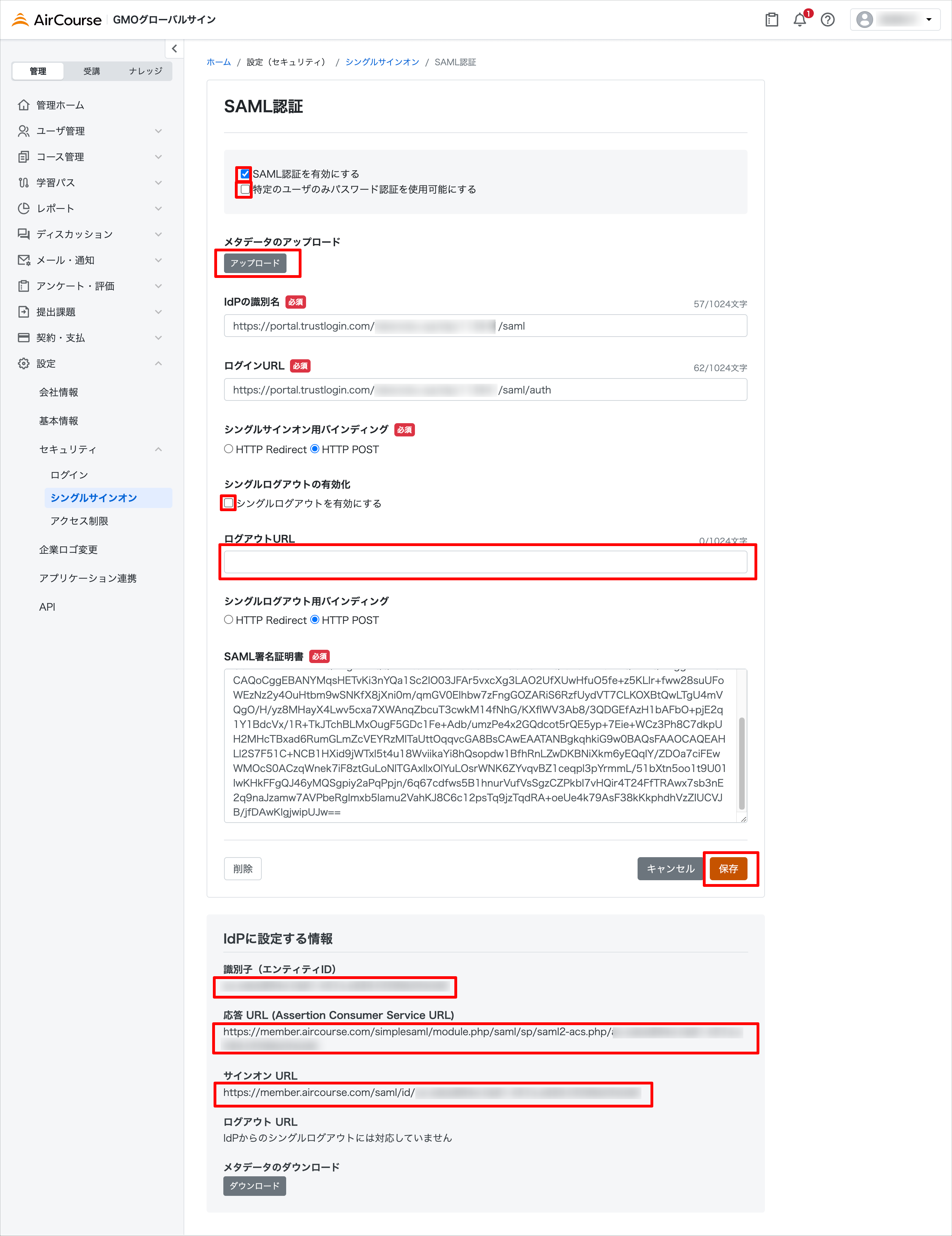

2. Configure each item as shown below, then save by clicking the "Save" button.
   Note: Once SAML authentication is enabled, logging in via password authentication will no longer be possible. We recommend that the person configuring SAML not log out, and instead use a different PC or browser with a different user account to test the SAML connection.


   Enable SAML Authentication	Check the box
   Allow Password Authentication for Specific Users Only	Choose according to your operational needs If checked, enabling "Enable Password Authentication" on the target user's detailed settings screen allows that user's authentication method to be set to password authentication (SAML authentication will not be available for that user)
   Upload Metadata	Upload the "metadata" obtained from TrustLogin The IdP information will be loaded automatically
   Enable Single Logout	Uncheck the box
   Logout URL	Leave blank
   Identifier (Entity ID)	Copy the value and keep a note of it
   Reply URL (Assertion Consumer Service URL)	Copy the value and keep a note of it
   Sign-on URL	Copy the value and keep a note of it






Now return to the TrustLogin Admin Page.

TrustLogin Admin Page Configuration (Continued)

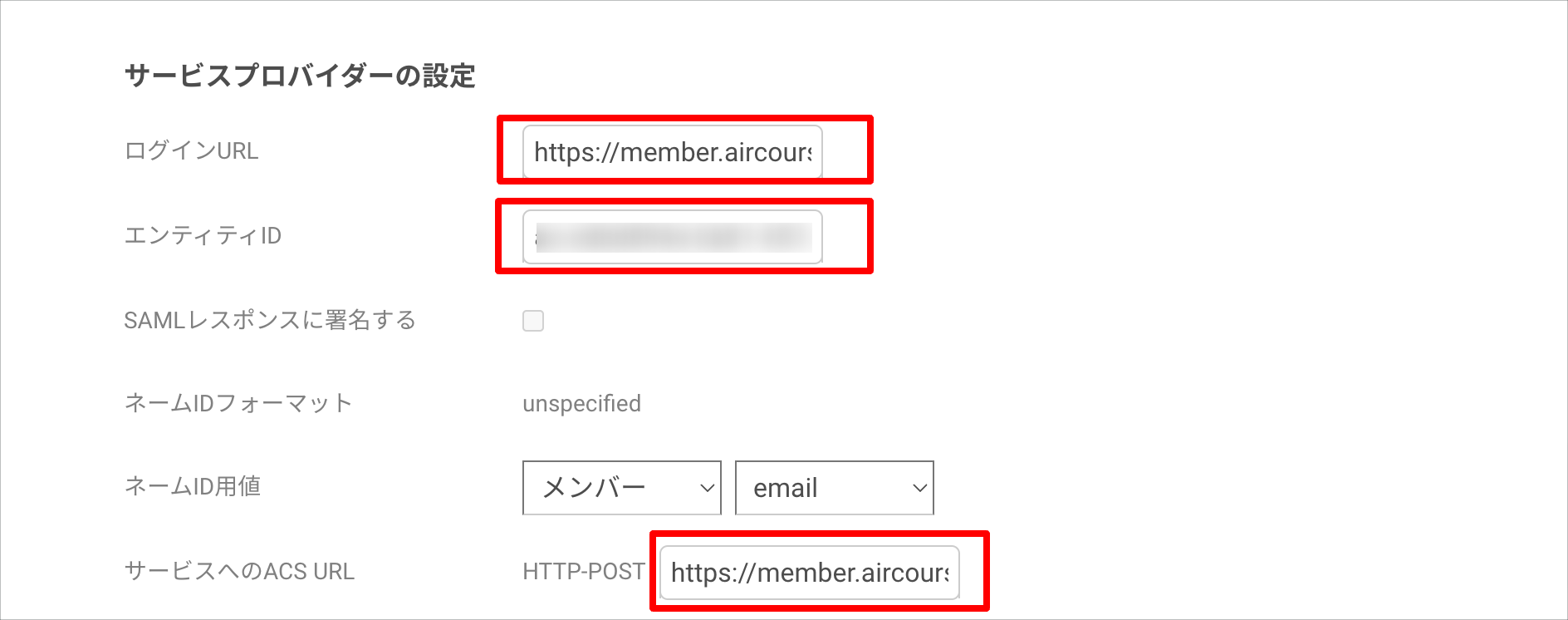

1. Configure the "Service Provider Settings" as follows.


   Login URL	The "Sign-on URL" obtained from AirCourse
   Entity ID	The "Identifier (Entity ID)" obtained from AirCourse
   ACS URL for the Service	The "Reply URL (Assertion Consumer Service URL)" obtained from AirCourse





2. Save by clicking the "Register" button.

TrustLogin User Configuration

① When a User Adds the App from My Page

1. Click the "Add App" button on "My Page."
2. On the "Register App" screen, select "AirCourse (SAML)" and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name," enter it, then click the "Register" button.

②When an Administrator Adds Members

1. In the "Admin Page > Apps" menu, search for and click the "AirCourse (SAML)" app.
2. Click "Add Member," select the user to add from the member list, and click the "Register" button to add them.
