Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, see here |
||
|
SP-Side Configuration |
〇 |
Configured by the administrator |
|
Request the SP to configure the settings |
||
|
Provisioning |
Supports provisioning via API (accounts can be managed in TrustLogin) |
|
|
Supports SAML JIT provisioning(accounts can be managed in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verification Status by Device |
※ |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App Internal Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App Internal Browser |
|
|
ー |
Android - Native App |
|
※SAML authentication itself is possible, but if you use it on a PC, we recommend configuring SAML separately. For configuration instructions, please see here.
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

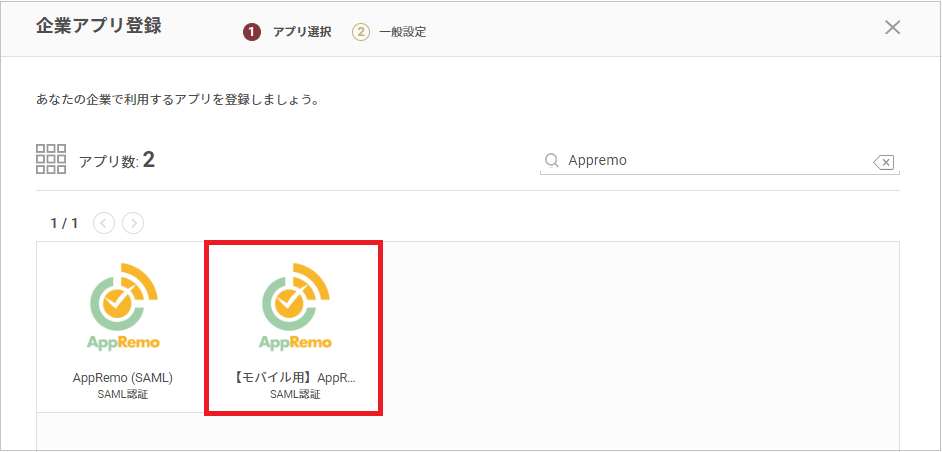

- Search on the "Register Corporate App" screen, and select "AppRemo [Mobile] (SAML)".
-
Note the value of "IdP URL" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.
-

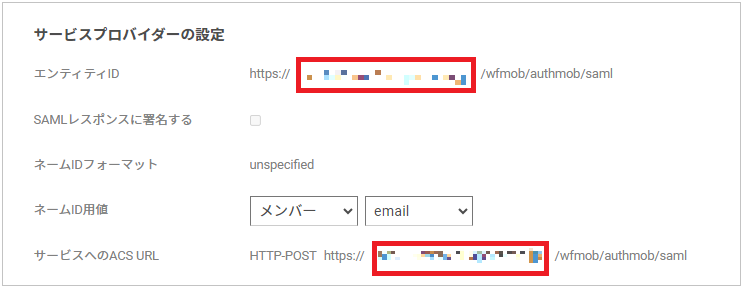

Configure the following fields in "Service Provider Settings" and save by clicking the "Register" button.
Entity ID Extract the FQDN of AppRemo and enter it
Example: https://xxxx.appremo.jp/wf/
Service ACS URL Extract the FQDN of AppRemo and enter it
Example: https://xxxx.appremo.jp/wf/
AppRemo Configuration
-

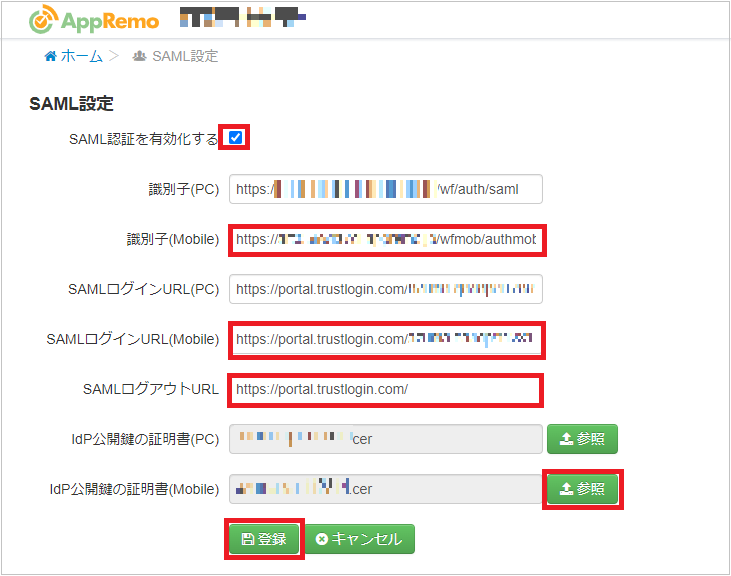

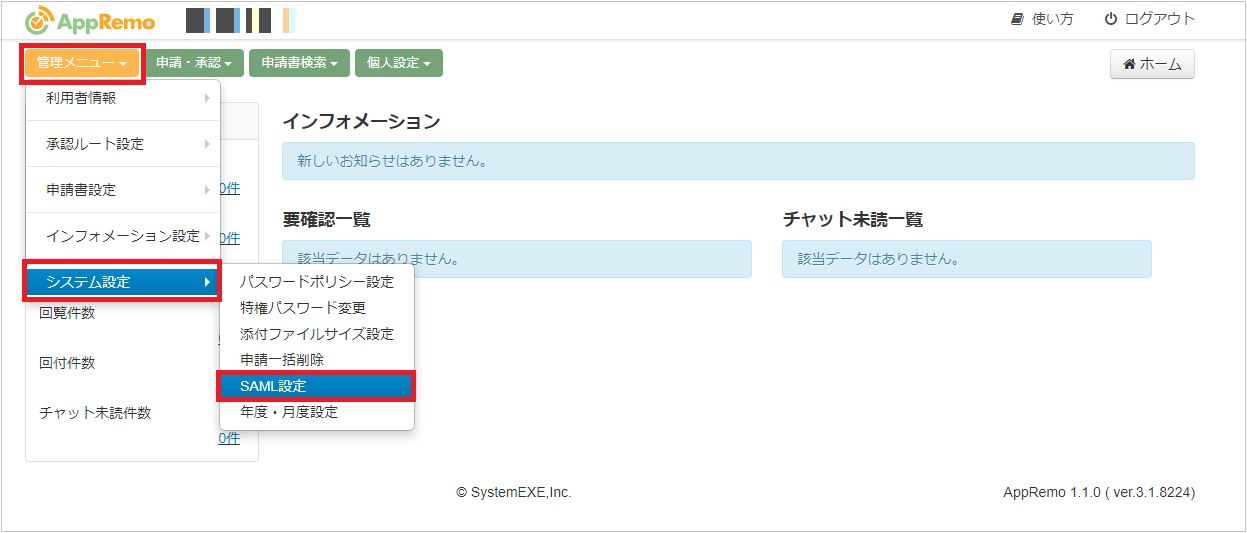

Log in to AppRemo with an administrator account, and open "Admin Menu > System Settings > SAML Settings".
- Configure "SAML Settings" as follows and click the "Register" button.
Enable SAML authentication Check the box https://AppRemo's FQDN/wfmob/authmob/saml
The "IdP URL" obtained from TrustLogin https://portal.trustlogin.com/ Change the file extension of the "Certificate" obtained from TrustLogin to .cer and upload it
TrustLogin User Configuration
① When a User Adds the App via My Page
- On "My Page", click the "Add App" button.
- On the "Register App" screen, select "AppRemo [Mobile] (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, and click the "Register" button.
② When an Administrator Adds Members
- In the "Admin Page > Apps" menu, search for the "AppRemo [Mobile] (SAML)" app and click it.
- Click "Add Member", select the users to add from the member list, and click the "Register" button to add them.
-
Log in to AppRemo with an administrator account, and open "Admin Menu > System Settings > SAML Settings".
