TrustLogin Admin Page Configuration

1. Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

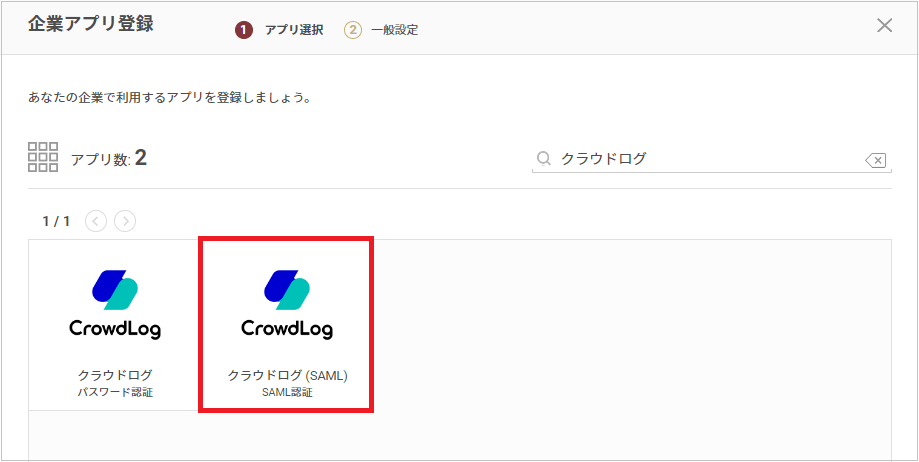

2. Search on the "Register Corporate App" screen and select "CloudLog (SAML)".



3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".


Now, switch to the configuration on the CloudLog side.
Do not click the "Register" button yet — open CloudLog in a separate window.

CloudLog Configuration

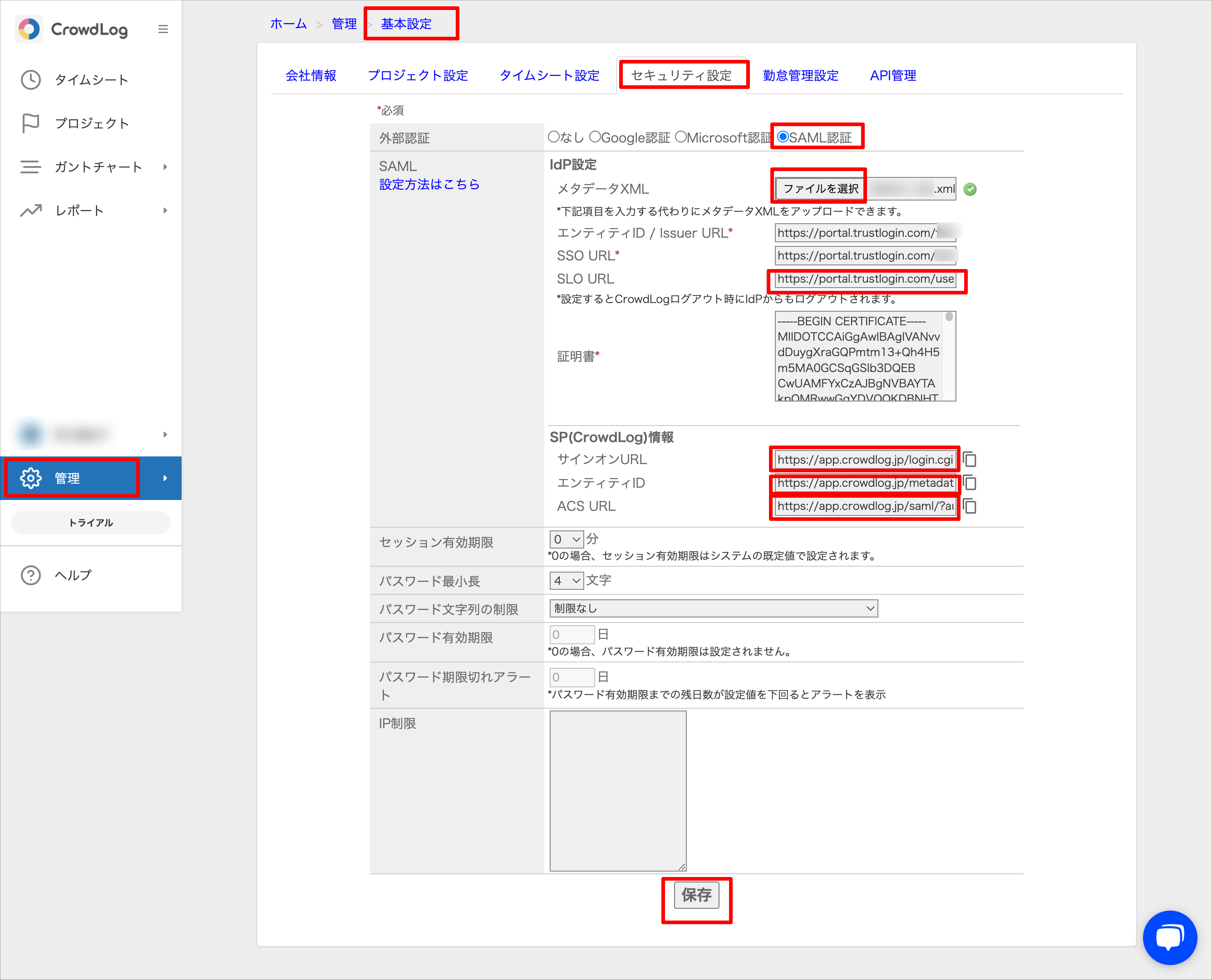

1. Open "Admin > Basic Settings > Security Settings".
   Configure each item as follows, then save by clicking the "Save" button.


   External Authentication	Select "SAML Authentication"
   Metadata XML	Select the "metadata" obtained from TrustLogin The subsequent IdP configuration fields will be entered automatically
   SLO URL	Depending on your desired logout behavior from CloudLog, overwrite the automatically entered value as follows [To also log out of TrustLogin] https://portal.trustlogin.com/users/sign_in [To redirect to the TrustLogin My Page] https://portal.trustlogin.com/ [To redirect to the CloudLog login page] Leave blank　(TrustLogin will not be logged out)
   Sign-on URL	This is not used in the TrustLogin-side configuration, but it will be the login URL used when signing in via SP-Initiated SSO, so obtain it if needed
   Entity ID	Copy the value using the copy icon on the right and keep a record of it
   ACS URL	Copy the value using the copy icon on the right and keep a record of it






Return to the TrustLogin Admin Page again.

TrustLogin Admin Page Configuration (Continued)

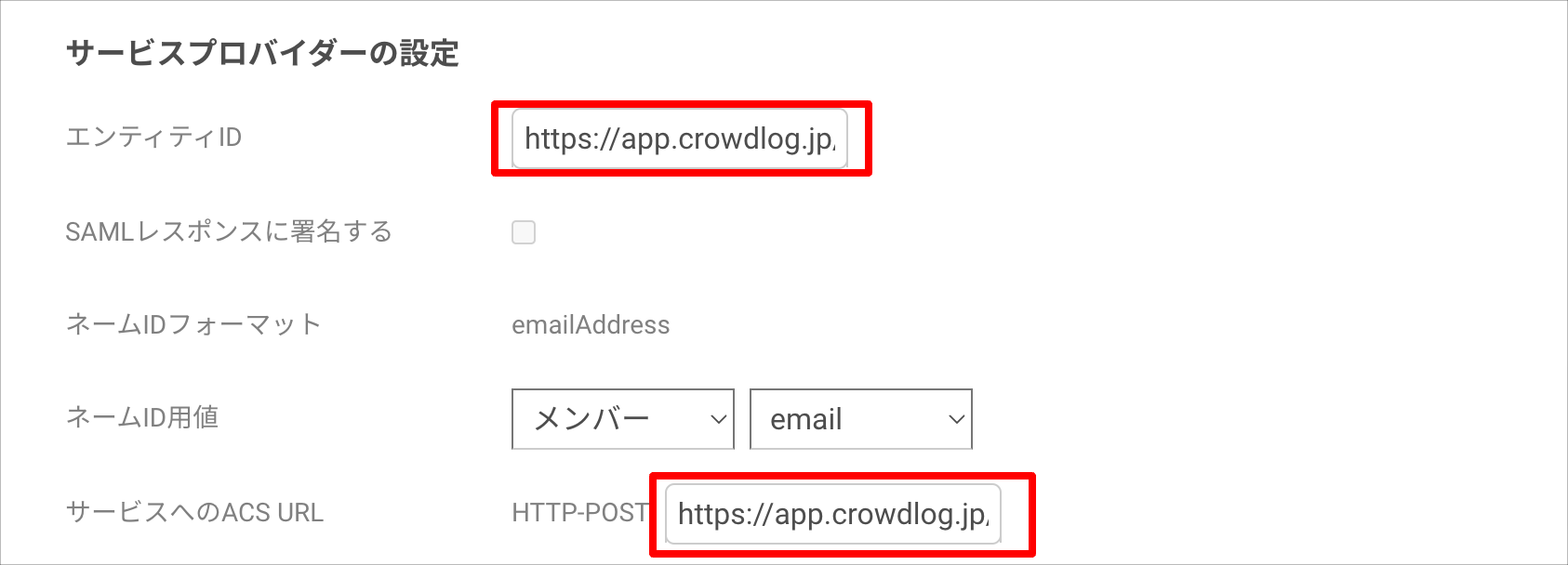

1. Configure the "Service Provider Settings" as follows.


   Entity ID	The "Entity ID" obtained from CloudLog
   ACS URL for the Service	The "ACS URL" obtained from CloudLog





2. Click the "Register" button to save.

TrustLogin User Configuration

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. Select "CloudLog (SAML)" on the "Register App" screen and click the "Next" button at the top right of the screen.
3. If you want to change the "Display Name", enter it, then click the "Register" button.

② When an administrator adds a member

1. Search for and click the "CloudLog (SAML)" app in the "Admin Page > Apps" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
