Item	Details
Pre-check	Prior configuration in Sketch is required. Please refer to the manual provided by Sketch for the latest configuration steps.
Name ID	〇	Email address
		Custom attribute　Note: For how to configure custom attributes, see here
SP Configuration	〇	Configured by the administrator
		Request SP to configure
Provisioning		API-based Provisioning supported (account management available in TrustLogin)
	〇	SAML JIT Provisioning supported (account management available in TrustLogin; user deletion not supported)
		None (accounts created in each system)
Access Method	〇	SP-Initiated SSO
		IdP-Initiated SSO
Device Compatibility	〇	PC - Browser
	〇	PC - Desktop App
	〇	iOS - Standard Browser (Safari)
	〇	iOS - TrustLogin Mobile App In-App Browser
	−	iOS - Native App
	〇	Android - Standard Browser (Chrome)
	〇	Android - TrustLogin Mobile App In-App Browser
	−	Android - Native App

TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

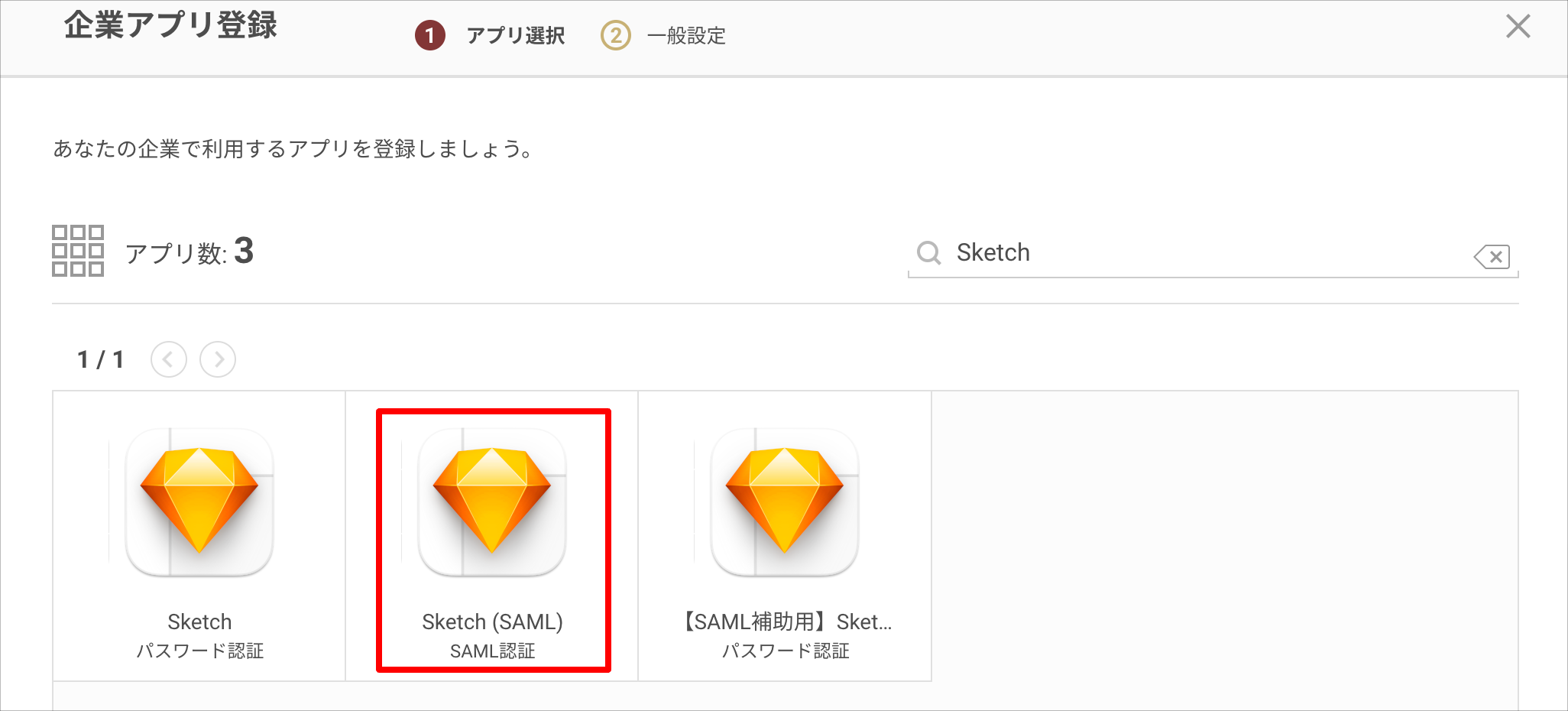

2. Search on the "Register Company App" screen and select "Sketch (SAML)".



3. Download the metadata from the "Download Metadata" button under "Identity Provider Information".



Now, switch to configuring Sketch.
Do not click the "Register" button yet — open Sketch in a separate window.

Sketch Settings

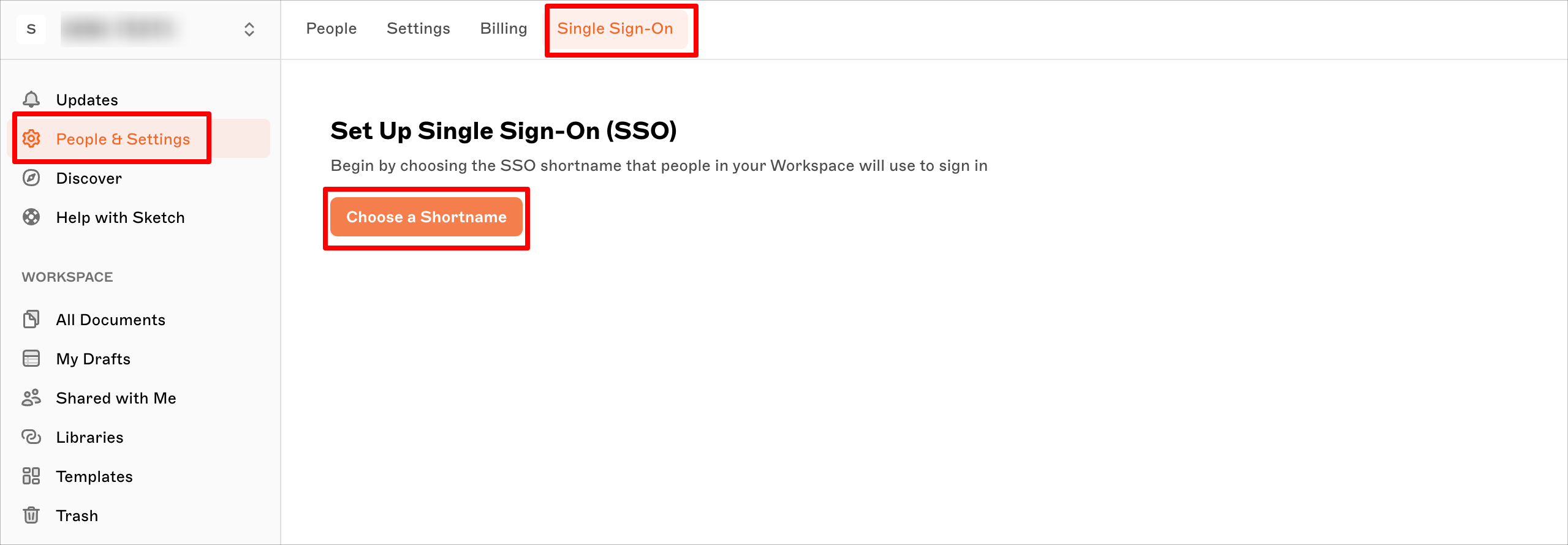

1. Open "People & Settings > Single Sign-On" and click "Choose a Shortname".

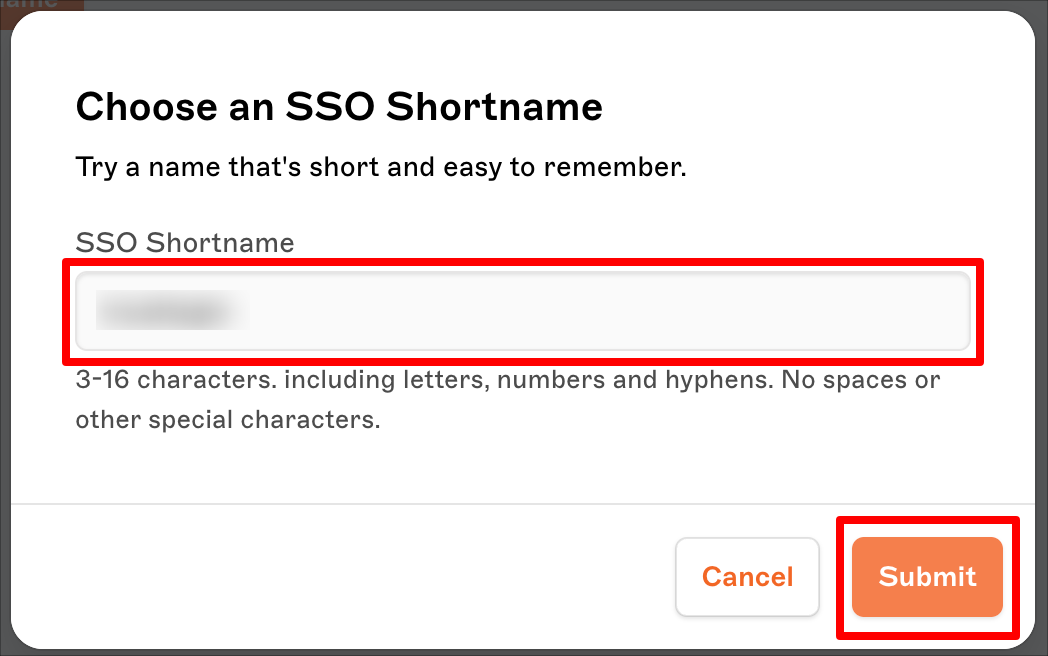

2. Set any "SSO Shortname" you like and click "Submit".

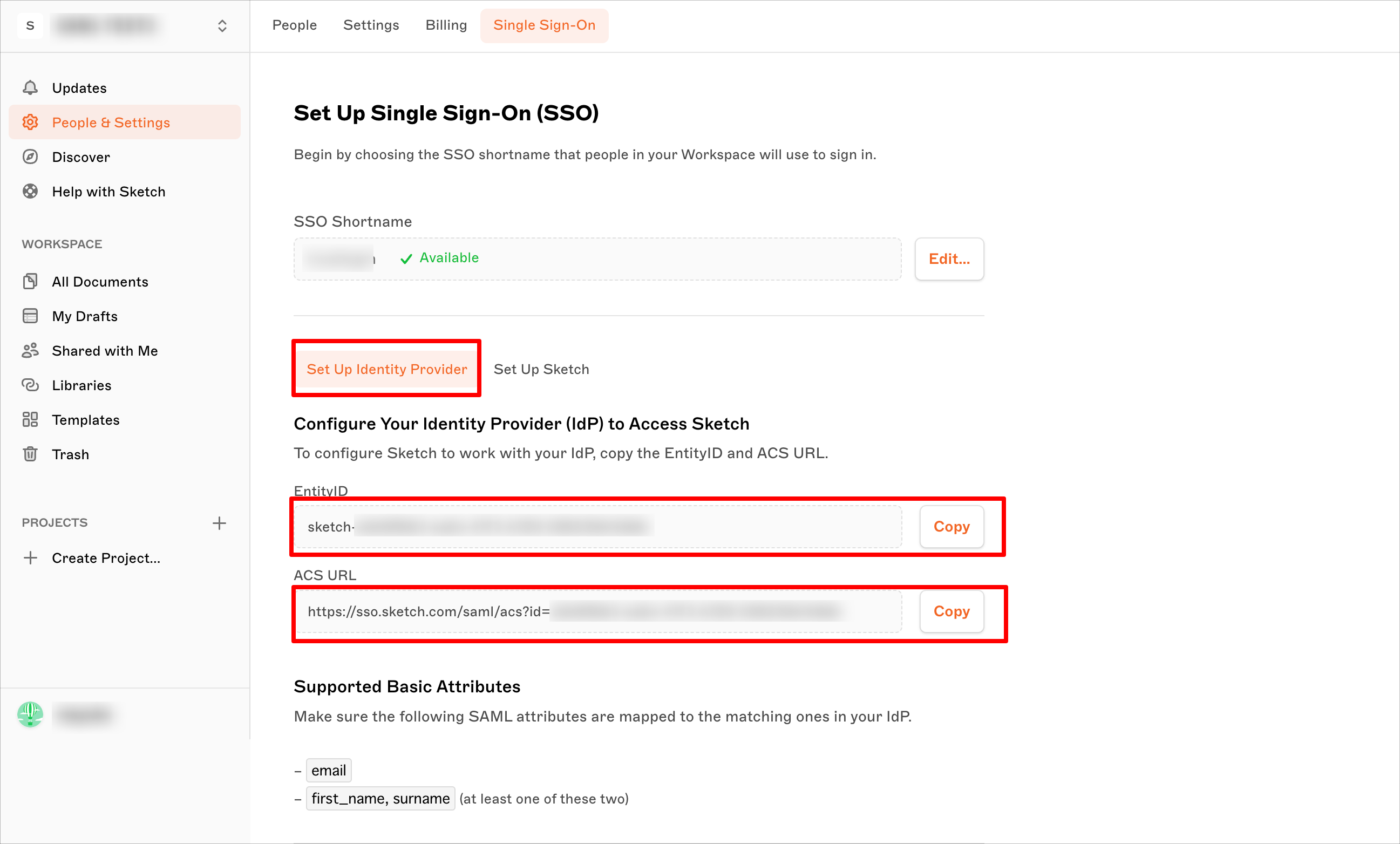

3. On the "Set Up Identity Provider" screen, copy the "EntityID" and "ACS URL" values using the "Copy" button on the right, and make a note of each.

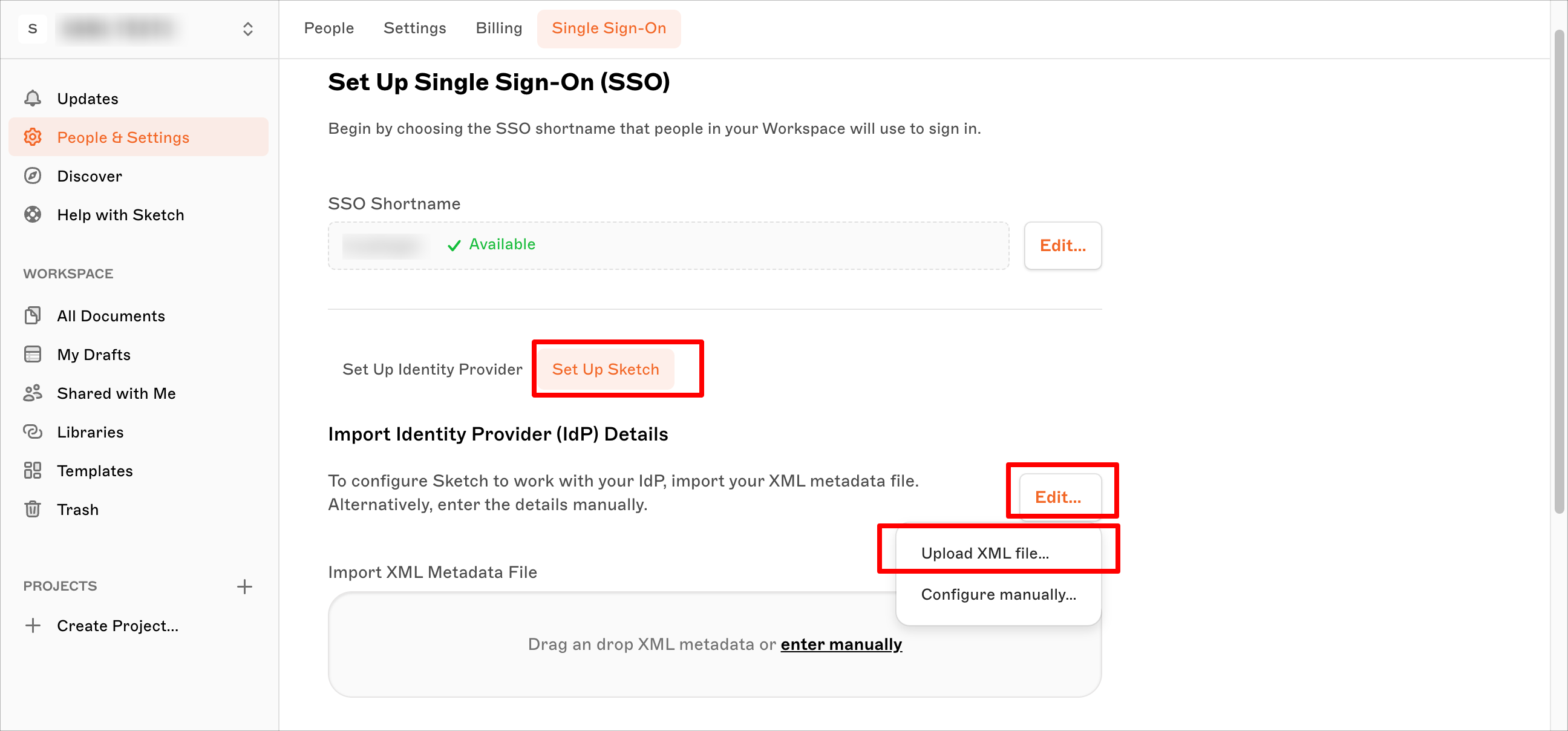

4. Switch to "Set Up Sketch" and upload the metadata obtained from TrustLogin via "Edit ... > Upload XML file...".


Now return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

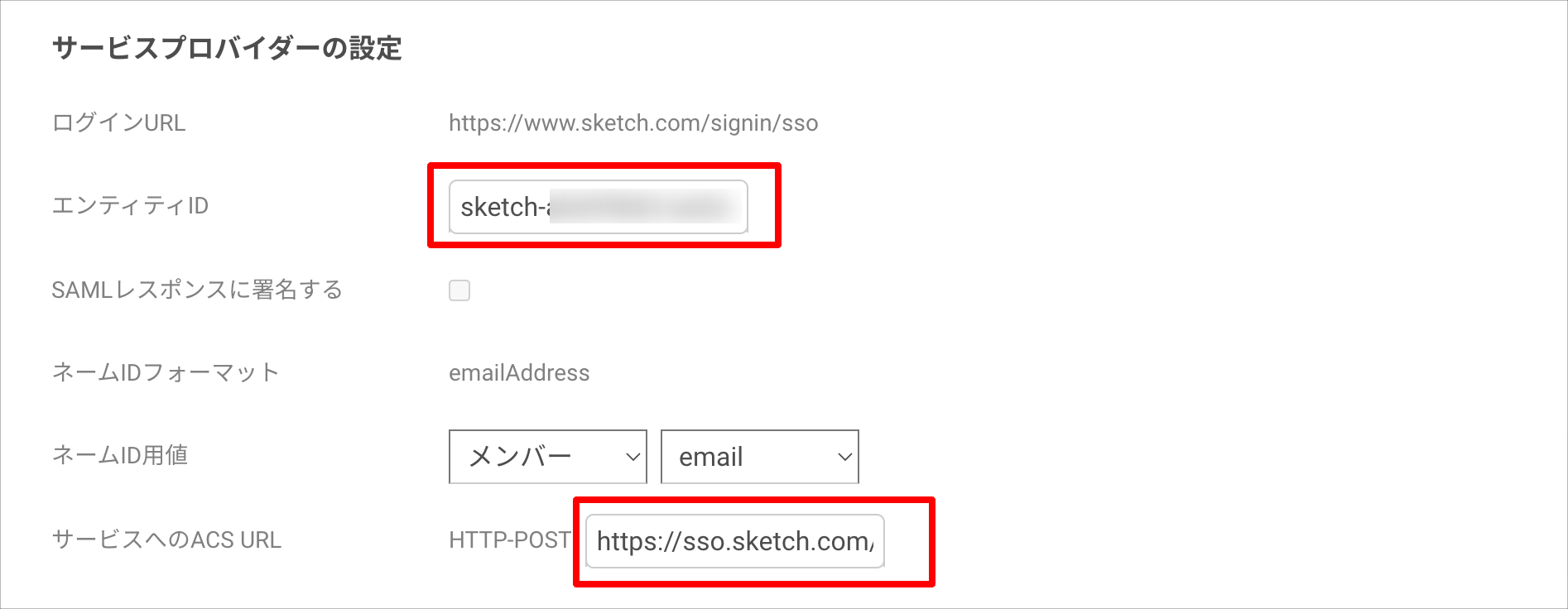

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "EntityID" obtained from Sketch
   ACS URL to Service	The "ACS URL" obtained from Sketch





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Sketch (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

1. Search for and click the "Sketch (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.

Login Method

① Logging in via "Sketch (SAML)"

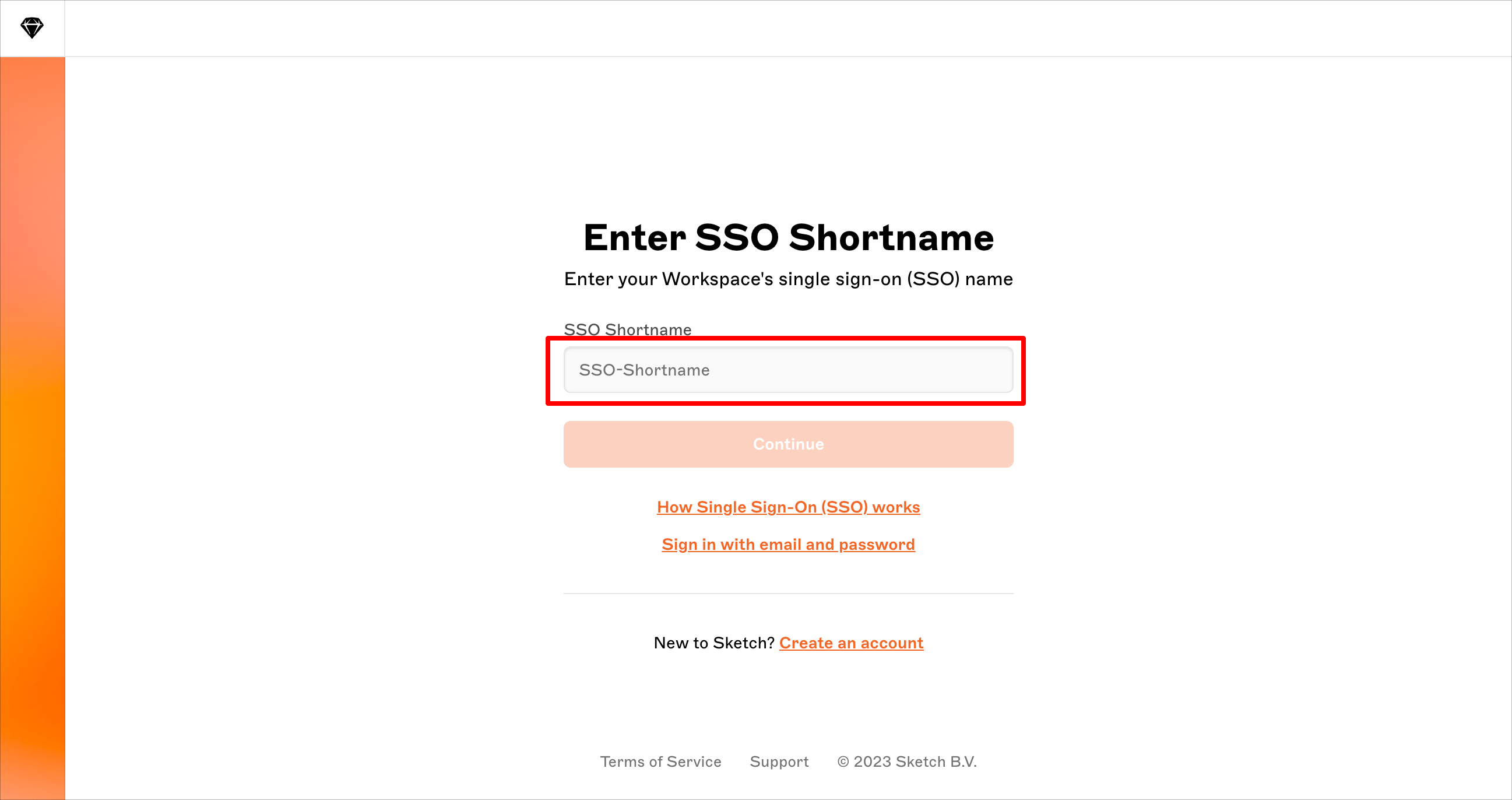

Running "Sketch (SAML)" from My Page or the browser extension will take you to Sketch's SSO login screen. After entering the "SSO Shortname", click the "Continue" button to complete login.

②Using the helper app

We also provide a helper app called "[SAML Helper] Sketch" that lets you skip entering the "SSO Shortname" during the login process described in ①.
Add the app following the same steps as a standard app registration, either as an administrator or by the user themselves.
Note: The helper app can only be used with PC browsers and Android - Standard Browser (Chrome).
