Item |
Details |
|
|---|---|---|
|
Prerequisites |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on configuring custom attributes, see here |
||
|
SP-side configuration |
〇 |
Configured by the administrator |
|
Request configuration from the SP |
||
|
Provisioning |
Supports provisioning via API (accounts can be managed from TrustLogin) |
|
|
Supports SAML JIT provisioning (accounts can be managed from TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Verified operation status by device |
〇 |
PC - Browser |
|
〇 |
PC - Desktop app |
|
|
〇 |
iOS - Standard browser (Safari) |
|
|
〇 |
iOS - TrustLogin mobile app internal browser |
|
|
※ |
iOS - Native app |
|
|
〇 |
Android - Standard browser (Chrome) |
|
|
〇 |
Android - TrustLogin mobile app internal browser |
|
|
※ |
Android - Native app |
|
Note: Under verification
TrustLogin Admin Page Configuration
- Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button at the top right of the screen.

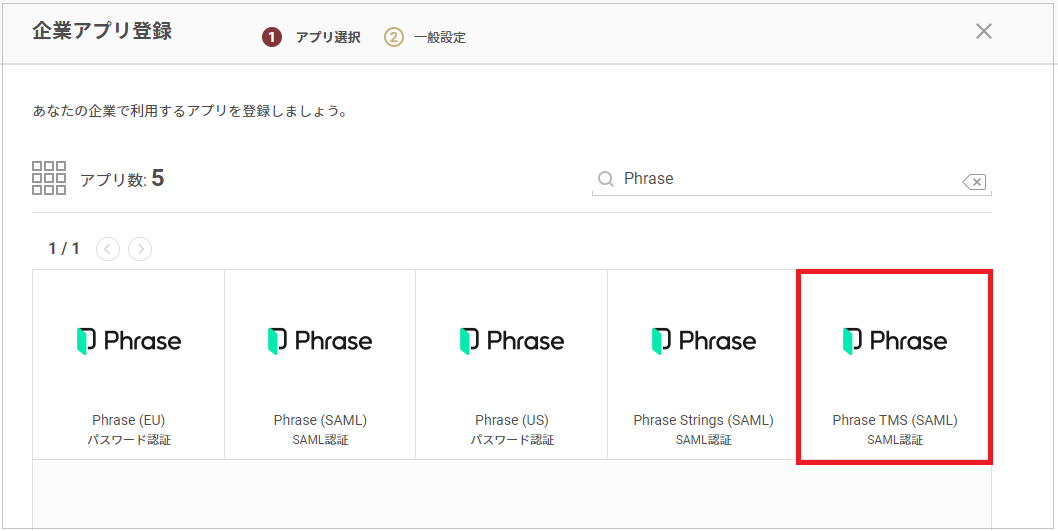

- On the "Register Corporate App" screen, search and select "Phrase TMS (SAML)".
-
Note down the values of "IdP URL" and "Issuer / Entity ID" under "Identity Provider Information," then download the certificate using the "Get Certificate" button.
- Change the certificate's file extension to .cer or .crt, and open the certificate.
-

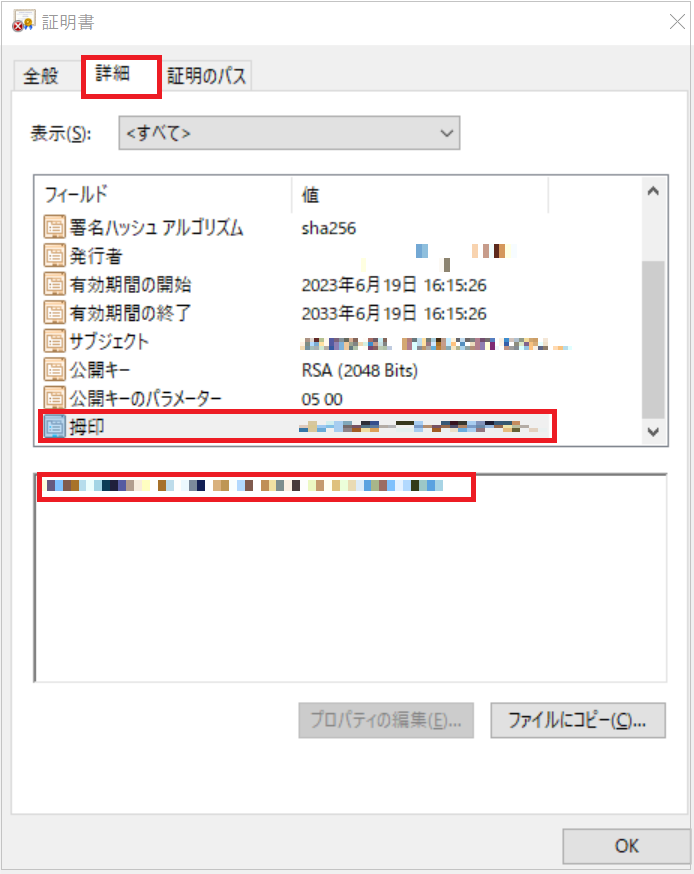

Open the "Details" tab, copy the value shown in the "Thumbprint" field, and note it down.
(You will enter this later as the fingerprint in Phrase TMS.)
Now, switch to configuring the Phrase TMS side.
Do not click the "Register" button yet — open Phrase TMS in a separate window.
Phrase TMS Configuration

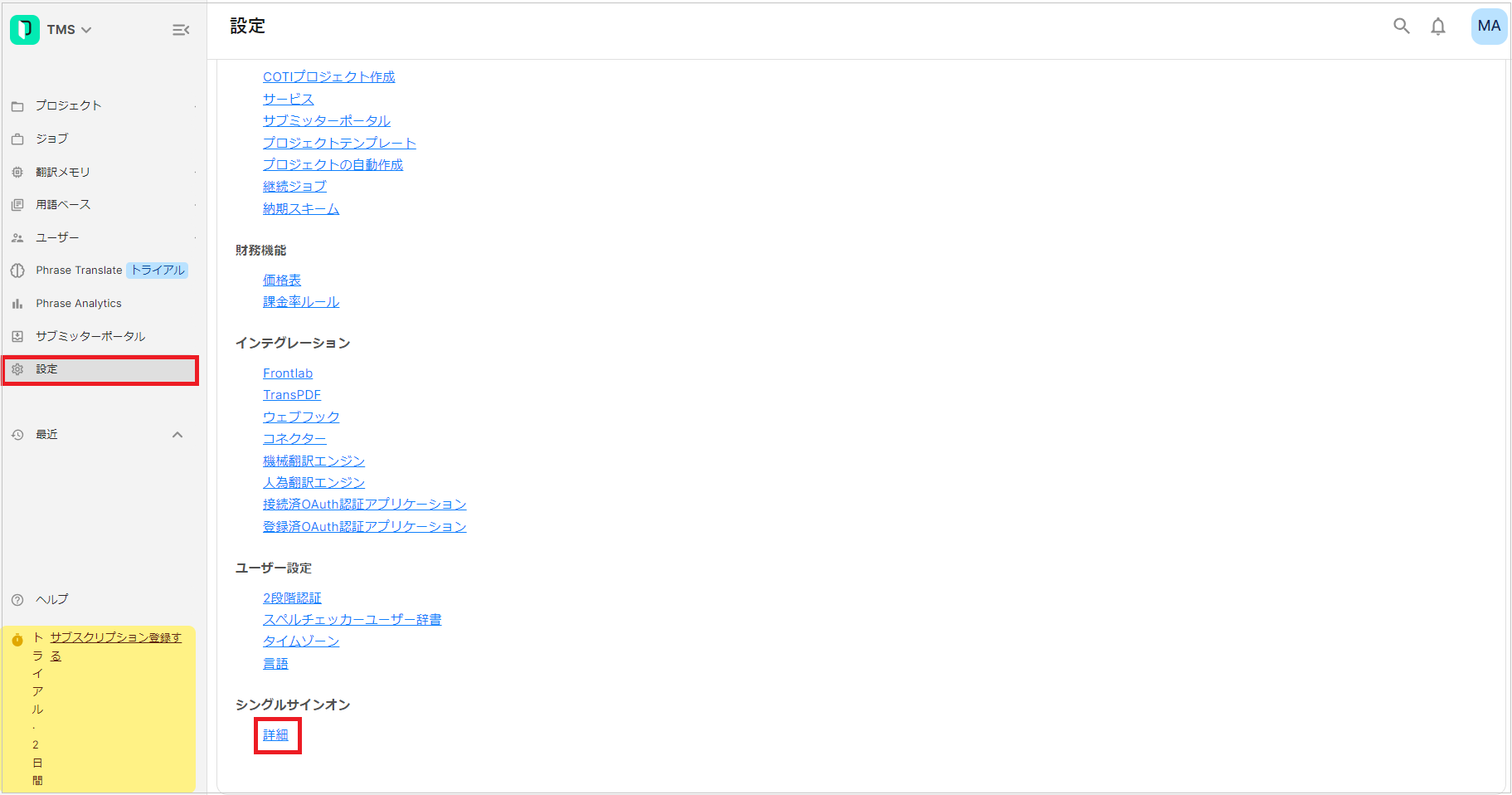

- Log in to Phrase TMS, and from Settings, open "Single Sign-On Details".

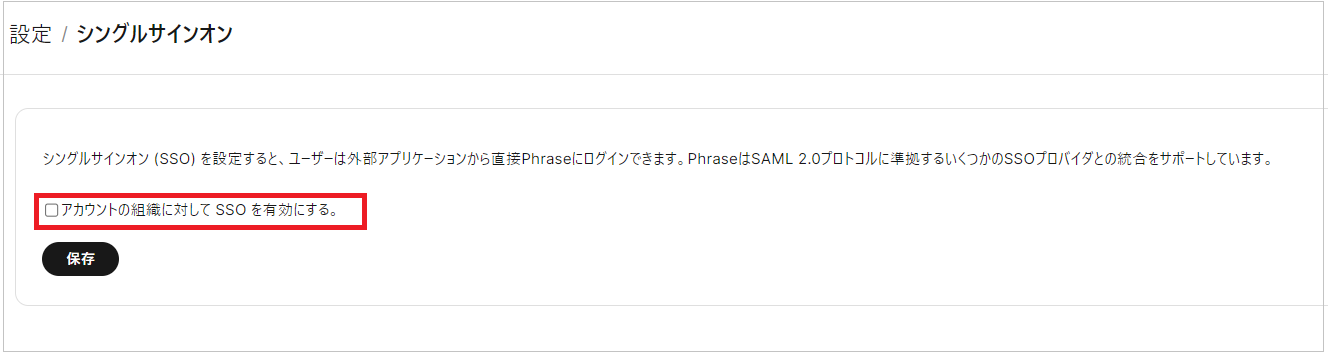

- Check "Enable SSO for the account's organization."

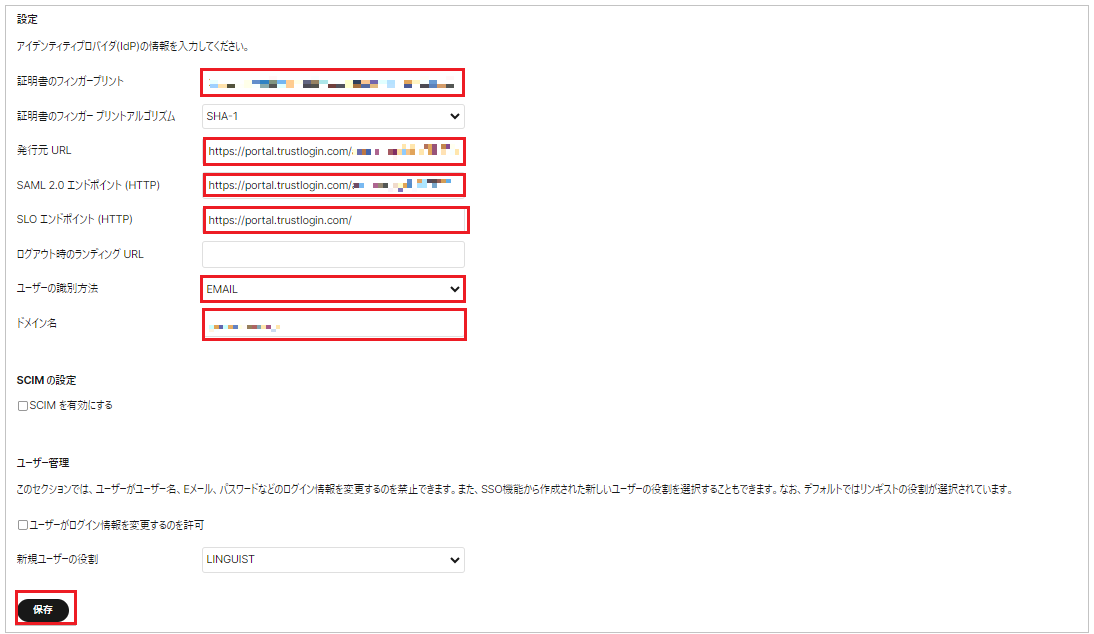

- Configure the items as follows, and click "Save".
Certificate fingerprint Enter the thumbprint value obtained from the TrustLogin certificate Certificate fingerprint algorithm SHA-1 Issuer URL The "Issuer / Entity ID" obtained from TrustLogin SAML 2.0 Endpoint (HTTP) The "IdP URL" obtained from TrustLogin SLO Endpoint (HTTP) https://portal.trustlogin.com/ User identification method EMAIL Domain name Specify any string (e.g., company name)
- Note down the value of the "Organization ID".
Return to the TrustLogin Admin Page again.
TrustLogin Admin Page Configuration (Continued)

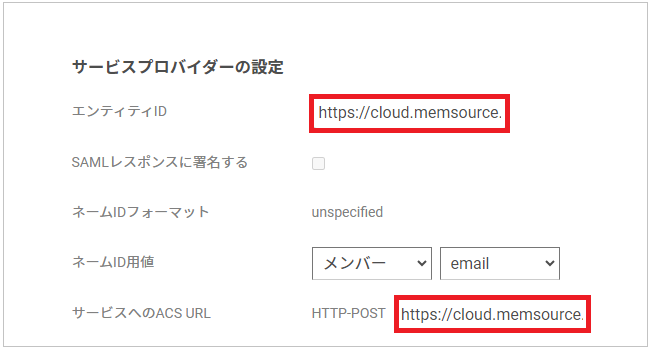

- Configure the Entity ID and ACS URL under "Service Provider Settings" as follows.
Note: The URL format differs depending on the data center you use. Enter the URL format that matches your environment.
For "Organization ID," enter the value noted from Phrase TMS.
Entity ID [EU Data Center]
https://cloud.memsource.com/web/saml2Login/metadata/{Organization ID}[US Data Center]
https://us.cloud.memsource.com/web/saml2Login/metadata/{Organization ID}Service ACS URL [EU Data Center]
https://cloud.memsource.com/web/saml2Login/sacs/{Organization ID}[US Data Center]
https://us.cloud.memsource.com/web/saml2Login/sacs/{Organization ID} - Enter the "Organization ID".
- Save by clicking the "Register" button.
TrustLogin User Configuration
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "Phrase TMS (SAML)" and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name," enter it, then click the "Register" button.
② When an administrator adds members
- In the "Admin Page > Apps" menu, search for and click the "Phrase TMS (SAML)" app.
- Click "Add Member," select the users to add from the member list, and click the "Register" button to add them.
