TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

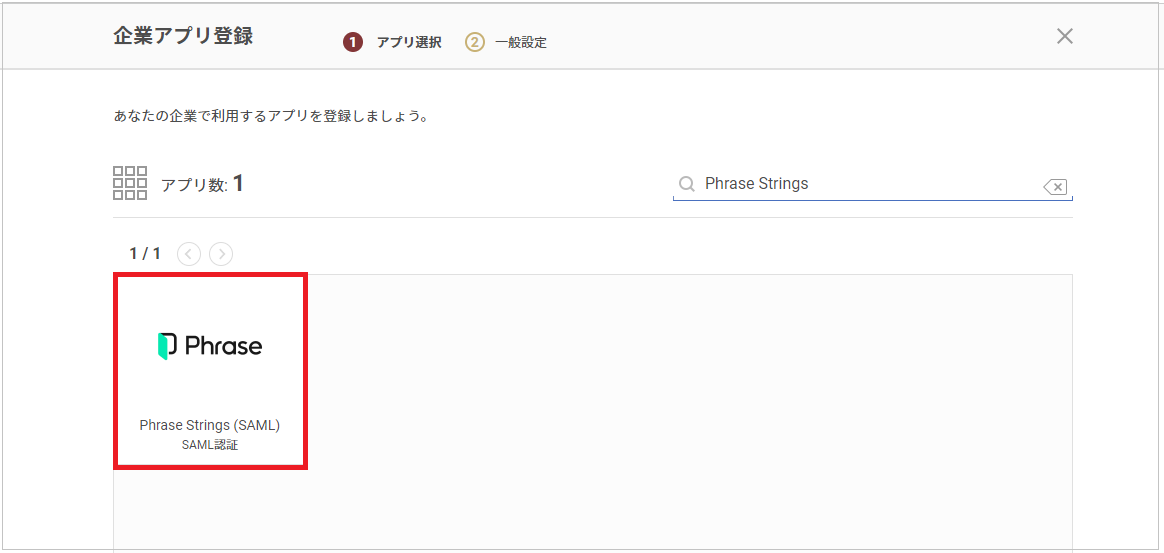

2. Search on the "Register Company App" screen and select "Phrase Strings (SAML)".




3. Make a note of the "IdP URL" and "Issuer/Entity ID" values under "Identity Provider Information", and download the certificate from the "Get Certificate" button.



Now, switch to configuring Phrase Strings.
Do not click the "Register" button yet — open Phrase Strings in a separate window.

Phrase Strings Settings

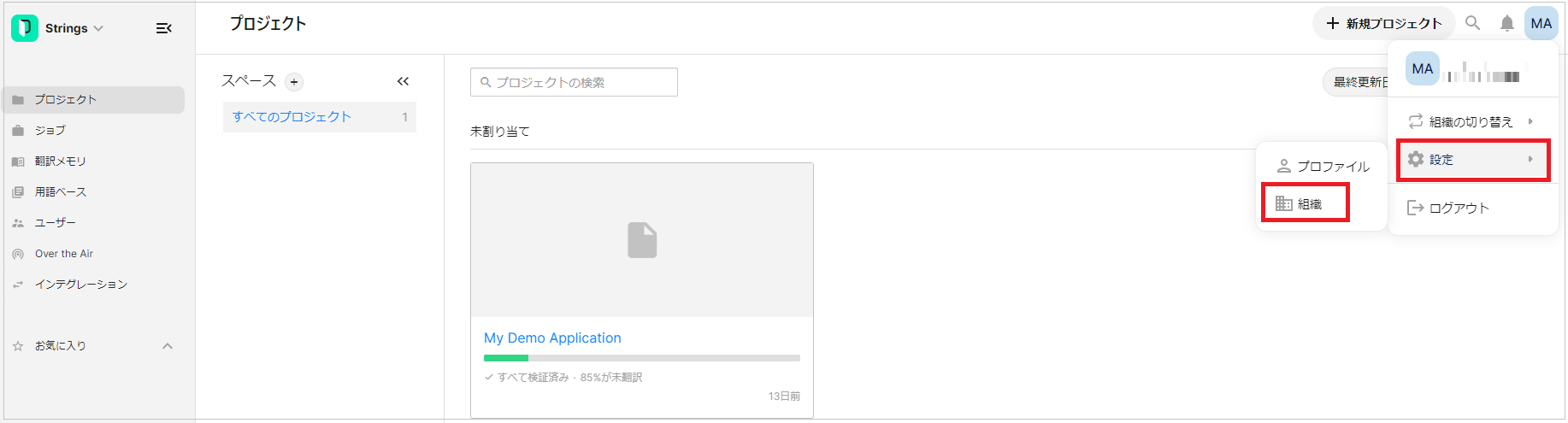

1. Open "Settings > Organization" from the icon in the upper right.

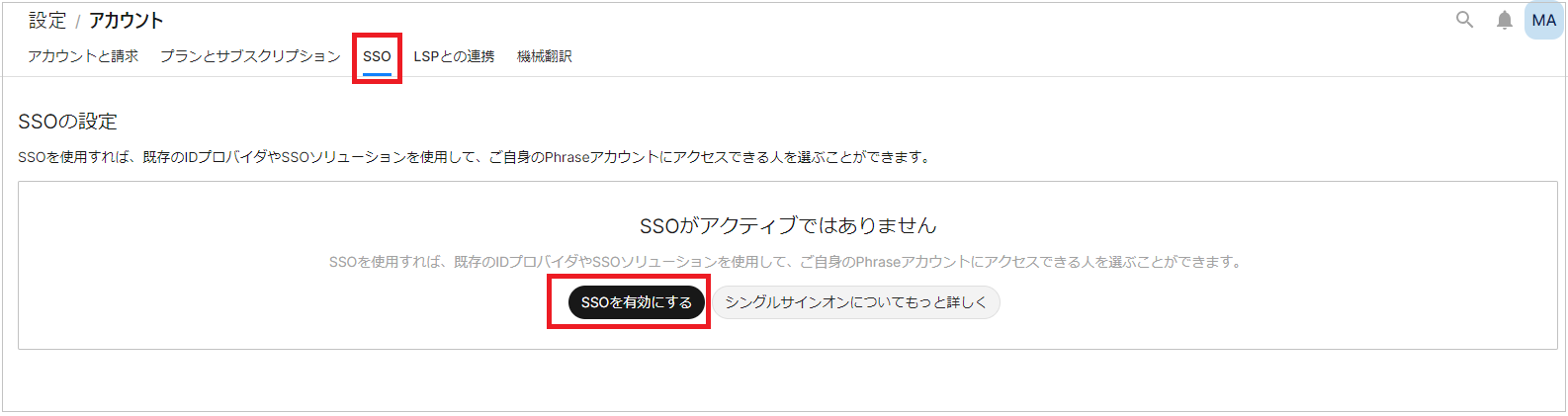

2. Open the "SSO" tab and click "Enable SSO".

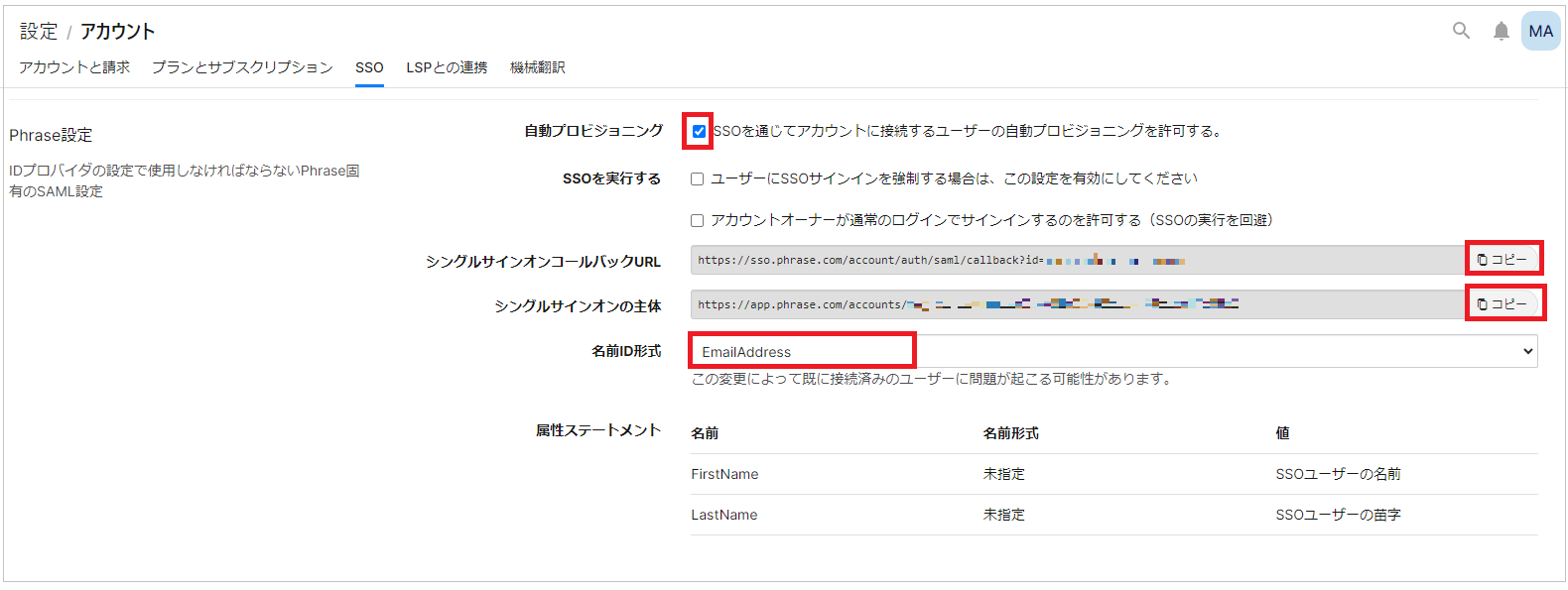

3. In "Phrase Settings", configure the items as follows and make a note of the values.


   Automatic Provisioning	Check the box
   Enforce SSO	Configure according to your operational needs
   Single Sign-On Callback URL	Copy and make a note of it
   Single Sign-On Subject	Copy and make a note of it
   Name ID Format	EmailAddress

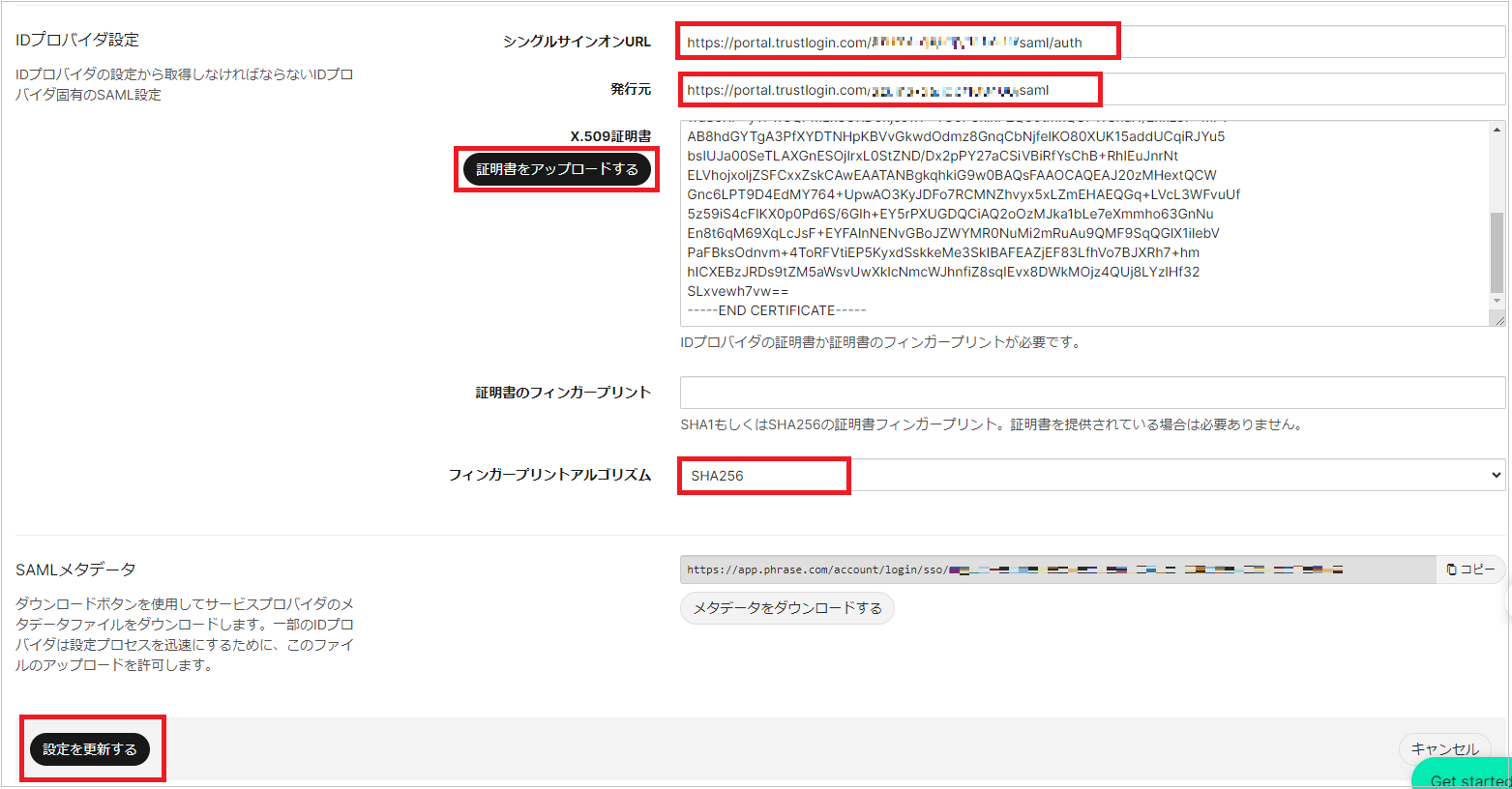

4. In "Identity Provider Settings", configure the items as follows, and finally save by clicking the "Save" button.


   Single Sign-On URL	The "IdP URL" obtained from TrustLogin
   Issuer	The "Issuer/Entity ID" obtained from TrustLogin
   X.509 Certificate	Upload the TrustLogin certificate
   Fingerprint Algorithm	SHA256




Now return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

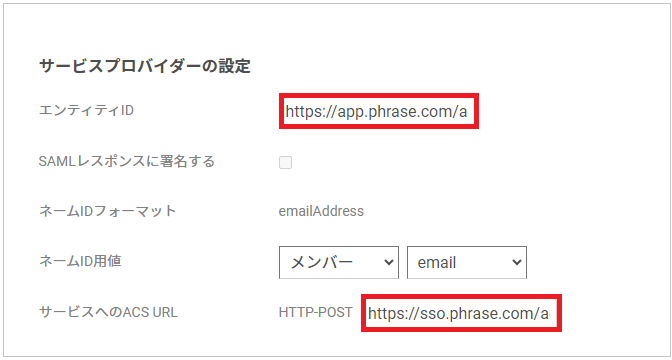

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "Single Sign-On Subject" noted from Phrase Strings
   ACS URL to Service	The "Single Sign-On Callback URL" noted from Phrase Strings





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Phrase Strings (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

②When an administrator adds members

1. Search for and click the "Phrase Strings (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.

First Login Method

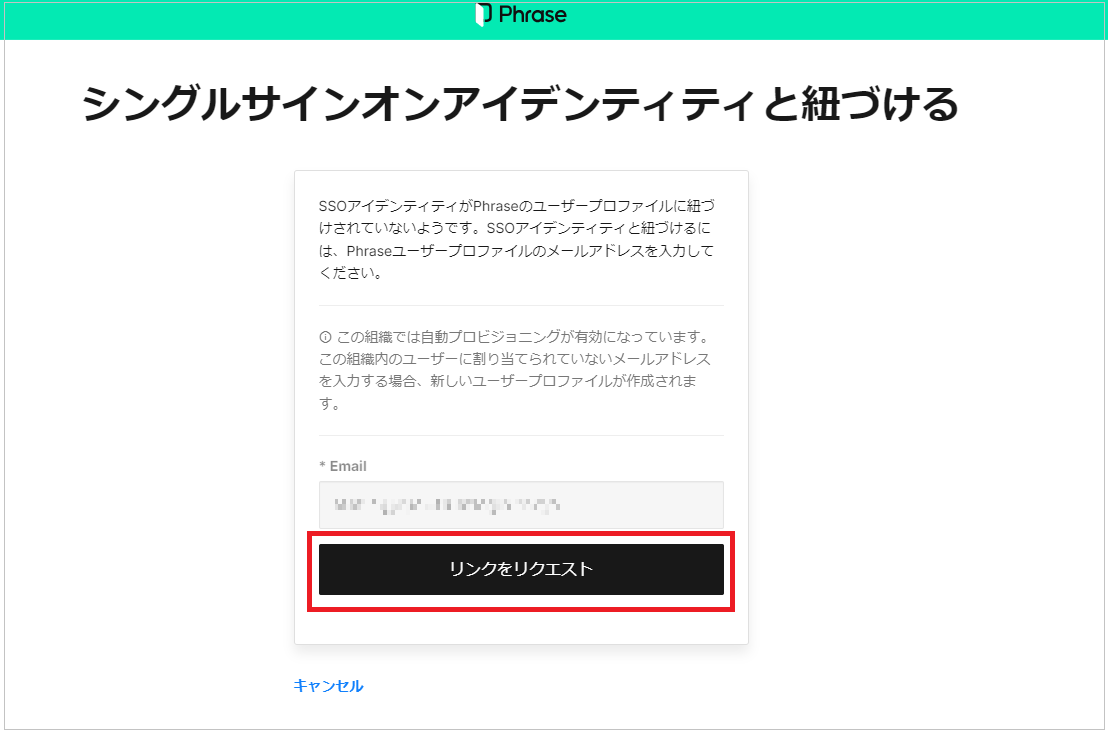

When accessing via SAML for the first time, the screen below will be displayed. Check the displayed email address and click "Request Link".

A verification email will be sent to the new user's email address; click the link in the email. At that point, a TrustLogin error screen will be displayed, but the new user has already been created at the moment you clicked the link, so please close that screen and try logging in from My Page or the Phrase Strings login page.
