Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For instructions on configuring custom attributes, see here |
||
|
SP-side Configuration |
〇 |
Configured by the administrator |
|
Request the SP to configure the settings |
||
|
Provisioning |
Supports provisioning via API (account management possible in TrustLogin) |
|
|
Supports SAML JIT provisioning (account management possible in TrustLogin; user deletion not supported) |
||
|
〇 |
None (accounts are created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
ー |
IdP-Initiated SSO |
|
|
Verified Operation Status by Device |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Standard Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App Internal Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Standard Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App Internal Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > Apps" menu, and click the "Register App" button in the upper right of the screen.

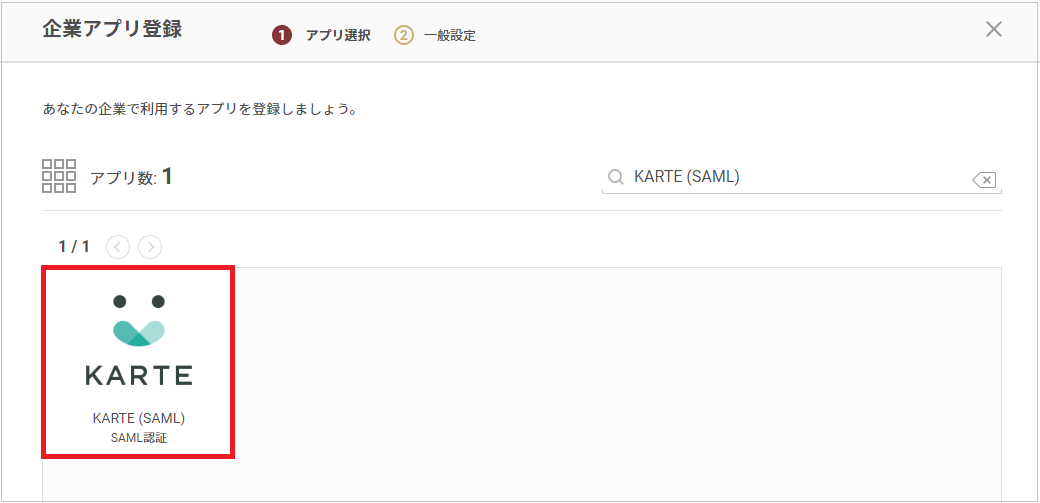

- On the "Corporate App Registration" screen, search and select "KARTE (SAML)".
- Note down the value of "Identity Provider URL" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.
- Click the "Register" button to save.
KARTE Settings

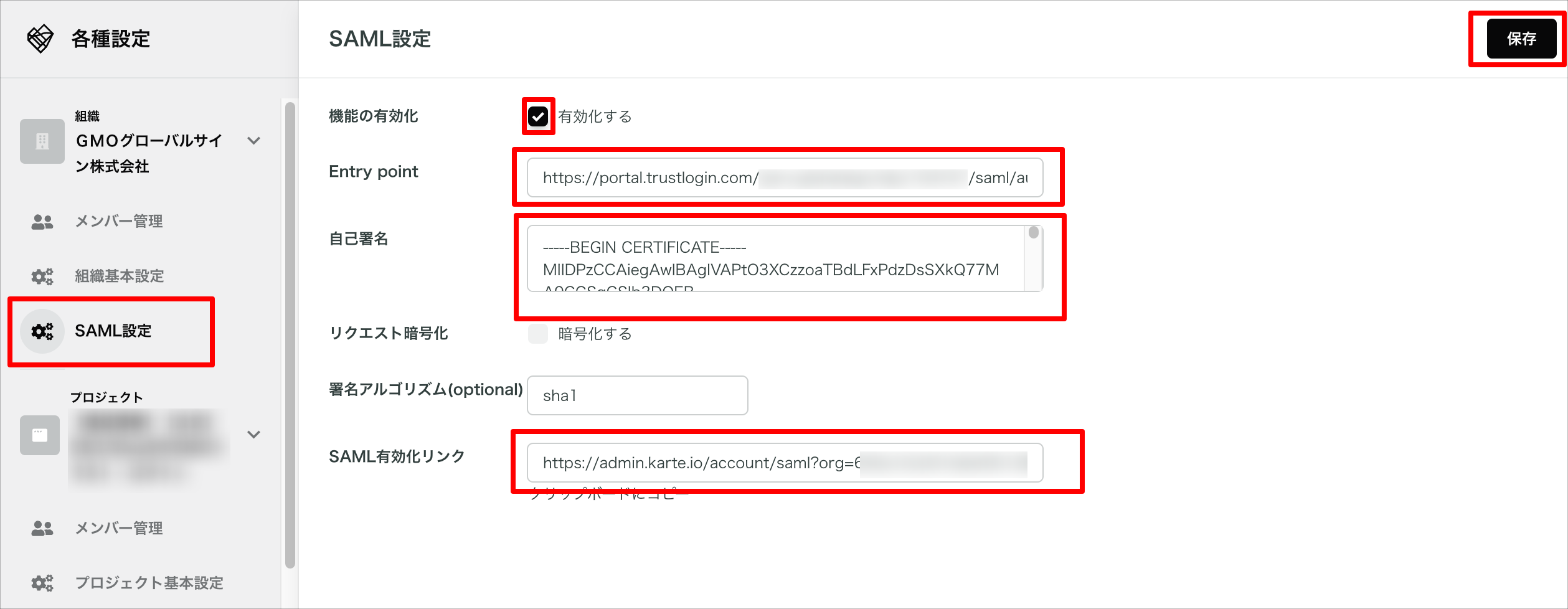

- Log in with an organization administrator account, open "Organization Settings > SAML Settings", and configure each item as follows.
Enable Feature Check the box Entity point The "Identity Provider URL" obtained from TrustLogin
Self-signed The contents of the "certificate" obtained from TrustLogin SAML Activation Link The URL to share with users. Copy it and keep it on hand.
- Click the "Save" button to save the settings.
TrustLogin User Settings
① When a user adds the app via My Page
- On "My Page", click the "Add App" button.
- On the "App Registration" screen, select "KARTE (SAML)" and click the "Next" button in the upper right of the screen.
- If you want to change the "Display Name", enter it, then click the "Register" button.
② When an administrator adds a member
- In the "Admin Page > Apps" menu, search for and click the "KARTE (SAML)" app.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
SAML Activation
For a user to log in via SAML, the user must separately activate SAML.
-
Organization/Project Administrator Actions
Please share the "SAML Activation Link" obtained from the SAML settings screen with the target user.
-
User Actions
While logged in to KARTE, access the shared "SAML Activation Link".

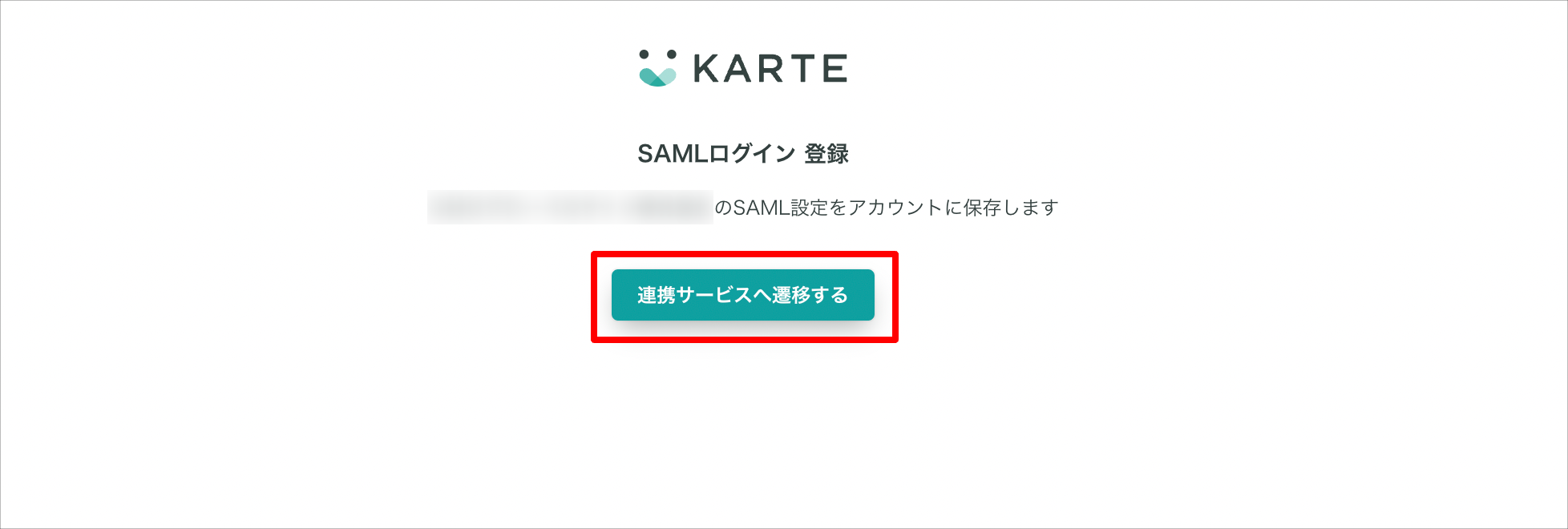

On the screen that appears, clicking "Go to Linked Service" will enable SAML login.

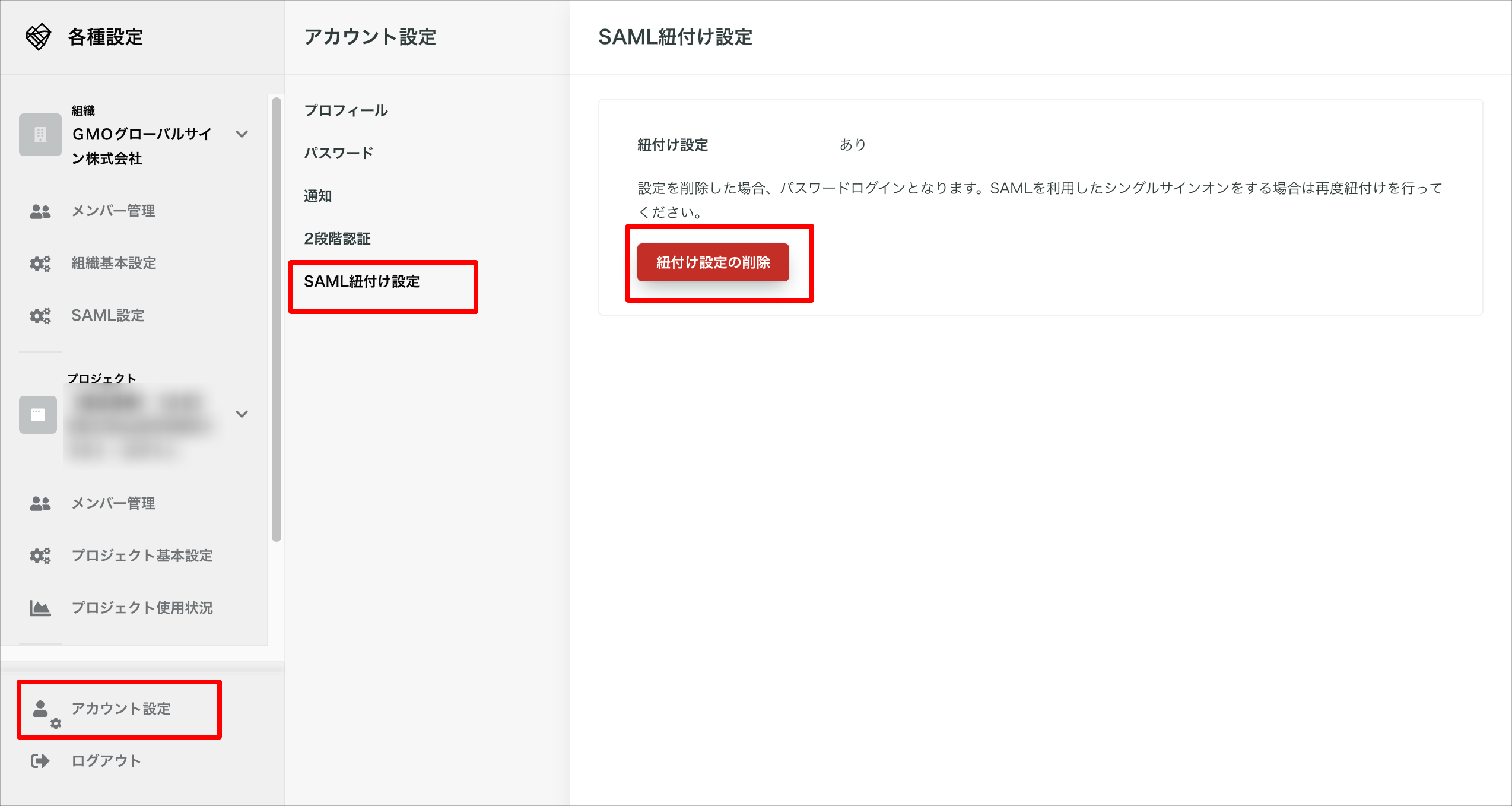

To disable SAML login, you can do so from "Account Settings > SAML Linking Settings > Delete Linking Settings".
You cannot force SAML on users of the organization (and its linked projects).

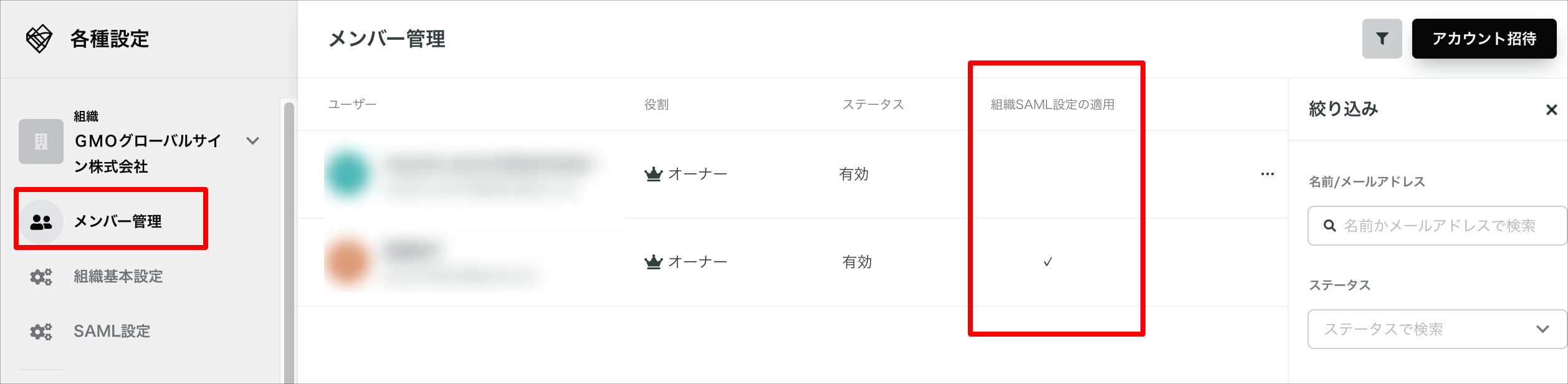

You can check which users have SAML enabled from "Member Management" in the organization.
How to Log In to KARTE via SAML

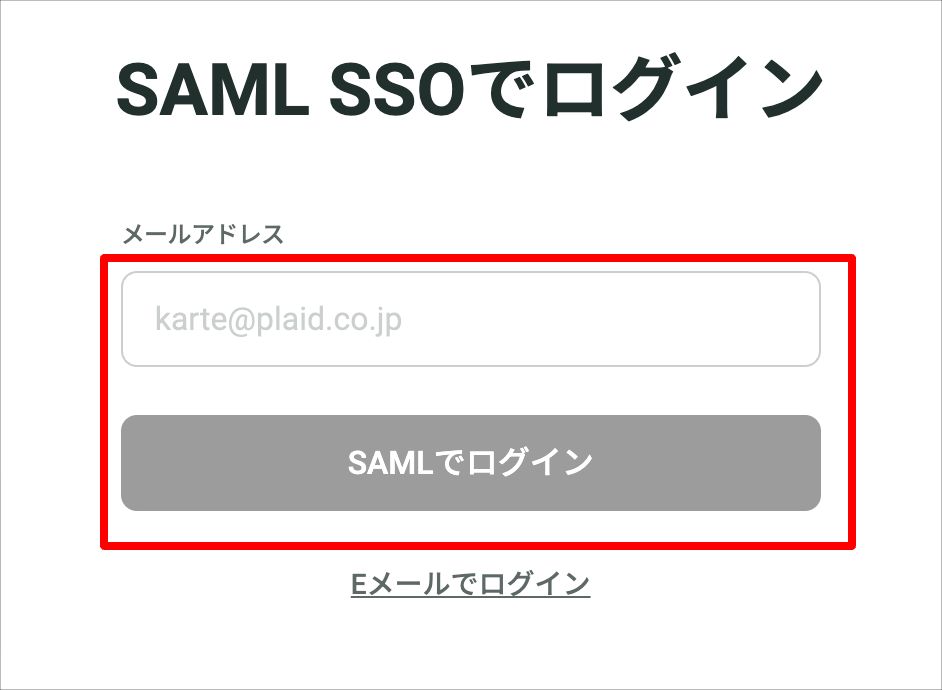

- After clicking "KARTE (SAML)", you will need to manually enter your "email address" and click "Log in with SAML".
- We also provide a separate "[For SAML Assistance] KARTE" app that allows the email address to be entered automatically, so please register and use it.
However, it is not available in some browsers.
PC Browser 〇 iOS - Standard Browser (Safari) × iOS - TrustLogin Mobile App Internal Browser 〇 Android - Standard Browser (Chrome) 〇 Android - TrustLogin Mobile App Internal Browser ×
