Note: A separate SAML helper app must be registered. See here for details.

TrustLogin Admin Page Settings

1. Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button in the upper right of the screen.

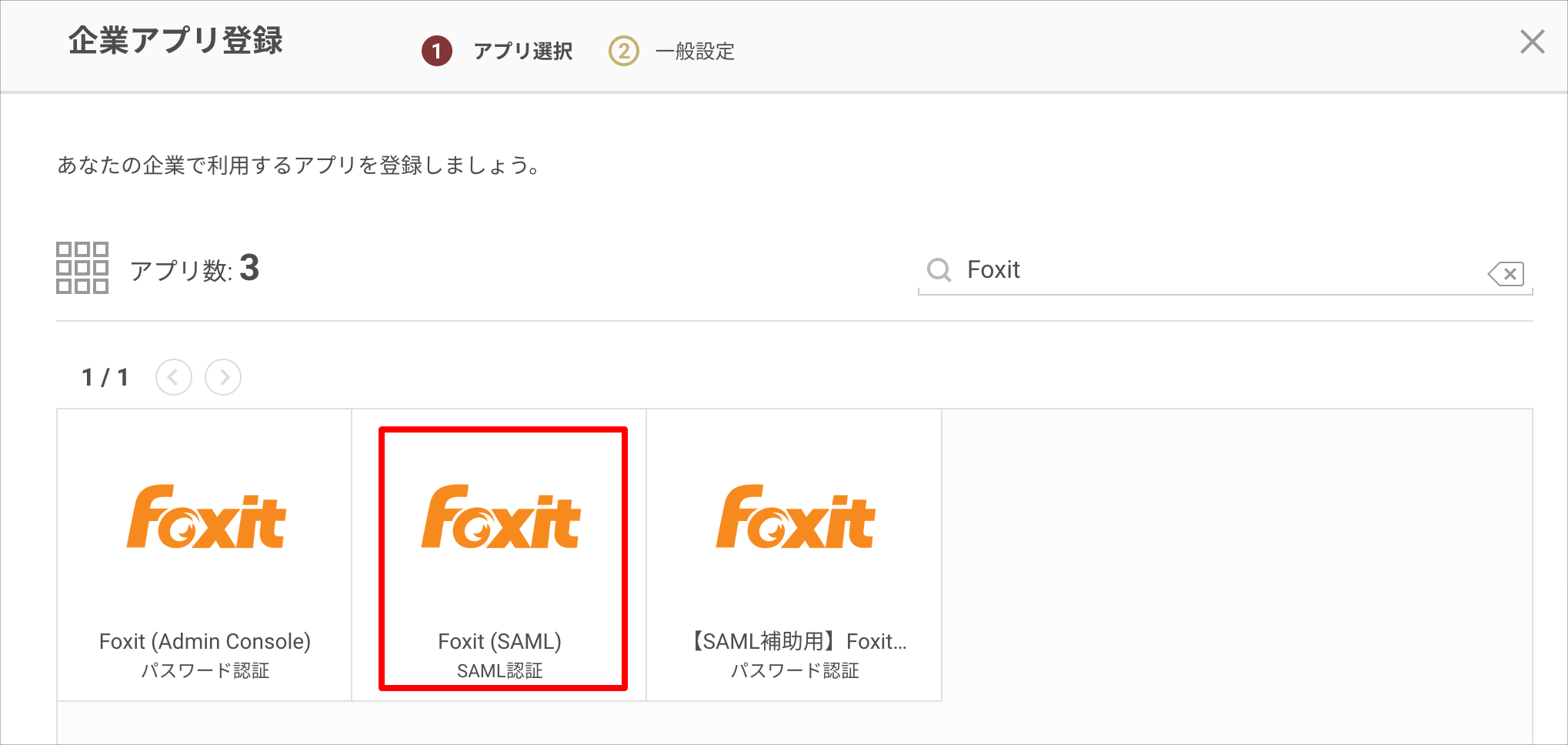

2. Search on the "Register Company App" screen and select "Foxit (SAML)".



3. Note down the values of "IdP URL" and "Issuer/Entity ID" under "Identity Provider Information", and download the certificate using the "Get Certificate" button.


Now, switch to configuring Foxit.
Do not click the "Register" button yet — open Foxit's Admin Console in a separate window.

Foxit Settings

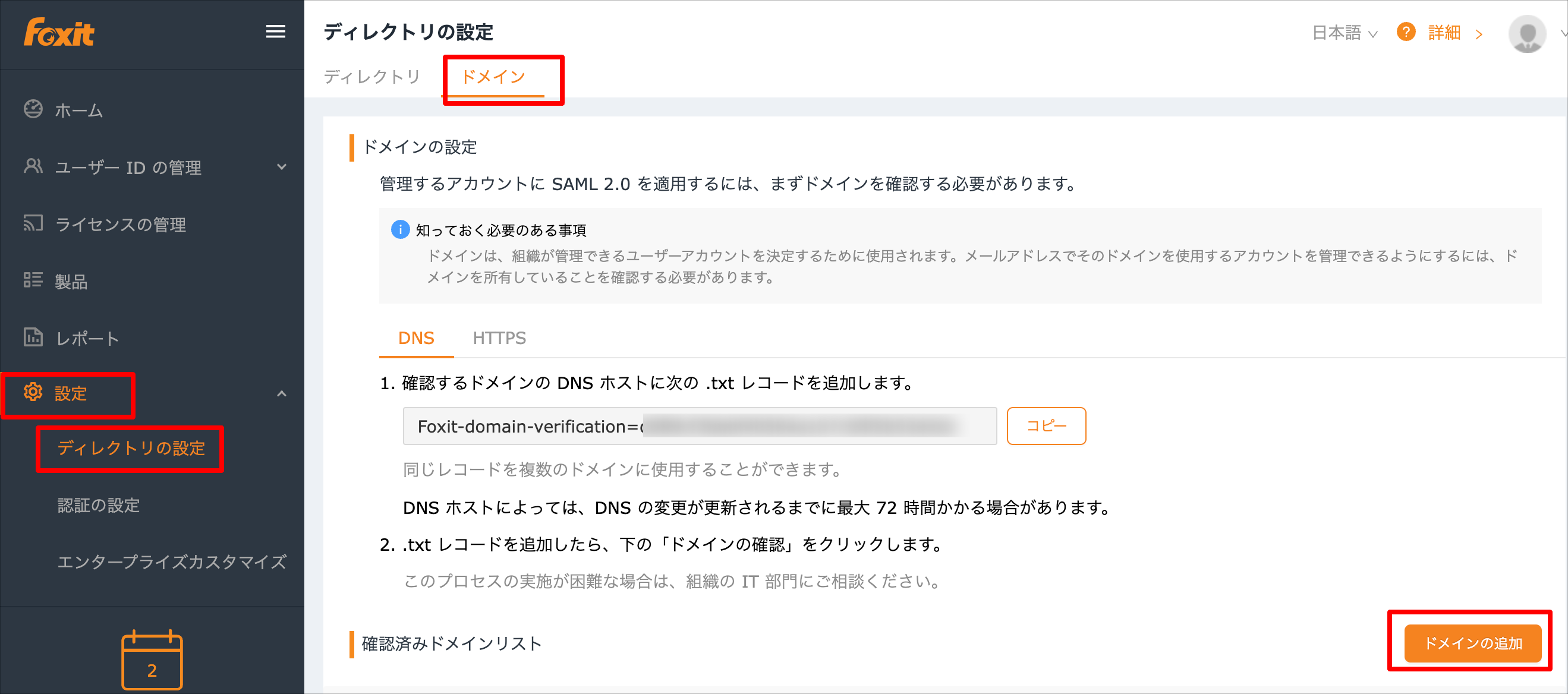

1. Log in to Admin Console, open "Settings > Directory Settings > Domain", and add a domain. Follow the displayed steps to verify the domain.

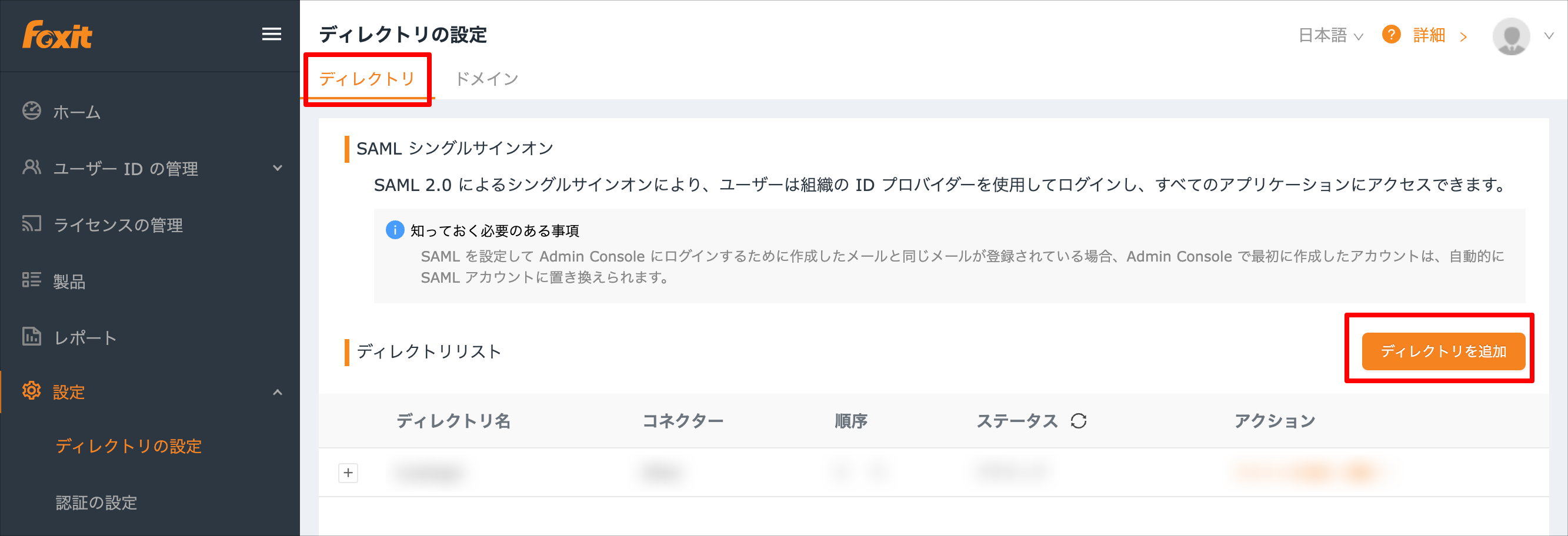

2. Open "Directory Settings > Directory" and click the "Add Directory" button.

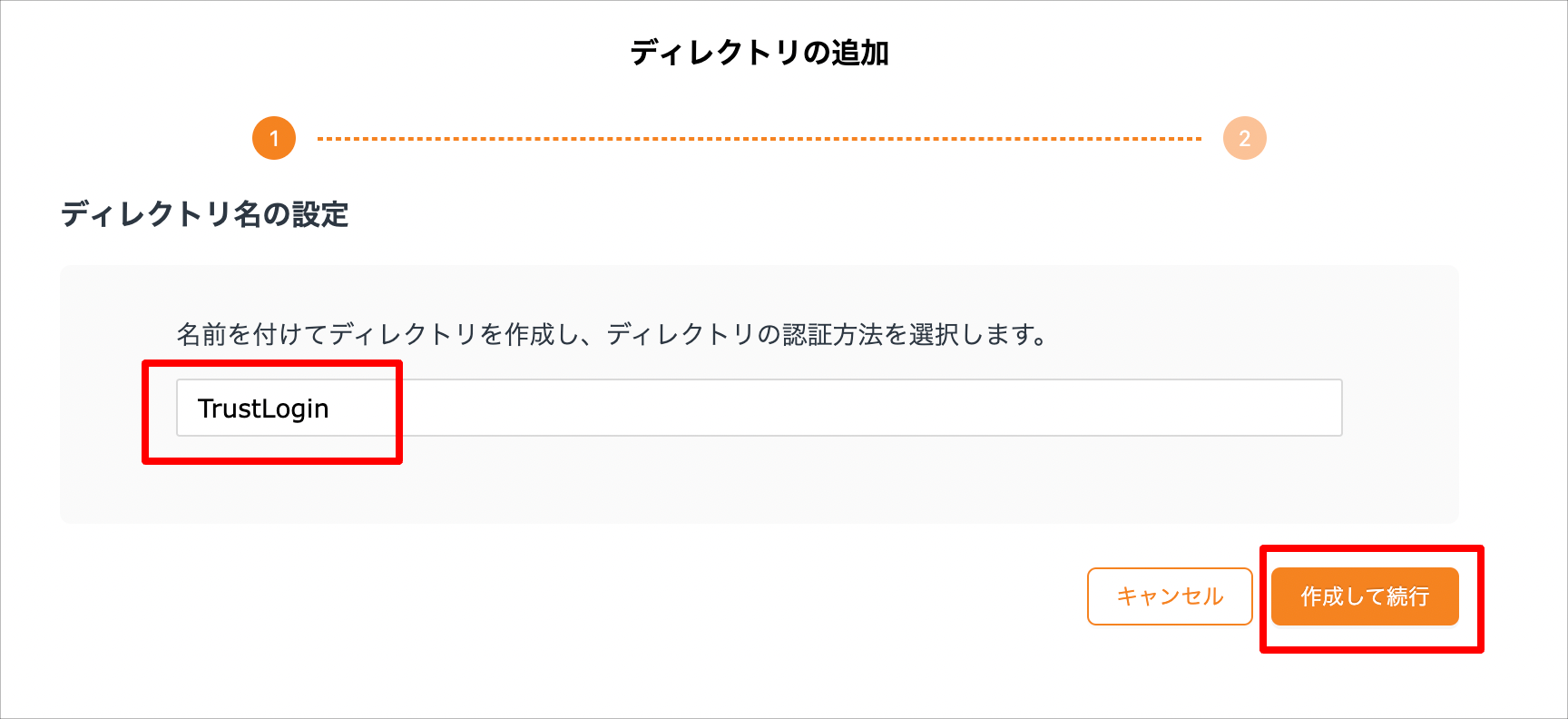

3. Set any directory name you like and click "Create and Continue".

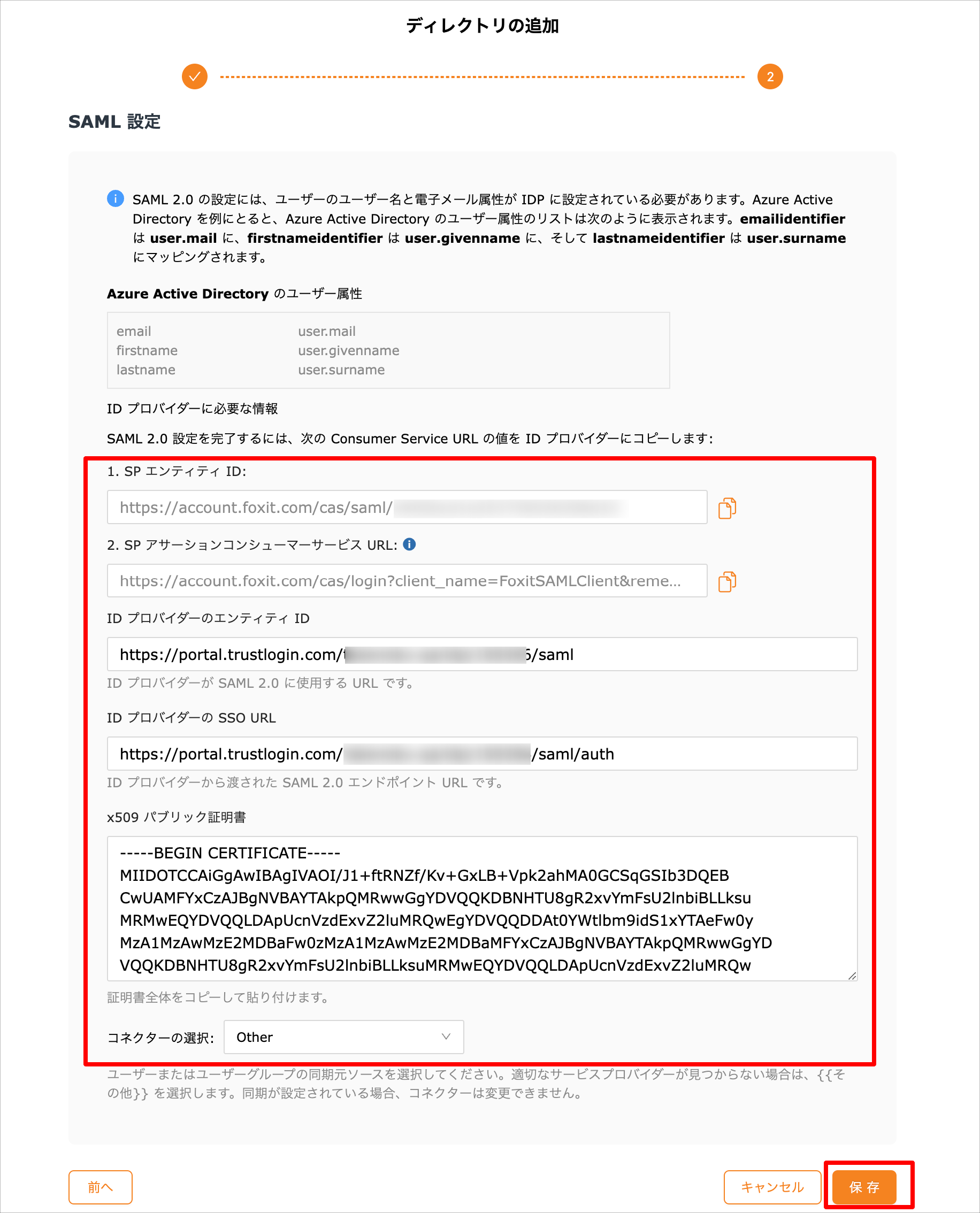

4. Configure each SAML setting item as follows and save by clicking the "Save" button.


   SP Entity ID	Copy and note down the value
   SP Assertion Consumer Service URL	Copy and note down the value
   IdP Entity ID	The "Issuer/Entity ID" obtained from TrustLogin
   IdP SSO URL	The "IdP URL" obtained from TrustLogin
   x509 Public Certificate	The contents of the "Certificate" obtained from TrustLogin
   Connector Selection	Select "Other"

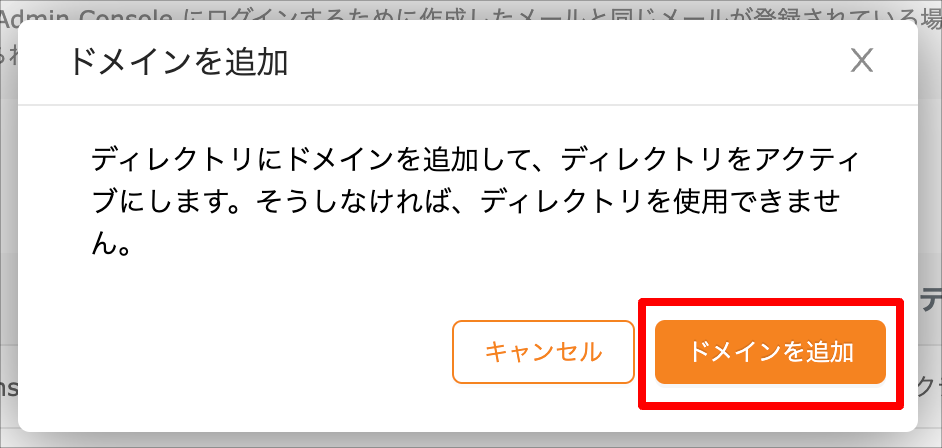

5. Add the domain by selecting the verified domain under "Add Domain".


Now return to the TrustLogin Admin Page again.

TrustLogin Admin Page Settings (Continued)

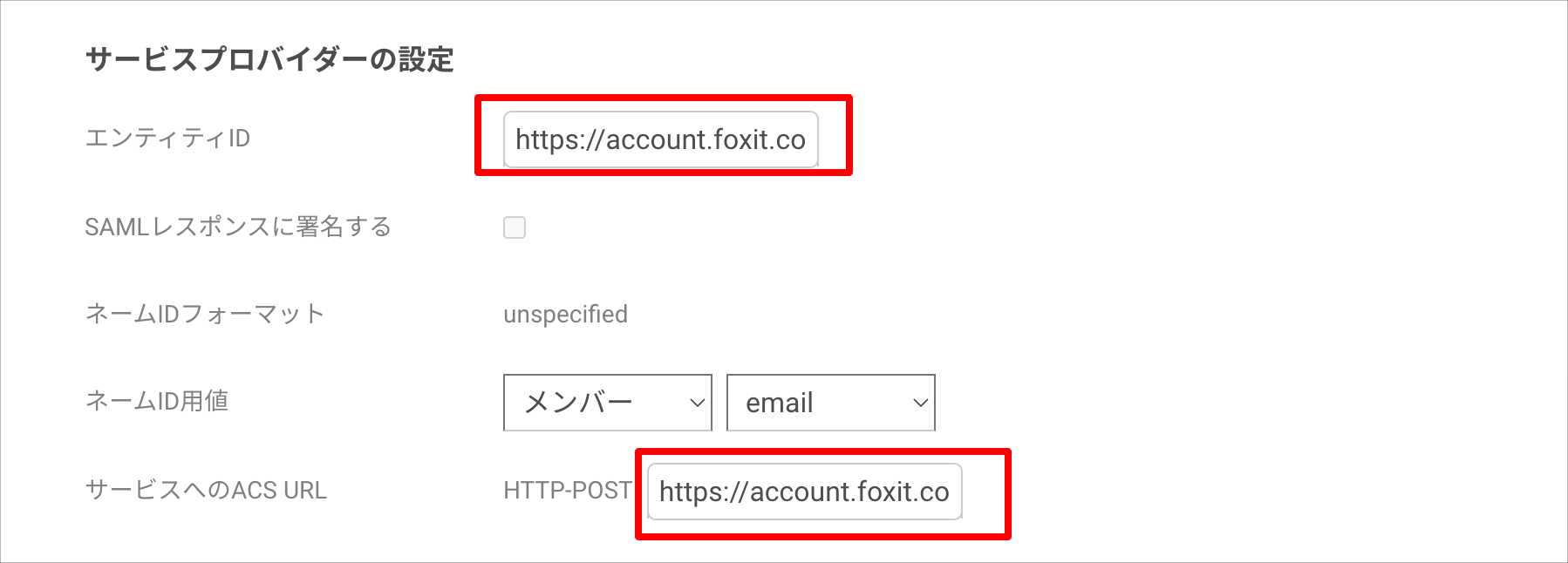

1. Configure "Service Provider Settings" as follows.


   Entity ID	The "SP Entity ID" obtained from Foxit
   ACS URL to Service	The "SP Assertion Consumer Service URL" obtained from Foxit





2. Save by clicking the "Register" button.

TrustLogin User Settings

① When a user adds the app from My Page

1. Click the "Add App" button on "My Page".
2. On the "Register App" screen, select "Foxit (SAML)" and click the "Next" button in the upper right of the screen.
3. If you want to change the "Display Name", enter it and click the "Register" button.

② When an administrator adds members

1. Search for and click the "Foxit (SAML)" app in the "Admin Page > App" menu.
2. Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.

How to Log In to Foxit

If you log in using the "Foxit (SAML)" app created in the steps above, the connection will succeed, but you will not be able to navigate to Admin Console or the product pages. For this reason, please log in using the steps below.

• Logging in to Admin Console

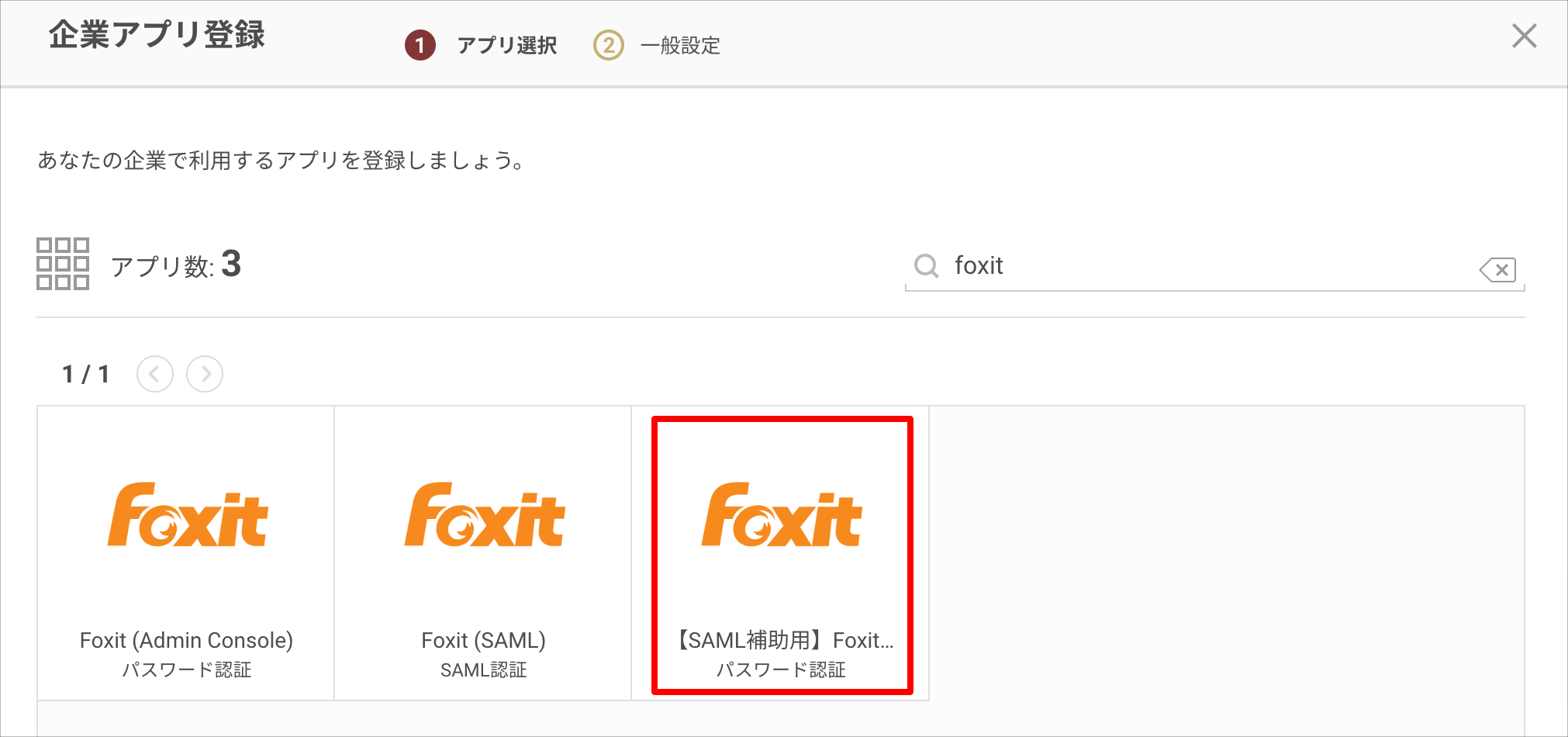

  Register the helper app "[SAML Helper] Foxit (Admin Console)" and log in from there.
  Note: This app can only be used in a PC browser.
  Note: If you use the TrustLogin mobile app, you will need to manually enter your email address during SSO login.



• Logging in to the product page from a PC browser

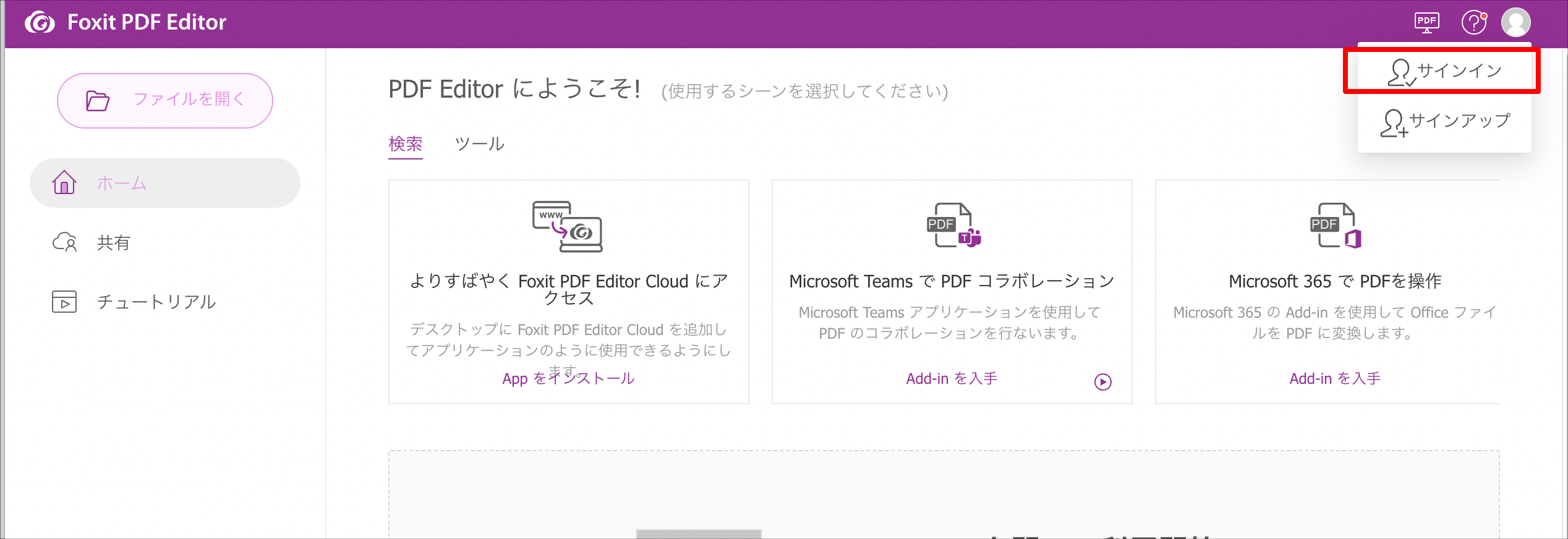

  Access the login page for each product page to open the sign-in page.
  If you are already logged in to TrustLogin, you will be taken directly to the product page.

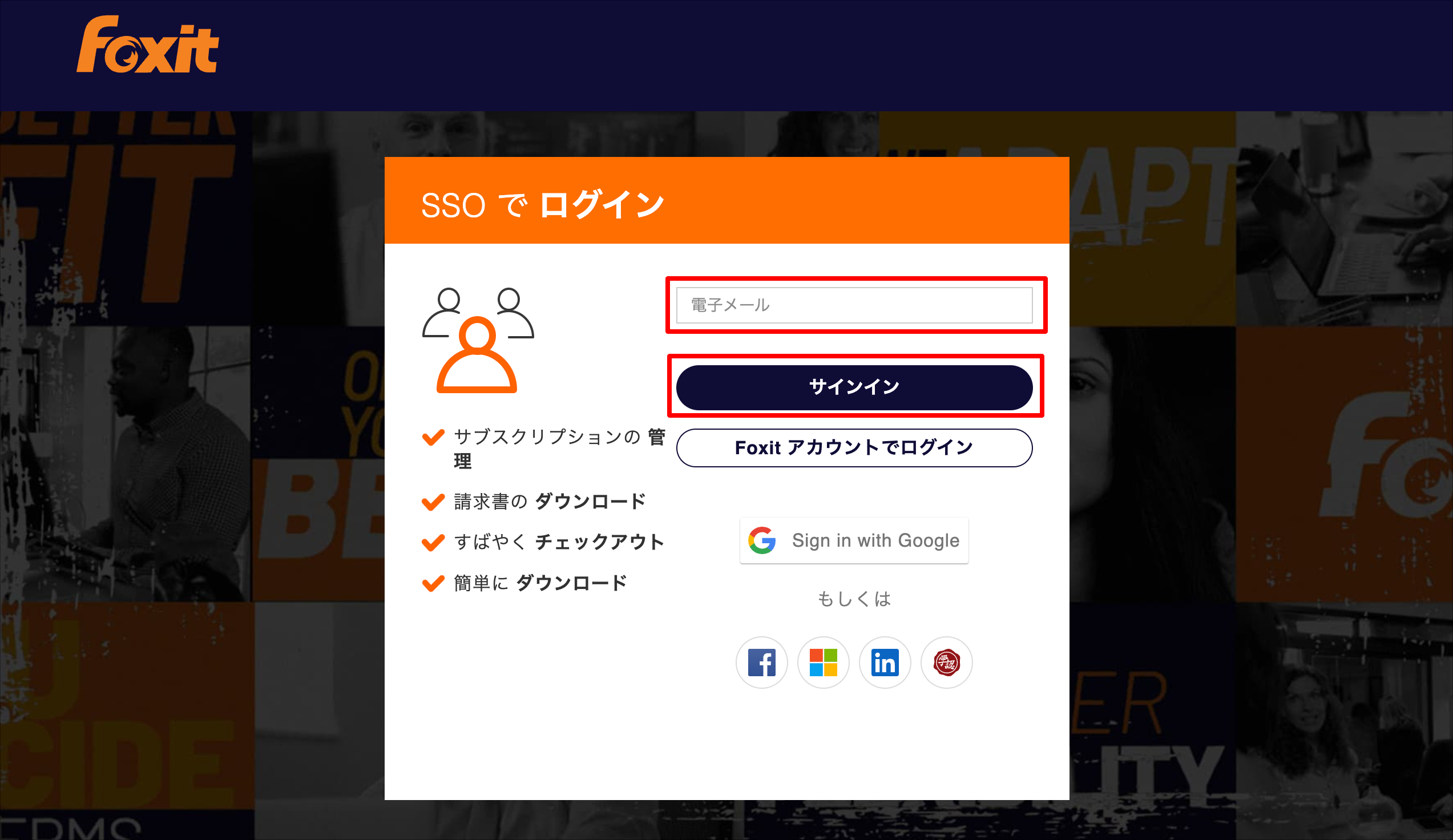

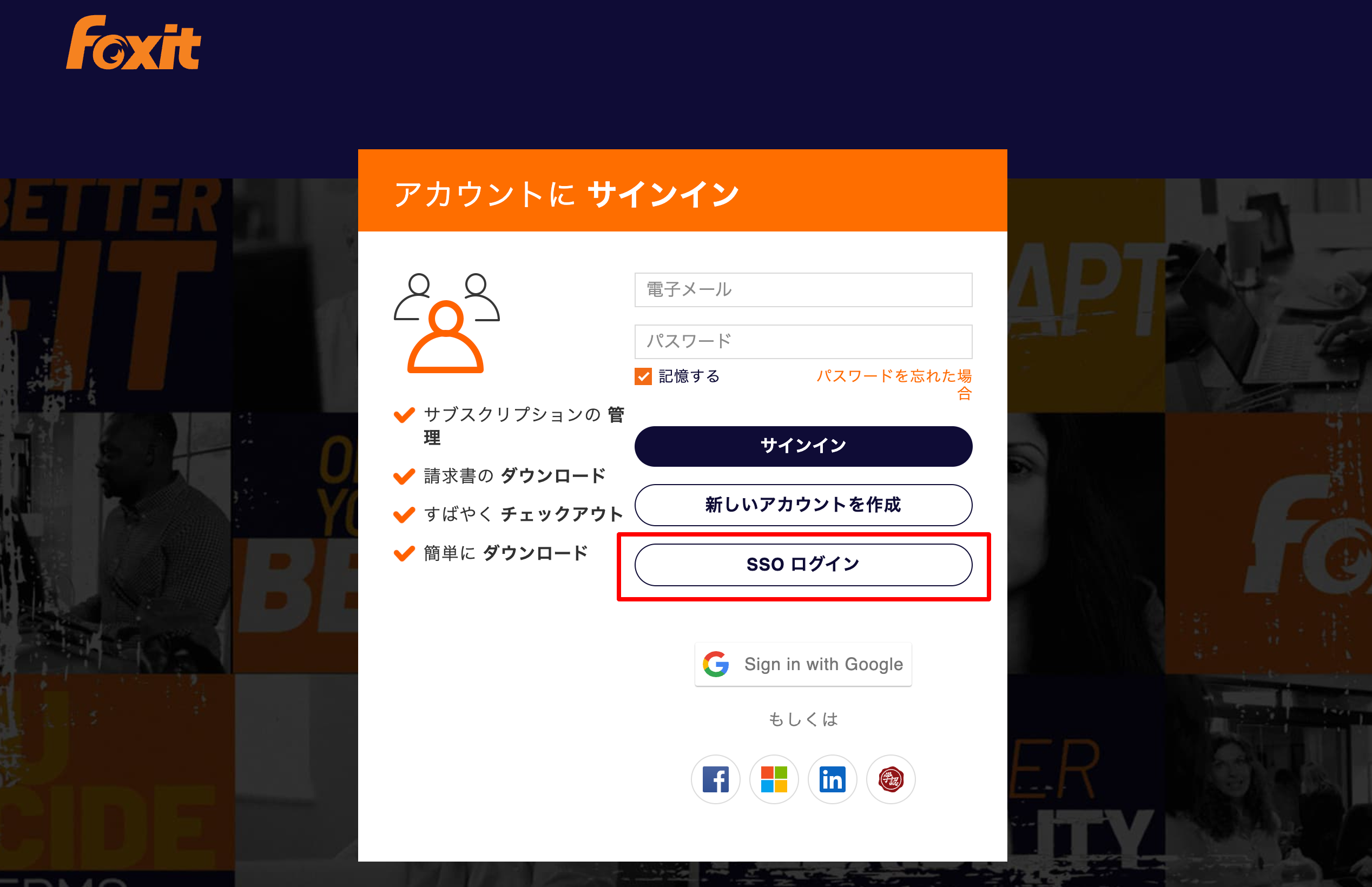

  If you are not logged in to TrustLogin, you will be redirected to the Foxit login screen, so click "SSO Login". After entering your email address and clicking "Sign In", you will be redirected to the TrustLogin login screen. Login will be complete after authentication.





• Logging in via mobile app or desktop app

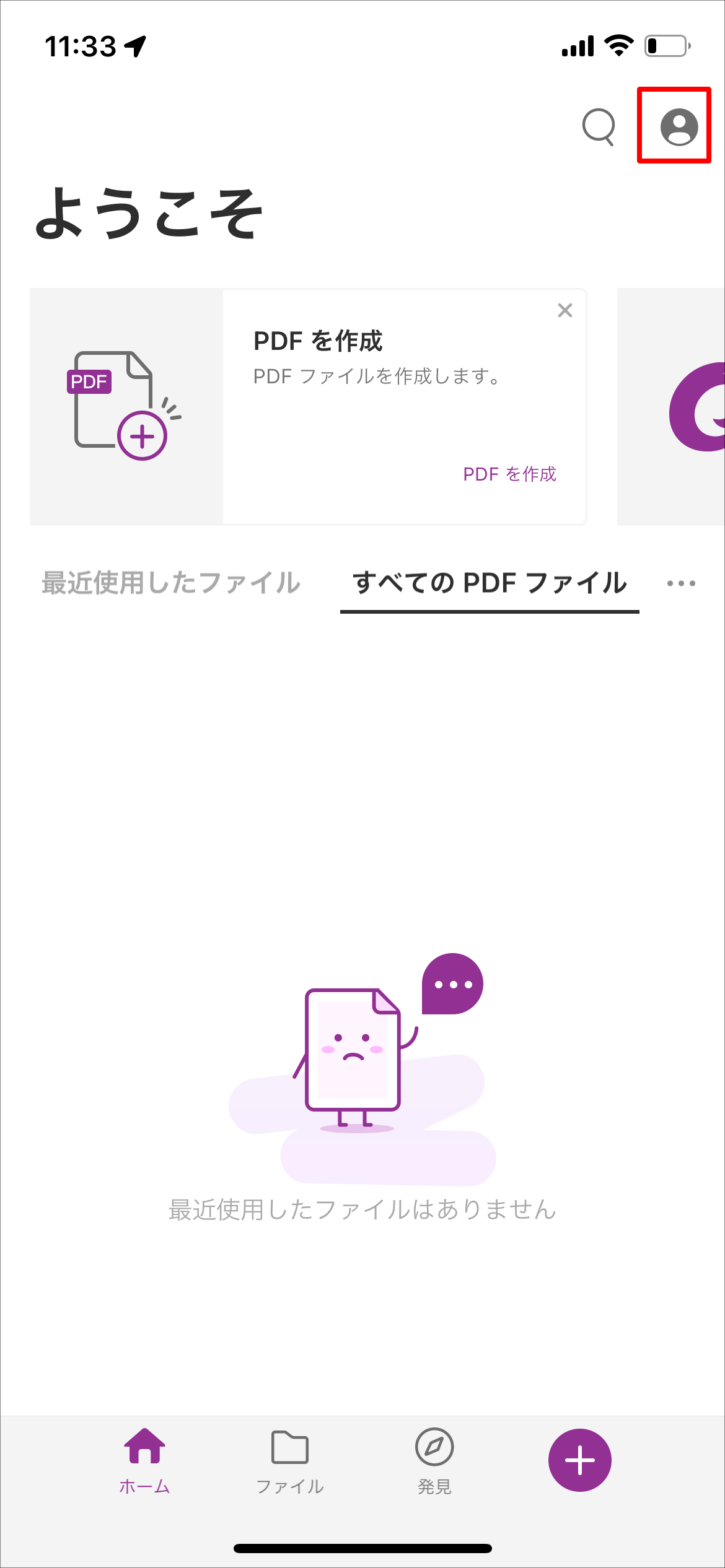

  Open the user information icon.
  (As an example, this shows the PDF Editor mobile app screen. Login is possible using almost the same steps in other apps as well.)

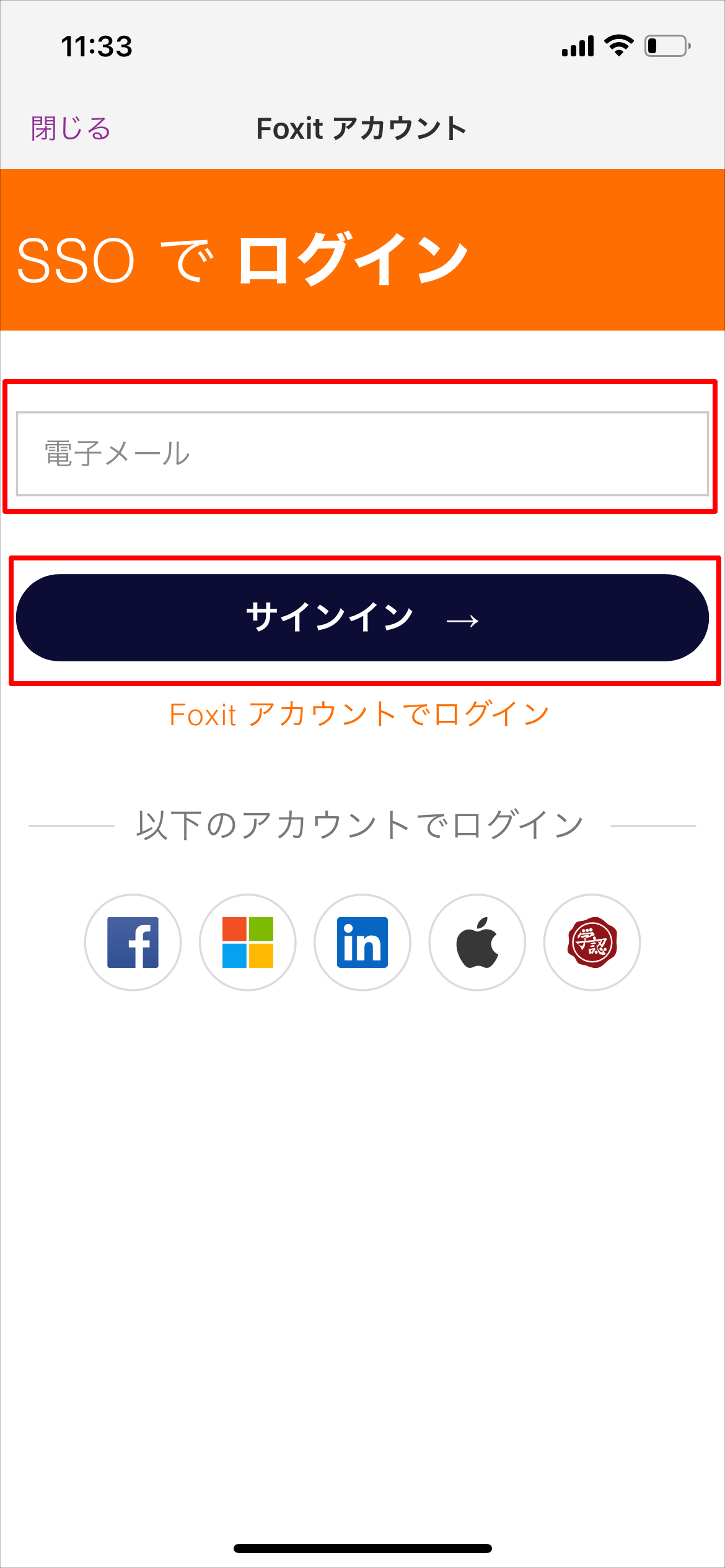

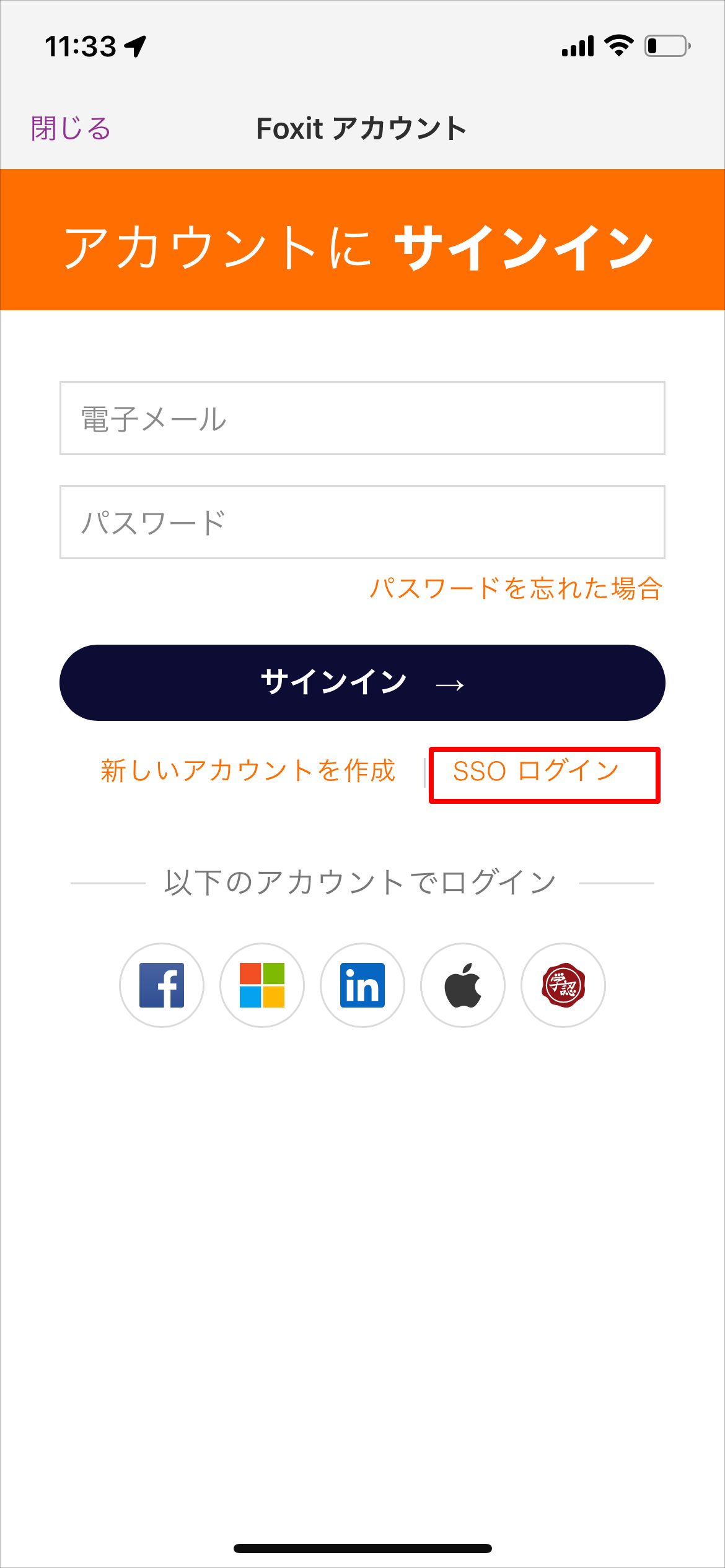

  Click "SSO Login", enter your email address, and click "Sign In".
  You will be redirected to the TrustLogin login screen. Login will be complete after authentication.
