Item |
Details |
|
|---|---|---|
|
Pre-check |
|
|
|
Name ID |
〇 |
Email address |
|
Custom attribute Note: For how to configure custom attributes, click here |
||
|
SP Configuration |
〇 |
Configured by the administrator |
|
Request SP to configure |
||
|
Provisioning |
API-based Provisioning supported (account management available in TrustLogin) |
|
| 〇 |
SAML JITProvisioning supported (new user creation only; user deletion not supported) |
|
|
|
None (accounts created in each system) |
|
|
Access Method |
〇 |
SP-Initiated SSO |
|
〇 |
IdP-Initiated SSO |
|
|
Device Compatibility |
〇 |
PC - Browser |
|
ー |
PC - Desktop App |
|
|
〇 |
iOS - Default Browser (Safari) |
|
|
〇 |
iOS - TrustLogin Mobile App In-App Browser |
|
|
ー |
iOS - Native App |
|
|
〇 |
Android - Default Browser (Chrome) |
|
|
〇 |
Android - TrustLogin Mobile App In-App Browser |
|
|
ー |
Android - Native App |
|
TrustLogin Admin Page Settings
-
Log in to TrustLogin, open the "Admin Page > App" menu, and click the "Register App" button at the top right of the screen.

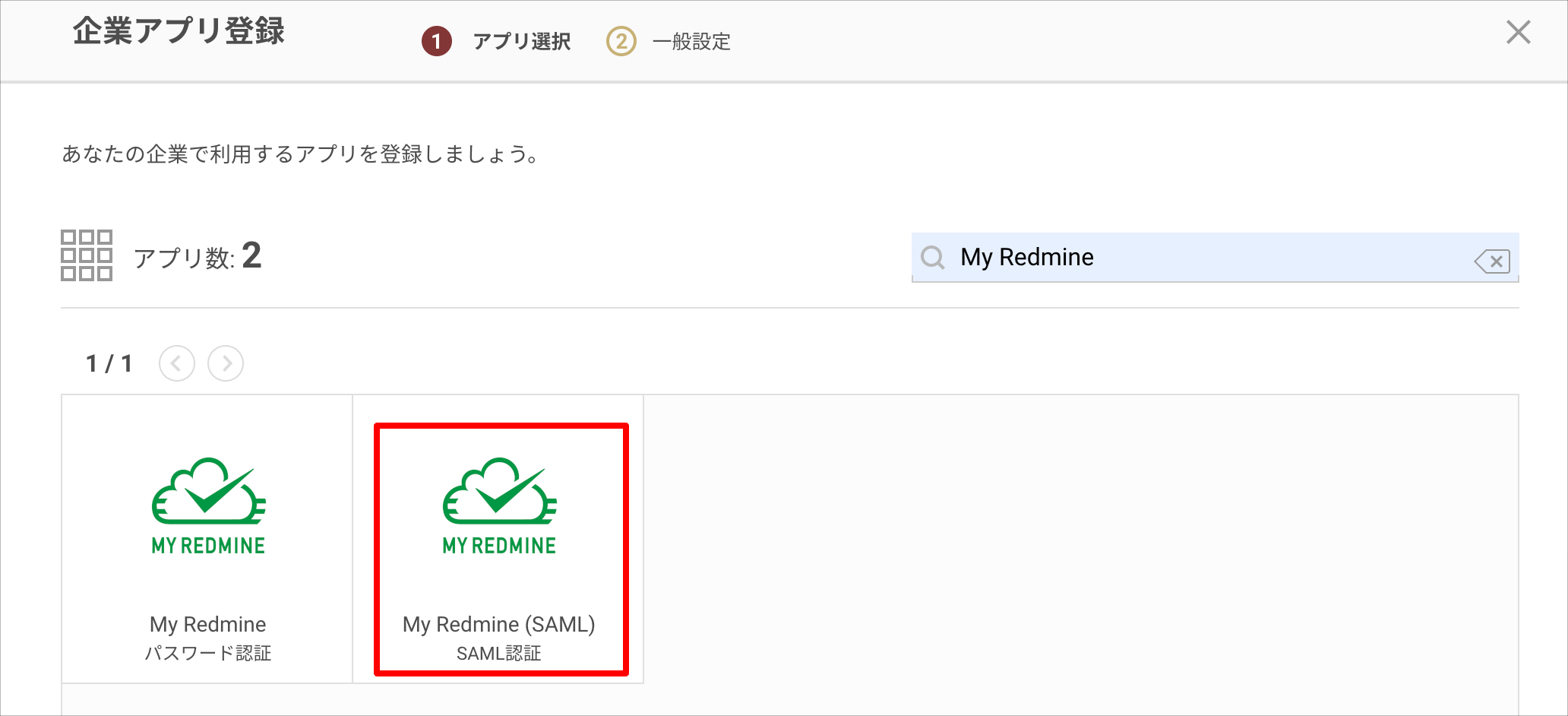

- On the "Register Company App" screen, search for and select "My Redmine (SAML)".
- Make a note of the "IdP URL" and "Issuer/Entity ID" values under "Identity Provider Information", then download the certificate from the "Get Certificate" button.
-

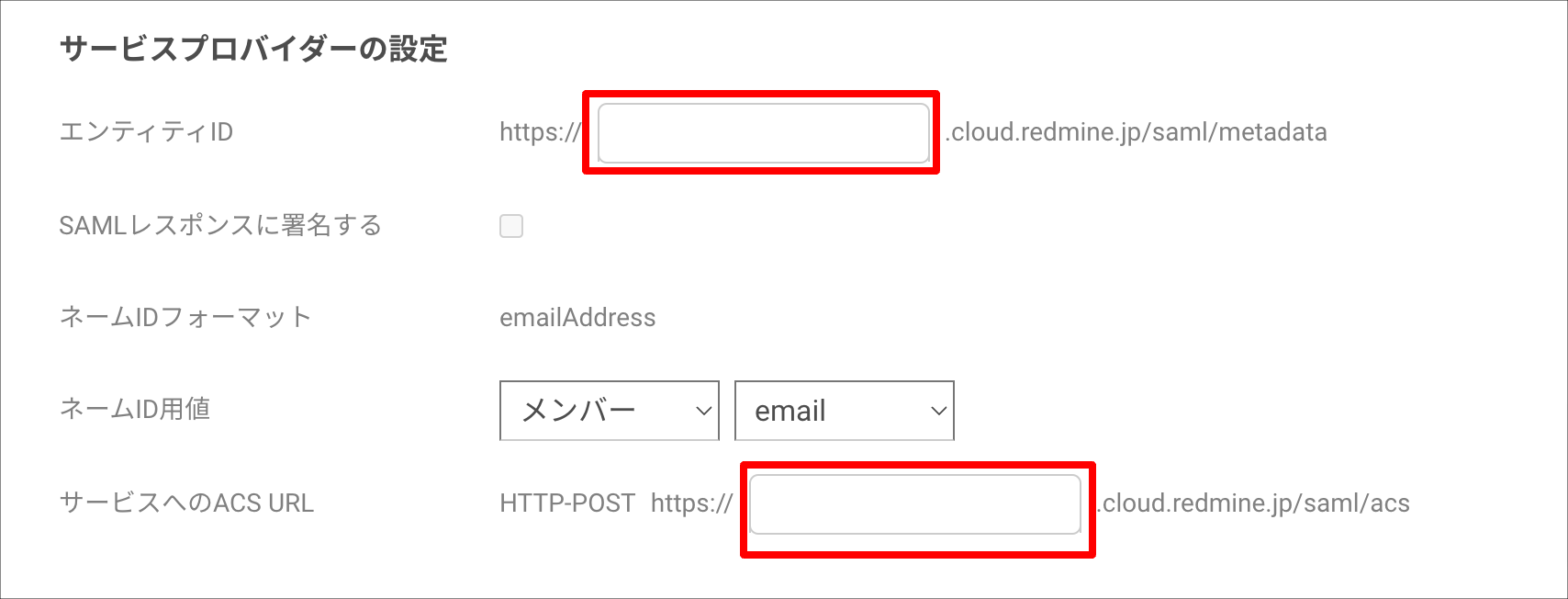

In "Service Provider Settings", enter your My Redmine account name in the blank fields for "Entity ID" and "ACS URL to Service".
If your login URL is https://xxxxx.cloud.redmine.jp/, enter xxxxx.
- Save by clicking the "Register" button.
-

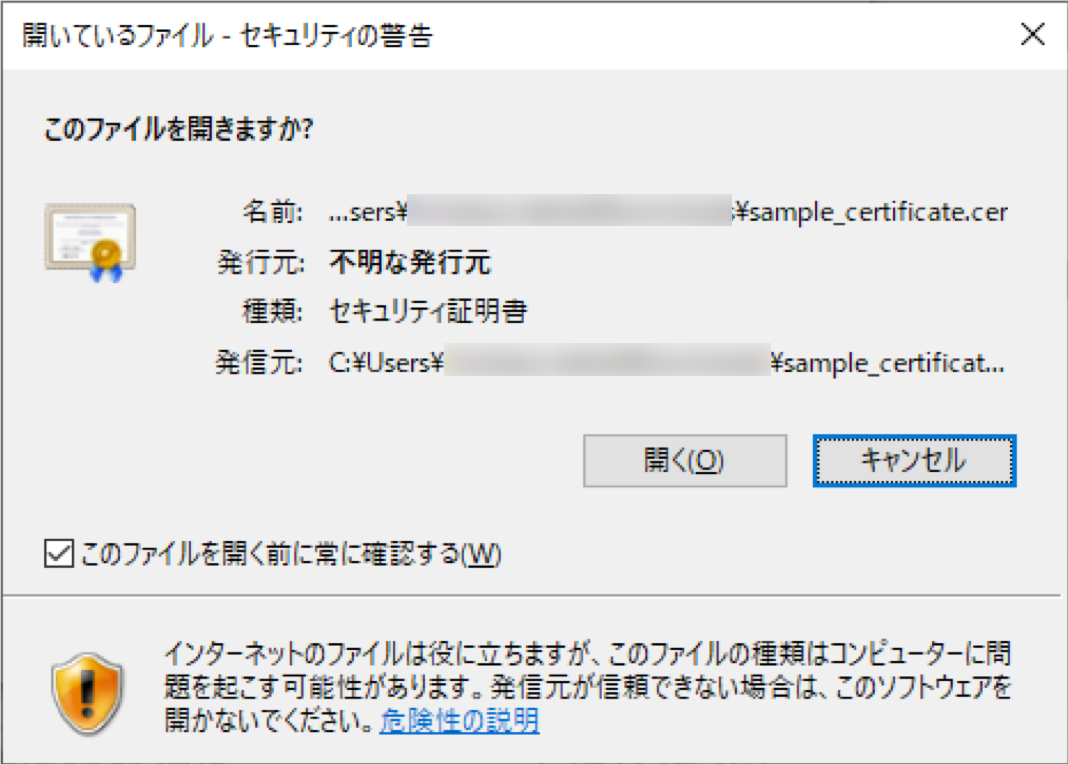

Change the extension of the downloaded certificate to [.cer] and open the file.

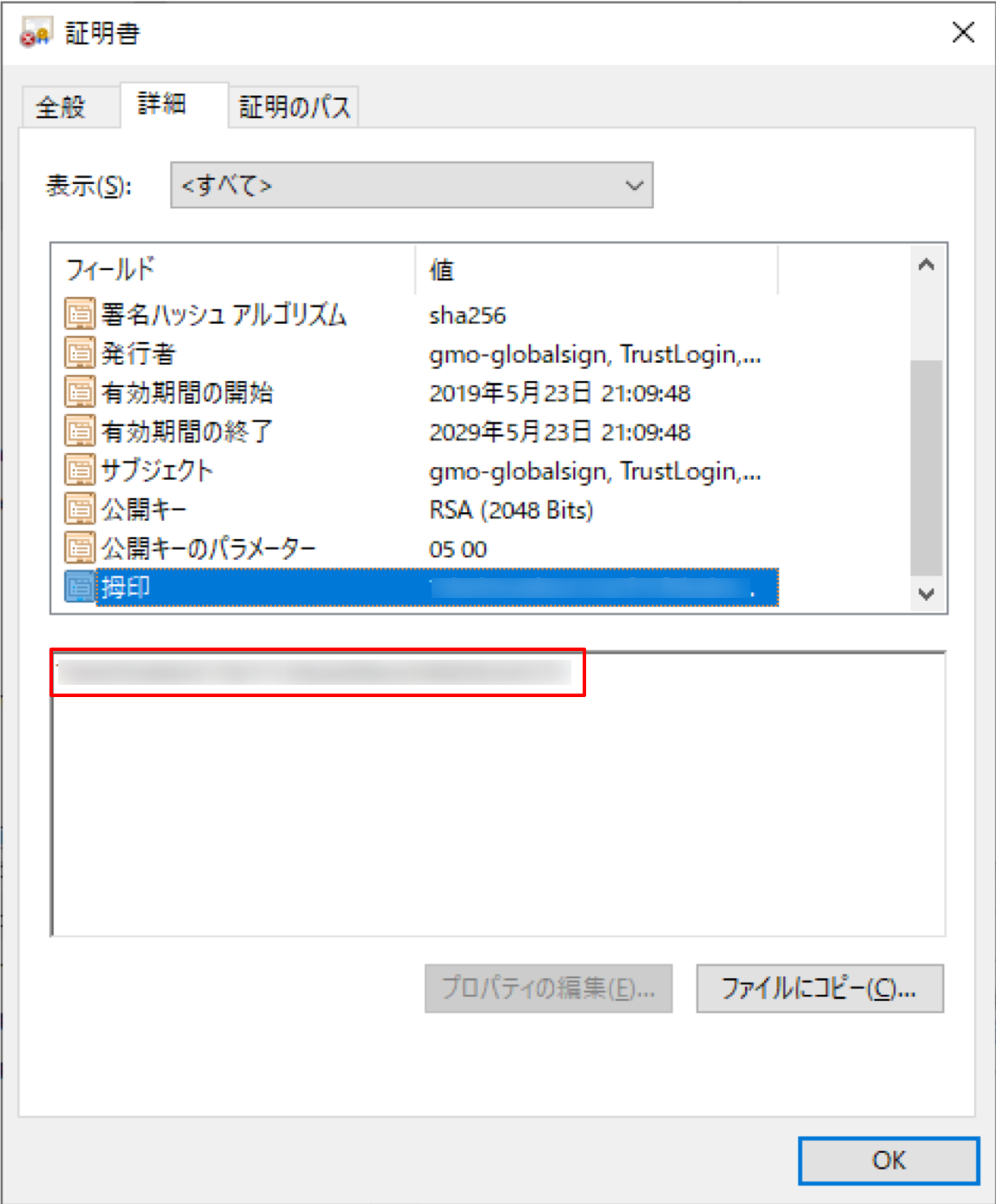

Make a note of the "Thumbprint" value in the "Details" tab.
My Redmine Settings

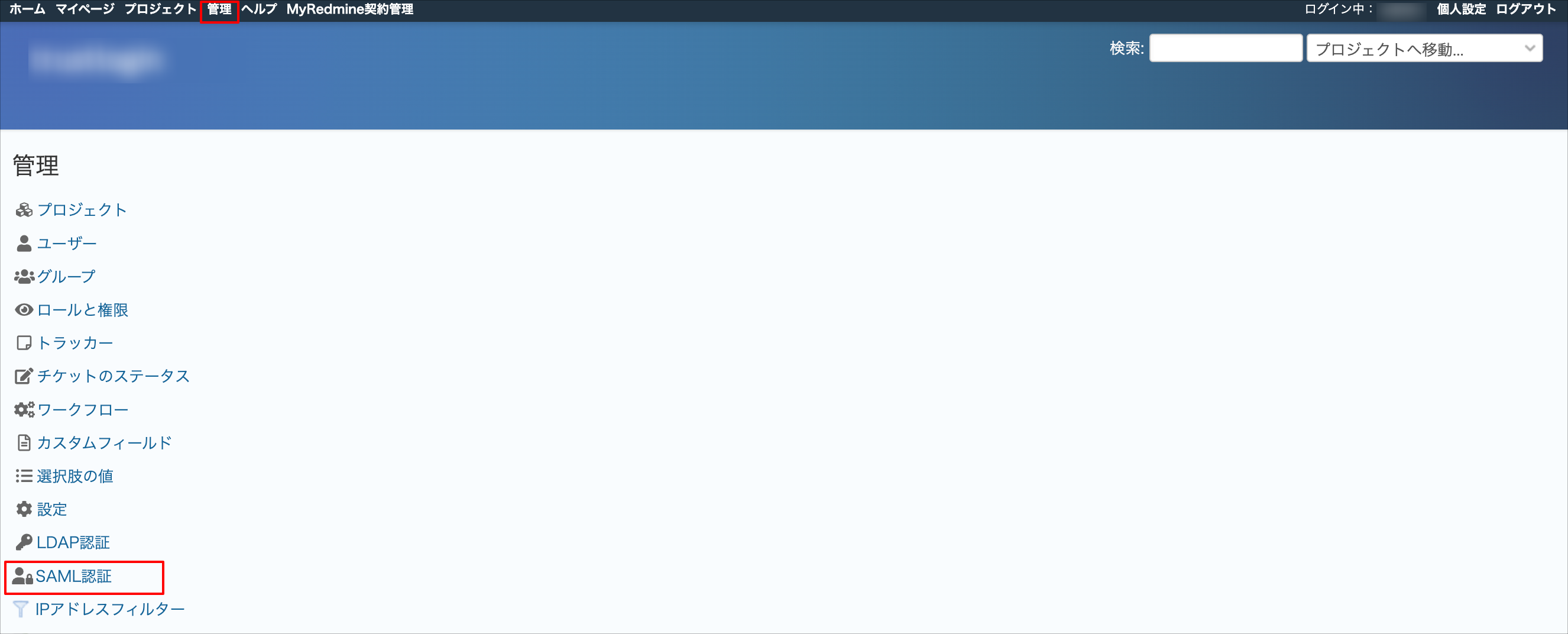

- Log in with a system administrator account and open "Administration > SAML Authentication".

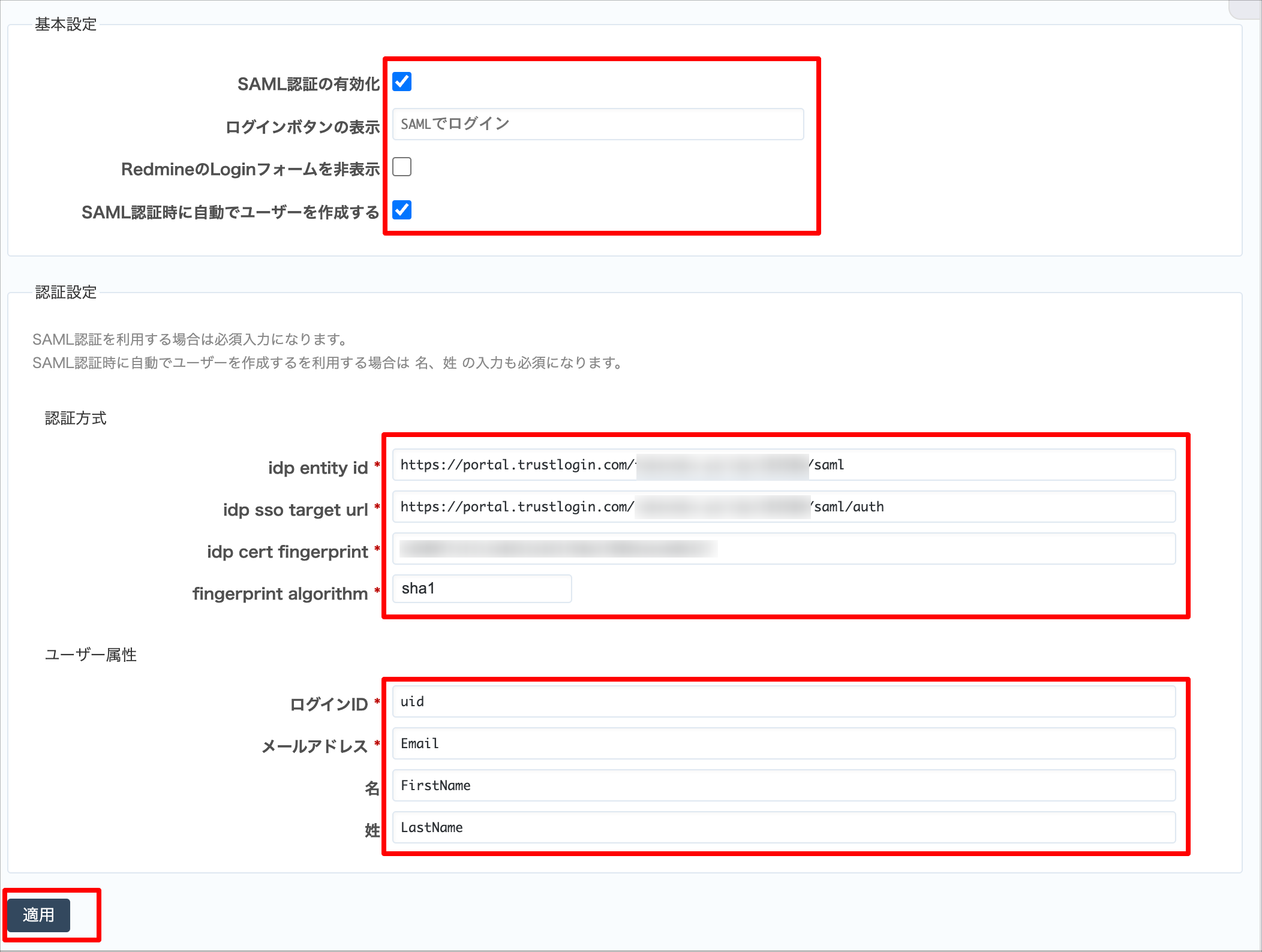

- Configure each item as follows, and save by clicking the "Apply" button.
Enable SAML Authentication ON Display Login Button This is the display name shown on the SAML login button on the login page.
You can change it to any name you like.Hide Redmine's Login Form Turning this ON hides the login ID and password fields on the login screen. Please note that this will disable login using the Redmine login ID/password. Automatically Create User on SAML Authentication ON idp entity id The "Issuer/Entity ID" obtained from TrustLogin
idp sso target url The "IdP URL" obtained from TrustLogin idp cert fingerprint The "Thumbprint" value obtained from the TrustLogin certificate
fingerprint algorithm Select "sha1" Login ID uid Email address Email FirstName Last Name LastName
TrustLogin User Settings
① When a user adds the app from My Page
- Click the "Add App" button on "My Page".
- On the "Register App" screen, select "My Redmine (SAML)" and click the "Next" button at the top right of the screen.
- If you want to change the "Display Name", enter it and click the "Register" button.
②When an administrator adds members
- Search for and click the "My Redmine (SAML)" app in the "Admin Page > App" menu.
- Click "Add Member", select the user to add from the member list, and click the "Register" button to add them.
